Mirage Series

Lorex M10 - 4K Spotlight Outdoor Battery Security Camera (Add-On)


Become a Partner and Log in to see pricing and to place orders

Product Features

  • Ultra HD Resolution
  • Smart Deterrence
  • Smart Motion Detection
  • Battery-Operated Cameras
  • Color Night Vision
  • Two-Way Audio

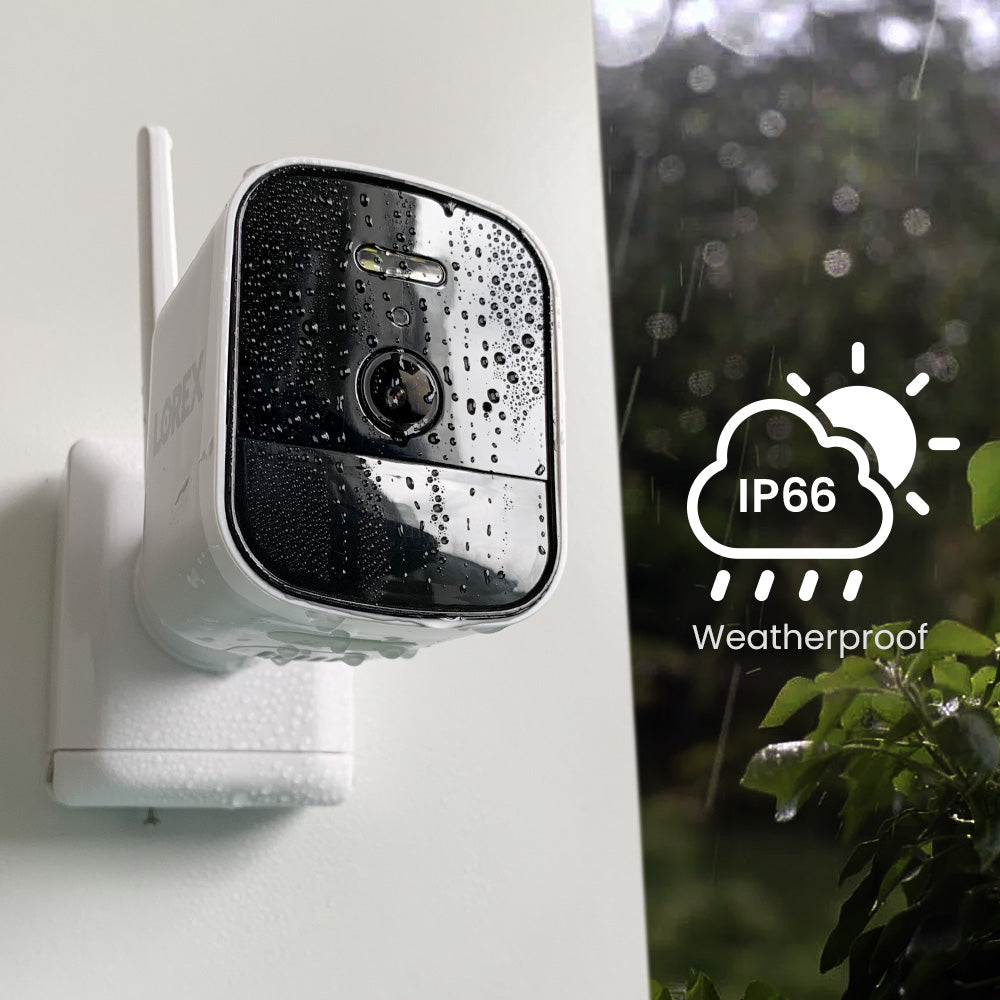

  • IP66 Weatherproof Rating

Enjoy the versatility of battery-operated cameras, losing the cables but not the coverage. See the finest details with superior 4K Resolution and Color Night Vision and never a miss a thing with Person Detection.

In-Camera Video Analytics

  • Person Detection Person Detection
Sensor Resolution 8 MP
Resolution 3840 × 2160
Aspect Ratio 16:9
Min. Colour Illumination 0.05lux @ F1.2(AGC ON)
Min. B/W Illumination 0 lux @ IR ON
Video Transmission Wi-Fi HaLow (<1GHz)
Diagonal Field of View 138°
Horizontal Field of View 178°
Vertical Field of View 61°
Color / Material White or black / plastic
Person Detection Yes
Two-Way Talk Yes
Deterrence Lights and Siren
Night Vision Distance (max.) 40ft / 12m
PIR Distance (max.) 35ft / 10m
Transmission Distance (max., outdoors, line of sight) 1968ft / 600m
Operating Temperature/ Humidity -20°C ~ +50°C / Less than 90% RH Startup : -10°C ~ +50°C”
Ingress ProtectionI IP66
Current max 725mA (active) / 218uA (sleep)
Voltage 5 VDC

What's Included

U855AA Parts 1
U855AA Parts 2
  1. Antenna
  2. Warning Light
  3. Light Sensor
  4. Microphone
  5. IR Light
  6. Fastener
  7. Adjustment Ring
  8. Battery Release Tabs (x2)
  9. PIR Sensor
  10. Pairing Button
  11. MicroSD slot
  12. Speaker
  13. Power Port
  14. Locking Screw
  15. Battery Charging Indicator
  16. Mounting Plate Slots

Package Contents:

4K Battery


Power Supply



4 × Mounting
Anchors & Screws

Product Compatibility

Product Support

L8559 Series - 4K NVR & Battery-Operated Camera System
