Person Detection
Vehicle Detection
Download Full Specs
You are now leaving the Lorex for Business website. Would you like to continue to Lorex’s consumer site?
Product Features
- Ultra HD Resolution
- Smart Deterrence
- Smart Motion Detection
- Smart Security Lighting
- Color Night Vision
- Two-Way Audio
- IP67 Weatherproof Rating

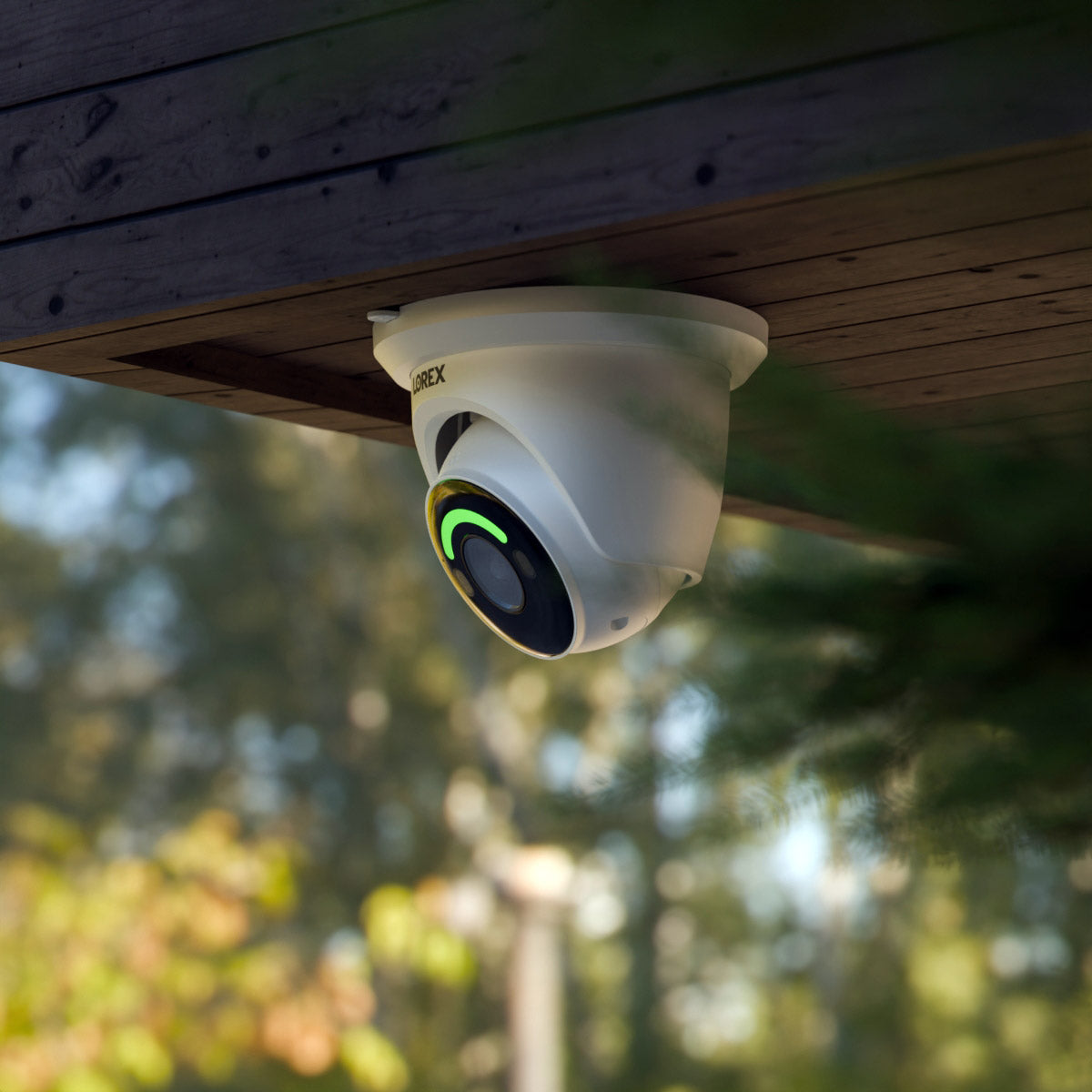

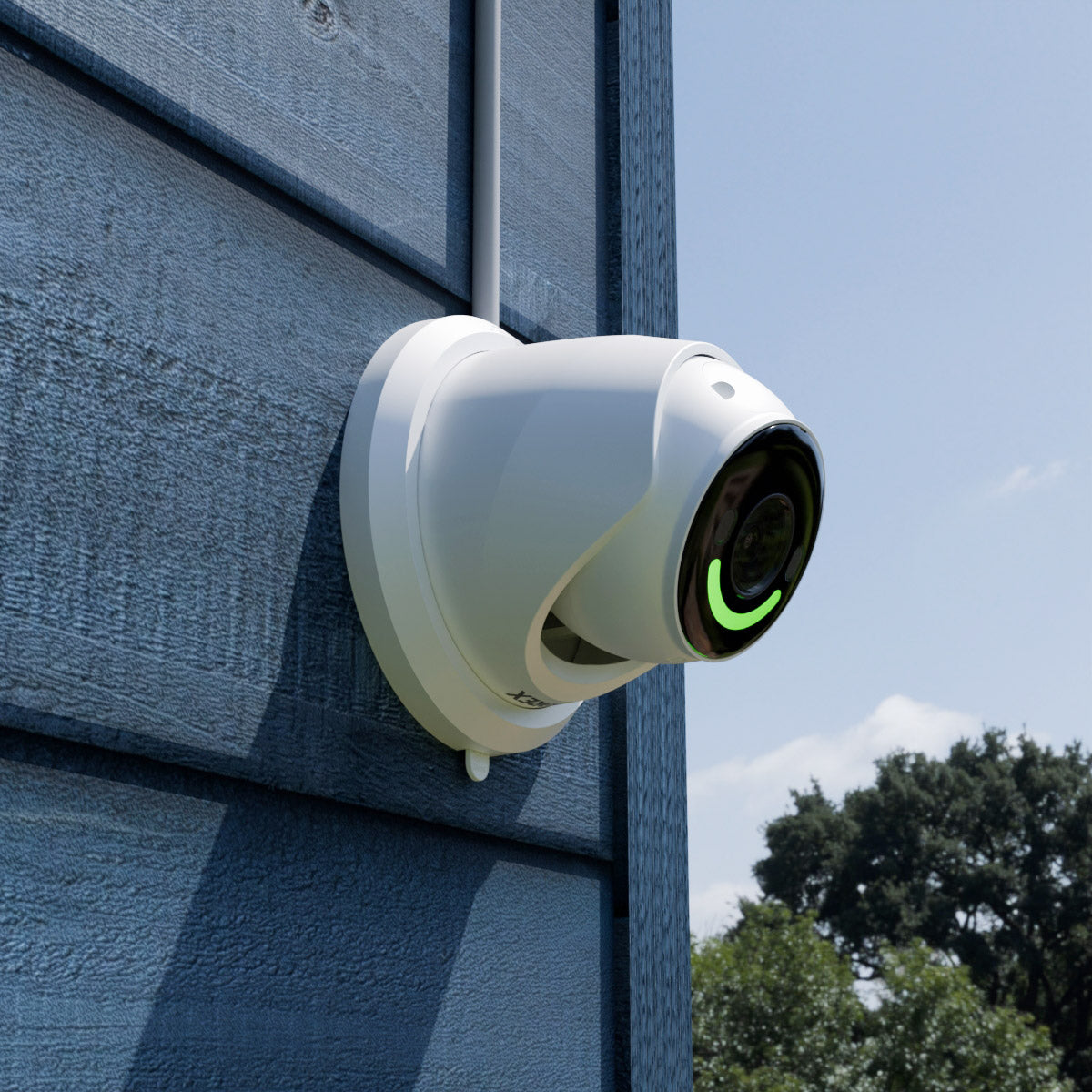

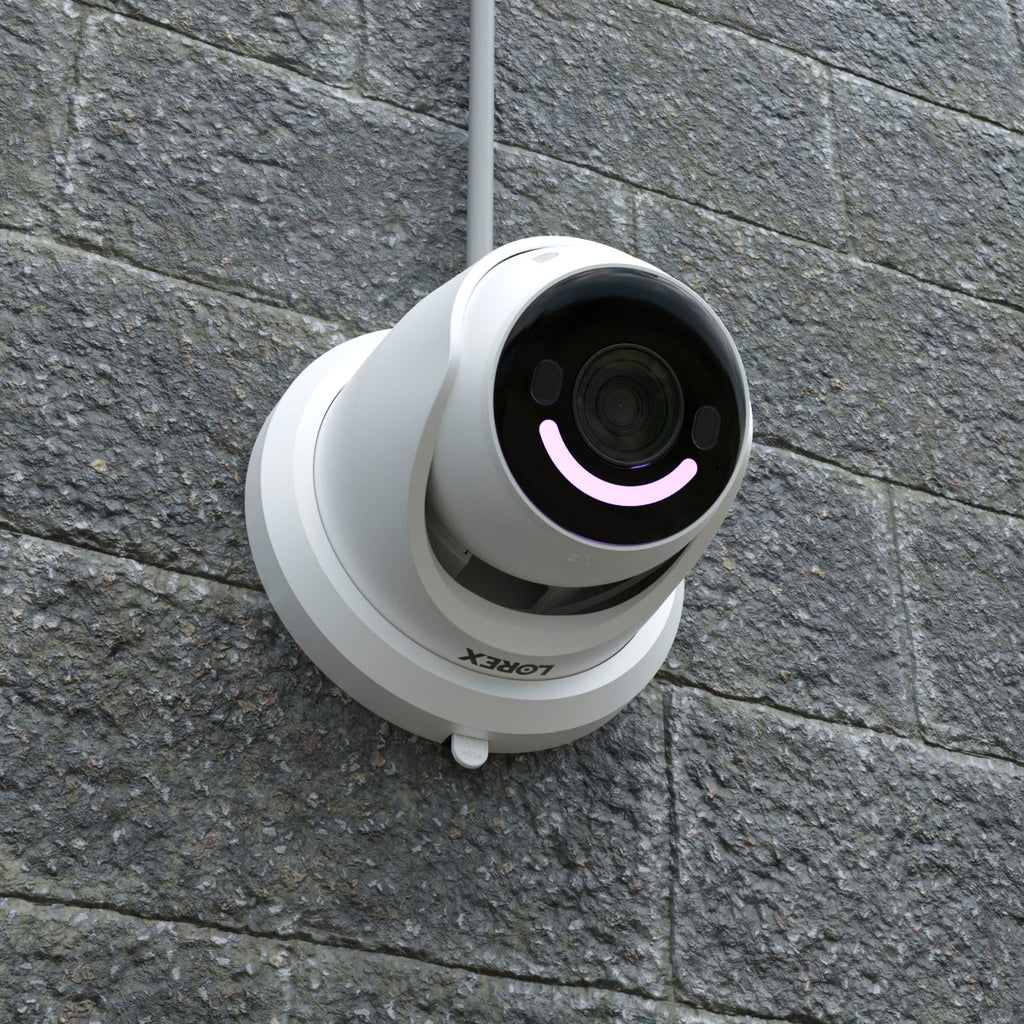

Introducing a premium security camera with all the features you need to protect your property - The Lorex 4K IP Wired Dome Security Camera, a perfect upgrade for your NVR security system.
In-Camera Video Analytics
Product Specifications
| General | |
|---|---|
| Video Transmission Technology | IP |
| Image Sensor | 1/2.7” CMOS |
| Video Format | NTSC |
| Video Compression | H.265/H.264 (Main Stream & Sub Stream) |
| Optical | |
|---|---|
| Viewing Angle (H ×V ×D) | 106° × 56° × 125° |
| Lens/Lens type | 2.8mm F2.0 / Fixed |
| Video Output | |
|---|---|
| Resolution / Frame Rate | 4K/8MP@15fps, 5MP@30fps, 1080p@30fps, 720p@30fps |
| Effective Pixels | 3840 (H) × 2160 (V) |
| HDR | Yes |
| Network Port | RJ45 |
| Audio | |
|---|---|
| Microphone / Speaker | Yes / Yes |
| Siren | Yes (Siren sound options available) |
| Two-way Talk | Yes |
| Night Vision | |
|---|---|
| IR Night Vision Range | 98.43 ft / 30 m |
| Color Night Vision | Yes |
| Special Features | |
|---|---|
| Smart Motion Detection | Yes - Person and Vehicle Detection |
| Detection Types | Vehicle, Person |
| Supports in App Quick Messaging | Yes |
| Active Deterrence | Yes - Warning Light + Siren + Pre Recorded Message |
| Smart Security Lighting | Yes |
| Additional Specifications | |
|---|---|
| Camera Housing Material | Aluminum Alloy |
| SD Card Slot | Yes* |
| Power Requirements | PoE (Power over Ethernet Class -802.3af) / 12V DC |
| Power Consumption (max) | 9.6W (DC12V), 11W (POE) |
| Camera Dimensions (W × H) | 5.6 × 4.7” / 142 × 119 mm |
| Camera Weight | 1.51 lbs / 0.68 kg |
| Operating Temperature | -40 °F to 140 °F / -40 °C to 60 °C |
| Humidity | ≤ 95% RH |
| Environmental Rating | IP67 (Indoor/Outdoor) |
*A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing
What's Included
- Ethernet Connector
- 12V DC Power Connector
- Mounting Bracket
- Cable Notch
- MicroSD Card Slot
- Reset Button
- Speaker & Siren
- Smart Security Lighting
- Microphone
- Warning lights (2×)
- Camera Lens
- IR Sensor
Package Contents:
4K Dome Camera
Mounting Kit
Mounting Bracket
Product Compatibility
Product Support

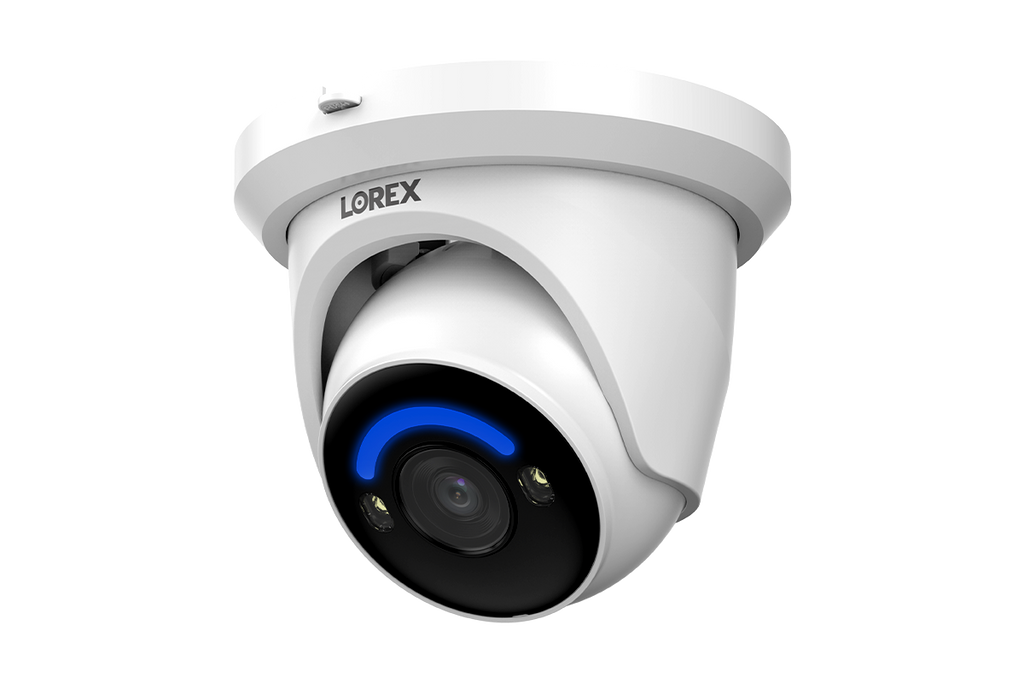

E863SD Series - 4K Deterrence Dome AI PoE IP Wired Camera
