Product Features
- Advanced Image Processing
- Video Ranging
- Fire Detection
- Simultaneous Multi-user Connections
- Diopter Adjustment
- Laser Eye Protection
- Portable and Low Power Consumption

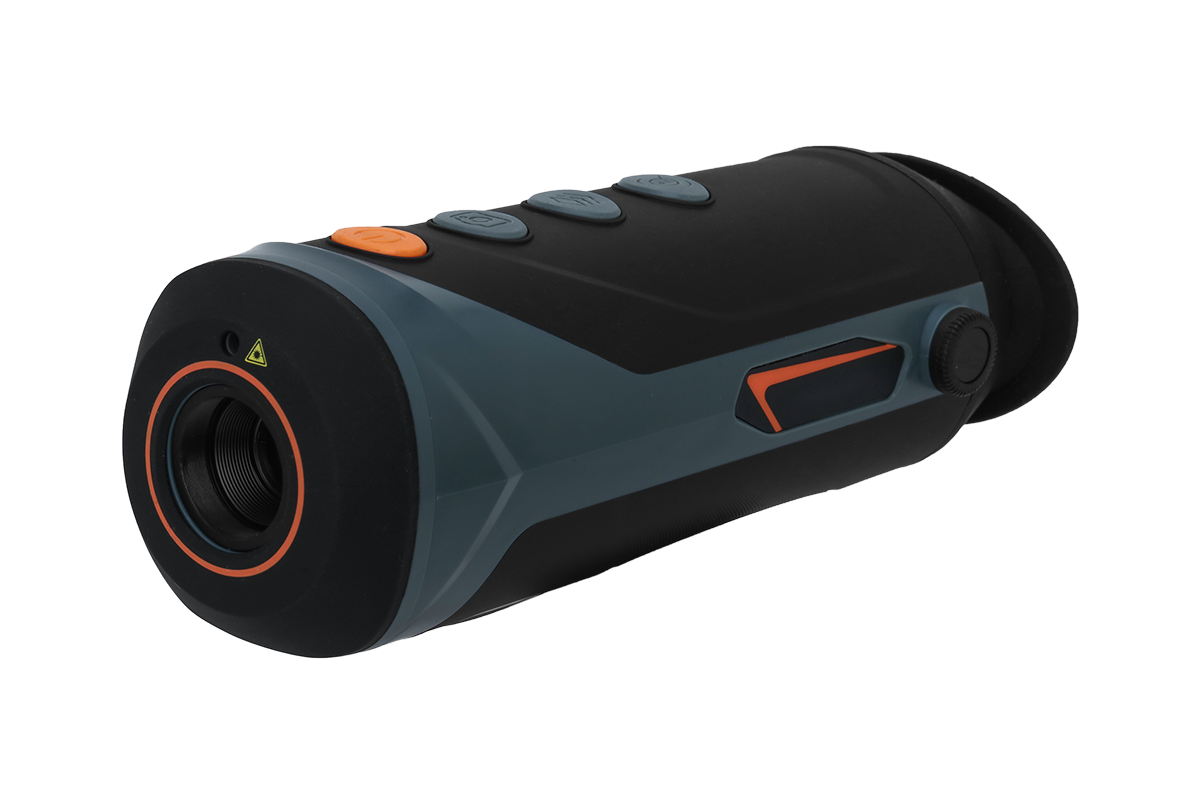

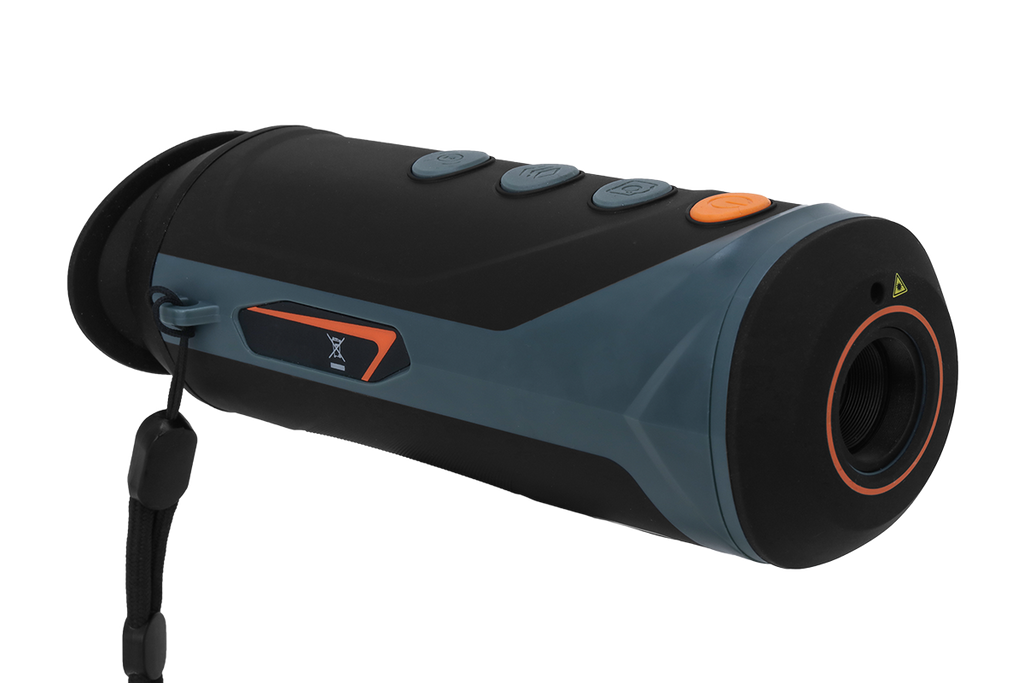

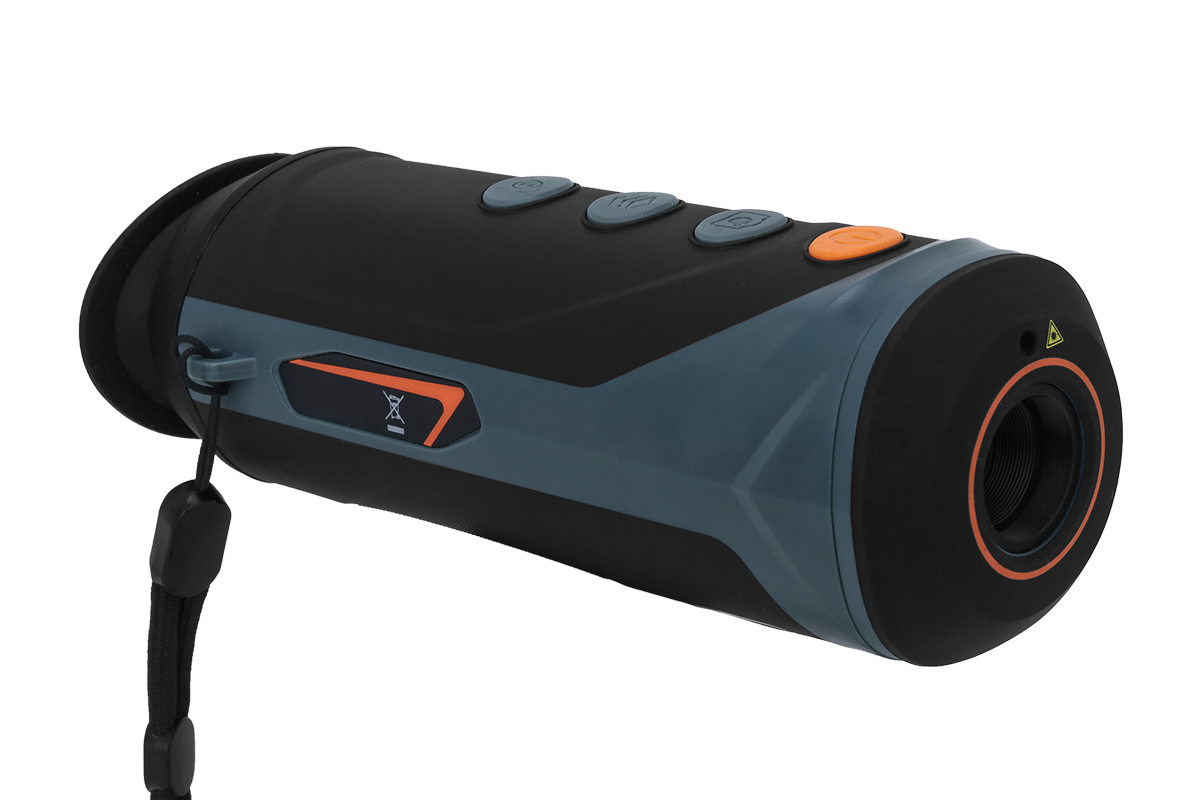

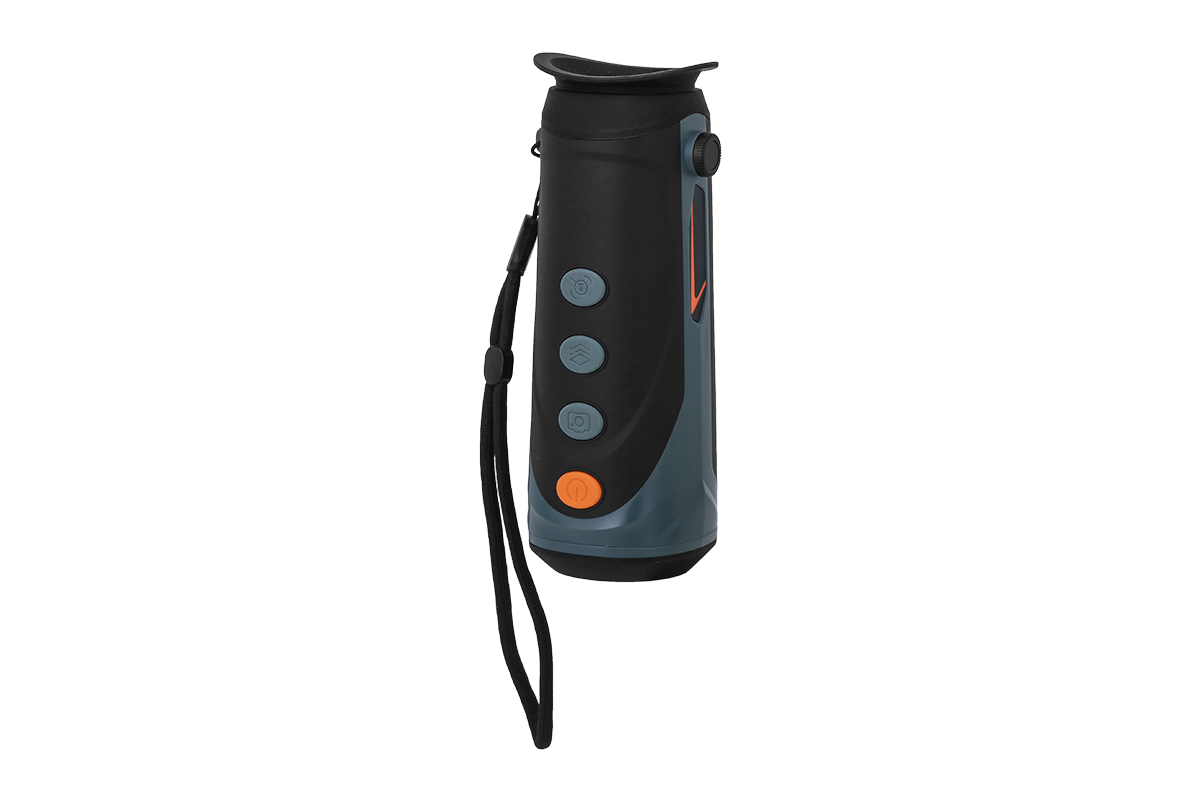

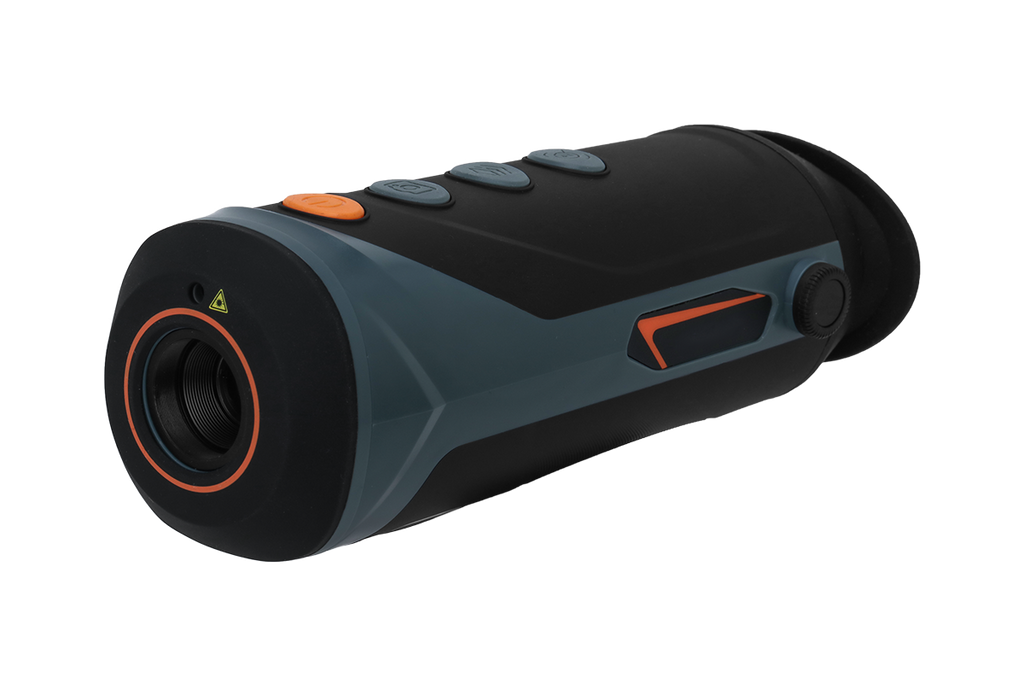

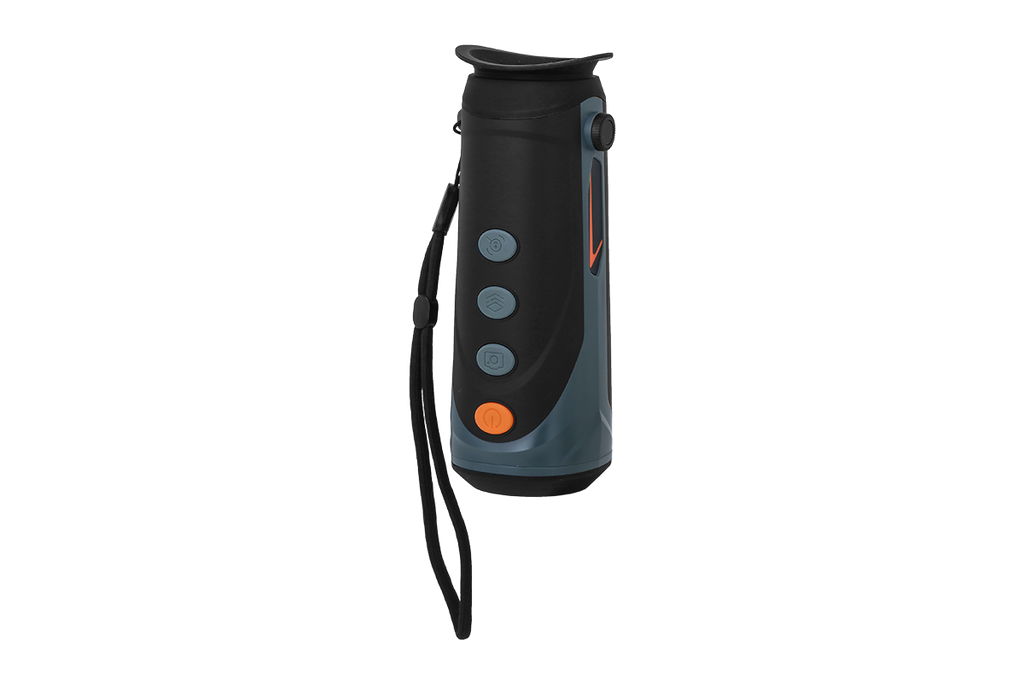

See the heat with the Thermal Monocular Camera. Rather than visible light, thermal cameras use different levels of infrared energy or heat to create an image. This allows it to easily detect people, animals, and objects in all kinds of environments, including complete darkness, haze, or glaring light. Perfect for first responders, hunters and outdoor enthusiasts.
Product Specifications
| General | ||||
|---|---|---|---|---|
| Appearance | Thermal Monocular Camera | |||
| Type | Monitor | |||
| Thermal | ||||
|---|---|---|---|---|
| Detector Type | Vanadium oxide uncooled focal plane detector | |||
| Effective Pixels | 256 × 192 | |||
| Pixel Pitch | 12 μm | |||
| Spectral Range | 8 μm–14 μm | |||
| Sensitivity (NETD) | ≤50 mK@f/1.0 | |||
| Focal Length | 7.5 mm; 10 mm; 15 mm | |||
| Aperture | F1.0 | |||
| Field of View | 7.5 mm (H: 24.0°; V: 18.0°) 10 mm (H: 17.3°; V: 13.1°) 15 mm (H: 11.7°; V: 8.8°) |
|||
| Focus Control | Fixed-focal | |||
| Close Focus Distance | 7.5 mm 1 m (3.28 ft) 10 mm 2 m (6.56 ft) 15 mm 3 m (9.84 ft) |
|||
| DRI Detection Distance | Focal Length | Detection Distance | Recognition Distance | Identification Distance |
| 7.5 mm | Vehicle: 777 m (2,549.21 ft) Human: 291 m (954.72 ft) |
Vehicle: 194 m (636.48 ft) Human: 75 m (246.06 ft) |
Vehicle: 97 m (318.24 ft) Human: 37 m (121.39 ft) |
|
| 10 mm | Vehicle: 1,111 m (3,645.01 ft) Human: 416 m (1,364.83 ft) |
Vehicle: 277 m (908.79 ft) Human: 107 m (351.05 ft) |
Vehicle: 97 m (318.24 ft) Human: 53 m (173.88 ft) |
|
| 15 mm | Vehicle: 1,666 m (5,465.88 ft) Human: 625 m (2,050.52 ft) |
Vehicle: 416 m (1,364.83 ft) Human: 160 m (524.93 ft) |
Vehicle: 208 m (682.41 ft) Human: 80 m (262.47 ft) |
|
| Digital Zoom | 4 levels | |||
| Color Palettes | 4 (white hot; alarm; rainbow; iron red) | |||
| Display | |
|---|---|
| Video Compression | H.265 |
| Frame Rate | 50 Hz |
| Display Screen Dimensions | 0.2 inch |
| Resolution | 720 × 540 |
| Certification | |
|---|---|
| Certification | FCC: DHQA-ESH-P22030967B CE: 479742742-3 RCM: RCMD23245 001 UKCA: 4790742742-1, 4790742742-2, 4790742742-3, 4790742742-4 |
| Function | |
|---|---|
| Storage | Micro SD card (Max. 256G) |
| Laser Aiming | 180 m (590.55 ft), Class 2 (IEC 60825-1) |
| Intelligence | |
|---|---|
| Fire Detection | Yes |
| Cold/Hot Spot Trace | Yes |
| Port | |
| Analog Output | 1 × CVBS output |
| Wi-Fi Hotspot | Yes |
| USB | Micro USB |
| Power | |
|---|---|
| Power Supply | 5 VDC, 0.3 A or built–in battery |
| Battery Capacity Display | Yes |
| Power Consumption | <1.5 W |
| Battery Life | >9 h (Wi-Fi hotspot off, @25°C) |
| Charging Time | <3 h |
| Environment | |
|---|---|
| Operating Temperature | –20 °C to +55 °C (–4 °F to +131 °F) |
| Operating Humidity | ≤90% |
| Storage Temperature | –20 °C to +60 °C (–4 °F to +140 °F) |
| Physical Characteristics | |
|---|---|
| Protection | IP67 |
| Product Dimensions | 170.9 mm × 57.6 mm × 58.6 mm (6.73" × 2.27" × 2.31") (L × W × H) |
| Packaging Dimensions | 205 mm × 148 mm × 111 mm (8.07" × 5.83" × 4.37") (L × W × H) |
| Net Weight | 350 g (0.77 lb) |
| Gross Weight | 1 kg (2.20 lb) |
| Installation | Handheld; tripod |
| Power Adapter | Included |
| Lens | Included |
| Bracket | Optional |
| Drop Test Height | 2 m (6.56 ft) |
What's Included
Package Contents:
- 1 × Thermal Monocular Camera
- 1 × USB cable
- 1 × Power adapter
- 1 × UK power plug
- 1 × US power plug
- 1 × AU power plug
- 1 × EU power plug
- 1 × Pouch
- 1 × Lanyard
- 1 × QSG insert
Product Compatibility
Product Support
ACH20 Series - Thermal Monocular Camera
