H Series

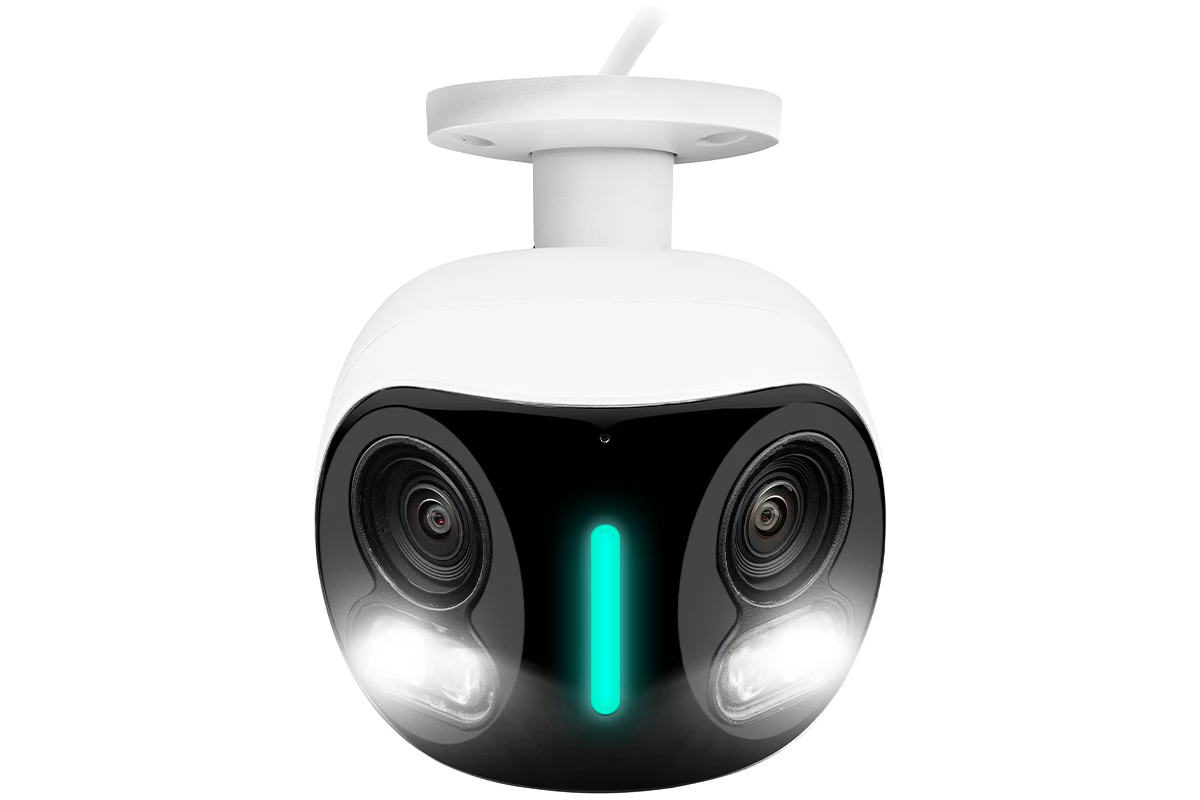

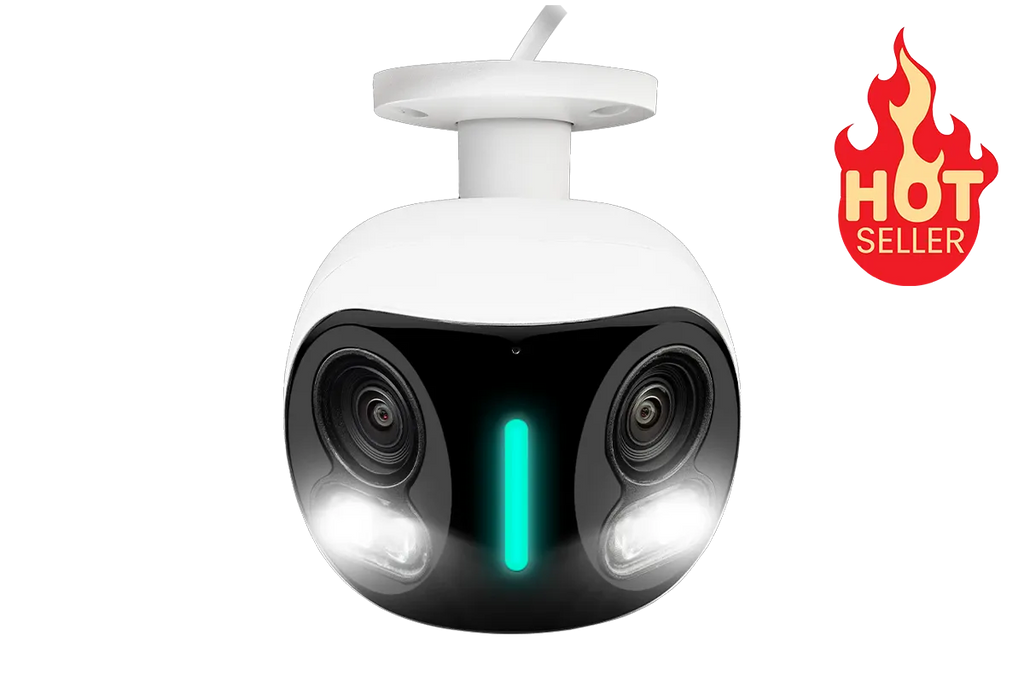

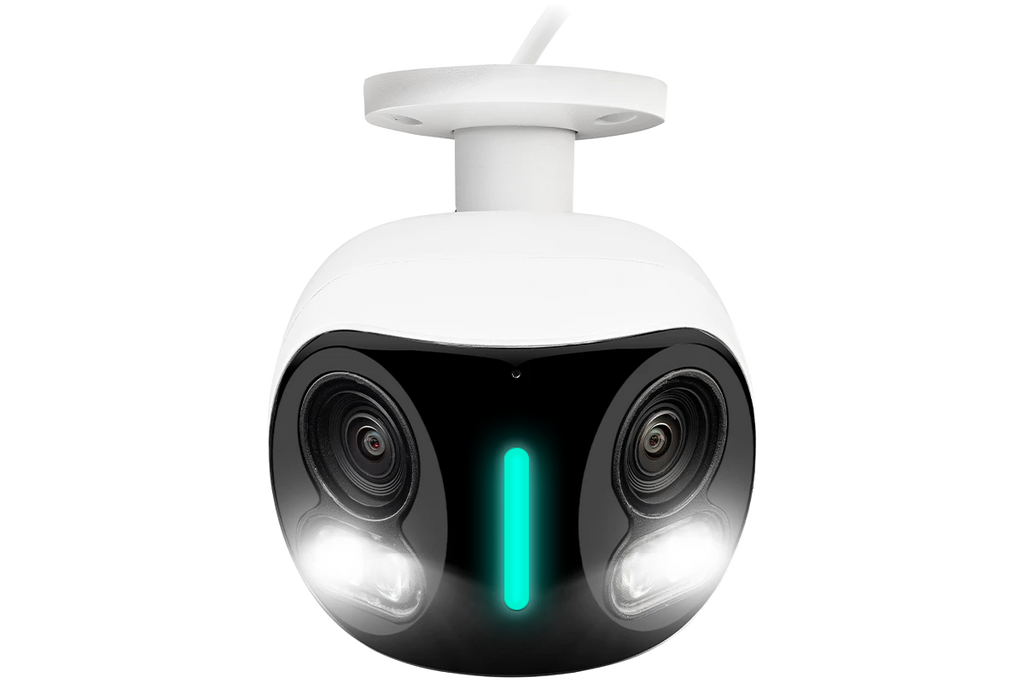

Lorex H20 - 4K IP Wired Dual Lens Security Camera with Smart Security Lighting and Smart Motion Detection

New Arrival

Become a Partner and Log in to see pricing and to place orders

Product Features

  • Recorder Required (Wired)
  • Ultra HD Resolution
  • Smart Deterrence
  • Smart Motion Detection
  • Color Night Vision
  • Two-Way Audio
  • IP67 Weatherproof Rating
  • Wide Dynamic Range (WDR)

In-Camera Video Analytics

  • Person Detection Person Detection
  • Vehicle Detection Vehicle Detection
  • Package Detection Package Detection
  • Animal Detection Animal Detection
  • Auto Framing Auto Framing

Product Specifications

Viewing Angle (diagonal) 180° Panoramic View
Lens/Lens type 2.1mm F1.6/Fixed
Resolution/Frame rate 4096x1856@15fps, 2880x1312@15fps, 2048x932@15fps
Effective Pixels 4096 x 1856
Microphone/Speaker Yes/Yes
Siren Yes
Two-way Talk Yes
Night Vision Range (Total Darkness) 65ft (20m)
Night Vision Range Max. 98ft (30m)
Color Night Vision Yes, 0.008 Lux@F1.6 (Color 30IRE)
Smart Motion Detection Package, Vehicle, Person, Face and Animal
Heat Mapping Yes
Supports in App Quick Messaging Yes
Active Deterrence Warning Light, Siren, Pre-Recorded Message
Smart Security Lighting Yes
Camera Housing Material Alluminum Alloy + Plastic
Power Requirements PoE (Power over Ethernet Class -802.3af)/12V DC
Power Consumption (max) 8.2 W (12 VDC); 9.1 W (PoE)
Camera Dimensions (W x D x H) 6.8 x 3.9 x 3.0"
172 x 99 x 76mm
Camera Weight 1.75lbs / 0.79kg
Operating Temperature -22°F (-30°C) ~ +131°F (+55°C)
Environmental Rating IP67

What's Included

E871AB Overview
  1. Microphone
  2. Dual Lens
  3. Smart Security Lighting
  4. IR (Infrared) Lights
  5. Warning Lights ×2
  6. Adjustment Screws ×2
  7. Camera Base
  8. MicroSD Card Slot*
  9. Reset Button
  10. Speaker & Siren
  11. Cable Notch

Package Contents:

4K Dual Lens Bullet Camera

Mounting Kit

Ethernet Extension Cable

*A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing
