Product Features
- Recorder Required (Wired)
- 4MP Resolution
- Motorized Varifocal
- Pan-Tilt-Zoom (PTZ)
- Smart Motion Detection
- Color Night Vision
- Vandal-Resistant (IK08)
- IP66 Weatherproof Rating
- 4x Optical Zoom
- Wide Dynamic Range (WDR)
Note: Camera cables are sold separately.
Add-Ons
Small but mighty. This cutting-edge Mini Pan-Tilt-Zoom (PTZ) IP Security Camera offers comprehensive coverage with its 355° rotation and 4x Optical Zoom that can focus on distant areas of interest. Capture crystal-clear video, day and night, with 2K resolution and Color Night Vision to ensure no detail escapes. Connect to a compatible NVR for reliable surveillance that will help protect your property around-the-clock.
In-Camera Video Analytics
Product Specifications
| Video | |
|---|---|
| Video Transmission Technology | IP |
| Resolution/Frame Rate | 4MP (2560 × 1440) @ 1-25/30fps |
| Effective Pixels | H: 2560 × V: 1440 |
| Ultra WDR (Wide Dynamic Range) | Yes |
| Video Format | NTSC/PAL |
| Video Compression | H.264H, H.264B, Smart H.265+, H.264, H.265, MJPEG (Sub Stream), Smart H.264+ |
| Termination | RJ45 10/100Mbps Ethernet |
| Optical | |
|---|---|
| Image Sensor Type | 4MP, 1/2.8” CMOS |
| Horizontal Field of View | 96.9°–31.6° |
| Lens/Lens Type | 2.8 mm–12 mm, F1.8–F2.7 / Motorized Varifocal |
| Optical Zoom | 4× |
| Digital Zoom | Yes |
| Pan/Tilt Capabilities | |
|---|---|
| Range |
Pan: 0° to 355° Tilt: 5° to 90° |
| Auto Flip | No |
| Continuous Rotation | No |
| Maximum Manual Speed |
Pan: 0.1°–70°/s Tilt: 0.1°–30°/s |
| Maximum Preset Speed |
Pan: 0.1°–80°/s Tilt: 0.1°–40°/s |
| Presets | 300 |
| Patterns | N/A |
| Tours | 8, with a maximum of 32 presets per tour |
| Other PTZ Functions | N/A |
| Special Features | |
|---|---|
| AI Detection | Yes (Person, Vehicle) |
| Privacy Masking | Supports up to 24 areas |
| Night Vision | |
|---|---|
| IR Night Vision Range | 65.62 ft / 20 m |
| Color Night Vision | Yes |
| General | |
|---|---|
| Body Material | Aluminum Alloy |
| Power Requirements | PoE+ (802.3at), 12V DC / 2A ± 10% |
| Maximum Power Consumption | 13W |
| Storage | MicroSD card* (up to 512GB), FTP/ SFTP, NAS |
| Operating Temperature | -22°F to 140°F / -30°C to 60°C |
| Operating Humidity | IP66 (Indoor/Outdoor) |
| Net Weight | 1.10 lbs / 0.5 kg |
| Gross Weight | 1.54 lbs / 0.7 kg |
| Camera Dimension (Dia. × H) | ⌀ 5.04 ” × 2.59” / 128.0 mm × 65.7 mm |
| Camera Dome Dimension (Dia.) | ⌀ 2.3” / 58.0 mm |
| Wall Mount Screw Hole Spacing (W × H) | 1.83” × 1.53” / 46.4 mm × 39.0 mm |
| Camera Cable Entry Hole (Dia.) | ⌀ 0.31” / 8 mm |
| Audio Input/Output | Input: 1 channel (LINE IN, bare wire) Output: 1 channel (LINE OUT, bare wire) |
| Alarm Inputs/Output | No |
*A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing
What's Included
Package Contents:
IP PoE Wired Mini PTZ Camera

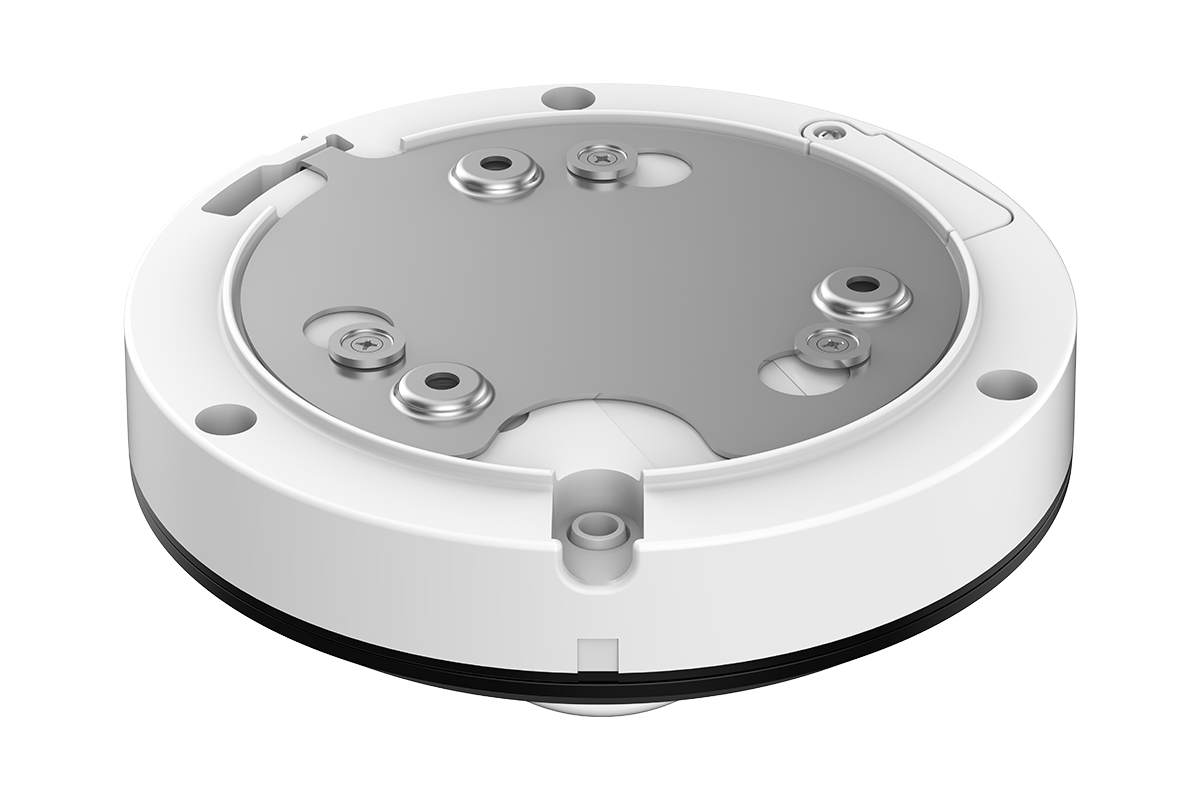

Mounting Plate
Mounting Template
Mounting Screws & Anchors
Weather-Resistant Cap
Instruction Manual
Product Compatibility
Product Support
LNZ43P4A, PTZ Series, P2 - 4MP IP PoE Wired PTZ Mini Security Camera
