Lorex Connect VF 4K 16 Channel NVR - 2TB
Sale price
$449.99 USD
Regular price
$499.99 USD
Skip to product information
V Series|
RN701A-62W-AB1
Lorex Connect VF 4K 16 Channel NVR - 2TB
Key Features:
- No Monthly Fees

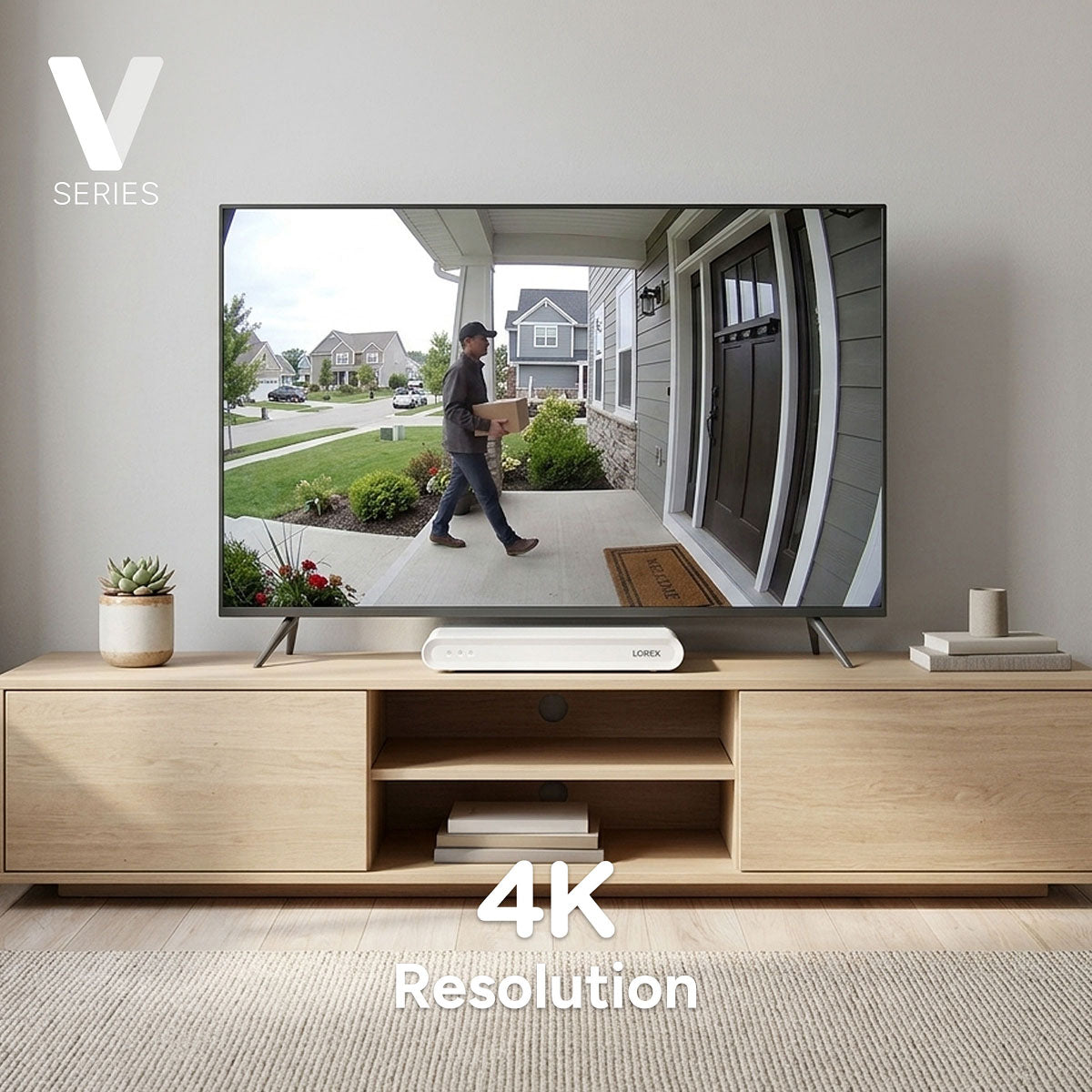

- 4K Ultra HD Resolution

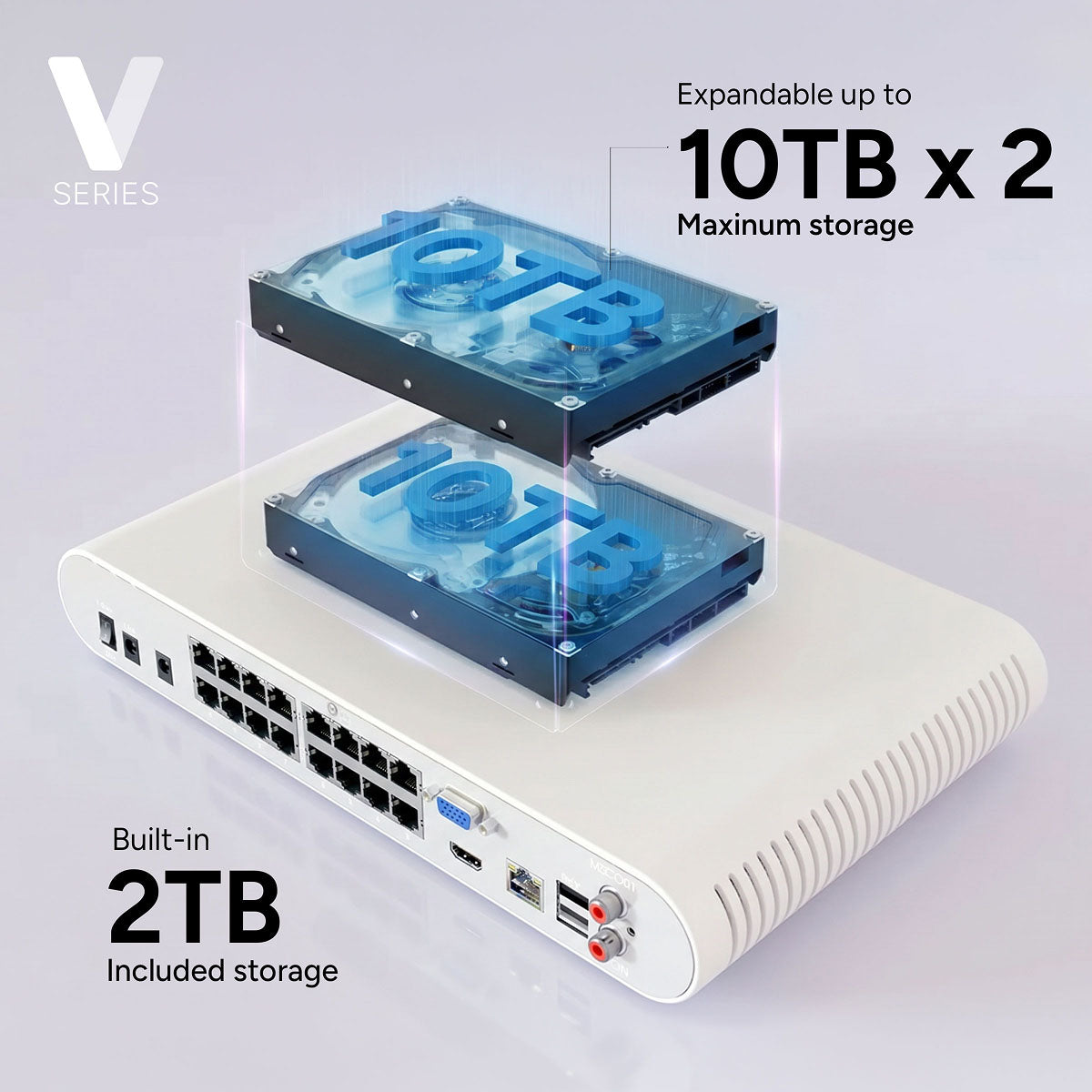

- Built-in 2TB Storage. Expandable up to 2 × 10TB

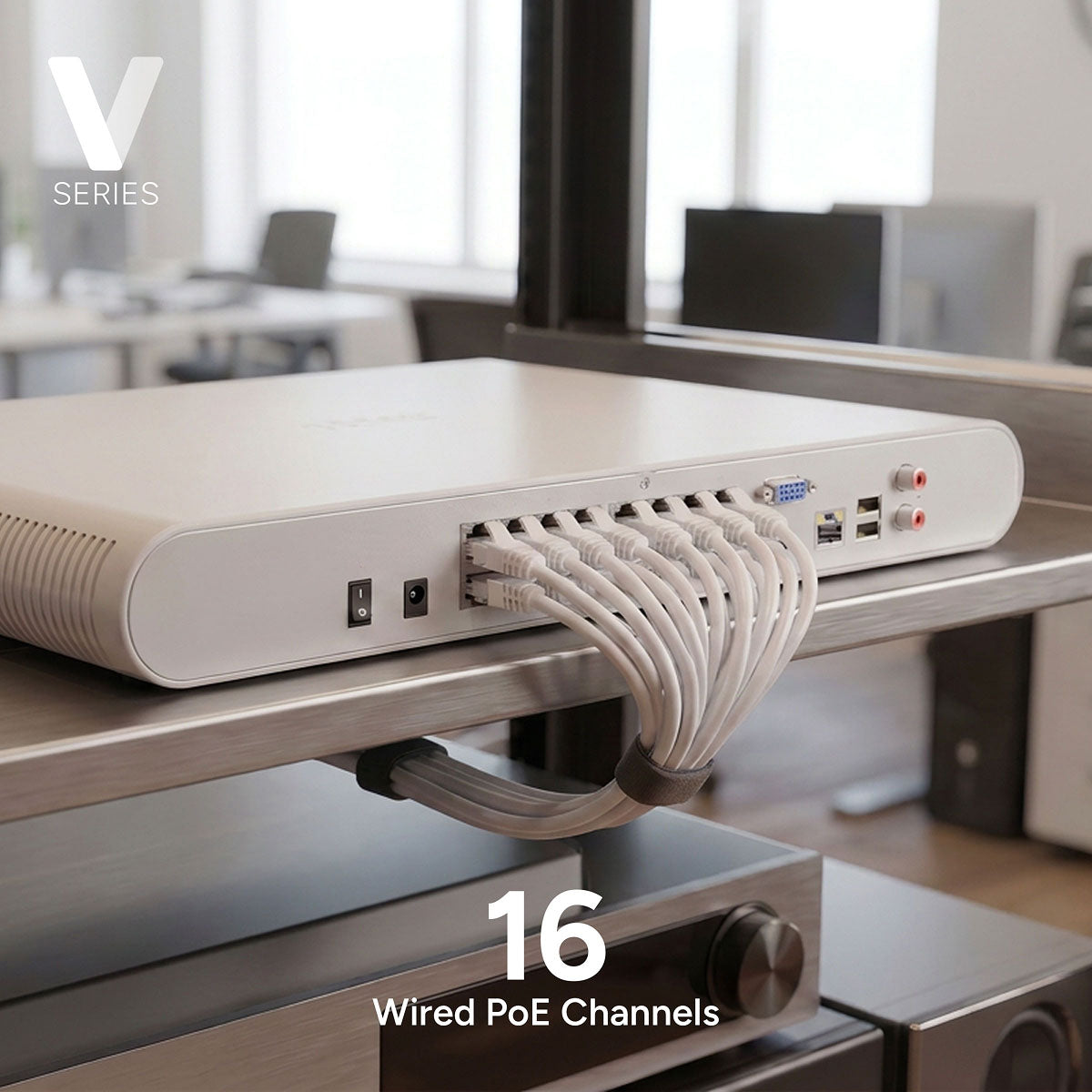

- Connect up to 16 cameras (16 Wired)
- Works with the Lorex Connect mobile app
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Add-Ons
Overview
Secure your data and stay connected to your property with this 16-channel 4K Network Video Recorder (NVR).
Complete Your System
Pair with other V Series products for smarter detection, unified control, and effortless setup.
Lorex Connect VC 4K 8-Channel NVR - 1TB
Lorex Connect VC 4K 8-Channel NVR - 1TB
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Pickup currently not available
Product Compatibility List

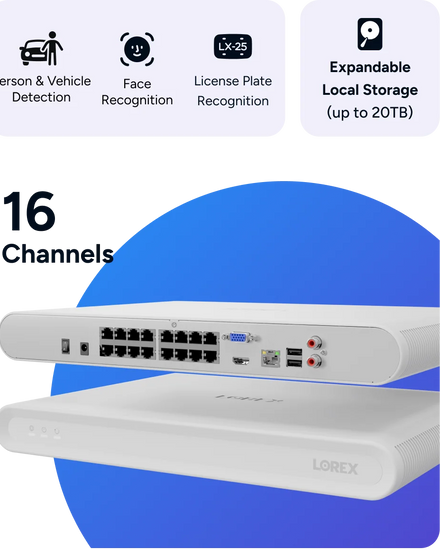

AI Video Analytics
-
Filters recorded footage by event type, object type, or selected visual attributes.
Smart Search
-
Detects human presence in the footage and records related activity.
Person Detection
-
Detects vehicles within the camera’s field of view and logs their presence.
Vehicle Detection
-
Identifies known individuals in the footage based on stored face data.
Face Recognition
What's Included
4K 16-Channel NVR
Network Cable
HDMI Cable
USB Mouse
Power Adapter
Product Specifications
VF 4K 16-Channel NVR
- Channels
- 16 Channels
- Max Resolution
- 4K Ultra HD (3840 × 2160 pixels)
- HDD Bays
- 2 Bays
- Max HDD Capacity
- Up to 10 TB Each
- PoE Ports
- 16 × PoE
- PoE Budget
- 180 W total
- Outputs
- 1 × HDMI, 1 × VGA
General
2 specs
- Video Transmission Technology
- IP
- Channels
- 16 Channels
Inputs & Outputs
4 specs
- Video Inputs
- 16 × PoE (Power over Ethernet)
- Video Outputs
- 1 × HDMI, 1 × VGA
- Audio Input Format
- 1 × RCA
- Audio Output Format
- 1 × RCA
Display
6 specs
- Maximum Display Resolution
- Up to 4K Ultra HD (3840 × 2160 pixels)
- HDMI Output Resolutions
- 3840 × 2160
- 2560 × 1440
- 1920 × 1080
- 1440 × 900
- 1280 × 1024
- 1280 × 720
- 1024 × 768
- VGA Output Resolutions
- 1920 × 1080
- 1440 × 900
- 1280 × 1024
- 1280 × 720
- 1024 × 768
- Live Display Modes
- 1, 4, 8, 16 view split
- On-Screen Display (OSD)
- On/Off
- System Navigation
- USB Mouse
Recording
3 specs
- Supported Recording Resolutions
- 8 MP (3840 × 2160)
- 5 MP (2592 × 1944)
- 3 MP (2048 × 1536 pixels)
- 2 MP (1920 × 1080 pixels)
- 1.3 MP (1280 × 960)
- 1 MP (1280 × 720)
- Video Compression
- H.264 / H.265
- Recording Modes
- Continuous, Motion Detection, and AI Motion Detection (per channel)
Playback
3 specs
- Simultaneous Playback
- Up to 16 Channels (Synchronized)
- Playback Speed Options
- Fast Forward/Rewind: 2×, 4×, 8×, 16×
- Slow Motion: 1/2×, 1/4×, 1/8×, 1/16×
- Search Options
- By Time/Date, All Motion Events, or Smart Motion Detection (Person and Vehicle)
Storage & Backup
3 specs
- HDD Bay
- 2 Bays
- Maximum HDD Capacity
- Up to 10 TB Each
- Backup Media
- USB Flash Drive
AI Detection & Smart Features
4 specs
- Adjustable Motion Detection Sensitivity Levels
- 1–8
- AI Motion Detection Support
- Person & Vehicle
- Perimeter Intrusion
- Face Detection
- Face Recognition
- License Plate Recognition
- Smart Search (playback)
- Line Crossing
- Cross Counting
- Queue Length
- Active Deterrence
- Yes
- Smart Search
- Yes
Connectivity
8 specs
- Mobile Viewing
- Lorex Connect App (iOS and Android)
- Event Notifications
- Yes
- Network Interface
- 10/100 Base-TX (RJ45)
- Network Bit Rate
- 320 Mbps
- USB Ports
- Back: 2 × USB 2.0
- Firmware Upgrade
- Network, USB
- Supported Languages
- English, French and Spanish
- DDNS
- Yes
Security
1 spec
- Password Reset
- Yes
Power
3 specs
- Power Supply
- 54 V, 3.33 A
- PoE Power Output
- Maximum 25.5 W per port⁵, 180 W total
- Power Consumption (Excluding HDD)
- 6 W
Physical & Environmental
5 specs

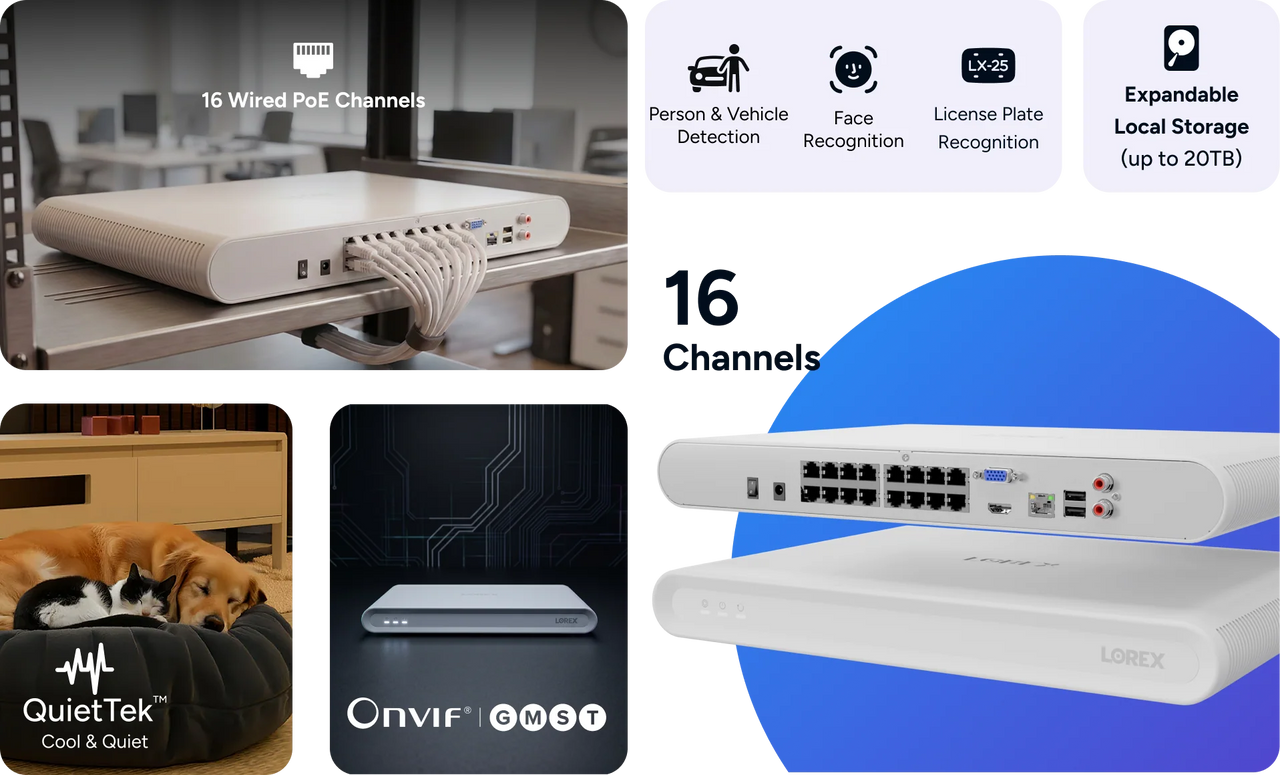

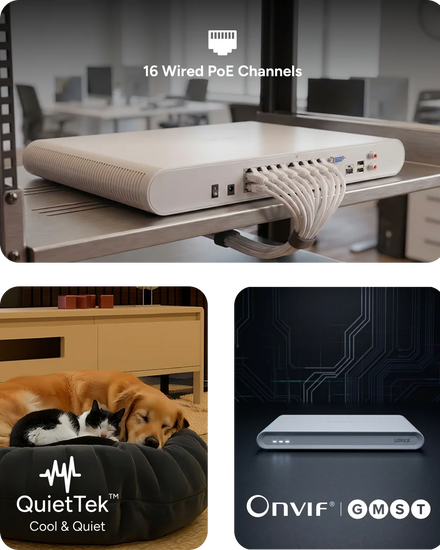

- QuietTek (Fanless Design)
- Yes
- Product Weight
- 4.94 lbs (2.24 kg)
- Product Dimensions (W × D × H)
- 15.79" × 11.42" × 1.97" (401.07 × 290.07 × 50.04 mm)
- Operating Temperature
- 14° F to 131° F (-10° C to 55° C)
- Humidity
- 10~90% RH
Packaging Information
6 specs
- RN701A
- SKU: RN701A-62W-AZ1
- UPC: 6-95529-06421-5
- Package Type
- Brown Box
- Package Dimensions (W × D × H)
- 23.74 × 13.66 × 4.25 in (602.10 × 321.56 × 107.95 mm)
- Package Weight
- 9.416 lbs (4.27 kg)
- Package Cube
- 0.80 ft³ (0.022 m³)
- Package Contents
- 4K Wired NVR
- Ethernet Cable
- HDMI Cable
- USB Mouse
- Power Adapter
Model Information
3 specs
- Series Family
- V
- Series Line
- VF
- SKU
- RN701A-62W-AZ1
No specs match your search.
Notes & disclaimers
- 4K (8MP) IP cameras are required to take advantage of 4K recording.
- Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
- Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 6Mbps is recommended for reasonable video performance.
- HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
- ⁵ All connected cameras do not typically draw maximum power at the same time. If the total power demand exceeds the NVR’s PoE power budget, recording performance may be temporarily affected.
