Terrible system
"It works only with certain models, so you can’t use existing lorex cameras with it. Don’t get any notifications from the app. Tried different wireless mice and none of them worked, only wired ones work."
Lorex Connect VC 4K 8-Channel NVR - 1TB
1TB
Sale price
$329.99 USD
Regular price
$399.99 USD
Skip to product information
V Series|
RN301A-81W-AB1

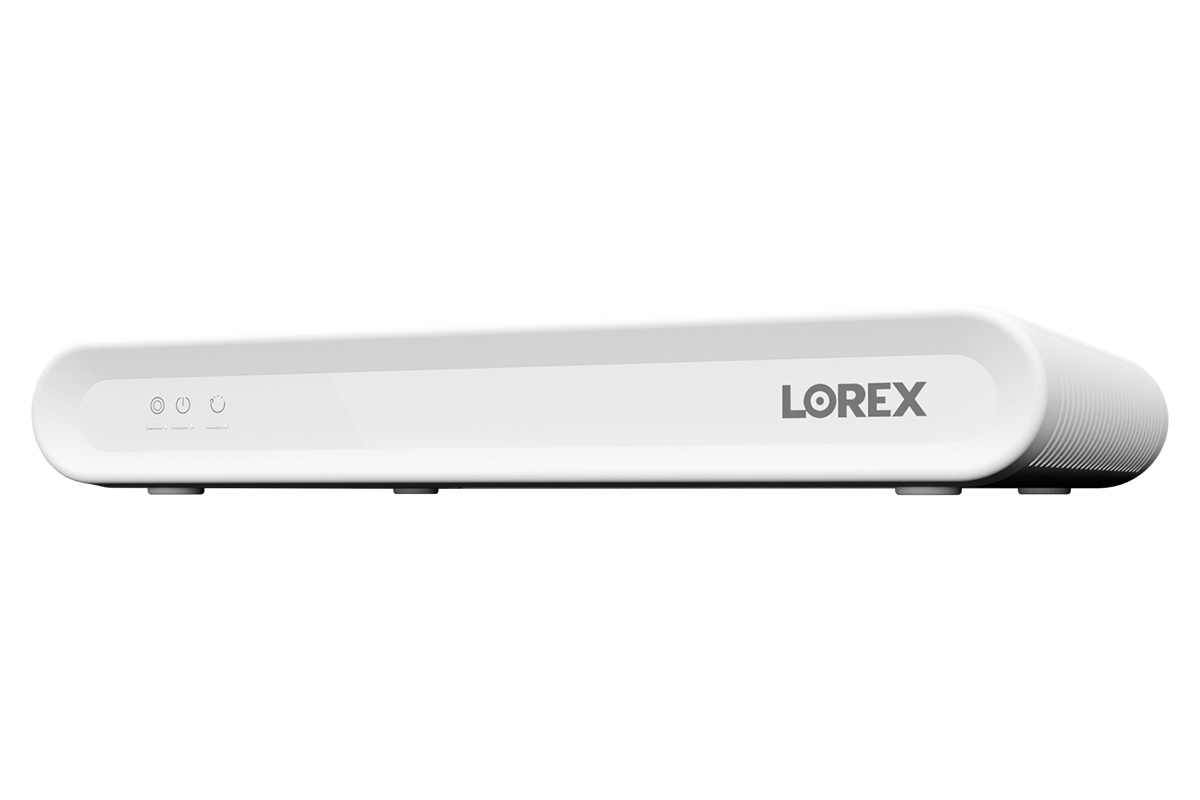

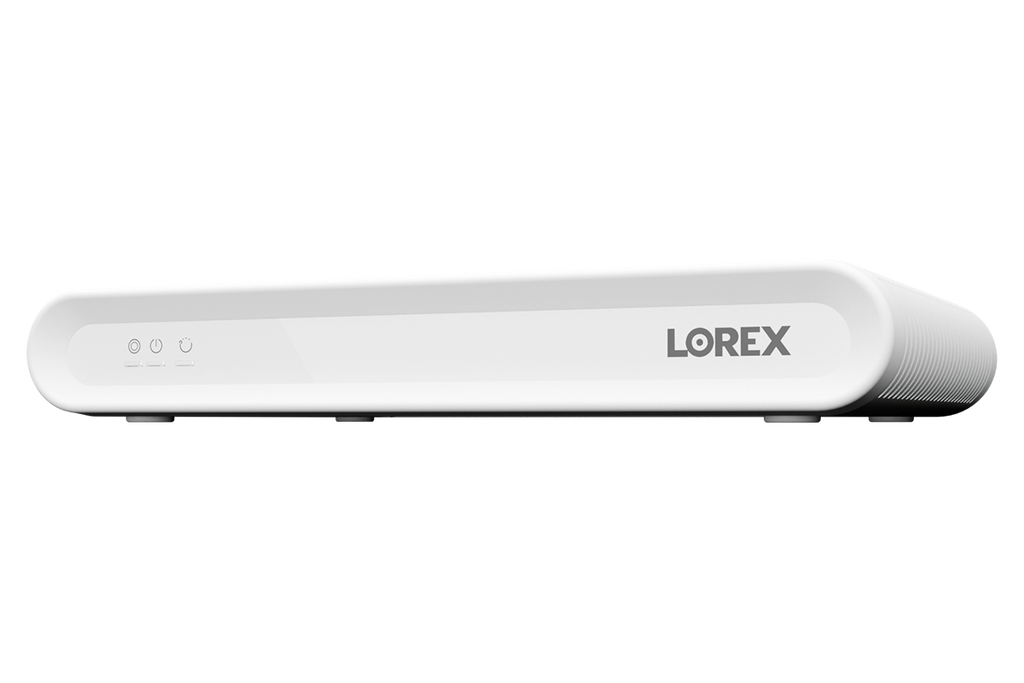

Lorex Connect VC 4K 8-Channel NVR - 1TB
Key Features:
- No Monthly Fees

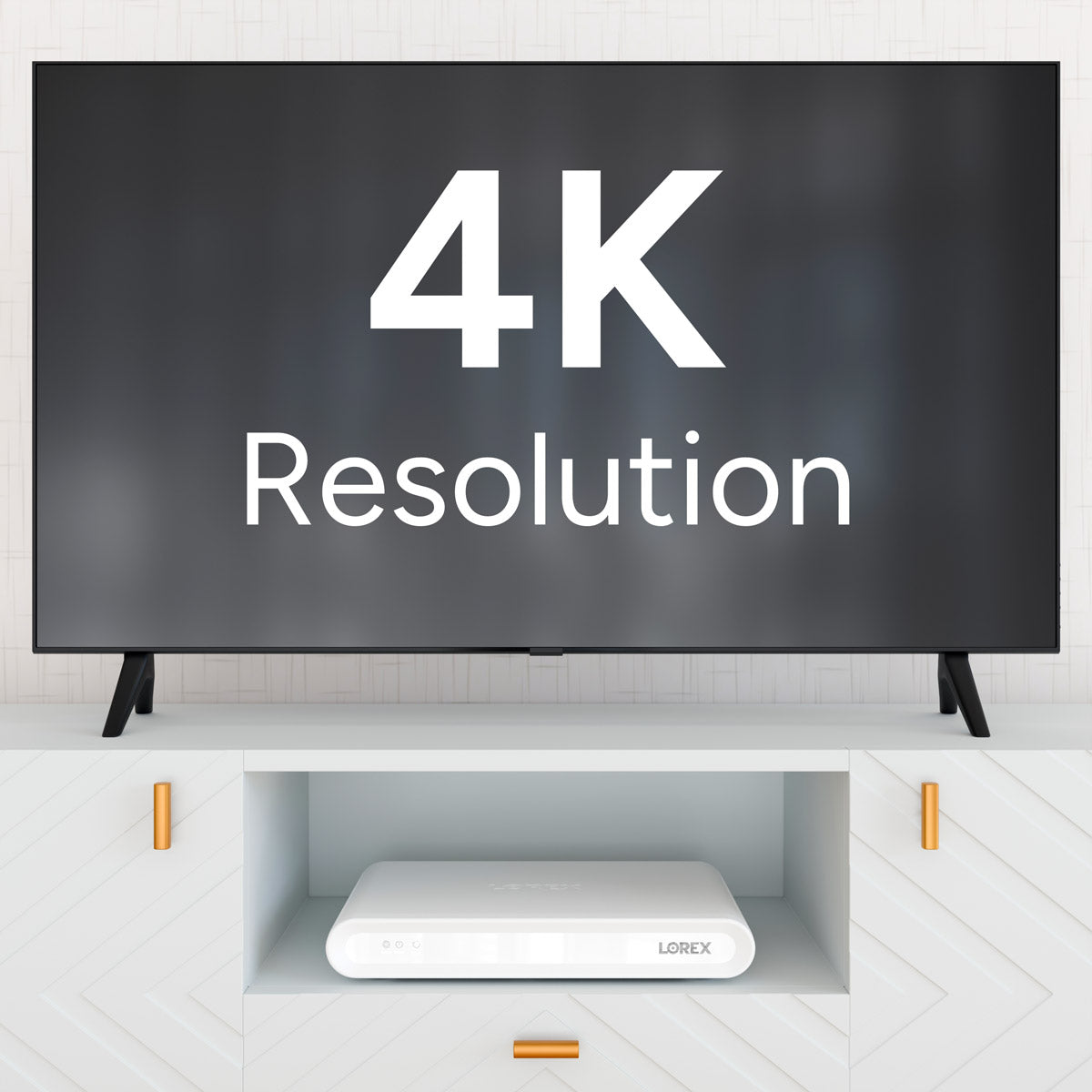

- 4K Ultra HD Resolution
- Built-in 1TB Storage. Expandable up to 1 × 10TB
- Connect up to 8 cameras
- Works with the Lorex Connect mobile app
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Add-Ons
Product Compatibility List
What's Included
4K 8-Channel NVR
Network Cable
HDMI Cable
USB Mouse
Power Adapter
Product Specifications
RN301A Series 4K Wired Network Video Recorder
- Channels
- 8 Channels
- Max Resolution
- 4K Ultra HD (3840 × 2160 pixels)
- HDD Bays
- 1 Bay
- Max HDD Capacity
- Up to 10 TB
- PoE Ports
- 8 × PoE
- PoE Budget
- 57 W total
- Outputs
- 1 × HDMI, 1 × VGA
General
2 specs
- Video Transmission Technology
- IP
- Channels
- 8 Channels
Inputs & Outputs
3 specs
- Video Inputs
- 8 × PoE (Power over Ethernet)
- Video Outputs
- 1 × HDMI, 1 × VGA
- Audio Input Format
- 1 × RCA
Display
6 specs
- Maximum Display Resolution
- Up to 4K Ultra HD (3840 × 2160 pixels)
- HDMI Output Resolutions
- 3840 × 2160
- 2560 × 1440
- 1920 × 1080
- 1440 × 900
- 1280 × 1024
- 1280 × 720
- 1024 × 768
- VGA Output Resolutions
- 1920 × 1080
- 1440 × 900
- 1280 × 1024
- 1280 × 720
- 1024 × 768
- Live Display Modes
- 1, 4, 8 view split
- On-Screen Display (OSD)
- On/Off
- System Navigation
- USB Mouse
Recording
3 specs
- Supported Recording Resolutions
- 8 MP (3840 × 2160)
- 5 MP (2592 × 1944)
- 3 MP (2048 × 1536 pixels)
- 2 MP (1920 × 1080 pixels)
- 1.3 MP (1280 × 960)
- 1 MP (1280 × 720)
- Video Compression
- H.264 / H.265
- Recording Modes
- Continuous, Motion Detection, and AI Motion Detection (per channel)
Playback
3 specs
- Simultaneous Playback
- Up to 8 Channels (Synchronized)
- Playback Speed Options
- Fast Forward/Rewind: 2×, 4×, 8×, 16×
- Slow Motion: 1/2×, 1/4×, 1/8×, 1/16×
- Search Options
- By Time/Date, All Motion Events, or Smart Motion Detection (Person and Vehicle)
Storage & Backup
3 specs
- HDD Bay
- 1 Bay
- Maximum HDD Capacity
- Up to 10 TB
- Backup Media
- USB Flash Drive
AI Detection & Smart Features
4 specs
- Adjustable Motion Detection Sensitivity Levels
- 1–8
- AI Motion Detection Support
- Supported, for Person & Vehicle, Perimeter Intrusion, and Smart Search (playback)
- Support Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing
- Active Deterrence
- Supported
- Smart Search
- Supported
Connectivity
9 specs
- Mobile Viewing
- Lorex Connect App (iOS and Android)
- Event Notifications
- Supported
- Email Notifications
- Supported
- Network Interface
- 10/100 Base-TX (RJ45)
- Network Bit Rate
- 320 Mbps
- USB Ports
- Back: 2 × USB 2.0
- Firmware Upgrade
- Network, USB
- Supported Languages
- English, French and Spanish
- DDNS
- Optional
Security
1 spec
- Password Reset
- Supported
Power
3 specs
- Power Supply
- 1.8 A
- PoE Power Output
- Maximum 25.5 W per port, 57 W total
- Power Consumption (Excluding HDD)
- 6 W
Physical & Environmental
5 specs
- QuietTek (Fanless Design)
- Supported
- Product Weight
- 2.602 lbs (1.18 kg)
- Product Dimensions (W × D × H)
- 12.24 × 7.57 × 1.91 in (310.90 × 192.28 × 48.51 mm)
- Operating Temperature
- 14° F to 131° F (-10° C to 55° C)
- Humidity
- 10~90% RH
Packaging Information
6 specs
- RN301A
- SKU: RN301A-81W-AB1
- UPC: 6-95529-06396-6
- Package Type
- Brown Box
- Package Dimensions (W × D × H)
- 20.24 × 9.96 × 4.17 in (514.10 × 252.98 × 105.92 mm)
- Package Weight
- 4.66 lbs (2.11 kg)
- Package Cube
- 0.49 ft³ (0.0139 m³)
- Package Contents
- 4K Wired NVR
- Ethernet Cable
- HDMI Cable
- USB Mouse
- Power Adapter
Model Information
1 spec
- SKU
- RN301A-81W-AB1
No specs match your search.
Notes & disclaimers
- 4K (8MP) IP cameras are required to take advantage of 4K recording.
- Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
- Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 6Mbps is recommended for reasonable video performance.
- HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
Product Support
Reviews
Overall rating: 2.8333333 / 5 from 6 reviews.
AI Generated Review Summary
Summary topics
Review topics: ["works","camera","cable","system"].
Review highlights
Reviews
Q&A
- What NVR is compatible to replace my old model N841A-8-Z
- You can find products compatible with your system here: https://www.lorex.com/pages/compatibility
- Will my C882DA cameras work with this? Thank you
- No, your camera is an analog camera. Please find compatible products here: https://www.lorex.com/pages/compatibility
- would I be able to use camera Lorex $K Ultra HD Smart Deterrence with this Lorex Connect 4K 8-Channel NVR - 1TB
- No, the RN301A‑81W‑AB1 recorder is only compatible with CN301 cameras. Please contact our Sales Team at 1-888-425-6739. They will guide and assist you in selecting the most suitable security system.
