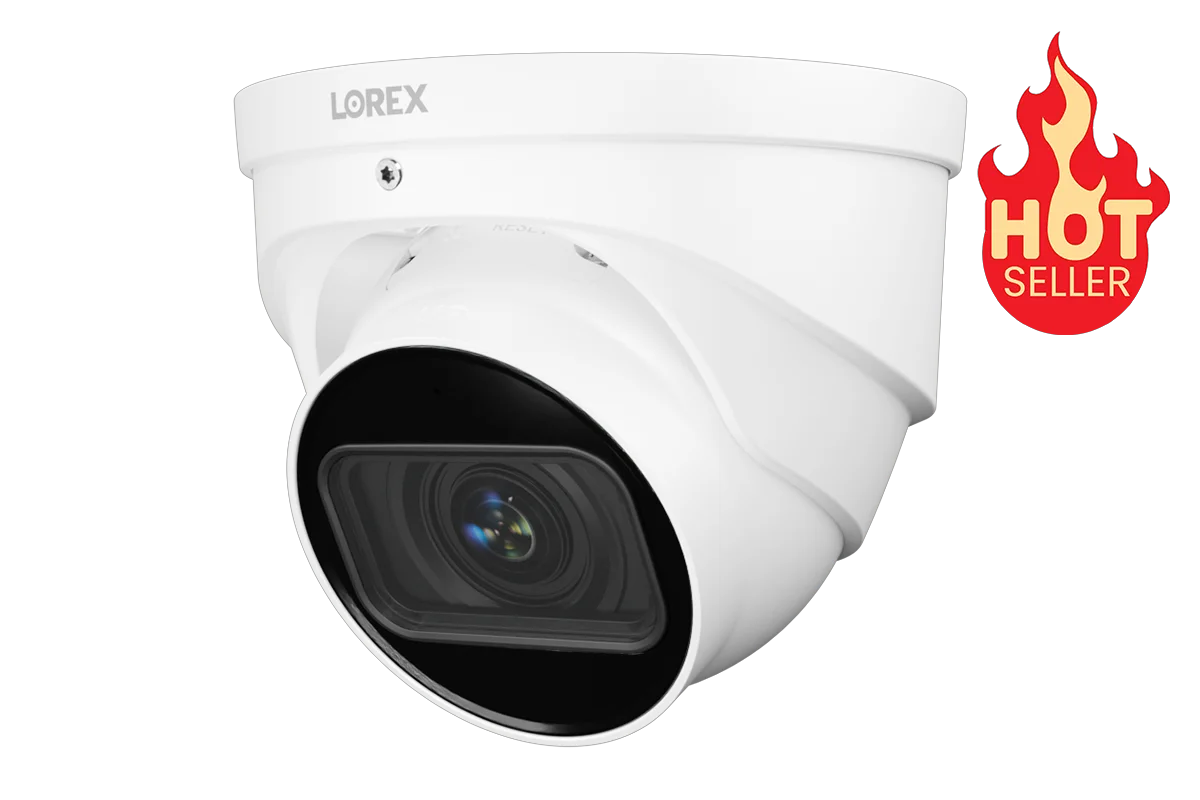

Product Features
- Recorder Required (Wired)
- Ultra HD Resolution
- Real-Time 4K (30FPS) Recording
- Motorized Varifocal
- Smart Motion Detection
- ePoE Technology
- Color Night Vision

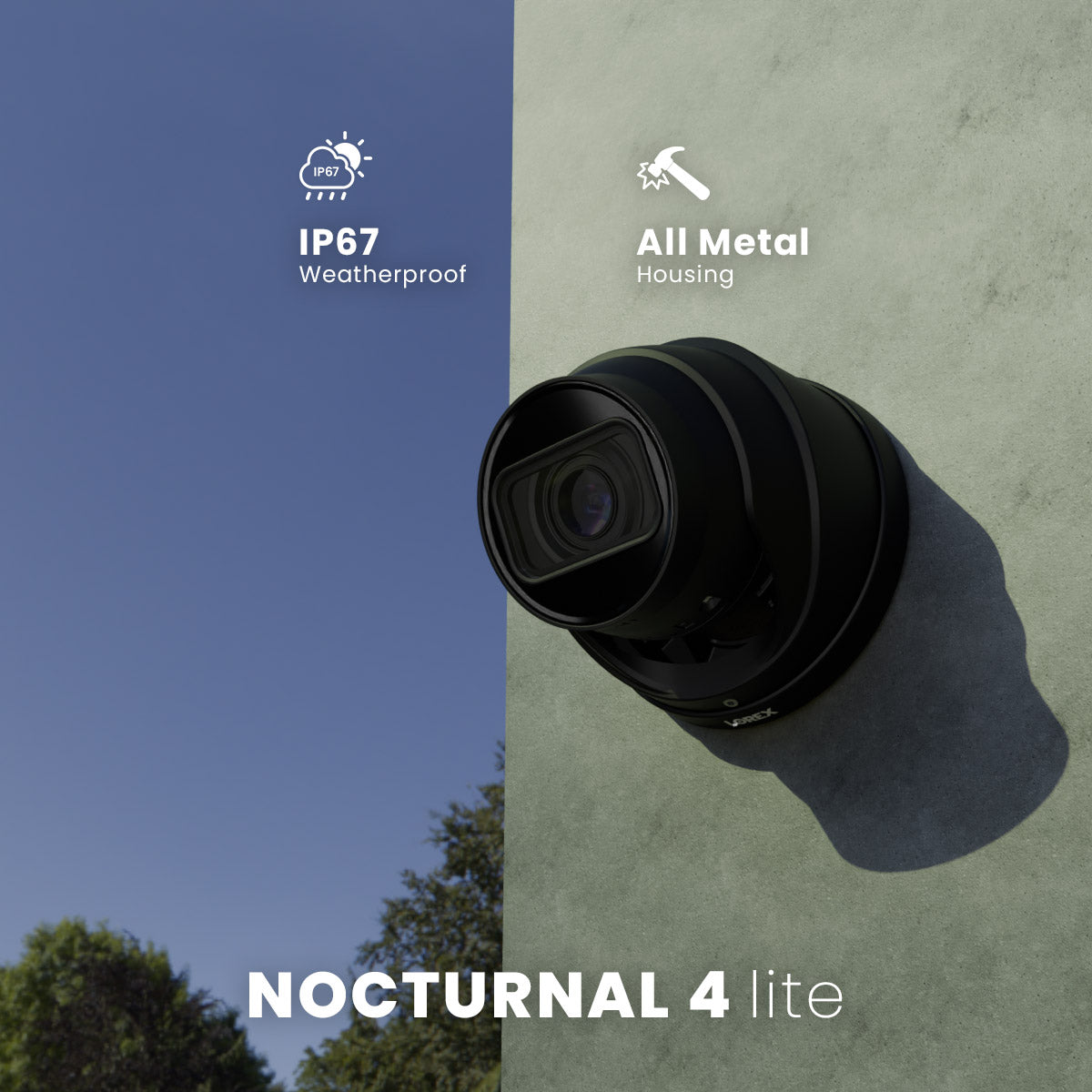

- IP67 Weatherproof Rating
- 4x Optical Zoom
- Wide Dynamic Range (WDR)
Note: Camera cables are sold separately.
Other Options
Product Discontinued: Meet the next generation
For almost a decade, Lorex Nocturnal IP Security Cameras have set the standard for professional-grade surveillance. Known for their smooth real-time 4K video, vivid Color Night Vision, and advanced AI analytics, they continue to provide unmatched protection for homes and businesses, day and night.
The same powerful AI features — now with improved energy efficiency and a more cost-effective design.
In-Camera Video Analytics
Product Specifications
| General | |
|---|---|
| Video Transmission Technology | IP |
| Image Sensor | 4K (8MP) C |
| Video Format | NTSC |
| Video Compression | H.265/H264 (Main Stream & Sub Stream) |
| Video Streams | 4 |
| Optical | |
|---|---|
| Viewing Angle (diaognal) | 133° - 53° |
| Lens/Lens type | F1.8/Motorized Varifocal |
| Focal Length | 2.7mm - 12.0mm |
| Optical Zoom | 4× Optical Zoom |
| Video Output | |
|---|---|
| Resolution/Frame rate |
8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Frame Rate (Maximum) |
Main stream: 3840 × 2160@ (1–25/30 fps) Sub stream: D1@(1–25/30 fps) Third stream: 1080p@(1–25/30 fps) Fourth stream: 720p@(1–10 fps) |
| WDR | Yes |
| Termination | RJ45 |
| Aspect Ratio | 16:9 |
| Audio | |
|---|---|
| Microphone | Yes |
| Siren | No |
| Two-way Talk | No |
| Input/Output | Built in Mic, Line Audio-in & Line Audio-out |
| Night Vision | |
|---|---|
| Night Vision Range | 40 m (131.23 ft) |
| Color Night Vision | Yes |
| Special Features | |
|---|---|
| Smart Motion Detection | Yes |
| Detection Types | Vehicle and Person |
| Other Features | Heat Mapping, People Counting |
| Additional Specifications | |
|---|---|
| Camera Housing Material | Alluminum Alloy |
| SD Card Slot | Yes* |
| Power Requirements | ePoE (Power over Ethernet Class -802.3af)/12V DC |
| Power Consumption (max) | 7.5 W (12 VDC); 9.0 W (PoE) |
| Camera Dimensions (D x H) |
4.3 × 4.8” 108 x 122mm |
| Camera Weight | 0.70 kg (1.54 lb) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Humidity | ≤95% |
| Environmental Rating | IP67 |
| Certification | FCC |
What's Included
- 12V DC Power Connector
- Ethernet Connector
- Cable Notch
- Adjustment Screw
- Microphone
- Camera Lens
- IR Lights (2×)
- Camera Base
- Camera Cover
- Turret Camera
- MicroSD Card Slot
- Reset Button
Package Contents:
4K IP PoE Wired Turret Camera
Mounting Kit
T15 Torx Key
Weather-resistant Cap
Product Compatibility
Product Support
LNE95MDB, LNE95MDW, N4 Lite, Nocturnal Series
