Product Features
- GPS Tracker – Real-time location tracking for asset security
- Lockable Electrical Box – Prevents unauthorized access
- Solar Power Source – Reliable off-grid operation
- 26ft Industrial-Grade Tower – Elevated vantage point for better coverage
- Deterrence Lights & Loudspeakers – Proactively ward off intruders
- 4 PTZ Cameras (2K Resolution, 25x Zoom, 360° Pan) – Wide, high-detail surveillance
- Advanced AI & Analytics – Smart threat detection with real-time alerts
- Quick Setup – Deploy security in minutes
- Cloud-Based Recording (1 Year) – Secure, long-term video storage
- NDAA Compliant – Meets government security standards.
Product Discontinued: Meet the next generation
SKU: ST1101

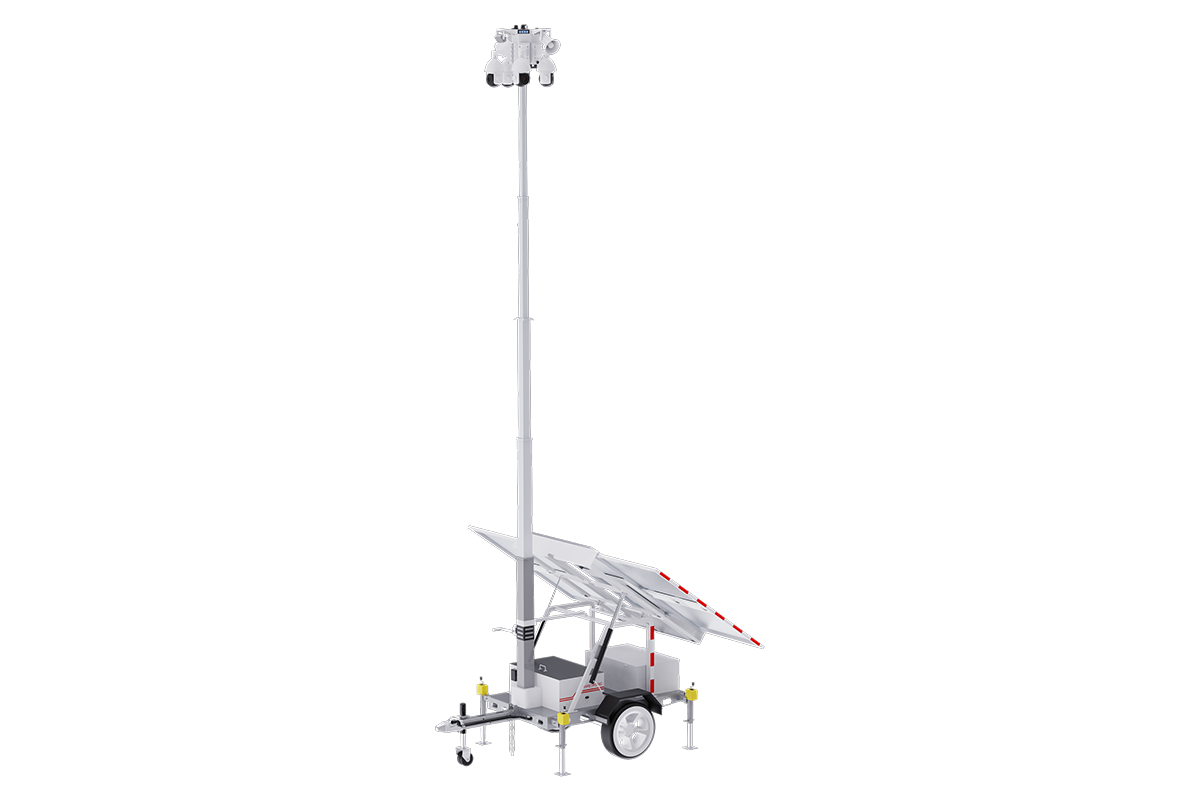

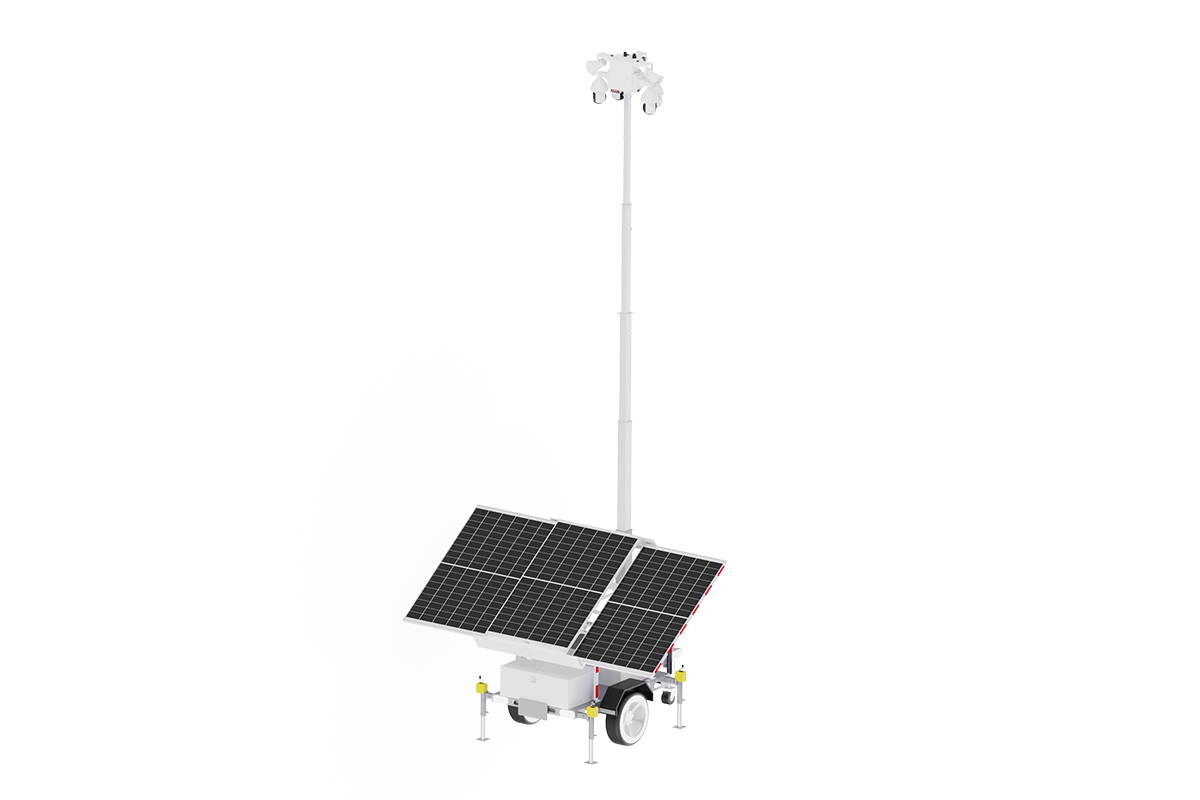

Mobile (Solar-Powered) Security Camera Trailer System for Off-Grid Job Sites (Standalone)
Learn MoreProduct Features
- GPS Tracker – Real-time location tracking for asset security
- Lockable Electrical Box – Prevents unauthorized access
- Solar Power Source – Reliable off-grid operation
- 26ft Industrial-Grade Tower – Elevated vantage point for better coverage
- Deterrence Lights & Loudspeakers – Proactively ward off intruders
- 4 PTZ Cameras (2K Resolution, 25x Zoom, 360° Pan) – Wide, high-detail surveillance
- Advanced AI & Analytics – Smart threat detection with real-time alerts
- Quick Setup – Deploy security in minutes
- NDAA Compliant – Meets government security standards.
The Lorex Mobile Solar Security Camera Trailer is a self-sustaining, off-grid surveillance system built for 24/7 protection in remote and high-risk locations. Designed for unmatched visibility and monitoring, this advanced security solution features a 26-foot tower and four high-performance PTZ cameras with 25x optical zoom, delivering crystal-clear, long-range surveillance. With autonomous solar power, this mobile security system provides 360° coverage for construction sites, pop-up event venues, parking lots, and more—all without the need for wired power or internet.
Product Specifications

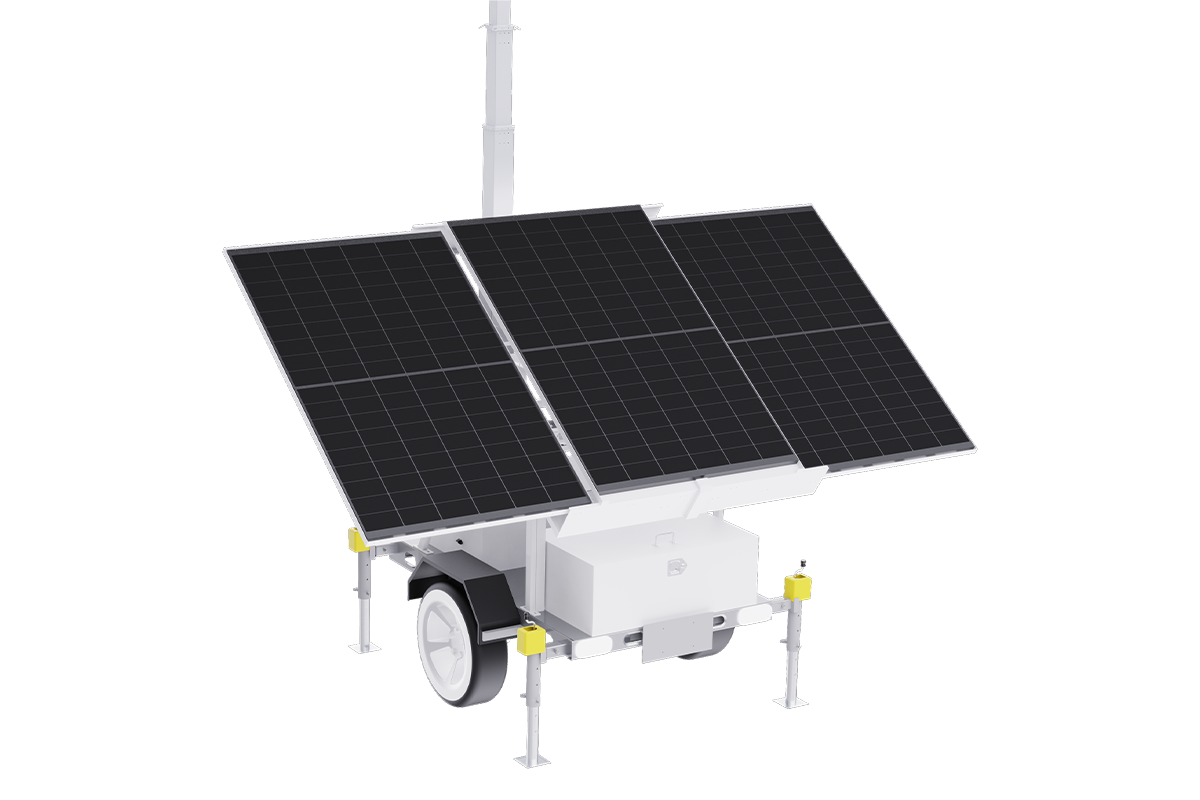

Solar-Powered Trailer Specifications
| Category | Specification |
|---|---|
| Key Features | |
| Assembly | One-Person, Tool-Free |
| Solar Panels | Three (3) 460-Watt Monocrystalline Silicon |
| Batteries | Four (4) 12.8V Lithium Iron Phosphate |
| Mast | Retractable 8m (26 ft) |
| GPS Tracking | Yes |
| Corrosion Protection | C5 |
| Wind Resistance | Level 12 Beaufort Wind Scale |
| Ingress Rating | IP67 |
| Certifications | |
| NDAA Compliant | Yes |
| UL | Yes |
| FCC | Yes |

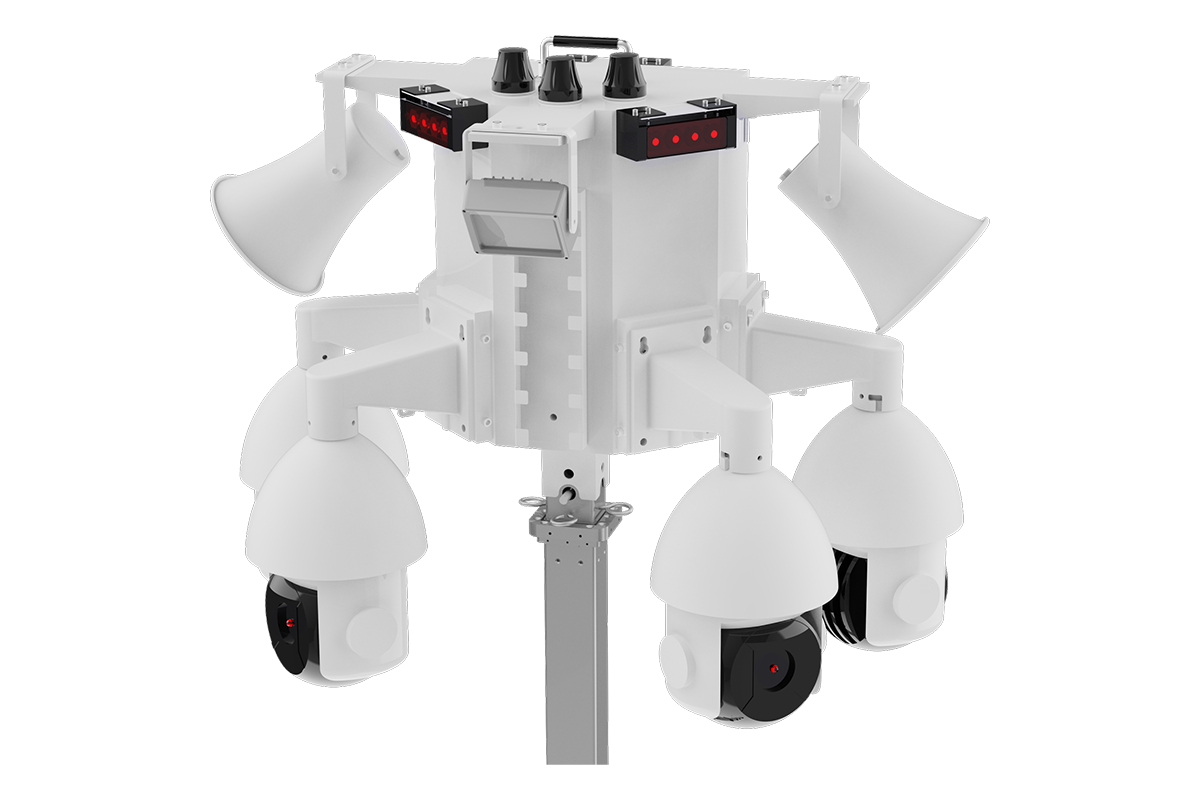

| Roof Rack Components | |
| Strobe Lights | 3 |
| Speakers | 2 |
| 4G Router | 1 |
| Fill Light | 1 |
| Power Supply Board | 12/48 VDC |
| Edge Controller | 1 |
| Hard Drive | 4 TB |
| Trailer Computer | |
| Network | 4G CPE |
| Video Input | Supports up to Four (4) Cameras |
| Resolution | 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 960P, 720P, D1, CIF |
| Access Bandwidth | 256 Mbps |
| Storage | 4 TB HDD |
| Recording Type | Motion Detection, Alarm, Schedule, Intelligent, General |
| Cloud Backup | Yes |
| Control | Strobe Lights, Speaker, Mobile Application |

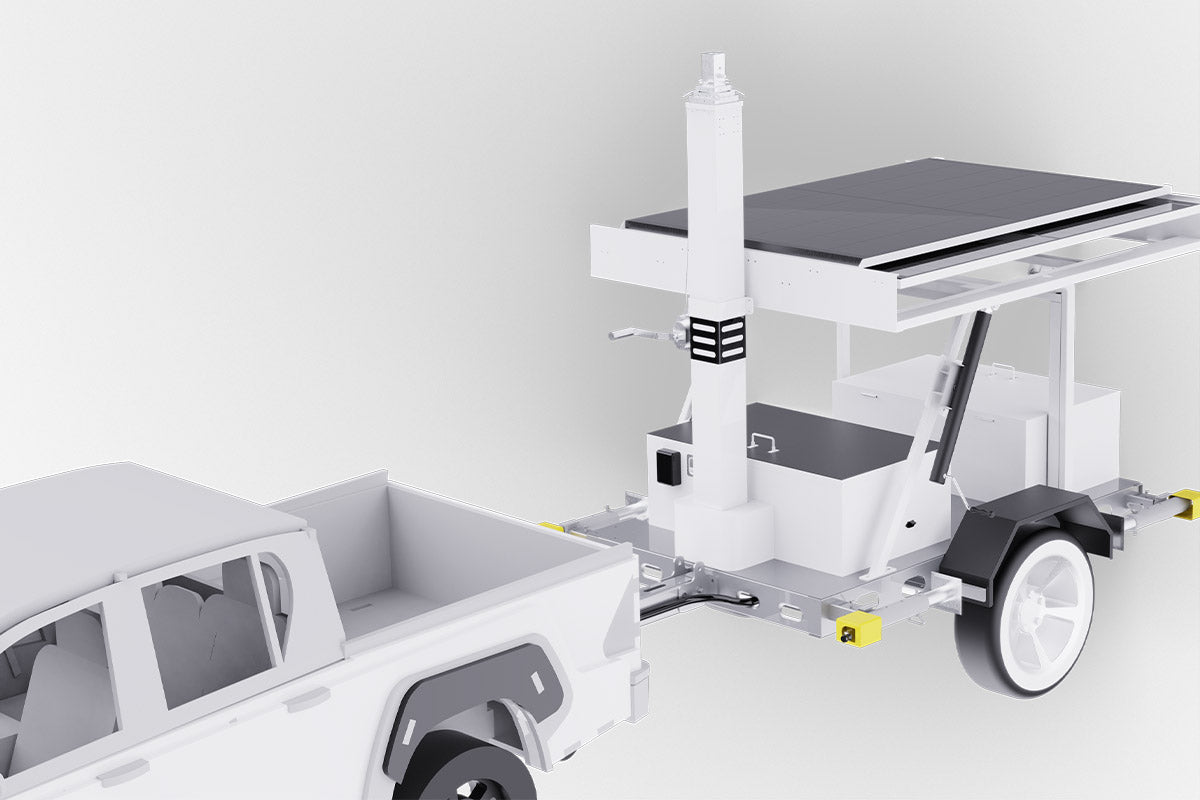

| Trailer Specifications | |
| Weight | 780.0 kg (1719.6 lb) |
| Dimensions | 3087.0 mm x 3464.0 mm x 7941.0 mm (121.5 in. x 136.4 in. x 312.6 in.) |
| Tire Size | Aluminum Rim, 175R13 |
| Battery Capacity | 12.8 V/220 Ah (51.2 VDC 11.26 Wh) per battery |
| Solar Panel Wattage | 1380 W (460 W per Panel) |
| AC Charge Power | 450 W |
4MP Network 25x PTZ Camera Specifications
| Category | Specification |
|---|---|
| Key Features | |
| Housing | 4MP Dome |
| Optical Zoom | 25x Max |
| IR | Yes |
| Video Analytics | Line Crossing, Intrusion, Loitering Detection, Parking Detection |
| Advanced Features | SMD, Face Detection, Auto Tracking |
| Certifications and Compliance | |
| NDAA Compliant | Yes |
| FCC | Yes |
| IC | Yes |
| UL | Yes |
| Camera Specifications | |
| Series | Premium |
| Image Sensor | 1/2.8-in. 4MP Progressive CMOS |
| Max Resolution | 2560 × 1440 |
| Min. Illumination | Color: 0.005 Lux at F1.6, B/W: 0.0005 Lux at F1.6, 0 Lux with IR |
| IR LEDs | Four (4) |
| IR Range | 328.1 ft (100.9 m) |
| Lens | |
| Iris Type | Fixed |
| Lens Type | Fixed |
| Focal Length | 5.0 mm to 125.0 mm |
| Aperture | F1.6 to F3.6 |
| Video Specifications | |
| Compression | H.265, H.264, MJPEG |
| Max Frame Rate | 4MP/3MP/1080p/1.3MP/720p at 1–30 fps |
| Bit Rate | H.265: 38 kbps to 8960 kbps, H.264: 96 kbps to 14848 kbps |
| Day/Night Mode | Automatic (ICR), Color, Black & White |
| WDR | 120 dB |
| Privacy Masking | 24 Areas |
| Audio | |
| Compression | G.711a, G.711Mu, PCM |
| Input | One (1) Channel |
| Output | One (1) Channel |
| Network | |
| Protocol | RJ-45 (10/100 Base-T) |
| Interoperability | ONVIF (Profile S/G/T), CGI, SDK, P2P |
| Electrical | |
| Power Supply | 12 VDC, PoE+ (802.3at) |
| Power Consumption | 15 W (Max.) |
| Construction | |
| Net Weight | 3.0 kg (6.6 lb) |
| Operating Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Protection Ratings | IP66 |
| Dimensions | Φ160.0 mm × 295.0 mm (Φ6.3 in. × 11.6 in.) |
| Material | Metal |
