A Series

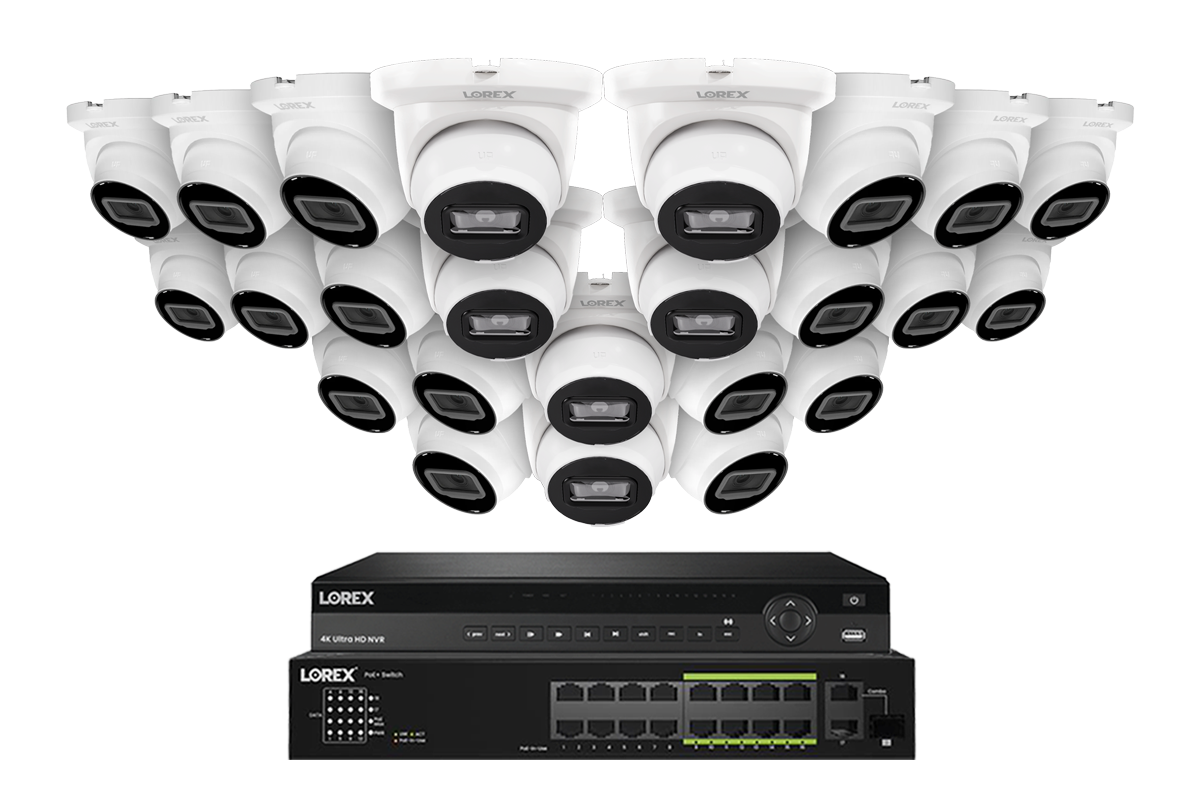

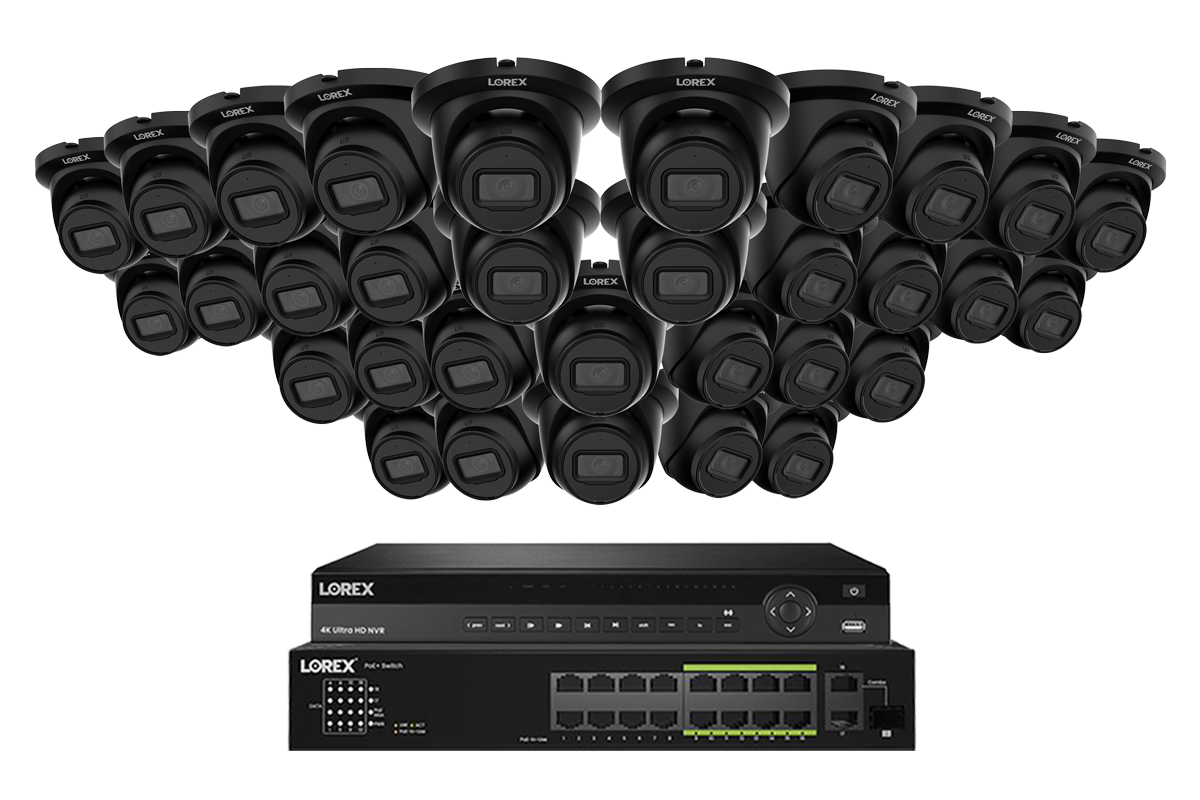

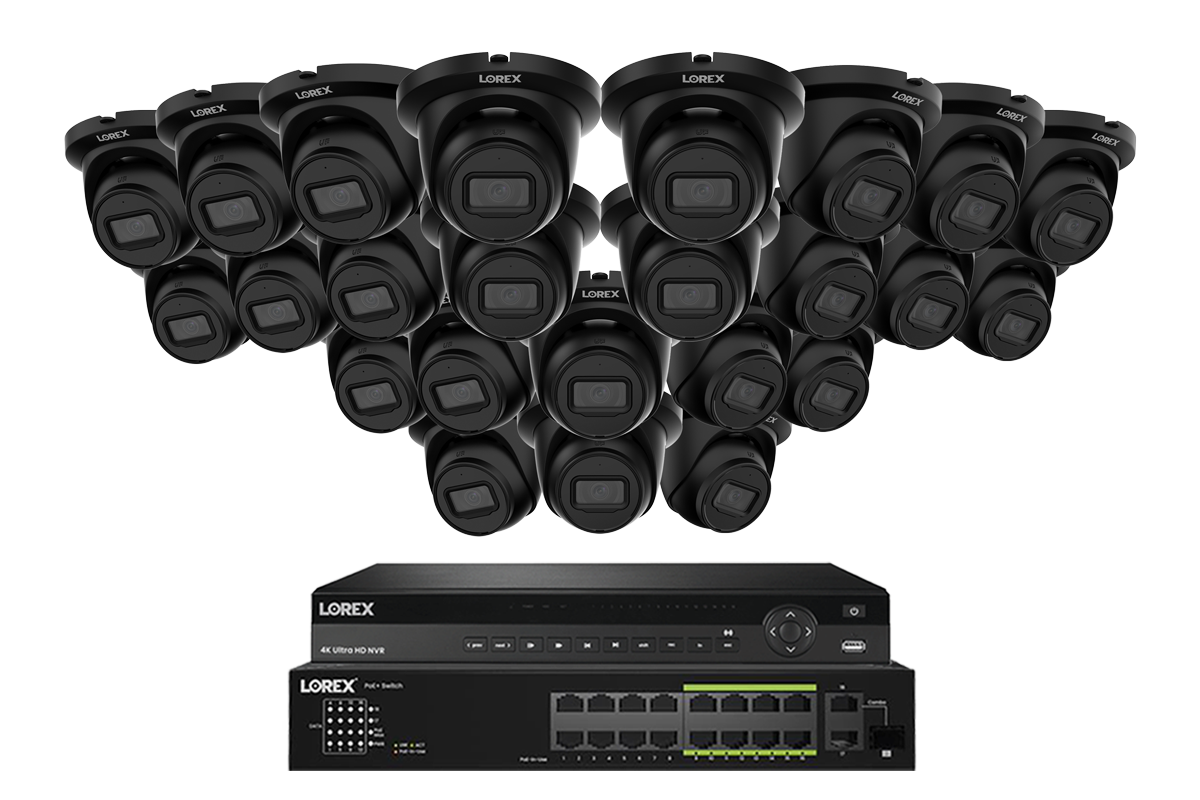

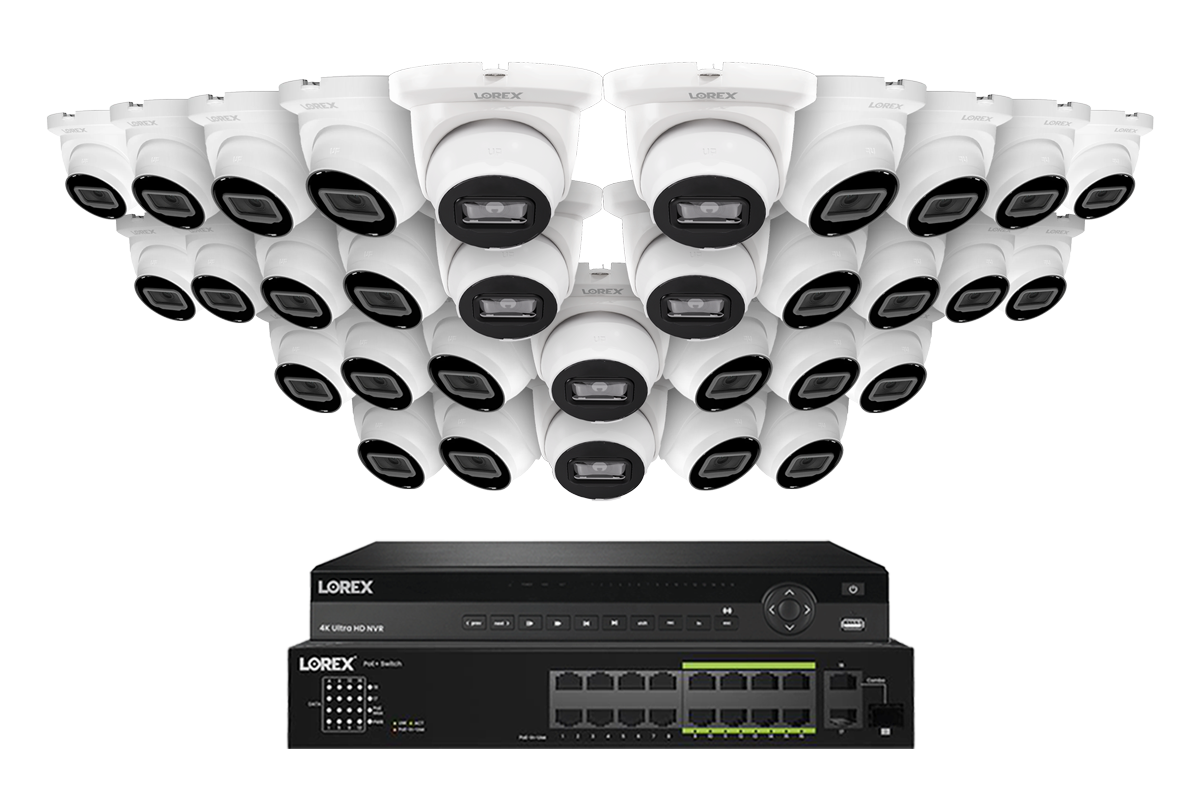

Lorex Elite Series NVR with A4 4MP (2K) IP Turret Cameras - 4K 32-Channel 8TB Wired System

Limited-time sale
SKU: N2K4-3224BT-A4

Become a Partner and Log in to see pricing and to place orders

Product Features

  • 4MP Resolution
  • Smart Motion Detection
  • Color Night Vision
  • Listen-In Audio
  • IP67 Weatherproof Rating
  • Built-in 8TB Storage
  • Connect up to 32 cameras
  • Works with the Lorex Pro mobile app
  • Wide Dynamic Range (WDR)

Note: Camera cables are sold separately.

Add-Ons

Equip your business or clients with a professional surveillance system that delivers exceptional performance at an affordable price. The Lorex A4 Series 4MP IP Wired Turret Security Cameras offer professional 2K clarity, Color Night Vision, Smart Motion Detection, Listen-In Audio, and IP67 weatherproof ratings to ensure uncompromising security all year long. These cameras connect to the powerful 32-channel Network Video Recorder and the included PoE switch for comprehensive 24/7 surveillance for any large property.

In-Camera Video Analytics

  • Person Detection Person Detection
  • Vehicle Detection Vehicle Detection

What's Included

ACC front

Package Contents:

1 × PoE Switch

1 × Power Cord

2 × Rack Mount Bracket

8 × Mounting Screws

1 × SFP Dust Cap

4 × Rubber Feet

Quick Start Guide

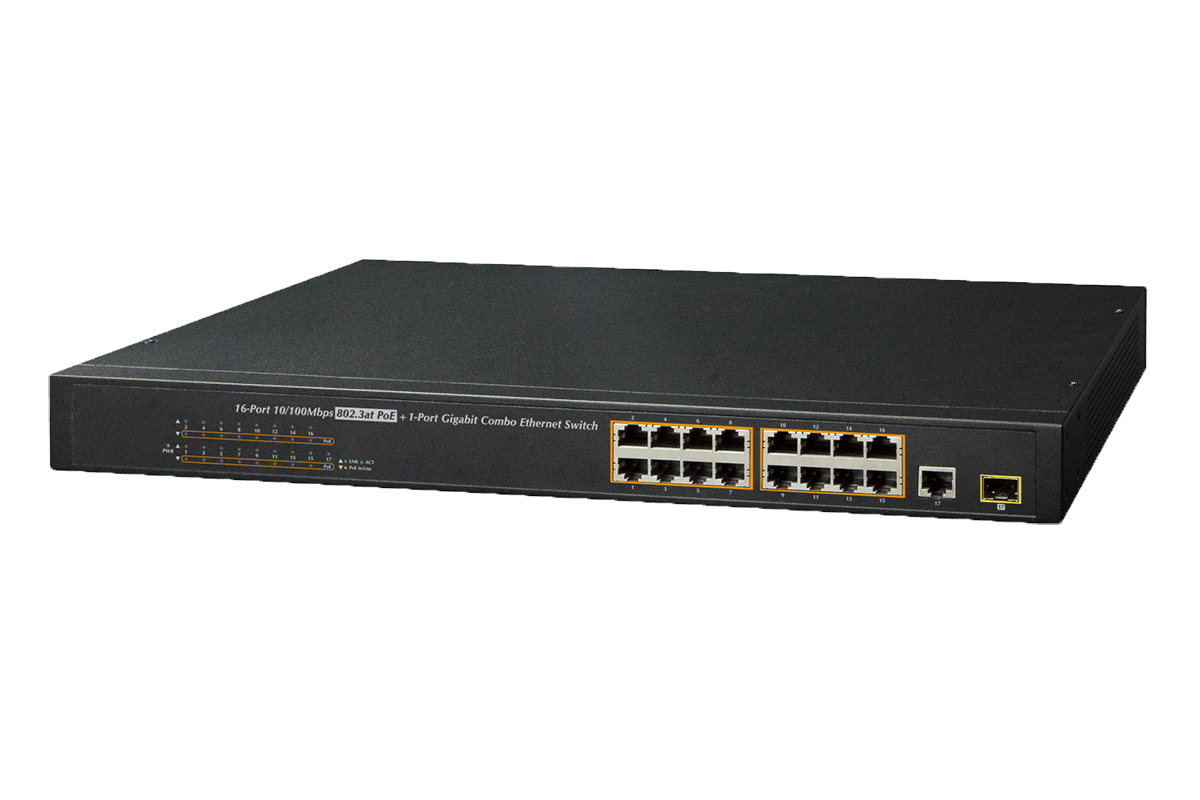

  • Centralized power distribution - Easy all-in-one PoE switch
  • 1 Gigabit rated RJ45/SFP port for fast device/network connection
  • High speed transmission of IP surveillance data
  • 220W total PoE power budget (up to 30.8W per port)
  • Convenient Real-time PoE usage LED indicators
N884 Front Overview
  1. Power, Hard Drive & Network Statuses
  2. Channel Statuses
  3. Navigation Controls
  4. Power Button
  5. Playback Controls
  6. Switch Keyboards (shift)
  7. Start/Stop Recording (rec)
  8. Special Functions (fn)
  9. Back/Cancel (esc)
  10. Info Button
  11. USB Port

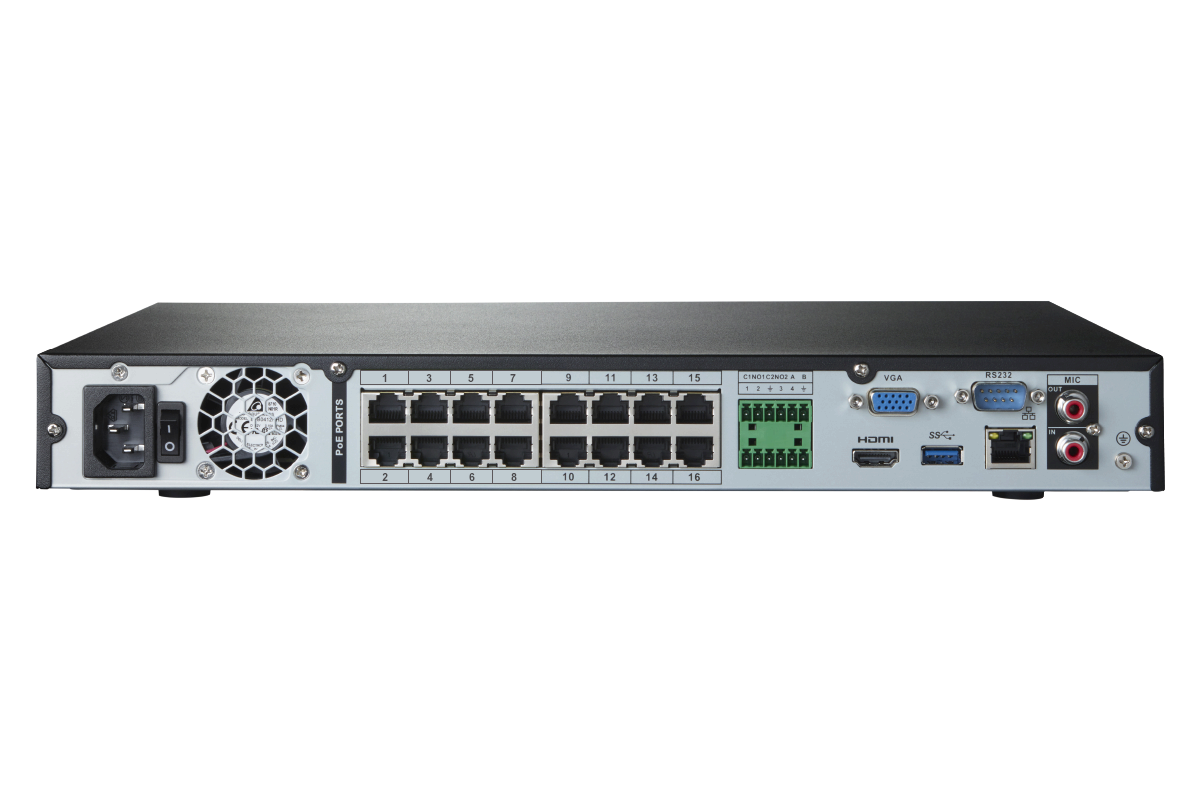

N884 Back Overview
  1. Power Connection
  2. Power Switch
  3. Camera Connection (PoE)
  4. RS485 Alarm
  5. Monitor Connection (VGA)
  6. RS232
  7. Audio In/Out
  8. Monitor Connection (HDMI)
  9. USB Port
  10. Network Connection (LAN)


Package Contents:

This 32-channel NVR has 16 ports. The other 16 channels can be utilized by adding a PoE switch (sold separately).

4K NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Cord

2 × 6-Pin Cable Adapter

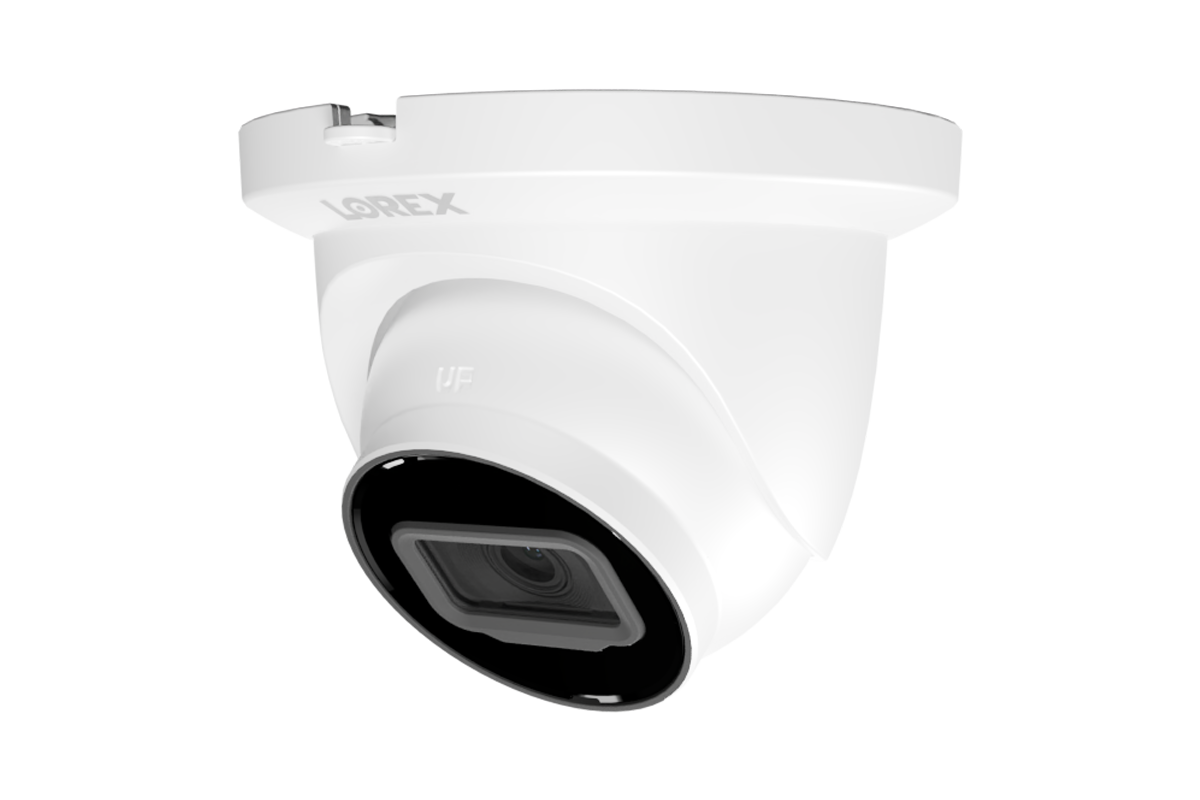

LNE45DD Overview
  1. 12V DC Power Connector
  2. Ethernet Connector
  3. Release Tab
  4. IR (Infrared) Light
  5. Camera Lens
  6. Microphone
  7. Adjustment Screw
  8. Cable Notch
  9. MicroSD Card Slot*
  10. Reset Button


Package Contents:

4MP IP PoE Wired Turret Camera

Mounting Bracket

Mounting Kit

Weather-resistant Cap

*A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing

Product Support

ACCLPS263B - 16-Channel PoE+ Switch

N884 Series - Lorex 4K Pro Series Network Video Recorder

A4 4MP IP Wired Turret Security Camera
