A Series

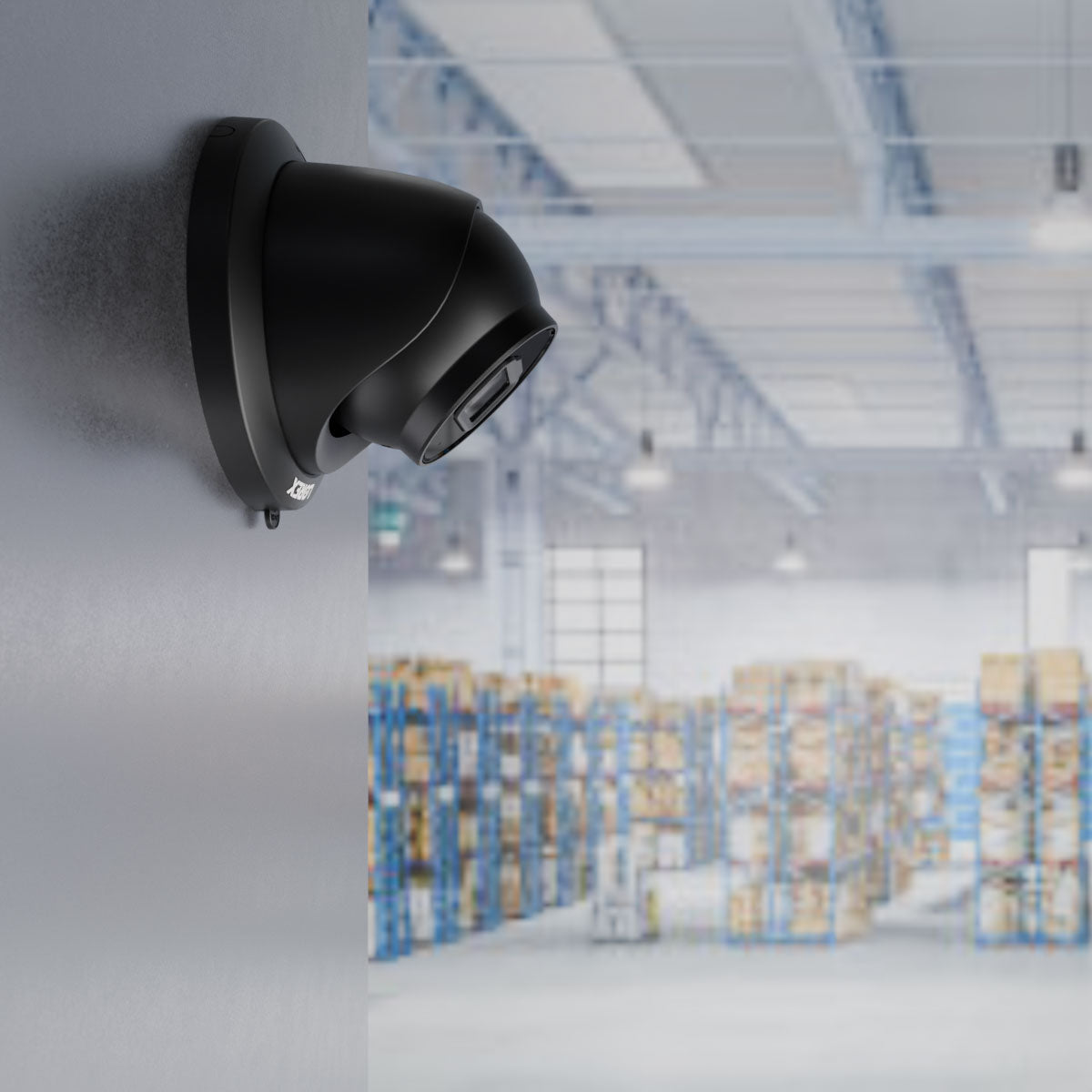

Lorex Elite Series NVR with A4 4MP (2K) IP Turret Cameras - 4K 16-Channel 4TB Wired System

SKU: N2K4-168BT-A4

Become a Partner and Log in to see pricing and to place orders

Product Features

  • 4MP Resolution
  • Smart Motion Detection
  • Color Night Vision
  • Listen-In Audio
  • IP67 Weatherproof Rating
  • Built-in 4TB Storage
  • Connect up to 16 cameras
  • Works with the Lorex Pro mobile app
  • Wide Dynamic Range (WDR)

Note: Camera cables are sold separately.

Add-Ons

Equip your business or clients with a professional surveillance system that delivers exceptional performance at an affordable price. The Lorex A4 Series 4MP IP Wired Turret Security Cameras offer professional 2K clarity, Color Night Vision, Smart Motion Detection, Listen-In Audio, and IP67 weatherproof ratings to ensure uncompromising security all year long. These cameras connect to the powerful 16-channel Network Video Recorder for comprehensive 24/7 surveillance for any small to medium sized property.

In-Camera Video Analytics

What's Included

N864 Front Overview
N864 Back Overview
  1. Info / Panic Button
  2. Hard Drive, Network, Recorder & Power LEDs
  3. USB
  4. Power Button
  5. Power Input
  6. Power Switch
  7. PoE Ports
  8. Alarm
  9. HDMI
  10. VGA Port
  11. RS232
  12. LAN
  13. Audio In / Out

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

  • 4K (8MP) IP cameras are required to take advantage of 4K recording.
  • Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  • This Fusion NVR can connect to 16 wireless devices per system. The NVR must be connected to the your Wi-Fi Router via network cable. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  • Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com
  • Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
  • Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  • Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  • HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  • NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more, please visit www.lorex.com/compatibility

Pre-recording is available only when using Motion Detection and can be viewed exclusively during local playback. This feature is not supported for Smart Motion Detection (SMD), continuous recording, or through the Lorex app or cloud services. The duration of the pre-recorded footage may vary based on the recorder available cache memory at the time the event was detected, up to a maximum time set by the user.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

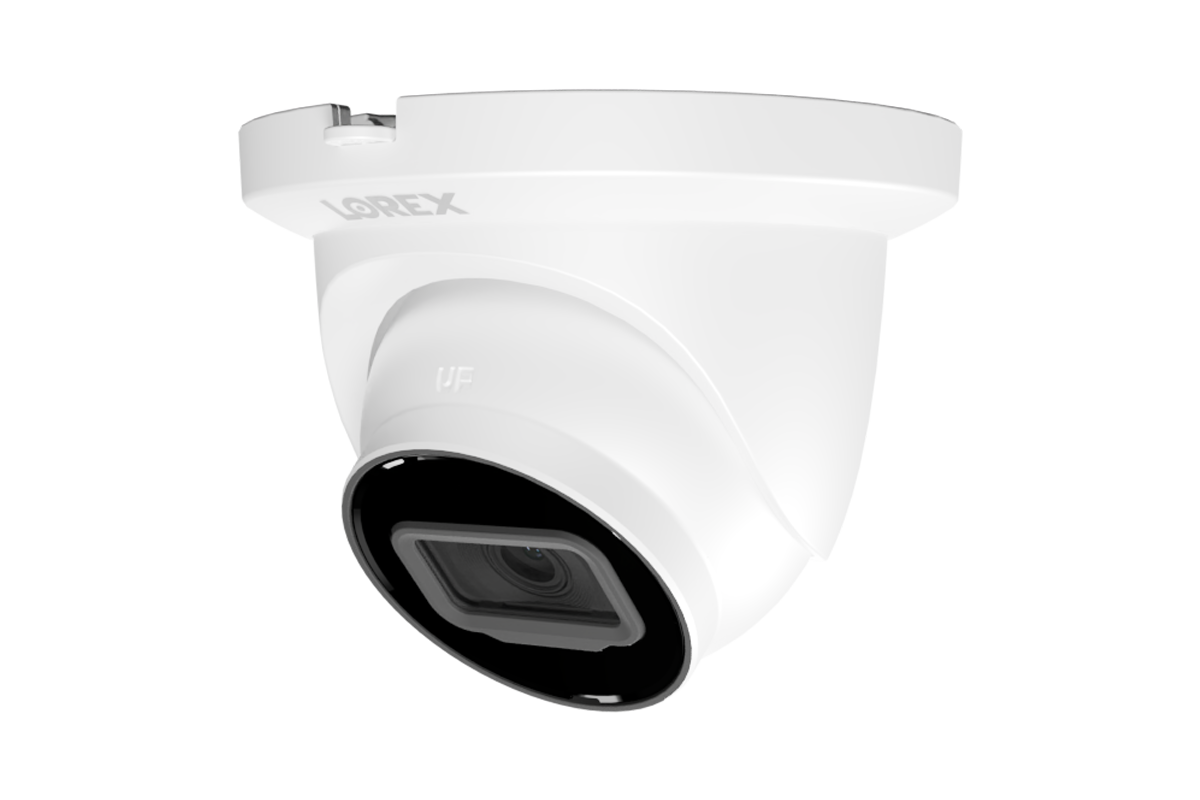

LNE45DD Overview
  1. 12V DC Power Connector
  2. Ethernet Connector
  3. Release Tab
  4. IR (Infrared) Light
  5. Camera Lens
  6. Microphone
  7. Adjustment Screw
  8. Cable Notch
  9. MicroSD Card Slot*
  10. Reset Button


Package Contents:

4MP IP PoE Wired Turret Camera

Mounting Bracket

Mounting Kit

Weather-resistant Cap

*A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing
