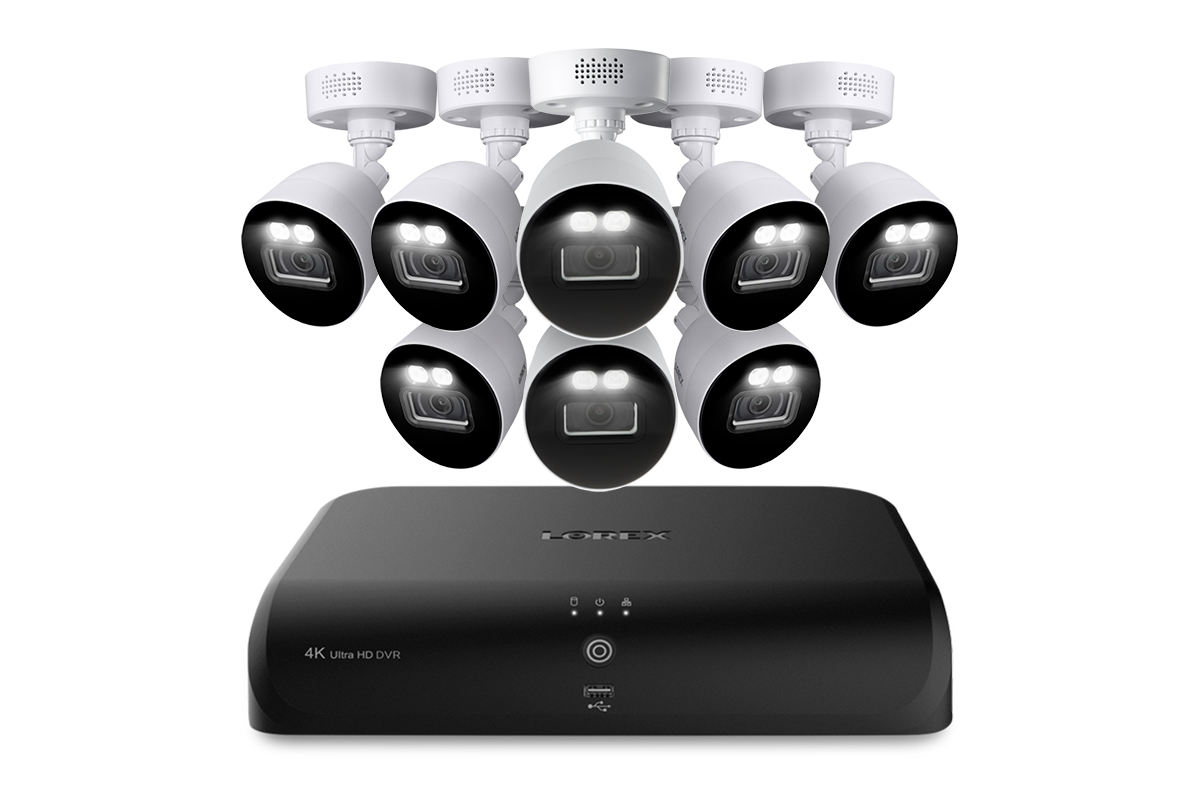

Name: Lorex Fusion 4K 12 Camera Capable (8 Wired + 4 Wi-Fi) 2TB Wired DVR System with Active Deterrence Bullet Cameras
Brand: Lorex
SKU: D4K2AD-84-C884-4

Lorex Fusion 4K 12 Camera Capable (8 Wired + 4 Wi-Fi) 2TB Wired DVR System with Active Deterrence Bullet Cameras

Roll over image to zoom in Click on image to zoom

Ultra HD Resolution
Smart Deterrence
Color Night Vision
Listen-In Audio
IP67 Weatherproof Rating
Built-in 2TB Storage
Connect up to 8 cameras
Works with the Lorex mobile app

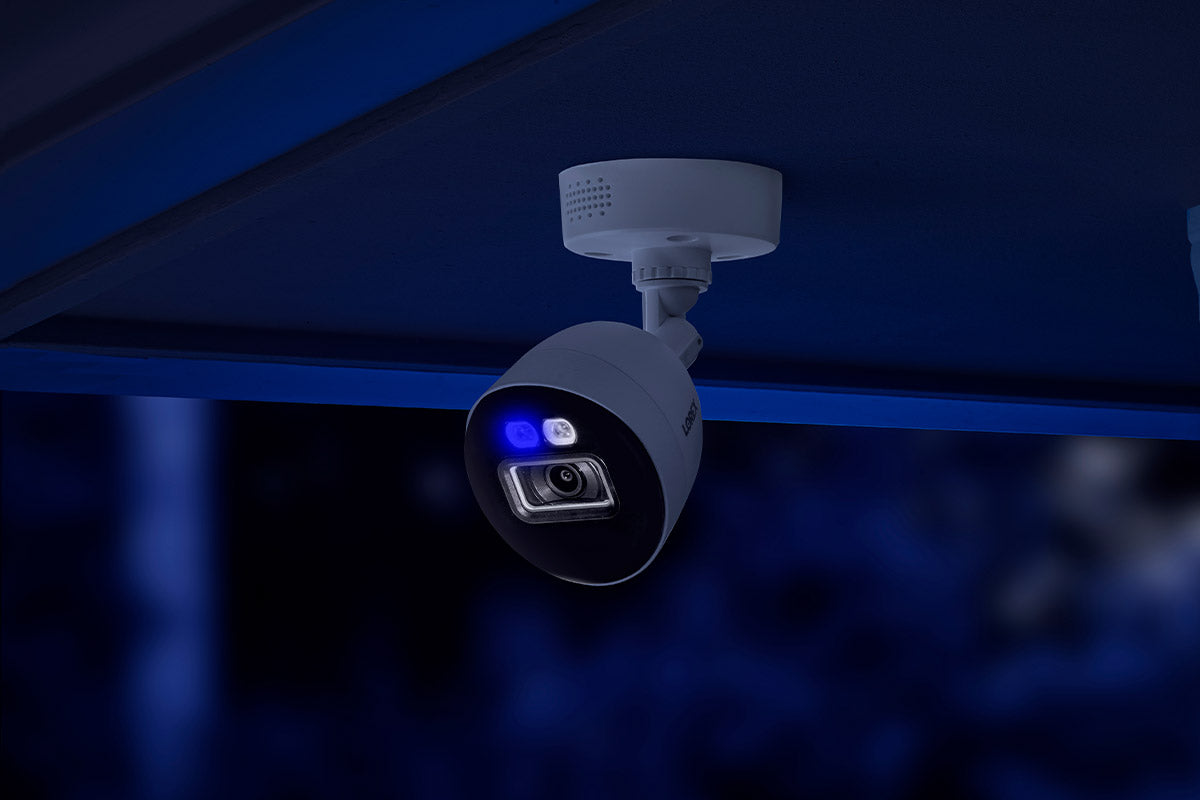

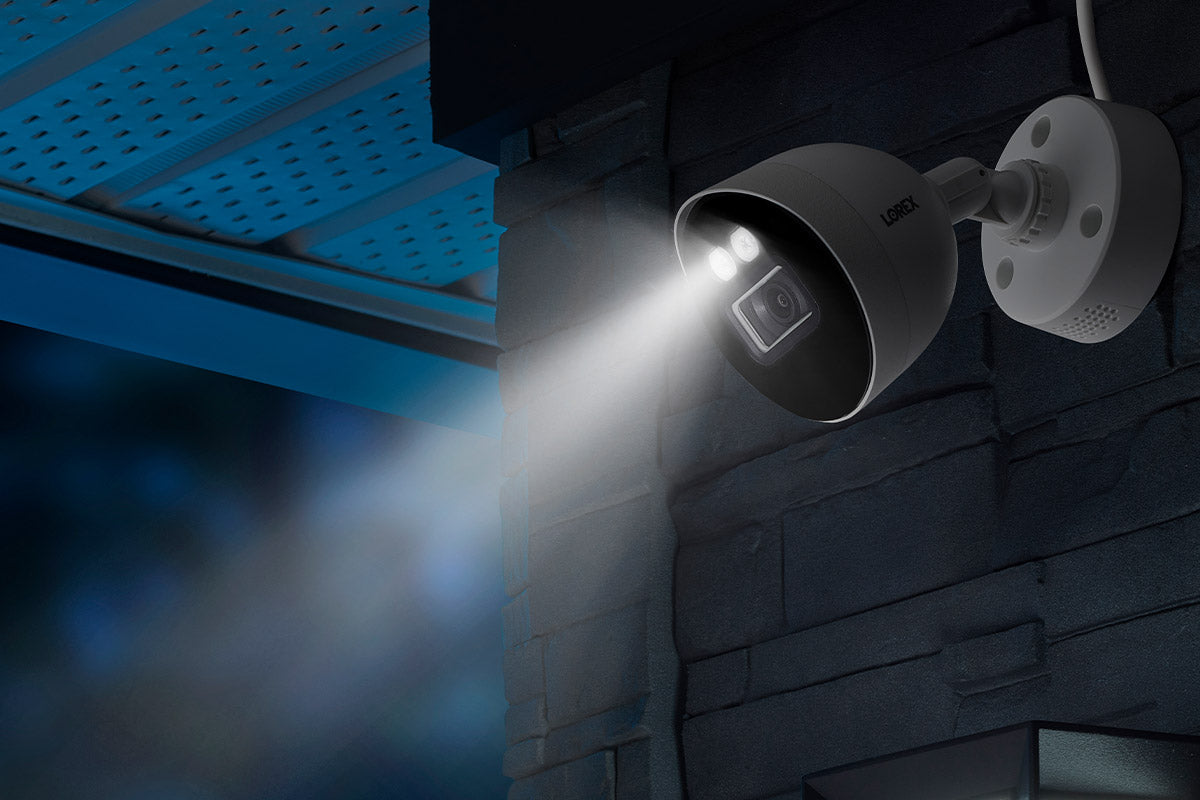

Protect what matters most with this 8-camera 4K DVR security system from Lorex. Each camera features Active Deterrence LED motion lights and warning sirens designed to stop events before they happen. They also feature 4K resolution recording, Color Night Vision, 105° wide angle lenses, and IP67-rated exteriors to ensure top quality security video around-the-clock. The DVR features its own secure local storage, which means there are no monthly fees, and is easily connected to the Lorex Home app for convenient on-the-go remote connection.

Dimensions (W×D×H): 2.9"x 6.4" x 3.3" (73mm x 164mm x 83mm)
Weight: 0.55lb / 0.25kg

Speaker and Siren
Cable Notch
Adjustment Ring
Adjustment Screws
Camera lens
Dual Color Warning Lights

Package Contents:

4K Deterrence CVI Camera

Mounting Kit

BNC/Power Extension Cable*

Power Adapter**

^{*Per camera in multi-camera packs.

**Multi-camera or individual power adapters may be provided depending on product configuration.}

Compatible with select Lorex analog HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
Full color nighttime video typically switches to black & white IR night vision below 1 lux to ensure optimal low-light image quality.
Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depend on the installation location, viewing area, and light reflection/absorption level of an object. In low light, the camera will switch to black and white.
Not intended for submersion in water. Installation in a sheltered area recommended.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

Dimensions (W×D×H): 12.9 × 9.6 × 2.1" (328 × 245 × 53mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

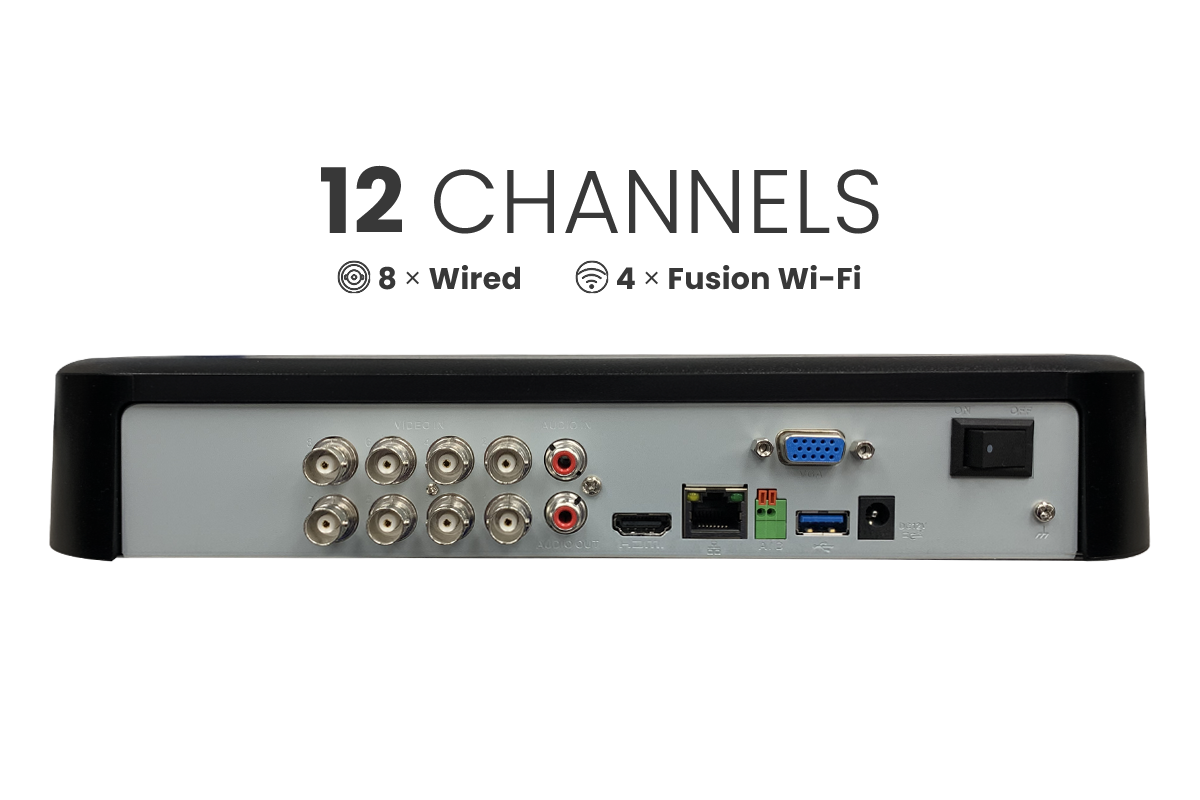

Hard Drive LED
Power LED
Network LED
USB Ports
Info / Panic Button
Video Inputs
Audio In / Out
HDMI Port
LAN Port
RS-485 Port
VGA Port
Power Port
Power Switch

Package Contents:

4K Fusion DVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
Accuracy of Smart Motion Detection or Person and Vehicle Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
Accuracy of Face Detection and Face Recognition will be influenced by the distance of the face from the camera. Partially or fully covered faces will not be detected. Night vision will impact the accuracy of Face Detection. Facial recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
Face Detection and Face Recognition are available on up to 2 channels only. Smart Motion Detection can not be enabled on all channels while Face Detection or Face Recognition is enabled.
Virtual Fence is available on up to 2 channels only. Smart Motion Detection can not be enabled on the same channel when a single channel is enabled. To enabled Virtual Fence on 2 channels, Smart Motion Detection must be disabled on all channels.
Compatible with select Lorex cameras only. For a list of compatible cameras, please visit www.lorex.com/compatibility
Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available.
Requires a high-speed internet connection and a router (not included) for remote access. A minimum upload speed of 7.5Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit: www.lorex.com/support
Both firmware and software must be updated to latest version to ensure remote connectivity in all areas or networks. For compatibility, features, instructions visit: www.lorex.com
HDMI output supports up to 4K for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the DVR, as well as TV/ monitor resolution.
AppleTV™ or Chromecast™ need to be connected to the same network as your recorder. Requires AppleTV Gen 4 or newer with Lorex Apple TV APP or Chromecast ™ device connected to the TV that you want to view the system on.
