Name: Fusion DVR 4K 12 Camera Capable (8 Wired and 4 Fusion Wi-Fi) 2TB DVR
Brand: Lorex
SKU: D881A82B

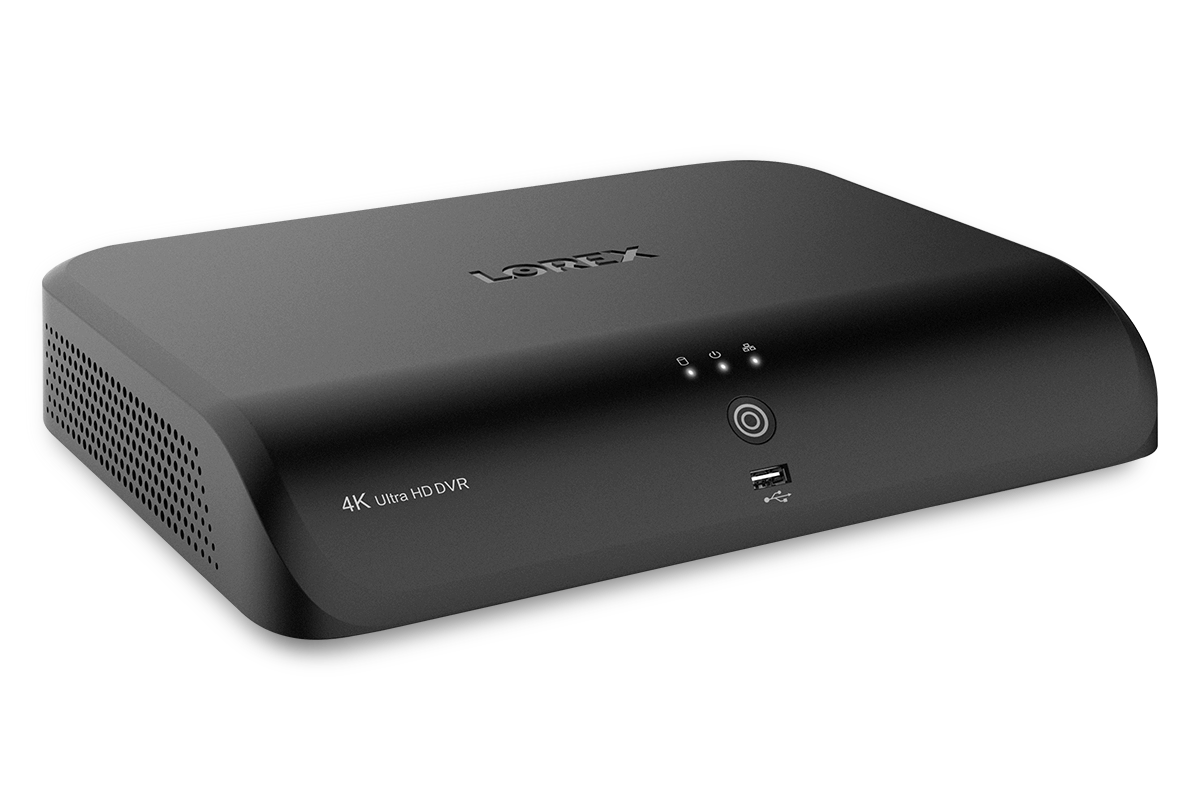

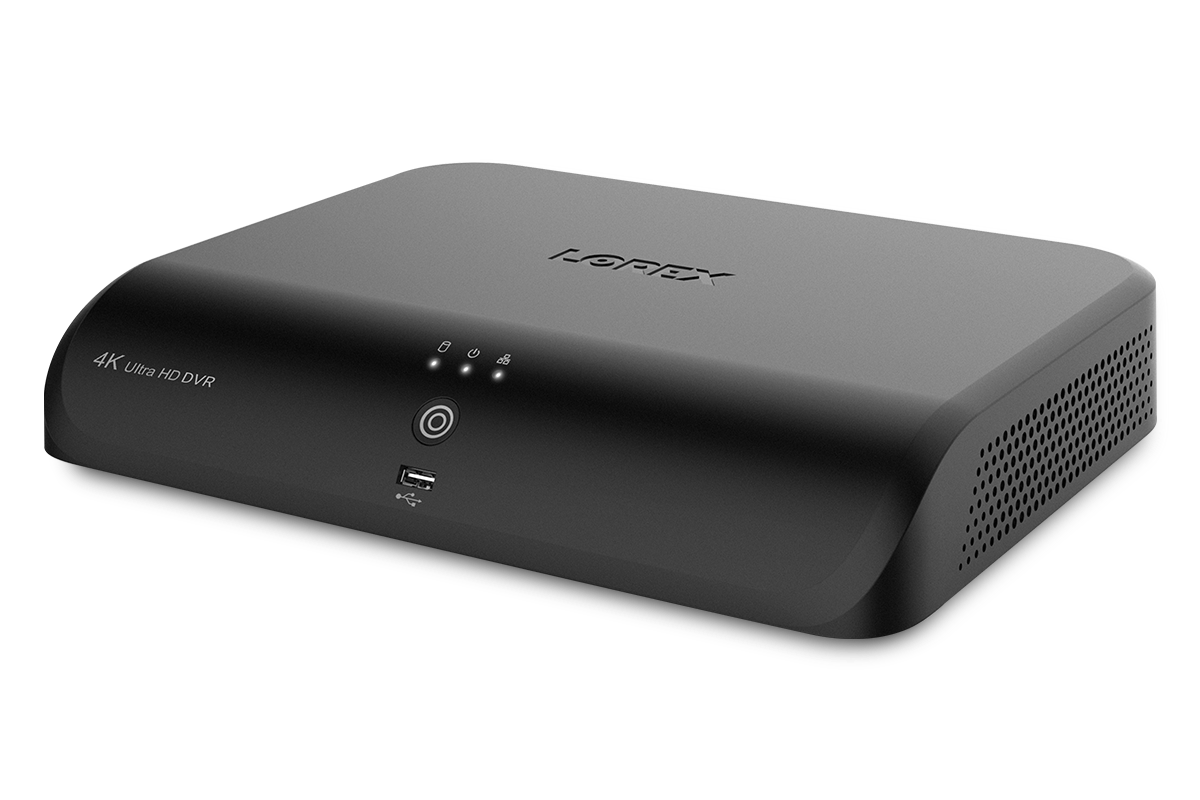

Fusion DVR 4K 12 Camera Capable (8 Wired and 4 Fusion Wi-Fi) 2TB DVR

Roll over image to zoom in Click on image to zoom

Ultra HD Resolution
Built-in 2TB Storage. Expandable up to 1 × 16TB
Connect up to 12 cameras (8 Wired + 4 Fusion Wi-Fi)
Works with the Lorex mobile app

In-Camera Video Analytics

Virtual Fence
Person Detection
Vehicle Detection
Face Recognition
Smart Search

Product Specifications

View Catalog

Download Full Specs

What's Included

Dimensions (W×D×H): 12.9 × 9.6 × 2.1" (328 × 245 × 53mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

Hard Drive LED
Power LED
Network LED
USB Ports
Info / Panic Button
Video Inputs
Audio In / Out
HDMI Port
LAN Port
RS-485 Port
VGA Port
Power Port
Power Switch

Package Contents:

4K Fusion DVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
Accuracy of Smart Motion Detection or Person and Vehicle Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
Accuracy of Face Detection and Face Recognition will be influenced by the distance of the face from the camera. Partially or fully covered faces will not be detected. Night vision will impact the accuracy of Face Detection. Facial recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
Face Detection and Face Recognition are available on up to 2 channels only. Smart Motion Detection can not be enabled on all channels while Face Detection or Face Recognition is enabled.
Virtual Fence is available on up to 2 channels only. Smart Motion Detection can not be enabled on the same channel when a single channel is enabled. To enabled Virtual Fence on 2 channels, Smart Motion Detection must be disabled on all channels.
Compatible with select Lorex cameras only. For a list of compatible cameras, please visit www.lorex.com/compatibility
Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available.
Requires a high-speed internet connection and a router (not included) for remote access. A minimum upload speed of 7.5Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit: www.lorex.com/support
Both firmware and software must be updated to latest version to ensure remote connectivity in all areas or networks. For compatibility, features, instructions visit: www.lorex.com
HDMI output supports up to 4K for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the DVR, as well as TV/ monitor resolution.
AppleTV™ or Chromecast™ need to be connected to the same network as your recorder. Requires AppleTV Gen 4 or newer with Lorex Apple TV APP or Chromecast ™ device connected to the TV that you want to view the system on.
