Nocturnal Series

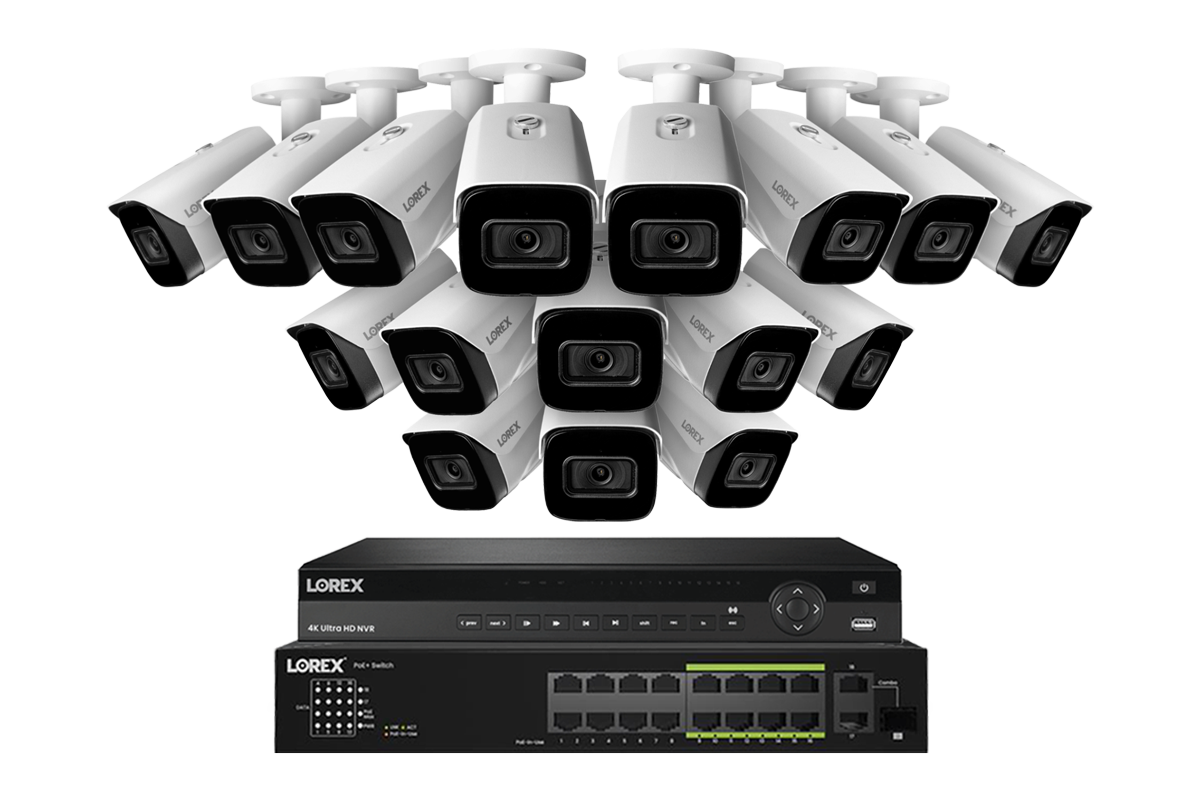

Lorex Elite Series NVR with N3 (Nocturnal Series) IP Bullet Cameras - 4K 32-Channel 8TB Wired System

SKU: NP4K8F-3216WB

Become a Partner and Log in to see pricing and to place orders

Product Features

  • Ultra HD Resolution
  • Real-Time 4K (30FPS)  Recording
  • Color Night Vision
  • Listen-In Audio
  • IP67 Weatherproof Rating
  • Built-in 8TB Storage
  • Connect up to 32 cameras
  • Works with the Lorex Pro mobile app

What's Included

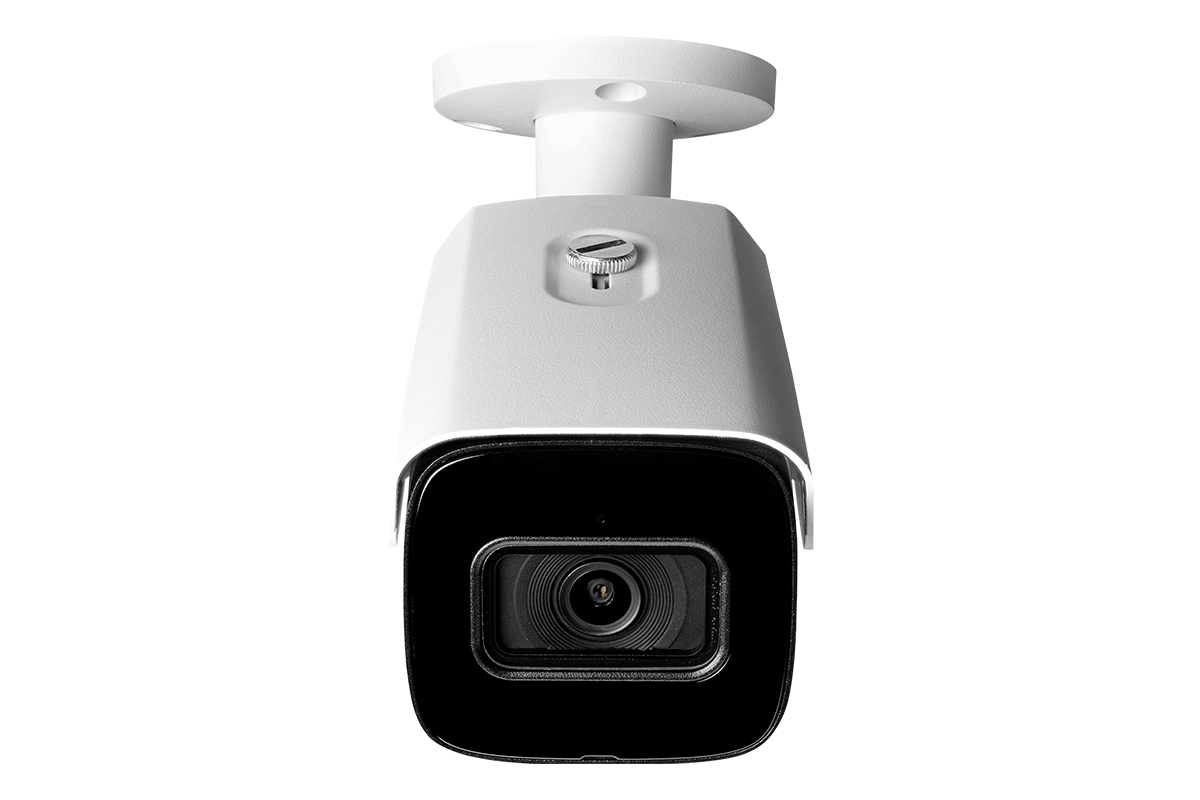

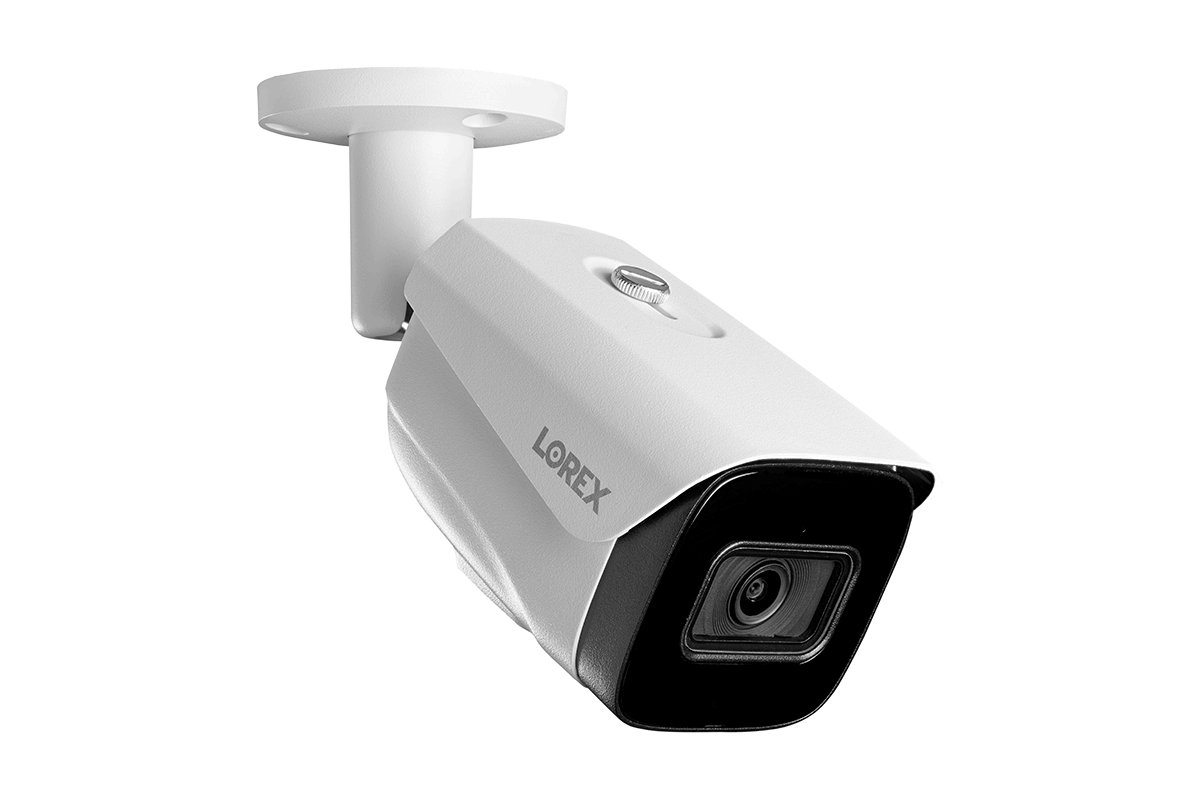

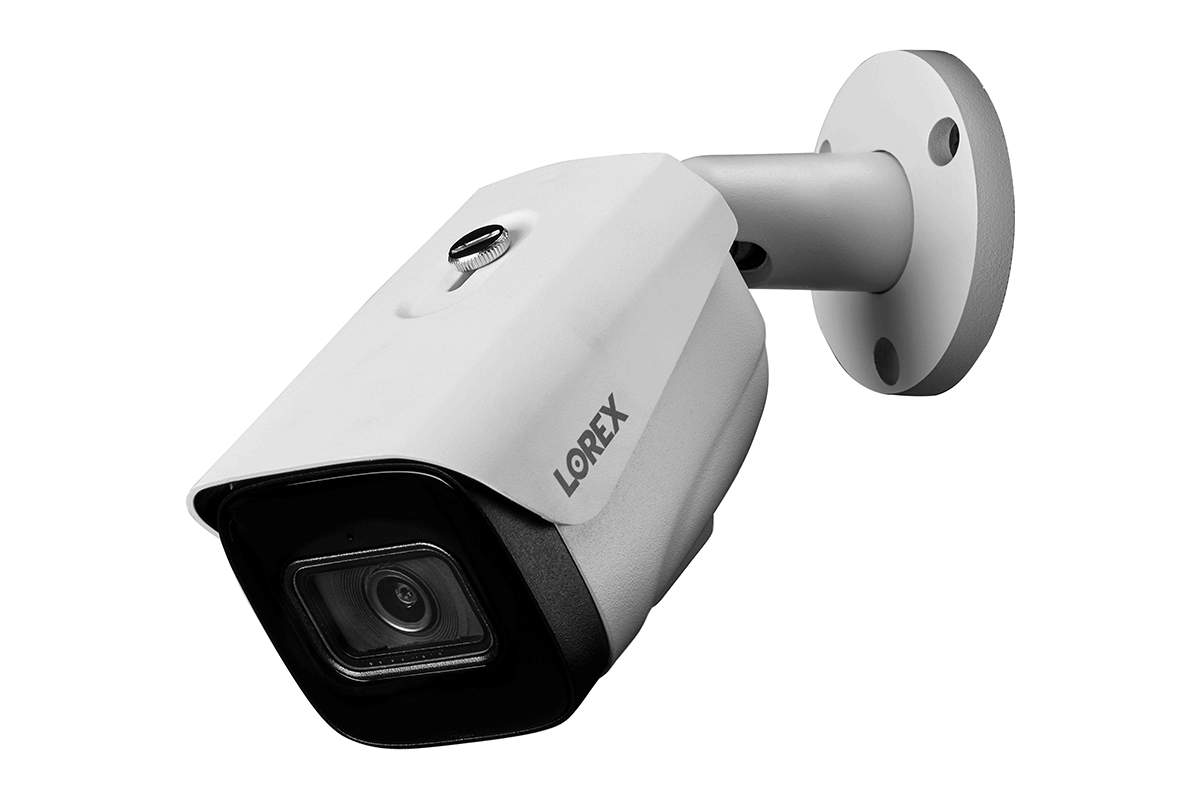

LNB9252B dimensions
  • 4K (8MP) Ultra HD resolution, ensuring clear and detailed footage1
  • See more with a with up to 107° field of view
  • Hear and record audio from your camera thanks to listen-in audio2
  • Record at a real-time 30 frames-per-second, providing smooth and clearer footage3
  • Enhanced nighttime clarity with Color Night Vision™4 thanks to an impressive large format lens
  • Up to 150ft (46m) IR night vision in low light and 98ft (30m) in total darkness5
  • Reduce unnecessary alerts and false alarms with Smart Motion Detection6
  • Receive motion notifications when only a Person or Vehicle is detected on your property from your Lorex App6
  • Weatherproof rated (IP67)7
  • Operates in temperatures low as -40°F (-40°C) and high as 140°F (60°C)
  • Aluminum Alloy housing, designed to withstand harsh weather condition

Each LNB9252B Includes:

1 × IP Bullet Camera
1 × Ethernet Cable*
1 × Mounting Kit
1 × Mounting Template

1. 4K capable recorder (not included) is required to record video in 4K resolution. 4K TV (not included) is required to view live or pre-recorded 4K video.
2. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
3. Smart Motion Detection is enabled by default. When enabled, the camera's recording frame rate is reduced from 30 frames per second to 20 frames per second. To obtain the maximum of 30 frames per second, the camera must be connected to a recorder that supports the maximum frame rate. For a list of compatible recorders, please visit lorextechnology.com/compatibility
4. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
5. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
6. In order for Person and Vehicle detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart motion detection technology. For a list of compatible recorders please visit: lorextechnology.com/compatibility
7. Not intended for submersion in water. Installation in a sheltered area recommended.
8. A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.
* Cable length is dependent on product configuration. See product packaging for details.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.

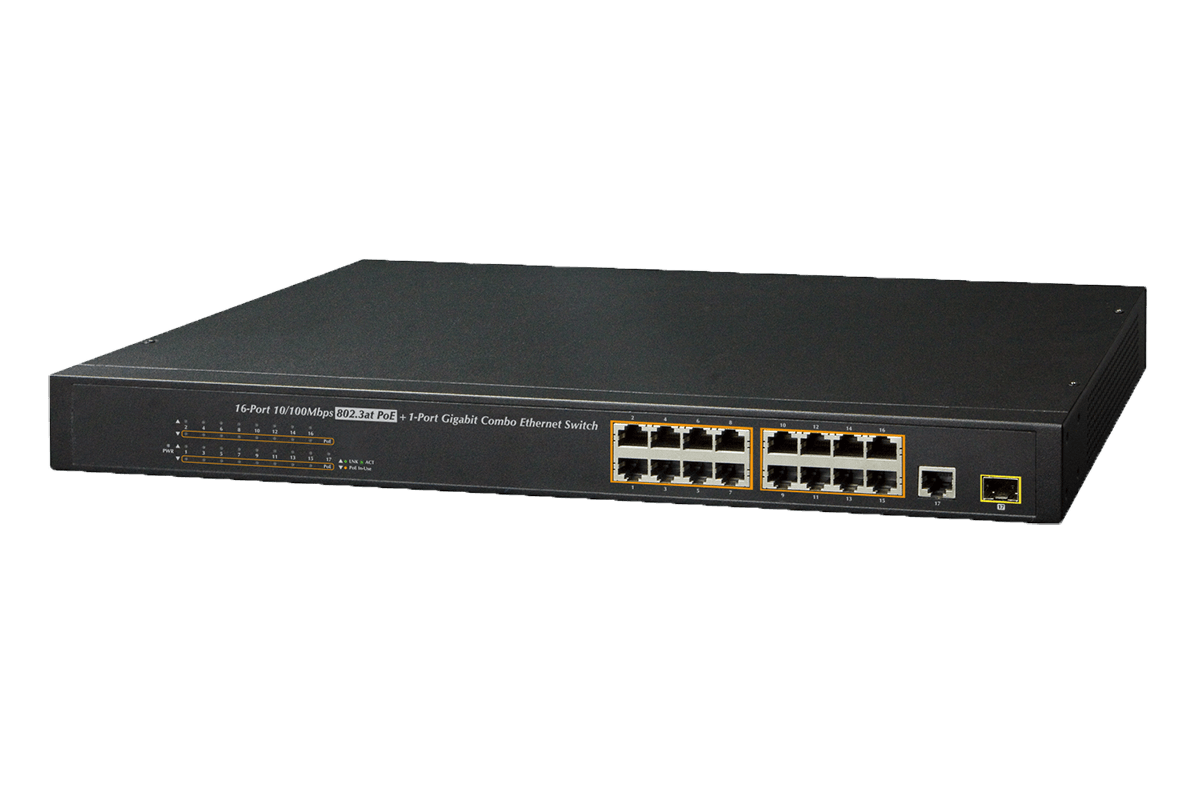

ACC front

Package Contents:

1 × PoE Switch

1 × Power Cord

2 × Rack Mount Bracket

8 × Mounting Screws

1 × SFP Dust Cap

4 × Rubber Feet

Quick Start Guide


  • Centralized power distribution - Easy all-in-one PoE switch
  • 1 Gigabit rated RJ45/SFP port for fast device/network connection
  • High speed transmission of IP surveillance data
  • 220W total PoE power budget (up to 30.8W per port)
  • Convenient Real-time PoE usage LED indicators
N884 Front Overview
  1. Power, Hard Drive & Network Statuses
  2. Channel Statuses
  3. Navigation Controls
  4. Power Button
  5. Playback Controls
  6. Switch Keyboards (shift)
  7. Start/Stop Recording (rec)
  8. Special Functions (fn)
  9. Back/Cancel (esc)
  10. Info Button
  11. USB Port
N884 Back Overview
  1. Power Connection
  2. Power Switch
  3. Camera Connection (PoE)
  4. RS485 Alarm
  5. Monitor Connection (VGA)
  6. RS232
  7. Audio In/Out
  8. Monitor Connection (HDMI)
  9. USB Port
  10. Network Connection (LAN)


Package Contents:

This 32-channel NVR has 16 ports. The other 16 channels can be utilized by adding a PoE switch (sold separately).

4K NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Cord

2 × 6-Pin Cable Adapter

Product Support

LNB9242B / LNB9252B Series - 4K Fixed Smart IP Bullet Security Camera

ACCLPS263B - 16-Channel PoE+ Switch

N884 Series - Lorex 4K Pro Series Network Video Recorder
