Product Features
- Long reach Ethernet & PoE extention over UTP cable
- Data + Power over UTP cable
- Data & PoE distance up to 400m
- Data up to 100Mbps
- 100Mbps Full Duplex
- Multicast ready
- PoE, PoE+, Extra PoE (Max. 60W PoE output, EUP-01T model only with DC Power adaptater
- PoE ON/OFF Switch (EUP-01T only)
- LED Indication (Data, Power)
- Plug & Play
- Built-in surge protection
- Support PoE, PoE+ Input (25.5W) from PoE Switch / PoE NVR
- Slim design
Save significant time and reduce hassle, as there's no need for new cable installations; existing cables can be repurposed for Ethernet and PoE transmission. This approach not only saves money by eliminating the need to purchase new cables but also promotes environmental sustainability by reusing existing resources instead of discarding them.
SAVE TIME
SAVE MONEY
SAVE ENVIRONMENT

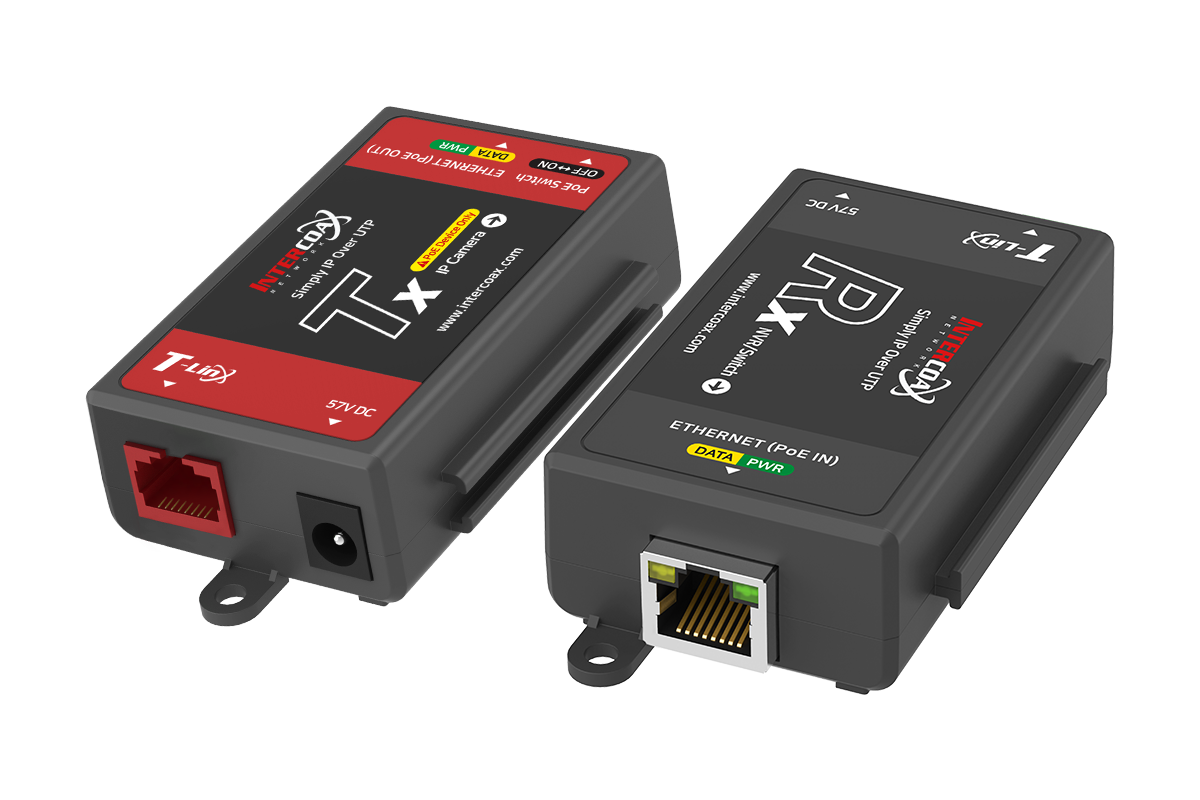

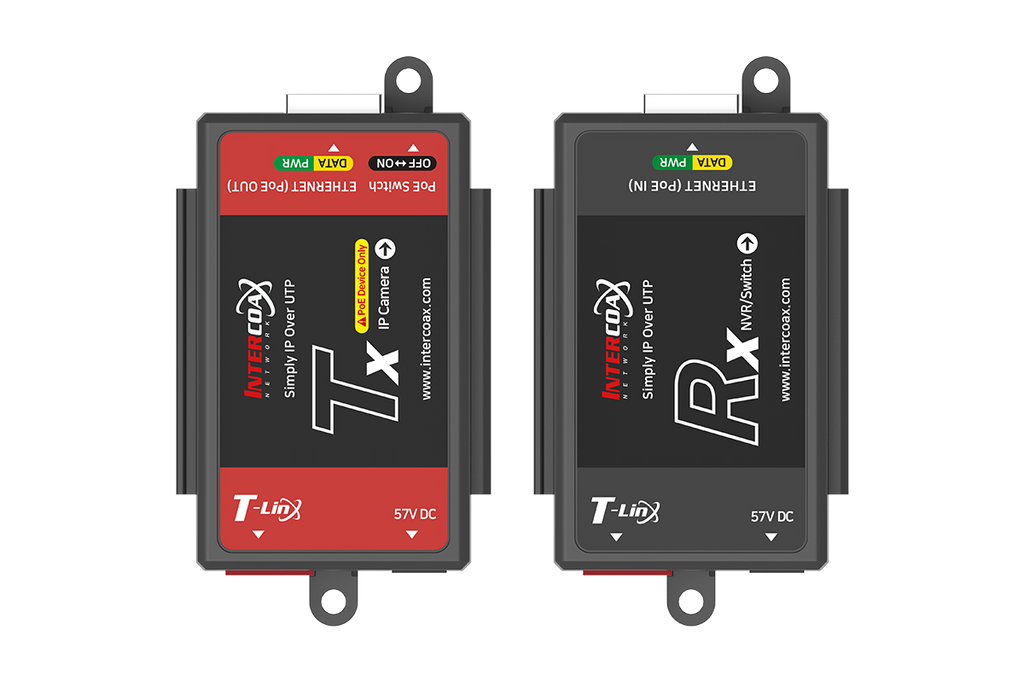

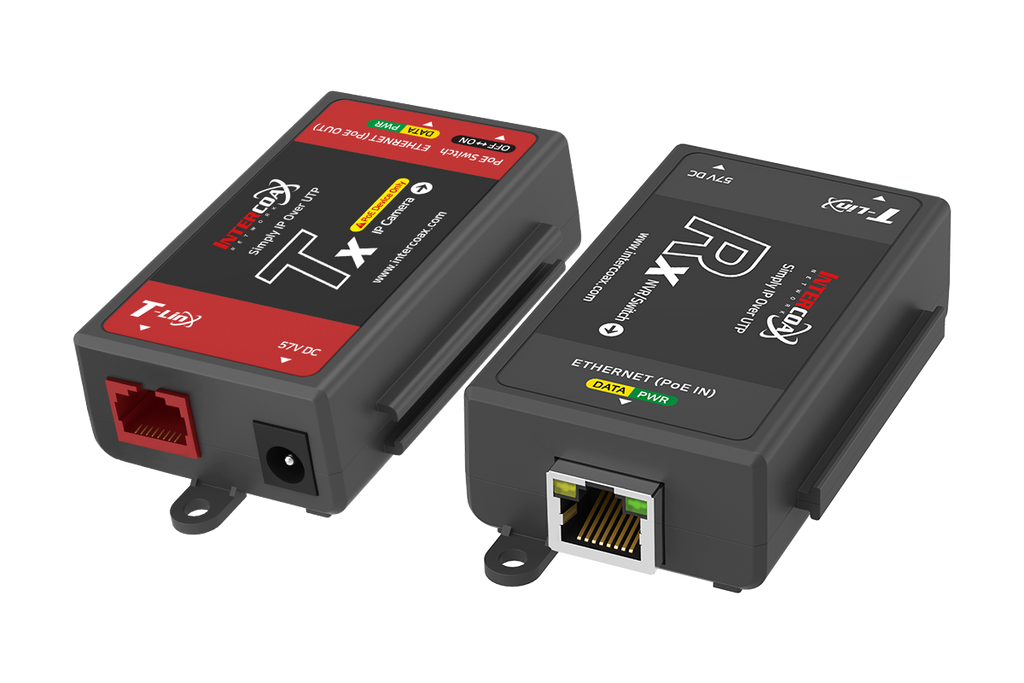

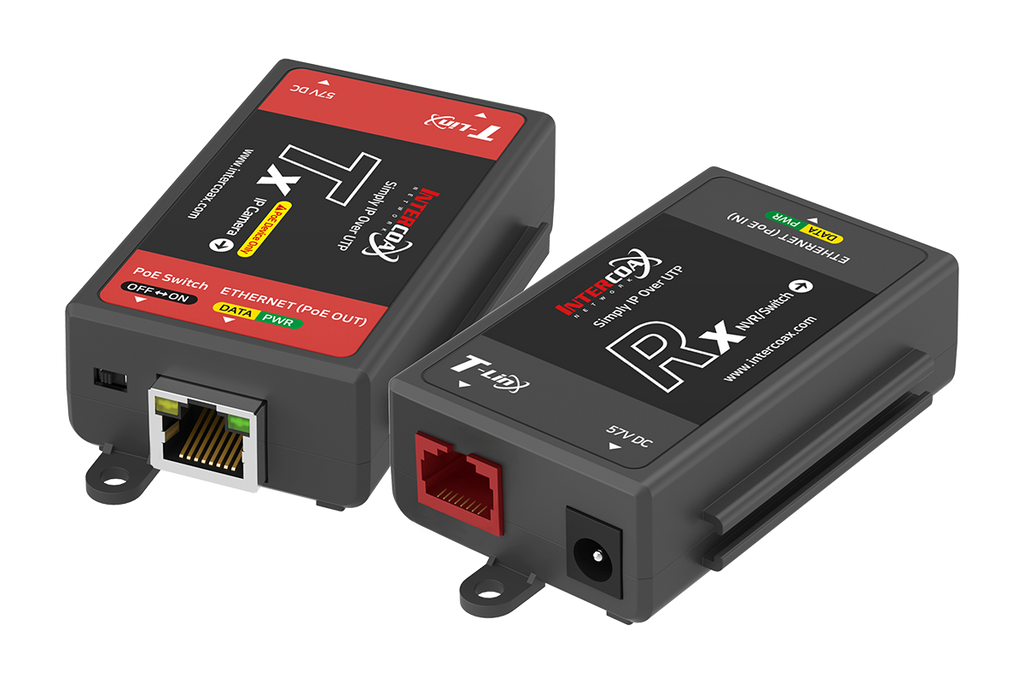

The EUP-01 Series are high-speed, long-distance Ethernet & PoE extenders that enable the transmission of Ethernet signals and PoE up to 400m through UTP cables. They offer a cost-effective and time-saving solution for migrating existing systems to IP-based systems, as the EUP-01 series supports easy installation utilizing existing UTP cables. With the long-distance transmission feature, these devices easily overcome the 100-meter distance limitation and significantly reduce construction costs compared to fiber optic configurations.
Connection Diagram
*Transmission distance may vary depending on the type and quality of cable, use of power and environmental condition.
**Distance is based on Cat.5e cable and 7 Watt IP Camera.
Product Specifications
| Model | EUP‑01T | EUP‑01R | |
|---|---|---|---|
| Interface | |||
| EoC Signal | 1 x RJ45 - Ethernet over UTP (T-LinX) | ||
| Ethernet | 1 x RJ45 - 10/100 Base-T with manual | ||
| Transmission Rate | 10/100Mbps Full Duplex | ||
| Transmission Distance | |||
| Ethernet | up to 400 m (Cat5e UTP Cable) | ||
| PoE (PoC) | up to 400 m (Cat.5e / 20W) | ||
| LED Indication | Ethernet | 1 x Link (Yellow) / 1 x ACT (Green) | |
| Power | |||
| Input | B-Link or DC48V~57V | PoE Switch or DC48V~57V | |
| PoE Output | IEEE802.3af (PoE), IEEE802.3at (PoE+), Extra PoE up to 60W with 57V Power Adaptor |
PoE Not Supported PoC Only |
|
| PoE Input | Up to 25.5W (PD) | Up to 25.5W (PD) | |
| Model | EUP‑01T | EUP‑01R | |
|---|---|---|---|
| Mechanical | |||
| Dimension | 93(L) x 51(W) x 24(H)mm | ||
| Weight | 52g | ||
| Environment | |||
| Operating Temp | -20 ~ 60°C | ||
| Storage Temp | -30 ~ 80°C | ||
| Relative Humidity | 10% ~ 90% | ||
| Compliance | |||
| Certification | FCC, CE, KC, RoHS | ||
| Surge Protection | IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us) | ||
What's Included
Package Contents:
EUP-01T
(Transmitter)
EUP-01R
(Receiver)
Manual
Product Support
ALP-EUP-01T/R - Single port Ethernet over UTP Transmitter / Receiver
