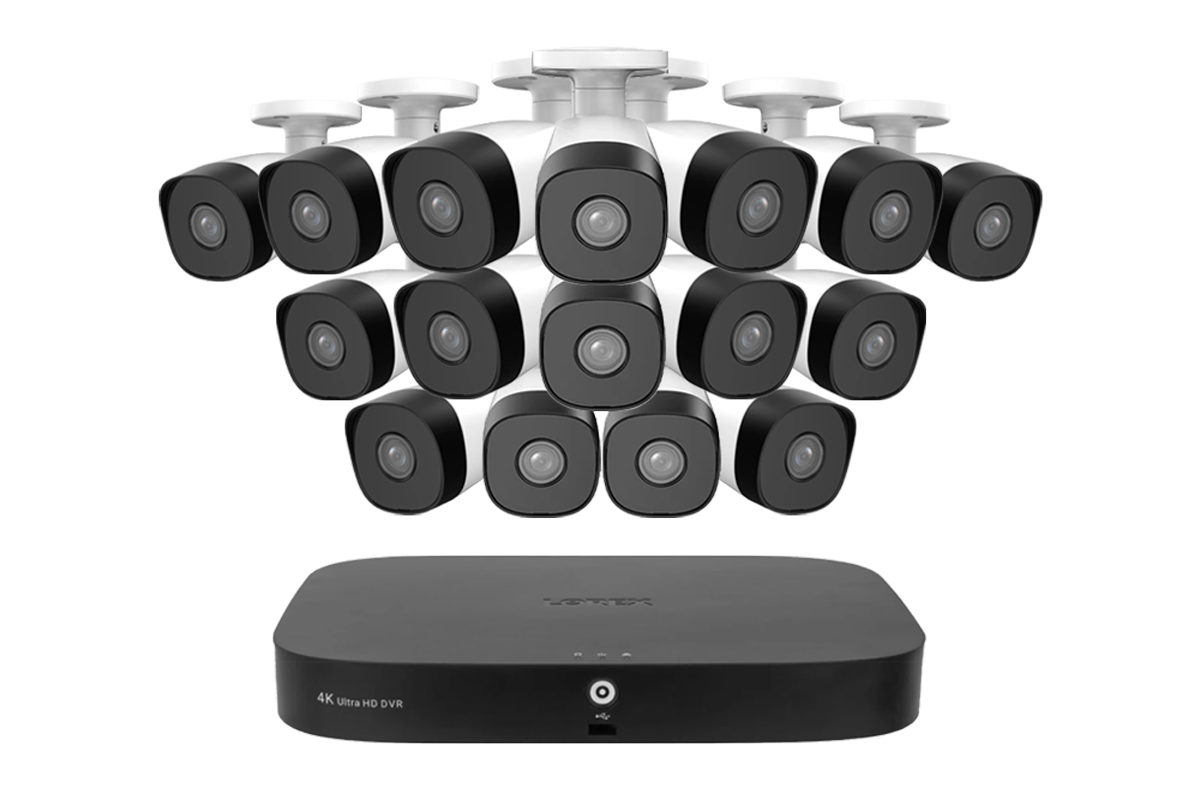

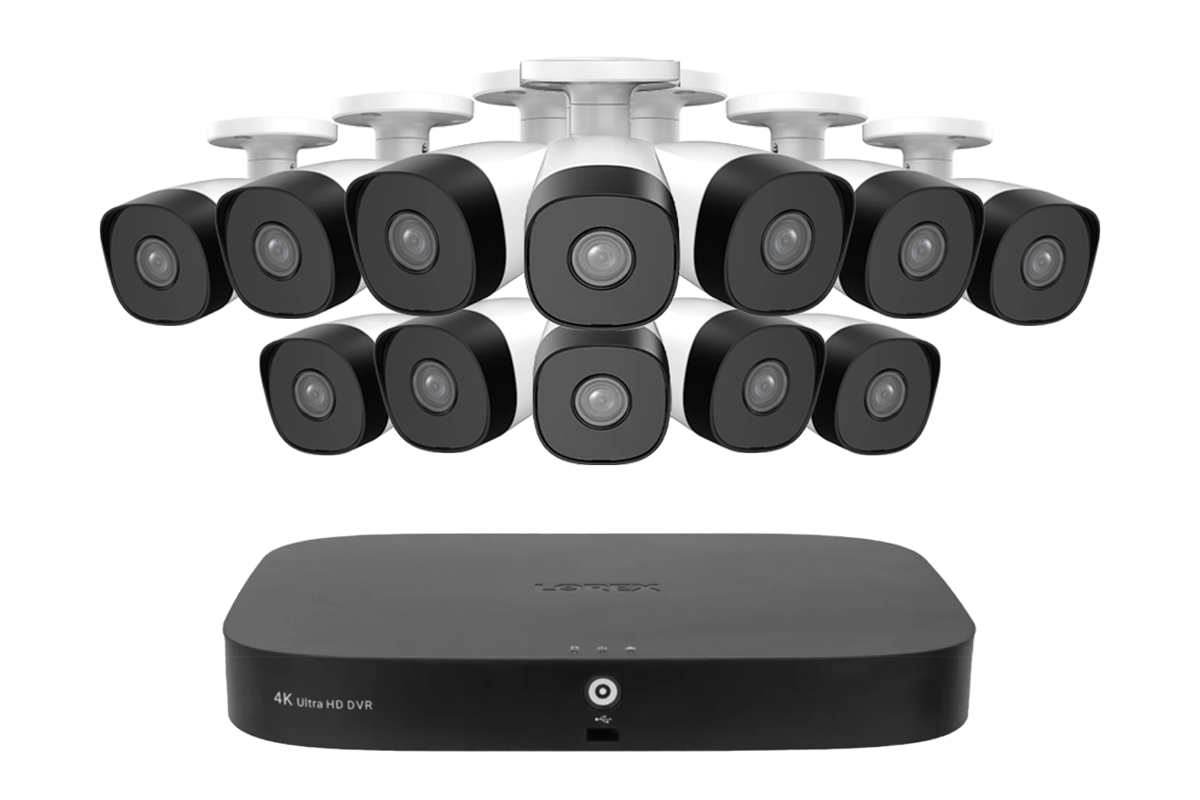

Lorex Fusion Series 4K 20 Camera Capable (16 Wired + 4 Fusion Wi-Fi) 2TB DVR Wired System with 1080p Analog (CVI) Bullet Security Cameras
Lorex 1080p CVI Wired Bullet Camera
Lorex 1080p CVI Wired Bullet Camera
Lorex 1080p CVI Wired Bullet Camera
Lorex Fusion Series 4K 20 Camera Capable (16 Wired + 4 Fusion Wi-Fi) 2TB DVR Wired System with 1080p Analog (CVI) Bullet Security Cameras
Lorex Fusion Series 4K 20 Camera Capable (16 Wired + 4 Fusion Wi-Fi) 2TB DVR Wired System with 1080p Analog (CVI) Bullet Security Cameras
Roll over image to zoom in Click on image to zoom
Lorex Fusion Series 4K 20 Camera Capable (16 Wired + 4 Fusion Wi-Fi) 2TB DVR Wired System with 1080p Analog (CVI) Bullet Security CamerasLorex 1080p CVI Wired Bullet CameraLorex 1080p CVI Wired Bullet CameraLorex 1080p CVI Wired Bullet CameraLorex Fusion Series 4K 20 Camera Capable (16 Wired + 4 Fusion Wi-Fi) 2TB DVR Wired System with 1080p Analog (CVI) Bullet Security CamerasLorex Fusion Series 4K 20 Camera Capable (16 Wired + 4 Fusion Wi-Fi) 2TB DVR Wired System with 1080p Analog (CVI) Bullet Security Cameras

Analog Series

Lorex Fusion Series 4K 20 Camera Capable (16 Wired + 4 Fusion Wi-Fi) 2TB DVR Wired System with 1080p Analog (CVI) Bullet Security Cameras

New Arrival
SKU: D1082-168C

Become a Partner and Log in to see pricing and to place orders

Product Features

  • Full HD Resolution
  • Smart Motion Detection
  • IR Night Vision
  • IP67 Weatherproof Rating
  • Built-in 2TB Storage. Expandable up to 1 × 16TB
  • Connect up to 16 cameras (16 Wired + 4 Fusion Wi-Fi)
  • Works with the Lorex mobile app

Add-Ons

Start your home or business security system with this Lorex Fusion Series 4K 20 Camera Capable DVR System—an affordable yet powerful solution for 24/7 surveillance. This versatile system includes wired 1080p HD CVI bullet cameras and a Fusion DVR, which allows you to integrate up to four Fusion Wireless (Wi-Fi) Cameras for continuous recording on the 2TB hard drive. With infrared night vision and IP67-rated weatherproof durability, this system ensures reliable monitoring, day or night, in any weather—making it the perfect economical choice for those looking to enhance their security.

In-Camera Video Analytics

What's Included

D863 Front Overview
D863 Back Overview

Dimensions (W×D×H): 12.9 × 9.6 × 2.1" (328 × 245 × 53mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

  1. Hard Drive, Power & Network Statuses
  2. USB Ports
  3. Info / Panic Button
  4. Wired Camera Connection
  5. Audio Connection (In / Out)
  6. Monitor Connection (VGA)
  7. Power Switch (On/Off)
  8. Monitor Connection (HDMI)
  9. Network Connection (LAN)
  10. PTZ Connection (RS-485)
  11. Power Connection

Package Contents:

4K Fusion DVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

  1. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  2. Accuracy of Smart Motion Detection or Person and Vehicle Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
  3. Accuracy of Face Detection and Face Recognition will be influenced by the distance of the face from the camera. Partially or fully covered faces will not be detected. Night vision will impact the accuracy of Face Detection. Facial recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
  4. Face Detection and Face Recognition are available on up to 2 channels only. Smart Motion Detection can not be enabled on all channels while Face Detection or Face Recognition is enabled.
  5. Virtual Fence is available on up to 2 channels only. Smart Motion Detection can not be enabled on the same channel when a single channel is enabled. To enabled Virtual Fence on 2 channels, Smart Motion Detection must be disabled on all channels.
  6. Compatible with select Lorex cameras only. For a list of compatible cameras, please visit www.lorex.com/compatibility
  7. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available.
  8. Requires a high-speed internet connection and a router (not included) for remote access. A minimum upload speed of 7.5Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit: www.lorex.com/support
  9. Both firmware and software must be updated to latest version to ensure remote connectivity in all areas or networks. For compatibility, features, instructions visit: www.lorex.com
  10. HDMI output supports up to 4K for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the DVR, as well as TV/ monitor resolution.
  11. AppleTV™ or Chromecast™ need to be connected to the same network as your recorder. Requires AppleTV Gen 4 or newer with Lorex Apple TV APP or Chromecast ™ device connected to the TV that you want to view the system on.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

C221NA Overview
  1. BNC Connector
  2. 12V DC Power Connector
  3. Cable Notch
  4. Mounting Bracket
  5. Adjustment Screws
  6. Sun Shield
  7. Camera Lens
  8. IR (Infrared) Lights


Package Contents:

1080p HD Wired Bullet Camera

BNC/DC Cable

12V/1A Power Adapter

Mounting Hardware

Product Support

D863 Series - Lorex Fusion 4K Ultra HD Digital Video Recorder

Apps / Software

Manuals / Downloads

Support Articles

Support Videos

Compatibility

C221NA - 1080p CVI Wired Bullet Security Camera

Manuals / Downloads

Support Articles

Compatibility
