Product Features
- Ethernet over Coax communication following IEEE1901 Standard
- Data + Power over Coax cable (or UTP, 2-Wire)
- Data distance up to 2.4Km
- PoE distance up to 1.2Km
- Max. 95Mbps Bandwidth (270Mbps between Intercoax 2 series models)
- 10/100 Full Duplex
- 128bit AES network encryption
- Supports Multi-connection (Daisy chain, Star, etc.)
- PoE, PoE+, Extra PoE (Max. 60W output)
- Supports UTP, Telephone (2 Pairs), 2-Wire cable communication (Using BTE Series)
- LED Indication (Data, Power, Link, PoE)
- Plug & Play
- Surge Protection
- Support PoE+ Input (25.5W) from PSE devices – ECP-2601R Only
- Slim design
Save significant time and reduce hassle, as there's no need for new cable installations; existing cables can be repurposed for Ethernet and PoE transmission. This approach not only saves money by eliminating the need to purchase new cables but also promotes environmental sustainability by reusing existing resources instead of discarding them.
SAVE TIME
SAVE MONEY
SAVE ENVIRONMENT
The ECP-2601 is a high-speed, long-distance Ethernet & PoE extender that enables the transmission of Ethernet signals up to 2.4 km and PoE up to 1.2 km via Coax (or UTP, 2-wire) cables in various situations. It offers a cost-effective and time-saving solution for migrating existing analog systems to IP-based systems, as the ECP-2601 supports easy installation using existing cables. With its long-distance transmission capability, this device easily overcomes the 100-meter distance limitation and significantly reduces construction costs compared to fiber optic configurations.
Connection Diagram
*Transmission distance may vary depending on the type and quality of cable, use of power and environmental condition.
**Distance is based on RG-6 cable and 7 Watt IP Camera.
Product Specifications
| Model | ECP-2601T | ECP-2601R | |
|---|---|---|---|
| Interface | |||
| Coax | 1 x 75Ω BNC (Female) - Ethernet over Coax (B-LinX) | ||
| Ethernet | 1 x RJ45 - 10/100 Base-T with Auto-detect MDIX | ||
| Transmission Rate | 95Mbps Full Duplex (270Mbps between Intercoax devices) |
||
| Transmission Distance | |||
| Ethernet | up to 2.4Km(RG-6) | ||
| PoE (PoC) | up to 1.2Km (RG-6 / 7W camera) | ||
| LED Indication | Ethernet | 1 x Data-Link (Yellow) | |
| EoC | 1 x Join-Link (Green) | ||
| Power | 1 x Power On(Amber) | ||
| PoE | 1 x PoE Out (Red) | ||
| Encryption | 128-bit AES | ||
| Model | ECP-2601T | ECP-2601R | |
|---|---|---|---|
| Power | |||
| Input | B-Linx or DC12V~57V | PoE Switch or DC12V~57V | |
| PoE Output | IEEE802.3af(PoE), IEEE802.3at (PoE+), Extra PoE up to 60W |
PoE Not Supported PoC Only |
|
| Mechanical | |||
| Dimension | 82.4(L) x 61.6(W) x 24(H)mm | ||
| Weight | 77g | ||
| Environment | |||
| Operating Temp | -20 ~ 60°C | ||
| Storage Temp | -30 ~ 80°C | ||
| Relative Humidity | 10% ~ 90% | ||
| Compliance | |||
| Certification | FCC, CE, KC, RoHS | ||
| Surge Protection | IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us) | ||
What's Included
Package Contents:
ECP-2601T
(Transmitter)
ECP-2601R
(Receiver)
Bracket x 2
Screw x 4
Manual
Product Support

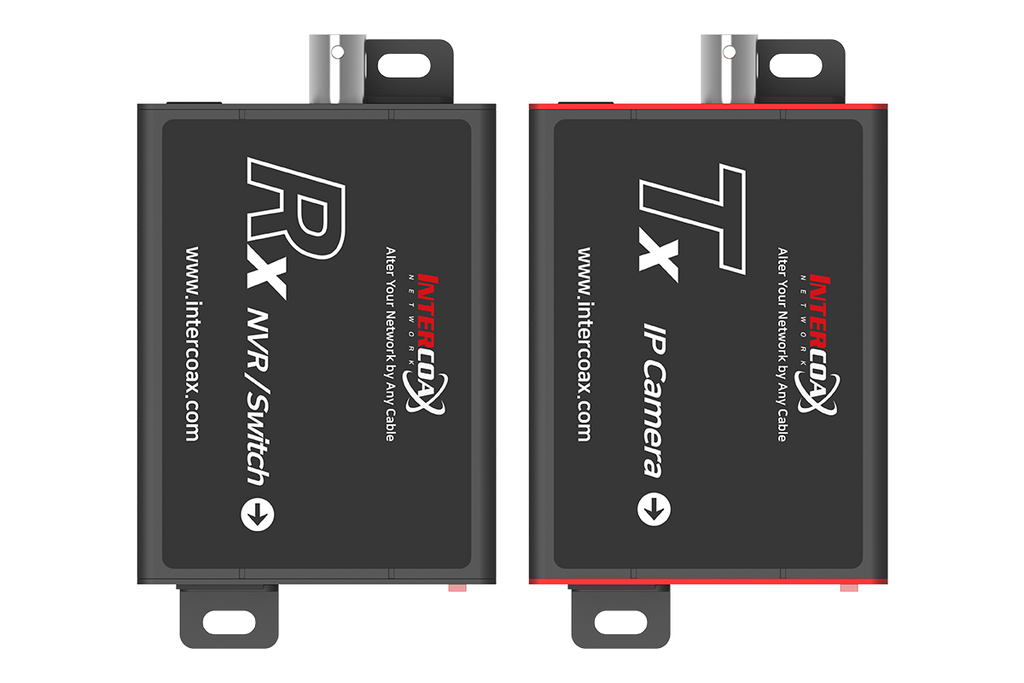

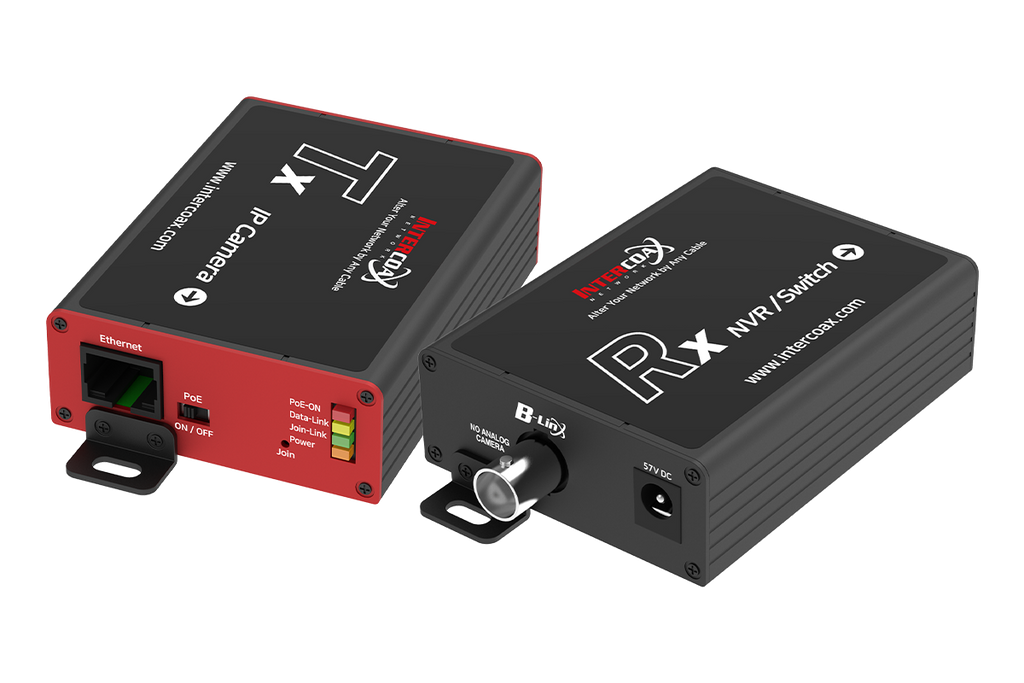

ALP-ECP-2601T/R - Premium Single Port Ethernet over Coax Transmitter / Receiver
