Product Features
- Long reach Ethernet & PoE extension over existing coaxial cable
- Data + Power over coaxial cable
- Data distance up to 1000m
- 100Mpbs Full Duplex
- PoE, PoE+, Extra PoE (Max. 60W PoE output, ECP-01T model only with DC Power adapter)
- LED Indication (Data, Power)
- Plug & Play
- Support PoE, PoE+ Input (25.5W) from PoE Switch / PoE NVR (ECP-01R model only)
- Slim design
Add-Ons
Product Discontinued: Meet the next generation
Data + PoE
over Any COAX
400m (1300ft)
Long Range
PoE from NVR
to IP Camera
8K High-Quality
Video Stream
Surge / Short
Protection
Professional
CCTV Quality
Simplified
Installation
Cost
Saving
Worldwide
Certification

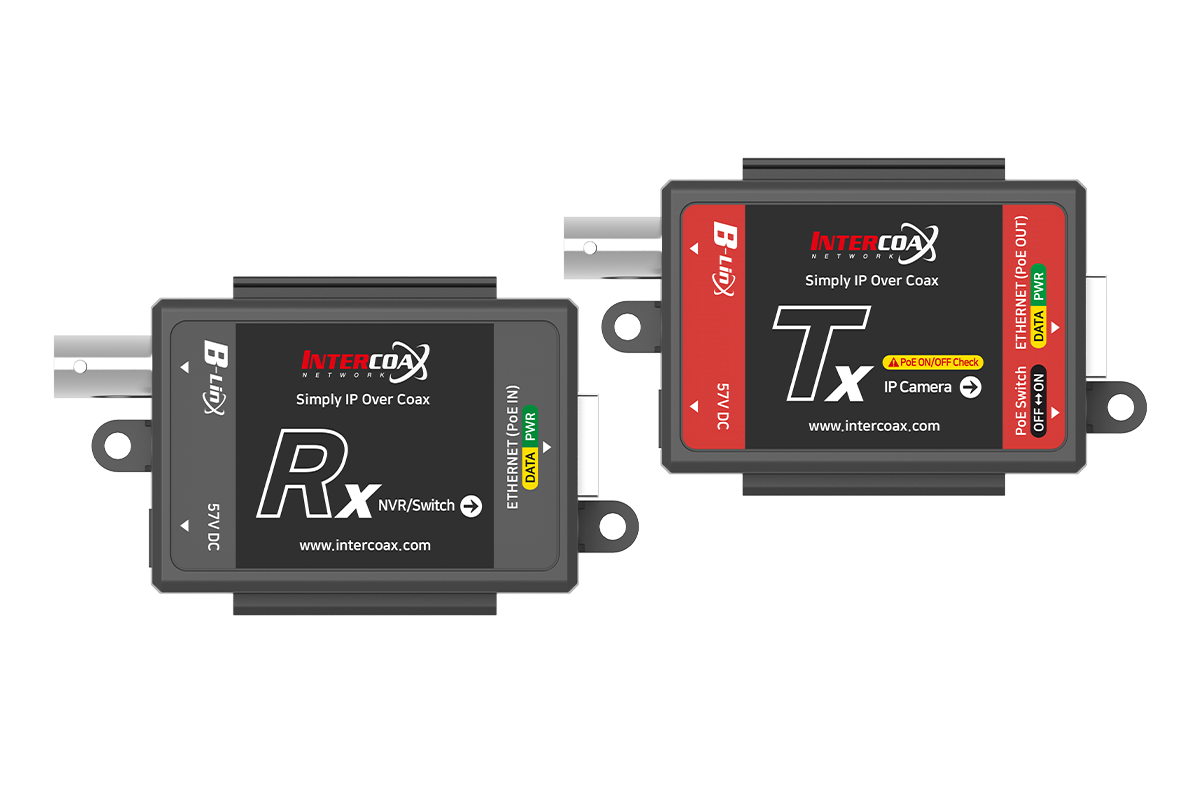

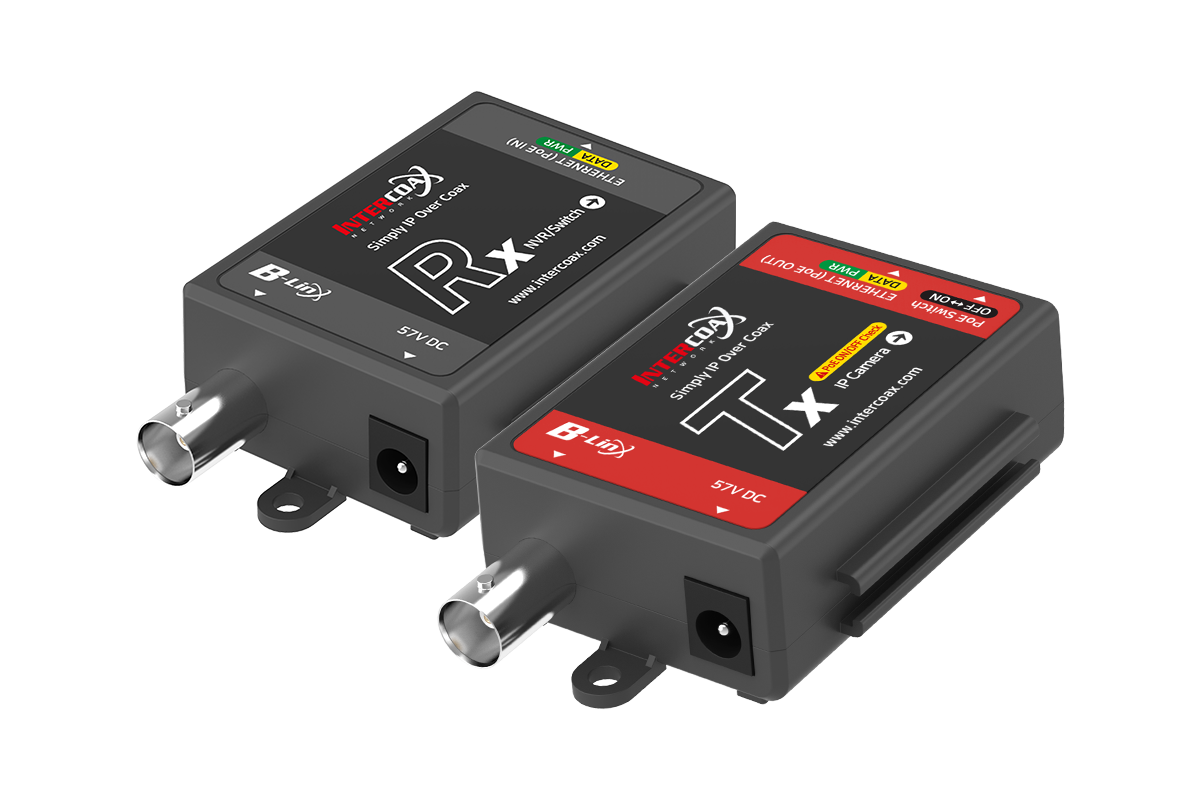

The ECP-01 Series are high-speed, long-distance Ethernet & PoE extenders that enable the transmission of Ethernet signals and PoE up to 400m through coaxial cables in various situations. They offer a cost-effective and time-saving solution for migrating existing analog systems to IP-based systems, as the ECP-01 series supports easy installation utilizing existing coaxial cables. With the long-distance transmission feature, these devices easily overcome the 100-meter distance limitation and significantly reduce construction costs compared to fiber optic configurations.
Connection Diagram
*Transmission distance may vary depending on the type and quality of cable, use of power and environmental condition.
Product Specifications
| Model | ECP-01T | ECP-01R | |
|---|---|---|---|
| Interface | |||
| Coax | 1 x 75Ω BNC (Female) - Ethernet over Coax (B-LinX |
||
| Ethernet | 1 x RJ45 - 100 Base-T | ||
| Transmission Rate | 100Mbps Full Duplex (100Mbps between Intercoax devices) |
||
| Transmission Distance | |||
| Ethernet | up to 400 m when 100Mbps is used up to 1000 m when 10Mbps is used (5C-HFBT, RG-59 or better) |
||
| PoE (PoC) | Up to 400meter (RG-59, RG-6) | ||
| LED Indication | Ethernet | 1 x Link (Yellow) / 1 x ACT (Green) | |
| Power | |||
| Input | B-Linx or DC48V~57V | PoE Switch or DC48V~57V | |
| PoE Output | IEEE802.3af (PoE), IEEE802.3at (PoE+), Extra PoE up to 60W with 57V Power Adaptor |
PoE Not Supported PoC Only |
|
| Model | ECP-01T | ECP-01R | |
|---|---|---|---|
| Mechanical | |||
| Dimension | 83(L) x 51(W) x 24(H)mm | ||
| Weight | 52g | ||
| Environment | |||
| Operating Temp | -20 ~ 60°C | ||
| Storage Temp | -30 ~ 80°C | ||
| Relative Humidity | 10% ~ 90% | ||
| Compliance | |||
| Certification | FCC, CE, KC, RoHS | ||
| Surge Protection | IEC 61000-4-5 4kV(1.2 / 50us), 2kA(8 / 20us) | ||
What's Included
Package Contents:
ECP-01T
(Transmitter)
ECP-01R
(Receiver)
Manual
