PTZ Series

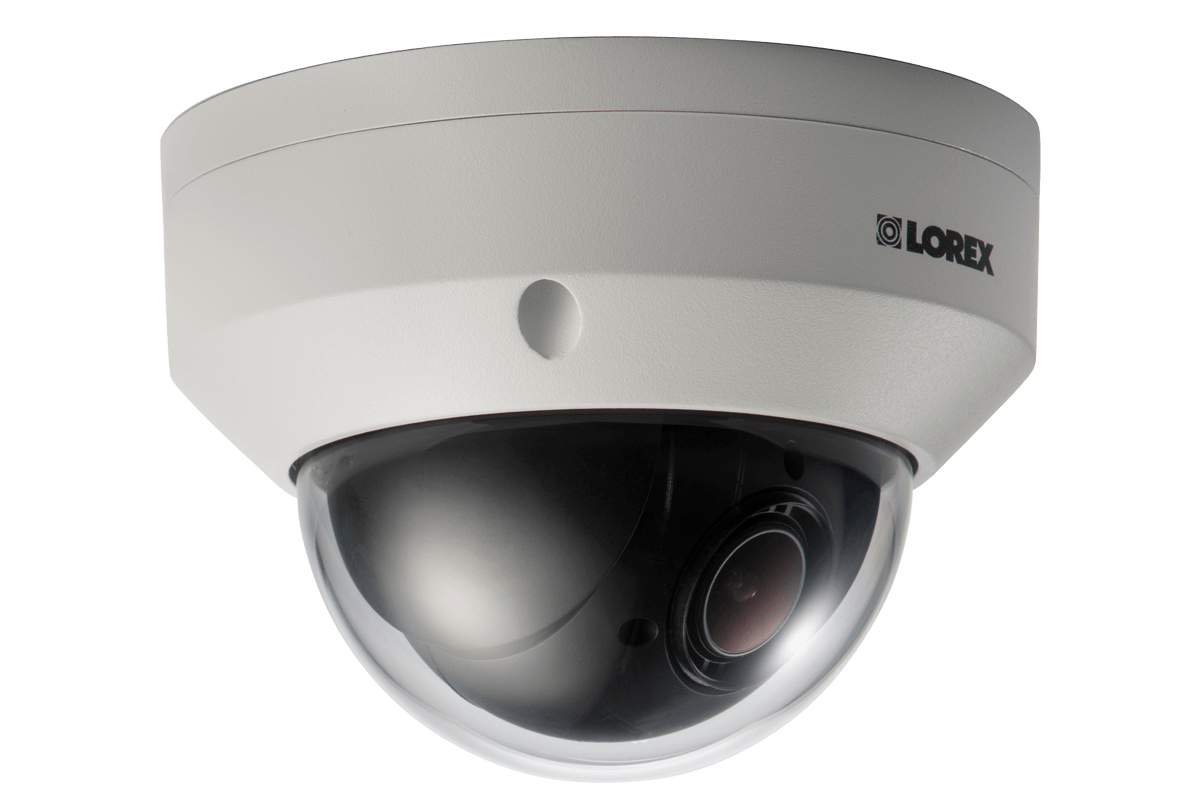

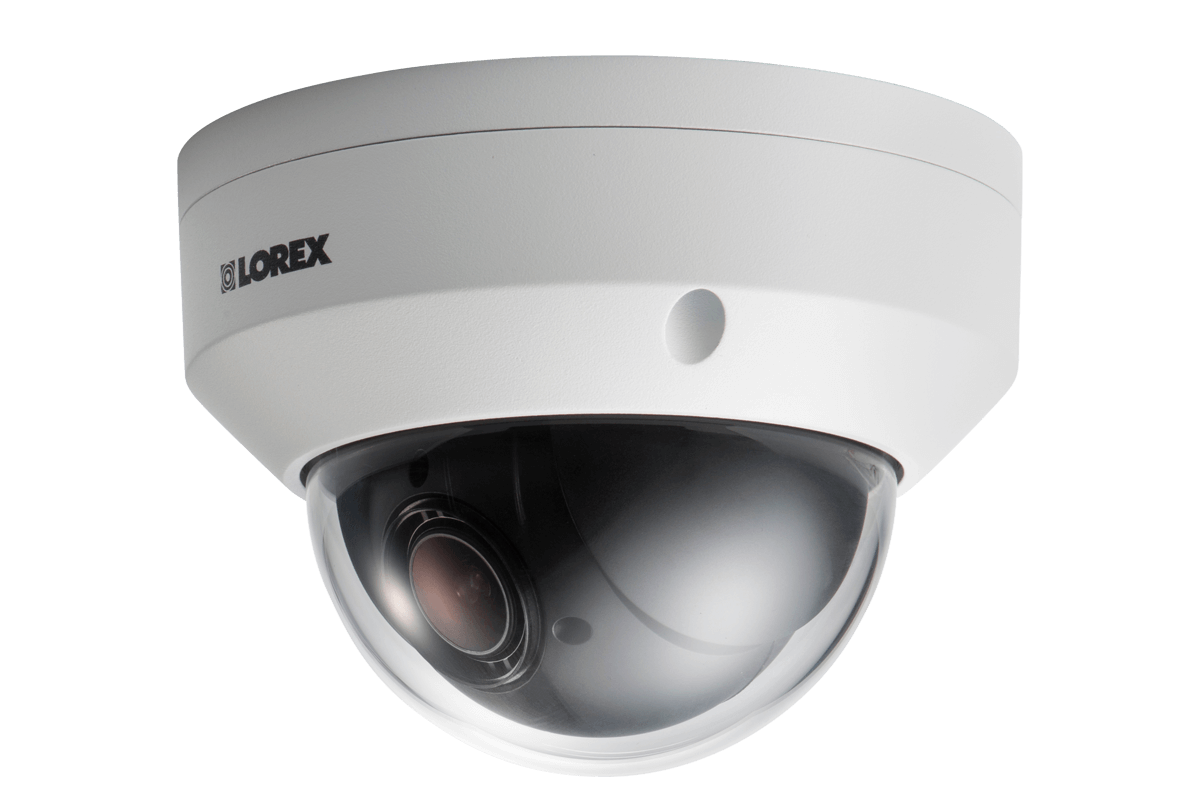

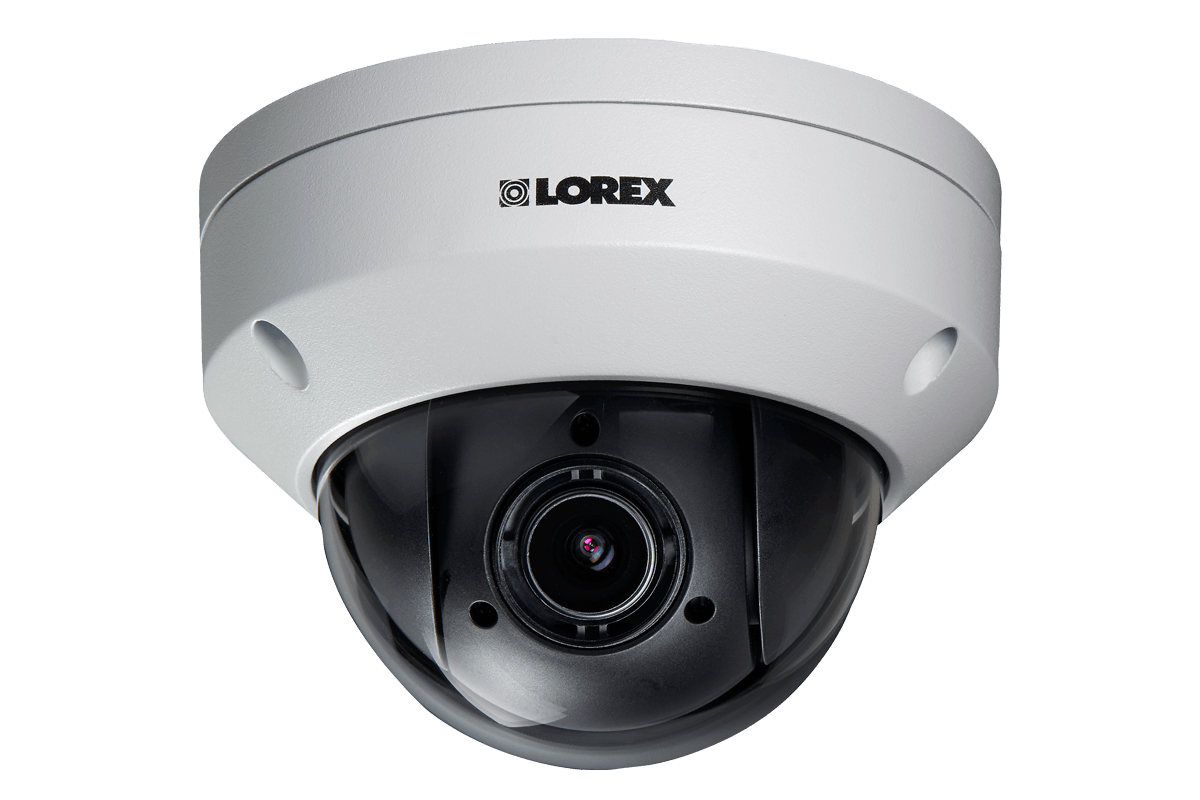

Lorex P1 IP PTZ - 2K Outdoor, 4x Optical Zoom, Pan Tilt Zoom, IK10 Vandal Proof

SKU: LNZ44P4BW

Become a Partner and Log in to see pricing and to place orders

Product Features

  • Recorder Required (Wired)
  • 4MP Resolution
  • Pan-Tilt-Zoom (PTZ)
  • Vandal-Resistant (IK10)
  • Color Night Vision
  • IP66 Weatherproof Rating
  • 4x Optical Zoom

Protect what matters most with a cutting-edge security camera that covers all angles. This Mini PTZ (Pan-Tilt-Zoom) security camera can move it's lens up, down, left, right, and zoom in without losing any of its incredible 2K HD resolution. With it's waterproof casing, IK10 Vandal Resistance, and small size (4.8" x 3.5"), this camera is the perfect compact solution for monitoring large areas at any home or business. Install on a ceiling or attach it to a wall using the included wall mount bracket.

Resolution/Zoom 4MP / 4x Optical Zoom & 16x Digital Zoom
Image Sensor 4MP, 1/3” CMOS
Pan/Tilt Speed Manual Speed — Max 100°/Sec Pan; Max 60°/Sec Tilt
Preset Speed — Max 100°/Sec Pan; Max 60°/Sec Tilt
Range 0°~355° Pan; 0°~90° Tilt
Scan System Progressive
S/N Ratio >50dB (AGC Off)
Iris Auto Iris
AES Shutter Speed 1/1s~1/30,000s
Audio N/A
Field of view (Horizontal) 104°~33°
Day / Night Auto (ICR) / Color / B/W
Color Night Vision Yes
Operating Temperature -22°F ~ 140°F /-30°C ~ 60°C
Environmental Rating IP66 (Indoor/Outdoor)
Vandal Rating IK10

What's Included

  • High definition 4MP image sensor1
  • Powerful 4× optical zoom and 16× digital zoom to focus in on even the finest details
  • ClearNight imaging for improved low light performance and improved recording efficiency2
  • 355° pan rotation for complete area coverage. Fast 100° per second panning speed
  • Control PTZ camera movement and transmit video over a single network cable
  • Program preset viewing points and tours when connected to a NVR
  • Remote control of the PTZ camera using a smartphone when connected to a NVR
  • Infrared cut filter ensures accurate color representation
  • Weatherproof (IP66-rated) camera with extreme temperature performance (-22° ~ 140°F / -30° ~ 60°C)3
  • Wall mount bracket & 100ft (30m) extension cable included for installation flexibility
  • H.265 offers significant bandwidth and video storage savings over older compression technologies, extending the amount of video stored on the hard drive4

Each LNZ44P4B Includes:

1 × HD PTZ Camera
1 × Mounting Kit
1 × Wall Mount Bracket
1 × 100ft Ethernet Cable
Instruction Manuals
  1. Compatible with all Lorex HD NVRs except for LNR200 & LNR300 Series. For the most up-to-date list of compatible recorders, visit www.lorextechnology.com/support
  2. This camera features an ultra-low light sensitive image sensor and therefore does not feature Infra-Red LEDs. The camera requires ambient lighting (for example, street/ building lighting, star or moon light) to render a night time image. In total darkness (zero Lux), the camera will not produce a night time image and therefore the camera should not be installed in completely dark areas.
  3. Not intended for submersion in water. Installation in a sheltered location recommended.
  4. You must connect the camera to a supporting H.265 NVR to take advantage of H.265 compression. For instructions on enabling H.265 compression, visit lorextechnology.com/support

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown. Images are simulated.
