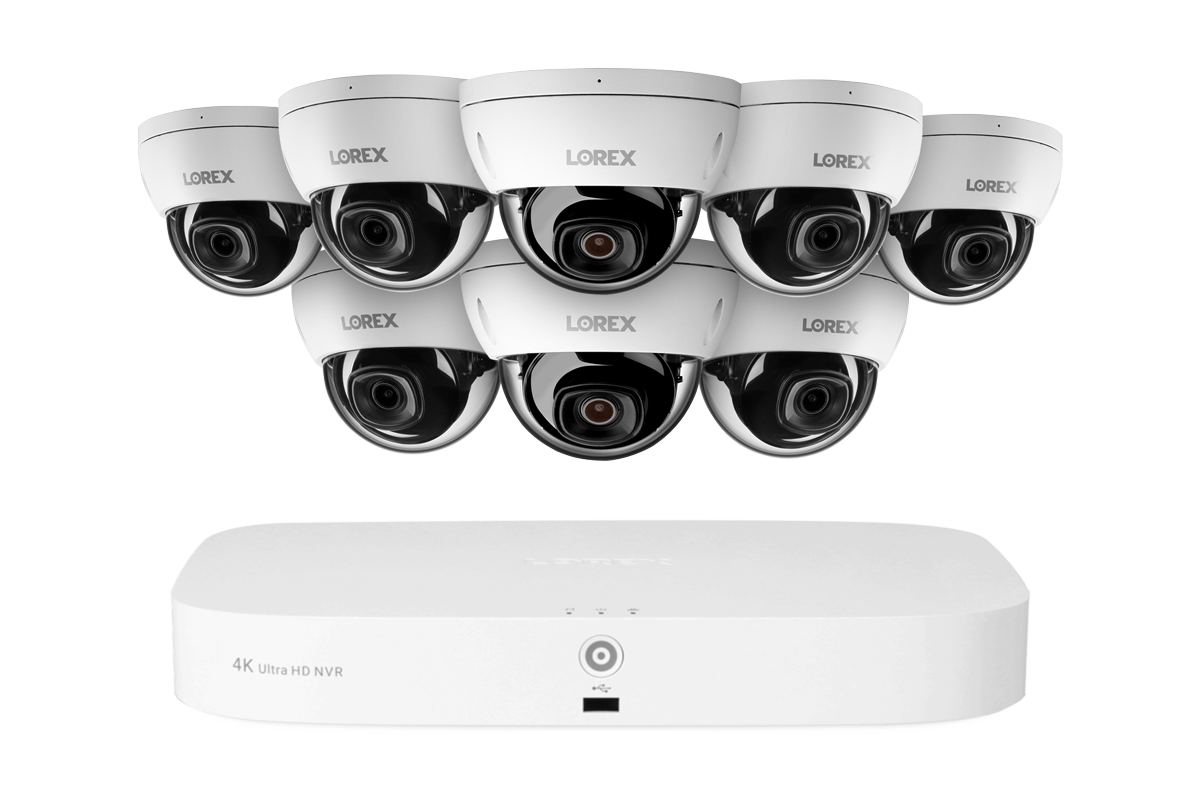

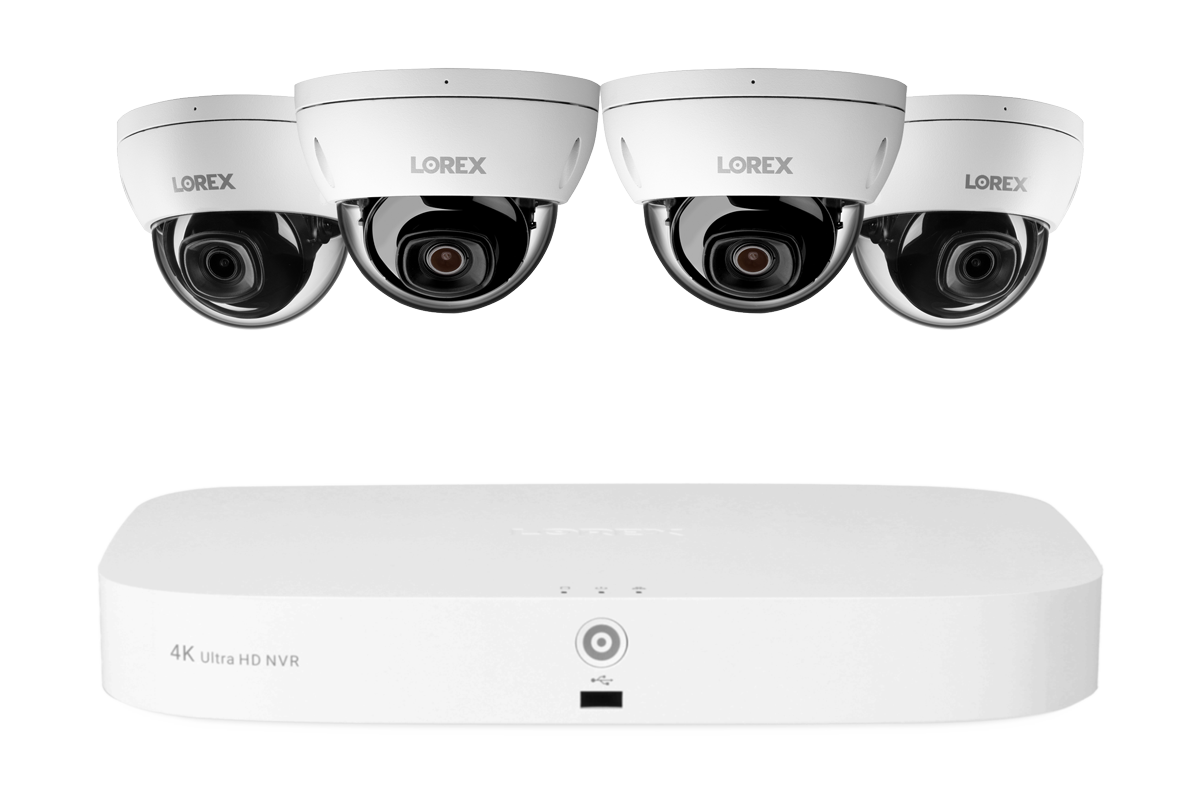

Name: Lorex Fusion NVR with A10 IP Dome Cameras - 4K 16-Camera Capable (8 Wired + 8 Wi-Fi Fusion) 2TB Wired System
Brand: Lorex
SKU: N4K2-84BD-E851

Lorex Fusion 4K 16-Channel (8 Wired + 8 Wi-Fi) 2TB NVR System with IP Dome Cameras featuring Listen-In Audio and IK10 Vandal Proof Rating

Roll over image to zoom in Click on image to zoom

Ultra HD Resolution
Vandal-Resistant (IK10)
Color Night Vision
Listen-In Audio
IP67 Weatherproof Rating
Built-in 2TB Storage
Connect up to 16 cameras
Works with the Lorex mobile app

In-Camera Video Analytics

Person Detection
Vehicle Detection

Dimensions (W×D×H): 12.9 x 9.6 x 2.1” (328 x 245 x 53 mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

Hard Drive LED
Power LED
Network LED
USB Ports
Info / Panic Button
Power Port
PoE Ports
LAN Port
VGA Port
Audio In / Out
HDMI Port

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

4K (8MP) IP cameras are required to take advantage of 4K recording.
Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
Fusion™ capabilities are limited to 8 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com
Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

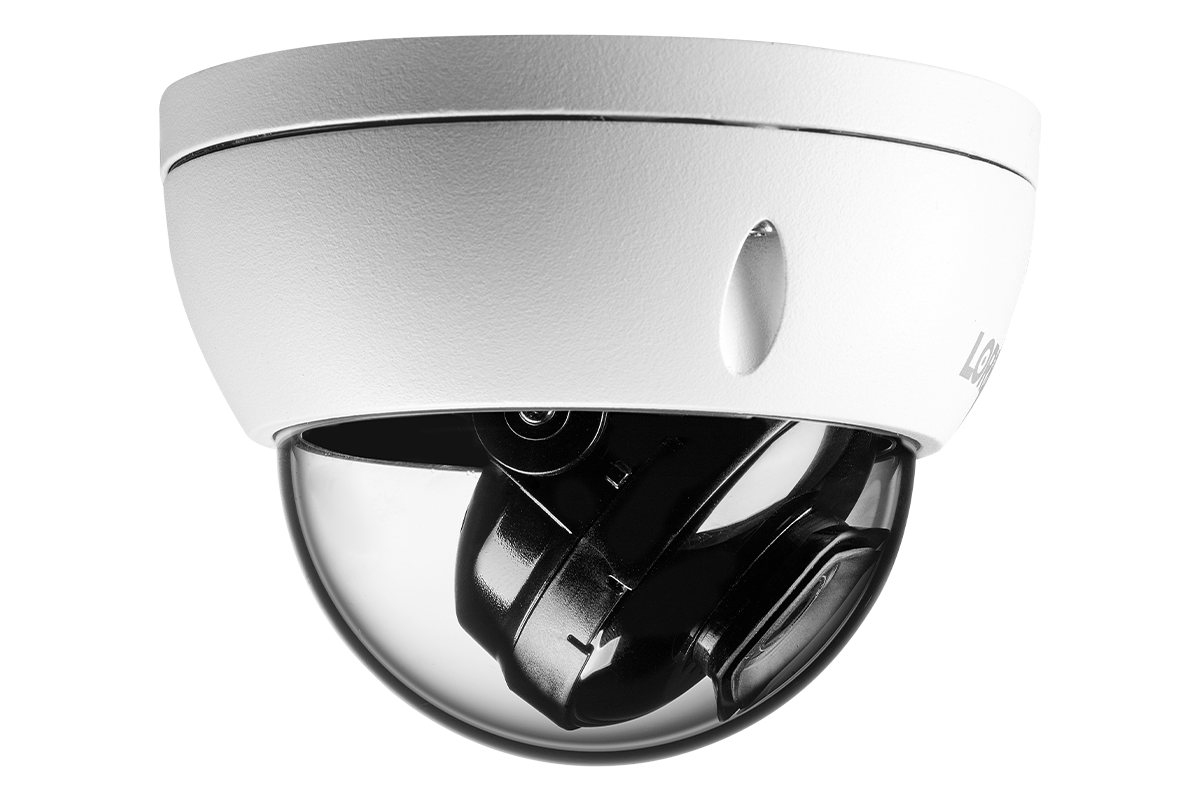

Dome Cover
Dome Cover Screw (x3)
Lens
IR (Infrared) Light (x3)
Cable Notch
Camera Base
Microphone*
Reset Button
MicroSD Card Slot**

Package Contents:

4K Vandal Proof Dome Camera

Allen Key

Mounting Kit

Ethernet Extension Cable

*Audio recording and listen-in audio are disabled by default. Audio recording and/or use of listen-in audio without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.
**A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing

Product Support

N847 Series - Fusion 4K 16 Camera Capable (8 Wired and 8 Wi-Fi ) NVR

Apps / Software

Manuals / Downloads

Support Articles

Compatibility

E851AD Series - 4K IP Wired Dome Security Camera

Apps / Software

Manuals / Downloads

Compatibility

Lorex Fusion NVR with A10 IP Dome Cameras - 4K 16-Camera Capable (8 Wired + 8 Wi-Fi Fusion) 2TB Wired System

Product Features

In-Camera Video Analytics

What's Included

Package Contents:

Package Contents:
