Fusion Series

4K 16 Camera Capable (8 Wired and 8 Fusion Wi-Fi ) 2TB NVR

SKU: N847A62

Become a Partner and Log in to see pricing and to place orders

Product Features

  • Ultra HD Resolution
  • Built-in 2TB Storage. Expandable up to 1 × 8TB
  • Connect up to 8 cameras (8 Wired or 8 Fusion Wi-Fi)
  • Works with the Lorex mobile app

Record and view impressive video on all 16 channels (8 wired and 8 Wi-Fi) with the 4K Fusion NVR. Local storage means no monthly fees and with 2TB of private storage, get ample storage, while recordings stay safe and private.

In-Camera Video Analytics

  • Heatmap Heatmap
  • Smart Search Smart Search

Product Specifications

Video Input 8 x PoE, 8 x Wi-Fi Fusion
Output Resolution Up to 4K UHD
Recording Frame Rate 4K (8MP)@15fps/5MP@30fps/4MP@30fps/1080p@30fps/720p@30fps
Recording Resolution 4K (8MP)/5MP/4MP/3MP/1080p/720p
Hard Drive Capacity Up to 8TB (SATA)
Smart Motion Detection Person/Face/Mask/Vehicle Detection
Streaming Options Chromecast™, Apple TV™, Amazon Echo Show™, Google Home Hub™
Voice Control Amazon Alexa™, Google Assistant™
Remote Viewing Yes
DDNS Yes (Optional)
FW Upgrade USB/Network
Unit Dimensions (W × D × H) 12.9 × 9.6 × 2.1" (328 × 245 × 53 mm)

What's Included

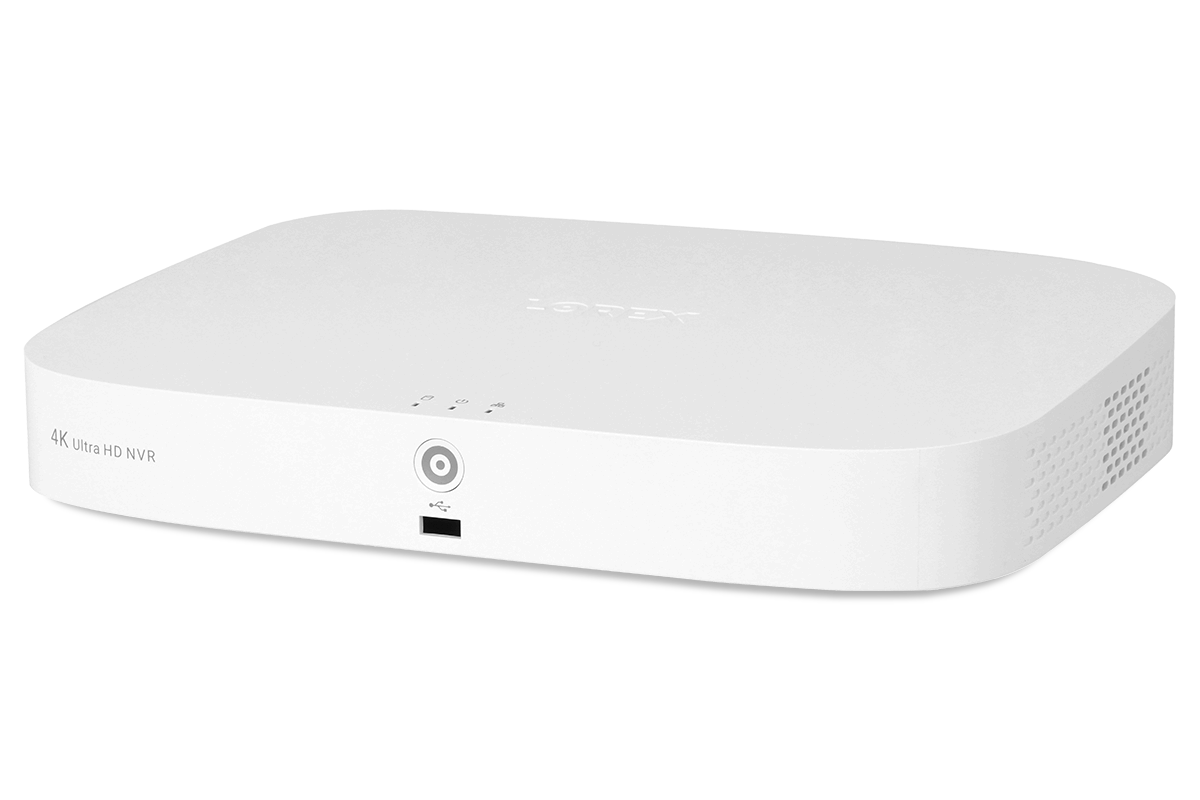

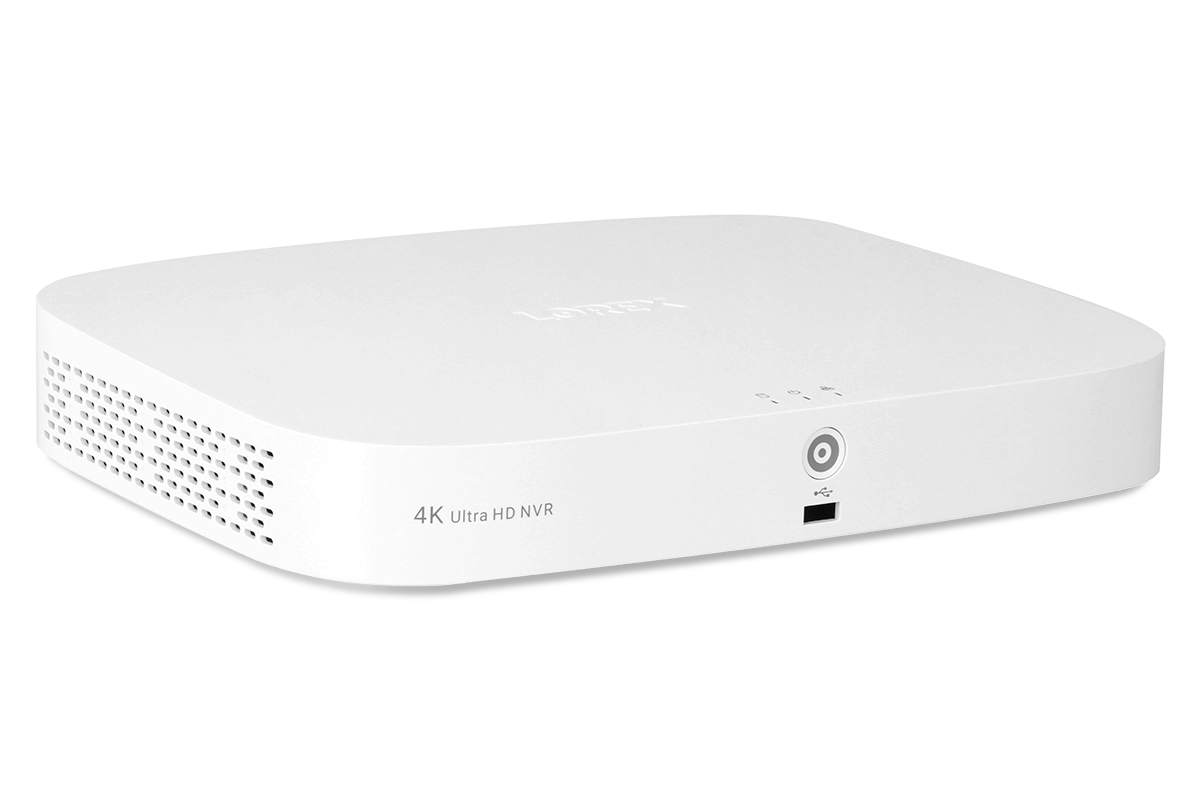

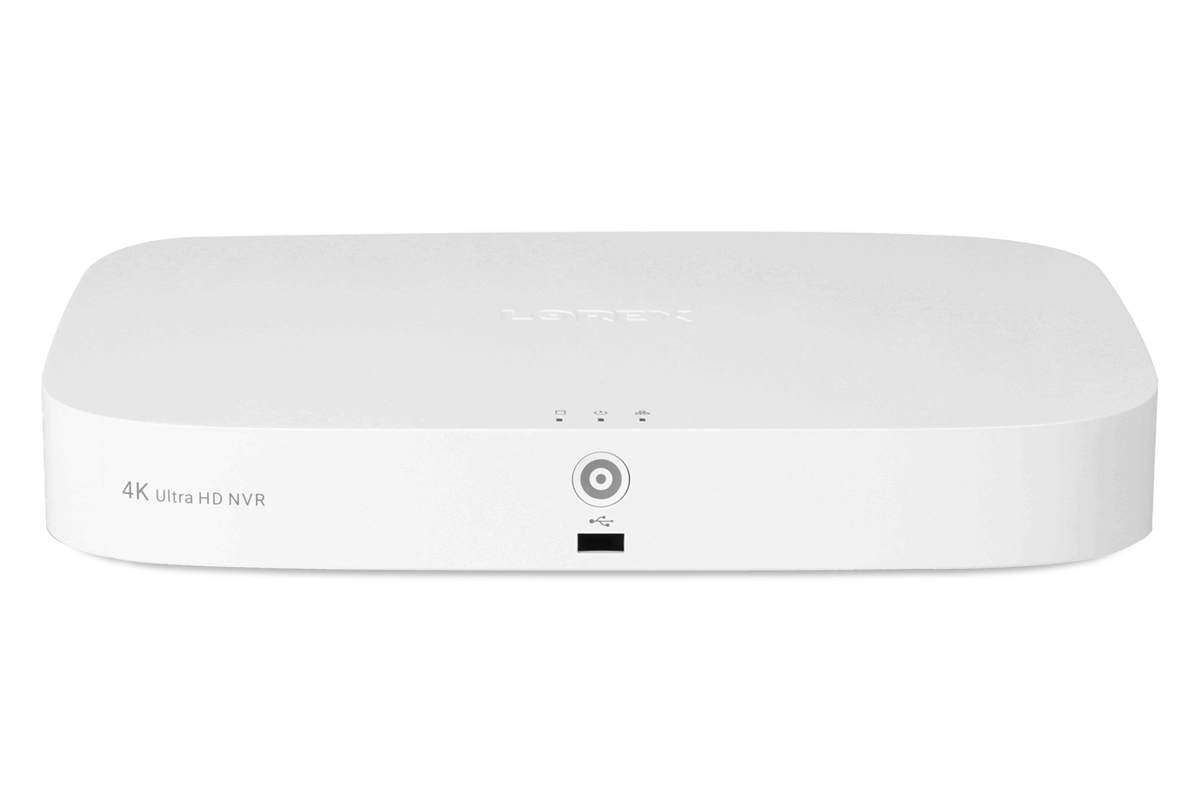

N845 Front Overview

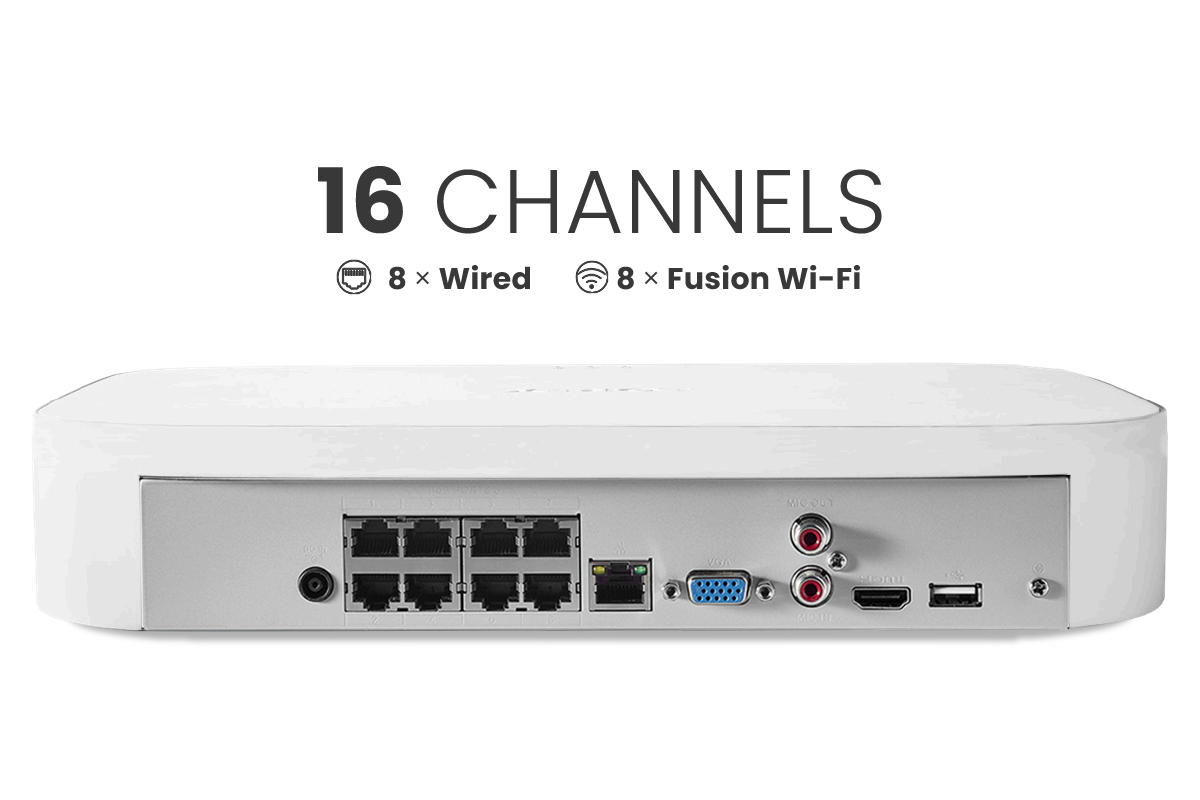

N845 Back Overview

Dimensions (W×D×H): 12.9 x 9.6 x 2.1” (328 x 245 x 53 mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

  1. Hard Drive LED
  2. Power LED
  3. Network LED
  4. USB Ports
  5. Info / Panic Button
  6. Power Port
  7. PoE Ports
  8. LAN Port
  9. VGA Port
  10. Audio In / Out
  11. HDMI Port

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Fusion™ capabilities are limited to 8 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
  7. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.
