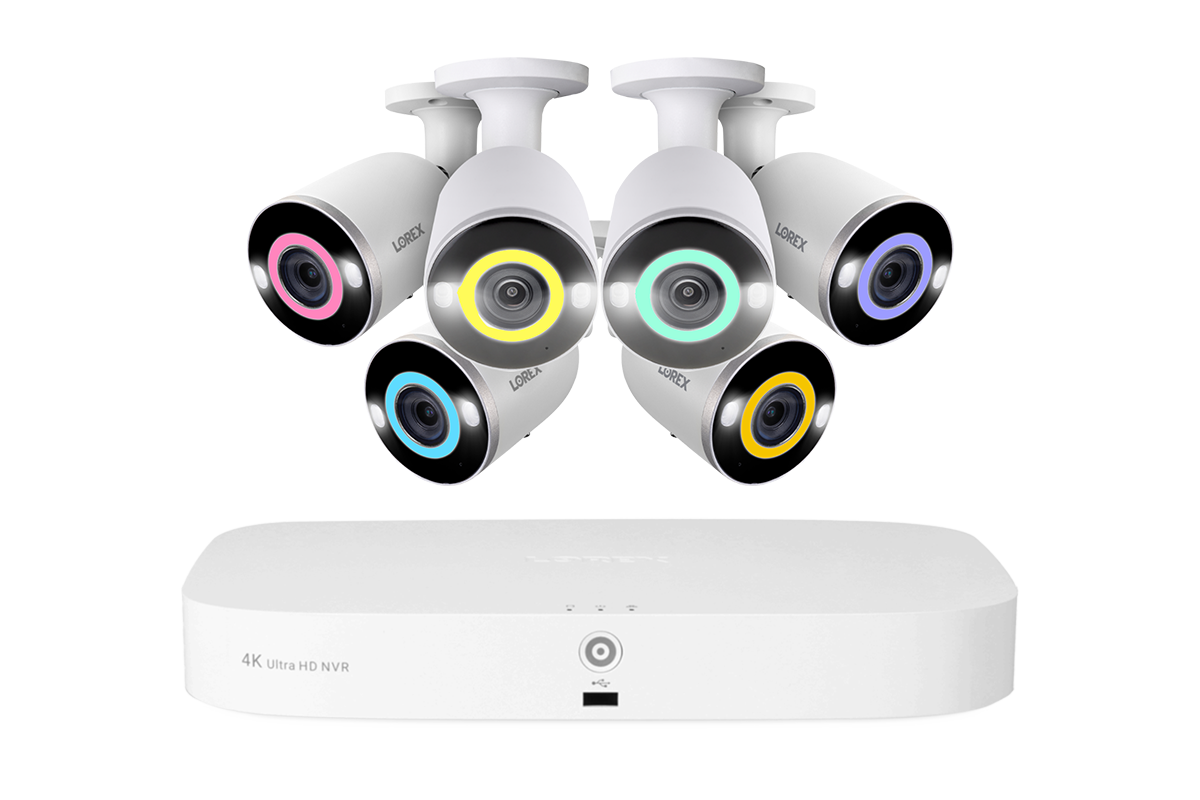

Name: Lorex Fusion NVR with H16 IP Bullet Cameras - 4K 16-Channel 2TB Wired System
Brand: Lorex
SKU: N4K2SL-86WB-2
Rating: 5.0 (1 reviews)

Lorex Fusion 4K 16 Camera Capable (8 Wired and 8 Wi-Fi) 2TB Wired NVR System with Bullet Cameras Featuring Smart Security Lighting - 6

Lorex Fusion 4K 16 Camera Capable (8 Wired and 8 Wi-Fi) 2TB Wired NVR System with Bullet Cameras Featuring Smart Security Lighting

Roll over image to zoom in Click on image to zoom

Ultra HD Resolution
Smart Deterrence

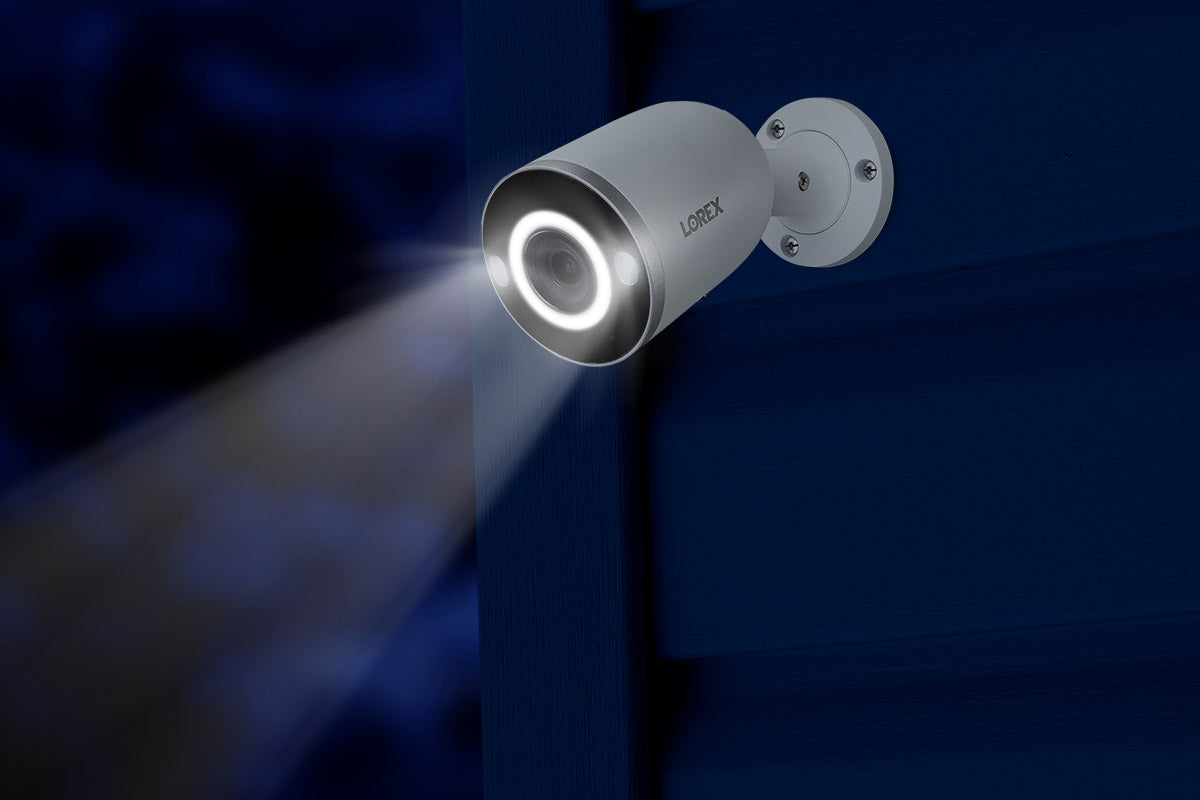

Smart Security Lighting
Smart Motion Detection
Color Night Vision
Two-Way Audio
IP67 Weatherproof Rating
Built-in 2TB Storage
Connect up to 16 cameras
Works with the Lorex mobile app

Dimensions (W—D—H): 2.9" x 6.9" x 2.9" (73mm x 175mm x70mm)
Weight: 1.15lbs / 0.52kg

Cable Notch
Adjustment Screw
Speaker and Siren
MicroSD Card Slot
Reset Button
Warning Lights
Smart Security Lighting
Microphone

Package Contents:

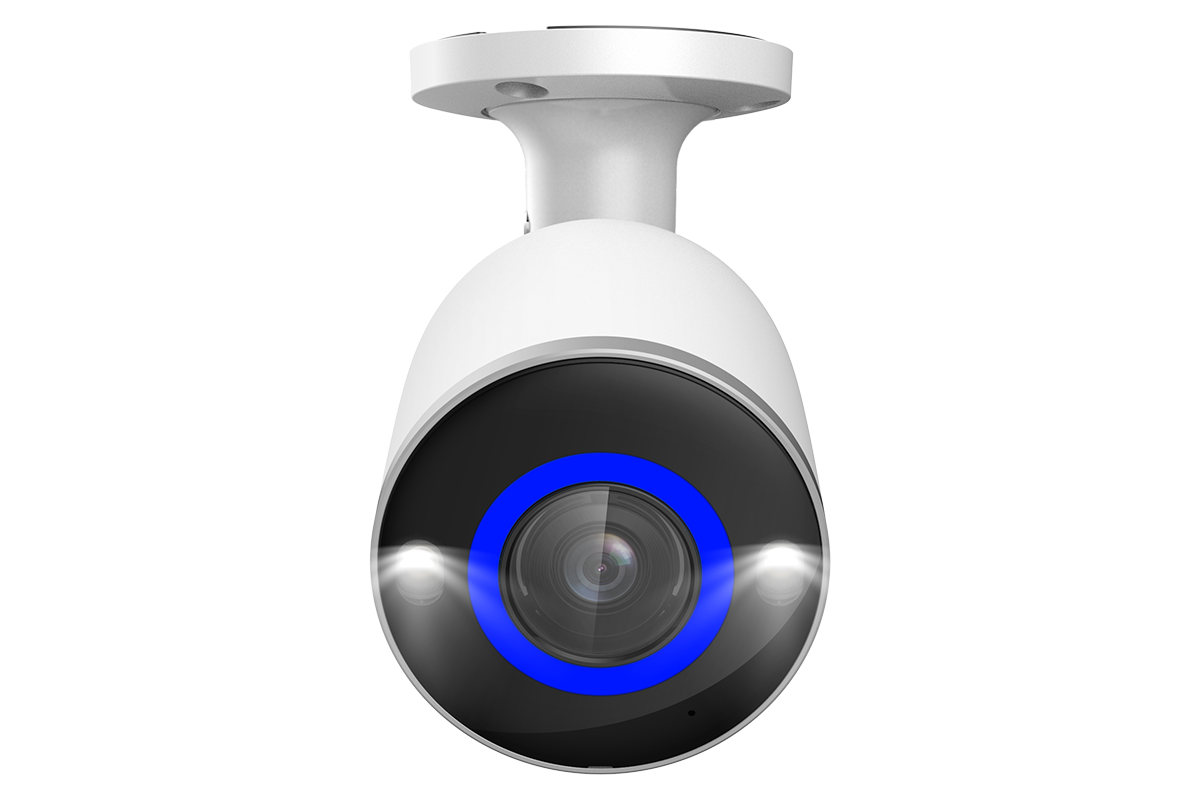

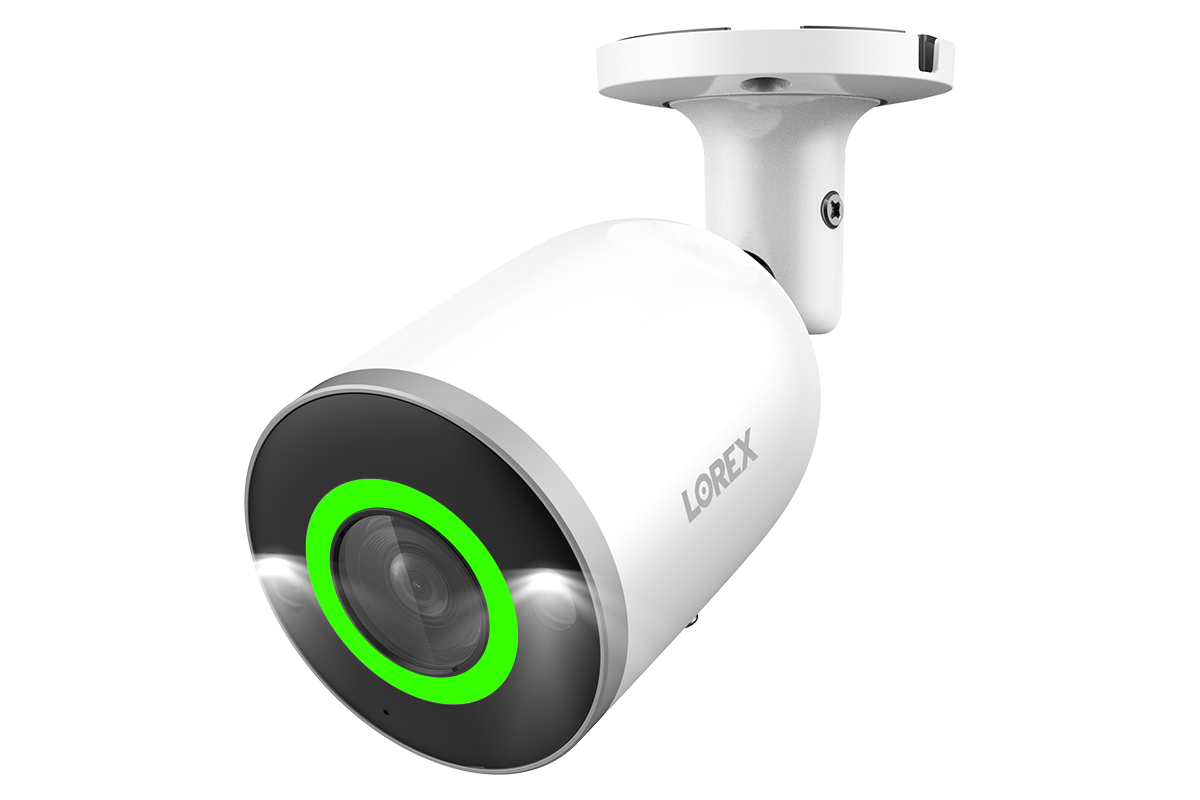

4K Deterrence IP Camera

Mounting Kit

Ethernet Extension Cable*

^{*With pre-attached weather-resistant cap.}

Compatible with select Lorex Network Video Recorders HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
For Face Detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart face detection technology. For a list of compatible recorders please visit: www.lorex.com/compatibility
When Face Detection is enabled, all other Smart Plans will be disabled. When not using Face Detection, Smart Plans vary by model. Click here to learn more
Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws
Not intended for submersion in water. Installation in a sheltered location recommended.
Cable length is dependent on product configuration. See product packaging for details.
Mask Detection is compatible with select Lorex Network Video Recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
Color Night Vision Booster can be enabled using the Lorex App and will light for 3 minutes when turned on.
A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

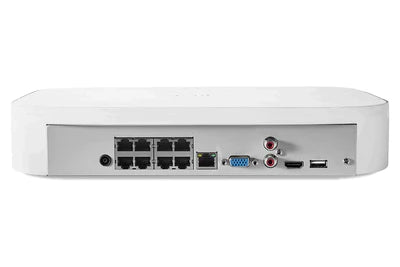

Dimensions (W×D×H): 12.9 x 9.6 x 2.1” (328 x 245 x 53 mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

Hard Drive LED
Power LED
Network LED
USB Ports
Info / Panic Button
Power Port
PoE Ports
LAN Port
VGA Port
Audio In / Out
HDMI Port

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

4K (8MP) IP cameras are required to take advantage of 4K recording.
Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
Fusion™ capabilities are limited to 8 wireless devices per system. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com
Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.

Pre-recording is available only when using Motion Detection and can be viewed exclusively during local playback. This feature is not supported for Smart Motion Detection (SMD), continuous recording, or through the Lorex app or cloud services. The duration of the pre-recorded footage may vary based on the recorder available cache memory at the time the event was detected, up to a maximum time set by the user.
