Name: Lorex Fusion Series 4K 16 Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with H13 Bullet Cameras
Brand: Lorex
SKU: N4K4SD-168WB
Rating: 4.8 (30 reviews)

Lorex Fusion Series 4K 16 Camera Capable (Wired or Fusion Wi-Fi) 4TB Wired NVR System with H13 Bullet Cameras

Roll over image to zoom in Click on image to zoom

Ultra HD Resolution
Smart Deterrence
Smart Motion Detection
Color Night Vision
Listen-In Audio
IP67 Weatherproof Rating
Built-in 3TB Storage
Connect up to 16 cameras
Works with the Lorex mobile app

Dimensions (WxDxH): 2.9" x 6.9" x 2.9" (73mm x 175mm x 70mm)
Weight: 1.15lbs / 0.52kg

Package Contents:

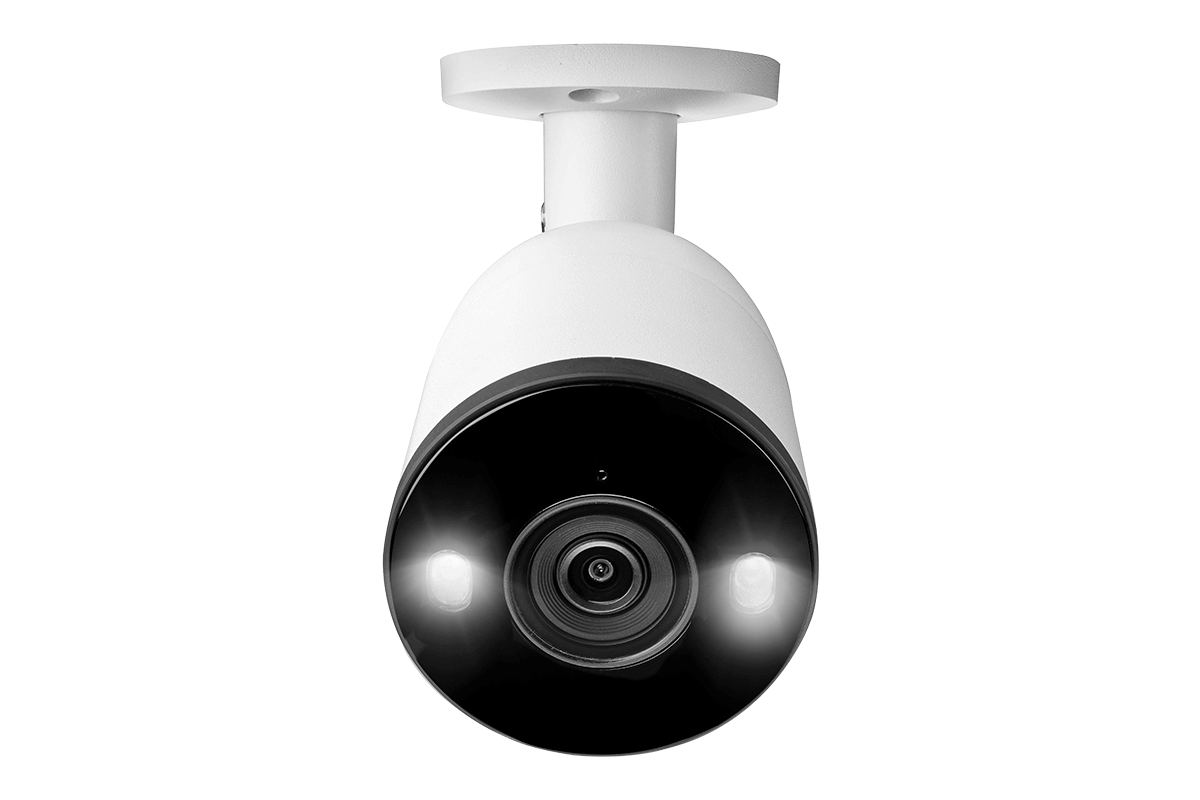

4K Deterrence IP Camera

Mounting
Kit

60ft Cat5 Extension Cable*

Quick Start
Guide

*Cables are included unless specified otherwise in the product options.
4K (8MP) Ultra HD, ensuring clear and detailed footage, every time¹
See more with a wide-angle 108° field of view

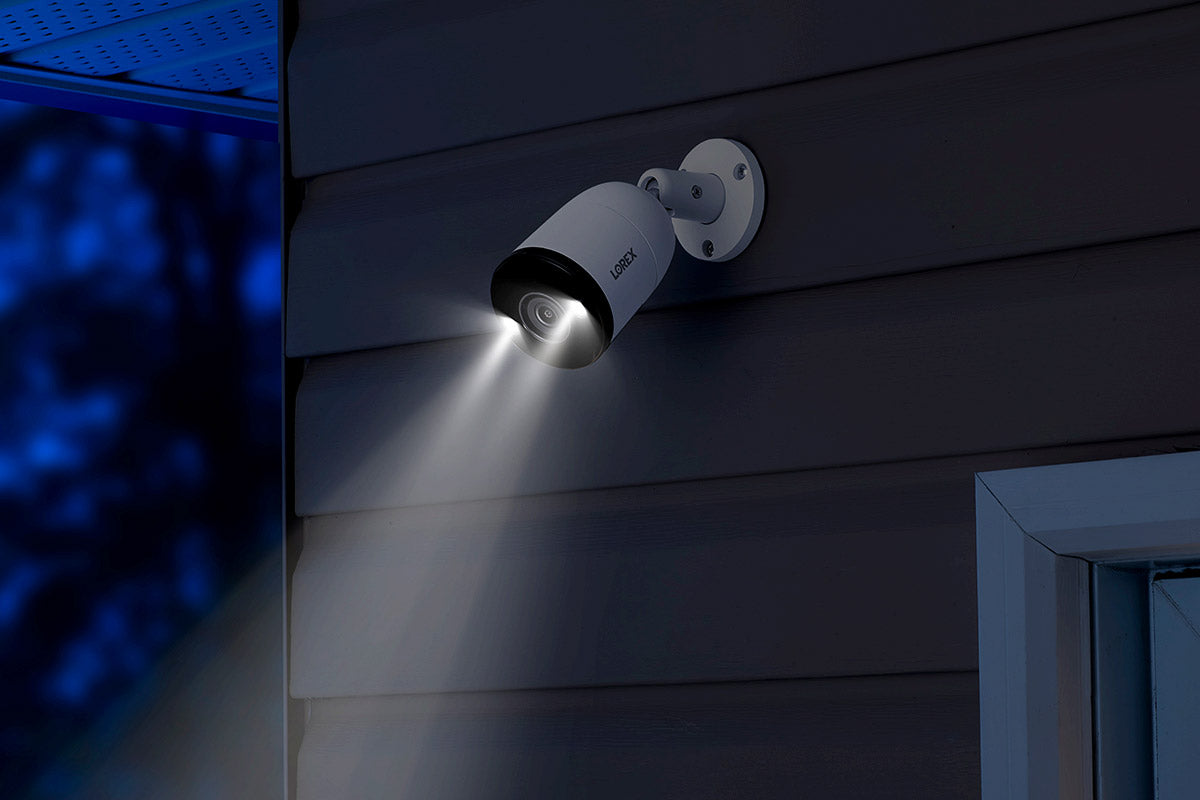

Superior nighttime clarity with Color Night Vision²
Up to 150ft (46m) IR night vision in low light and 98ft (30m) in total darkness³
Warning light can be programmed to illuminate when a person or vehicle is detected
Using 1 of 3 selectable, remote activated sirens to deter unwanted guests
Built-in mic and speaker allows you to listen and speak to visitors with Two-way talk⁴
Enhanced Two-way Talk with Quick Response Messages lets you pre-record specific messages with your own voice
Deter unwanted guests with the remote-activated siren
Smart motion detection plus offers the option of either Face detection or Person and Vehicle Detection⁵
By activating Face Detection with Mask Detection Technology, get notifications when a person is not wearing mask. When automatic voice prompts enabled, the system will ask visitors to "Please wear a face mask" when masks are not detected
Receive notifications when a person, vehicle or face is detected on your property from your Lorex App™ app⁵
Set up to 3 areas to keep track of items left behind or removed, such as packages or other items of value

Info / Panic Button
Hard Drive, Network, Recorder & Power LEDs
USB
Power Button
Power Input
Power Switch
PoE Ports
Alarm
HDMI
VGA Port
RS232
LAN
Audio In / Out

Package Contents:

4K Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

4K (8MP) IP cameras are required to take advantage of 4K recording.
Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
This Fusion NVR can connect to 16 wireless devices per system. The NVR must be connected to the your Wi-Fi Router via network cable. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com
Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more, please visit www.lorex.com/compatibility

Pre-recording is available only when using Motion Detection and can be viewed exclusively during local playback. This feature is not supported for Smart Motion Detection (SMD), continuous recording, or through the Lorex app or cloud services. The duration of the pre-recorded footage may vary based on the recorder available cache memory at the time the event was detected, up to a maximum time set by the user.
