Product Features
- Recorder Required (Wired)
- Ultra HD 12MP Resolution
- Smart Deterrence
- Smart Motion Detection
- Smart Security Lighting
- Color Night Vision

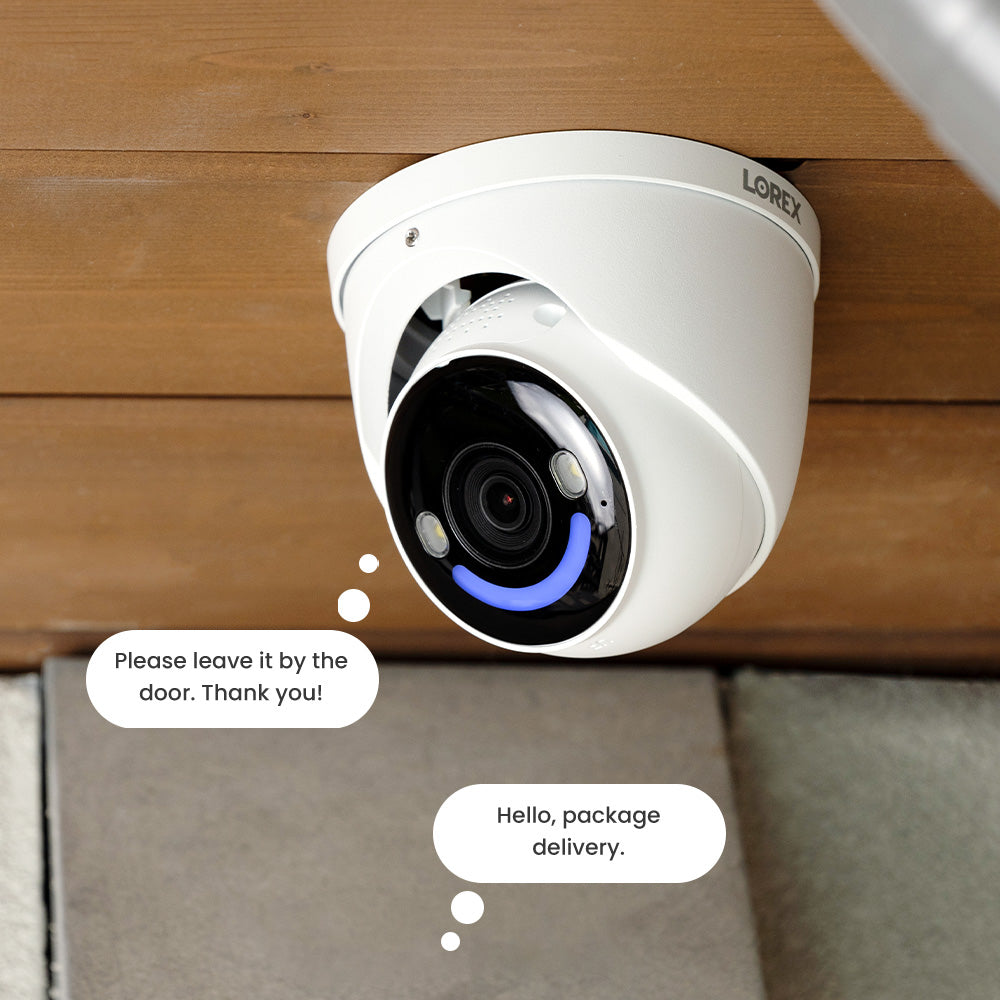

- Two-Way Audio
- IP67 Weatherproof Rating
- Wide Dynamic Range (WDR)
Note: Camera cables are sold separately.
In-Camera Video Analytics
Product Specifications
Image Sensor | 4K+ Ultra HD 12MP CMOS (4640 x 2624) |
---|---|
Video Format | NTSC |
Video Compression | H.265/H.264 (Main Stream & Sub Stream) |
Viewing Angle (Horizontal) | 139° |
Lens/Lens type | 2.8mm F1.6/ Fixed |
Resolution/Frame rate | 4K+/12MP@15fps, 4K/8MP@15fps, 5MP@15fps, 1080p@15fps, 720p@15fps |
Effective Pixels | H:4512 x V:2512 (11.3MP) |
HDR | Yes |
Termination | RJ45 |
Microphone/Speaker | Yes/Yes |
---|---|
Siren | Yes (Siren sound options available) |
IR Night Vision Range | 98 ft / 30 m |
Color Night Vision™ | Yes |
AttEnhanced Color Night Vision | Pixel Binning |
Detection Types | Vehicle, Person, Face, Face Mask, Animal & Package (Missing or Left Behind) |
Supports in App Quick Messaging | Yes |
Active Deterrence | Yes - Warning Light + Siren + Pre Recorded Message |
Smart Security Lighting | Yes |
Camera Housing Material | Aluminum Alloy |
---|---|
Power Requirements | PoE (Power over Ethernet Class -802.3af)/12V DC |
Power Consumption (max) | 790mA / 9.5W |
Camera Dimensions (W × D × H) |
4.8 x 4.8 x 4.8” / 122 x 122 x 122 mm |
Camera Weight | 3.37 lbs / 1.53 kg |
Operating Temperature | -22 °F ~ 140 °F / -30 °C ~ 60 °C |
Humidity | < 95% RH |

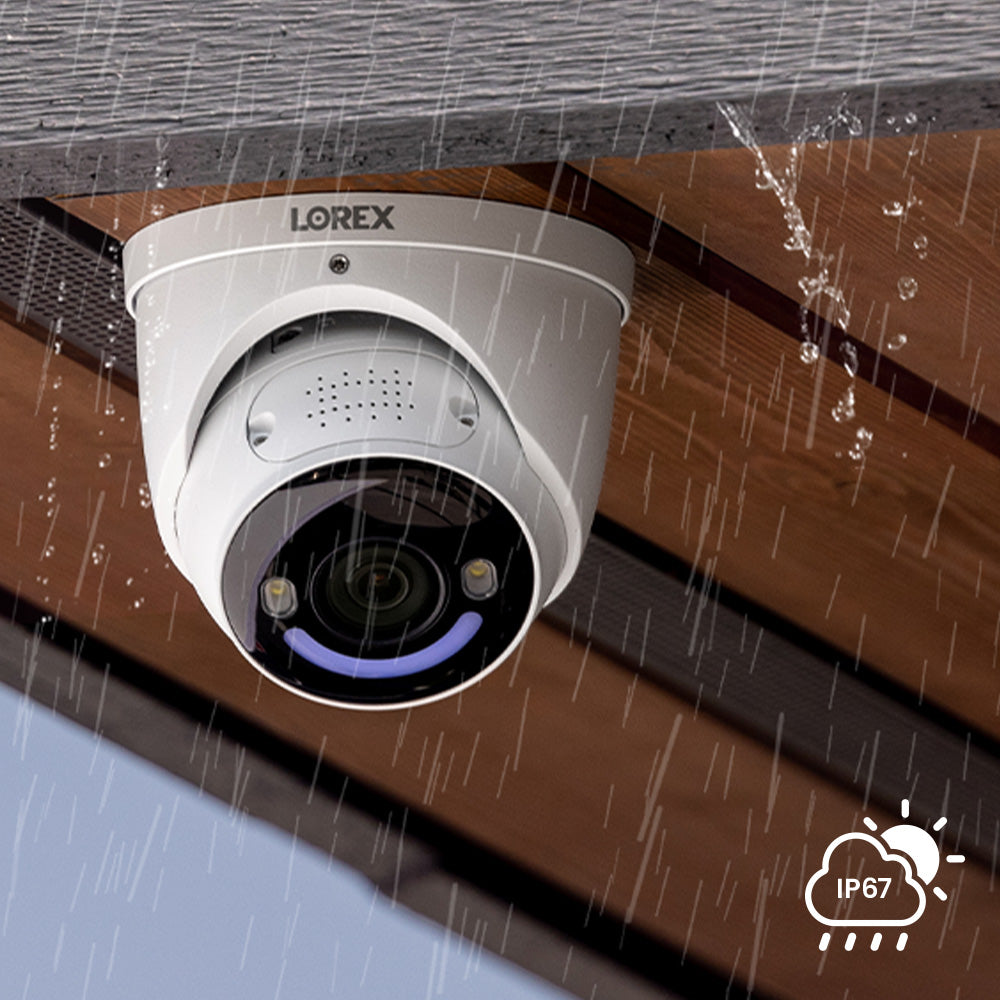

Environmental Rating | IP67 (Indoor/Outdoor) |
What's Included
- Adjustment Screw
- Smart Security Lighting
- Microphone
- Infrared (IR) Light
- Reset Button
- Speaker
- Camera Lens
- Warning Lights
- Cable Notch
- MicroSD Card Slot
Package Contents:
4K+ Dome IP Camera
Mounting Kit
Ethernet Extension Cable*
*With pre-attached weather-resistant cap.
Product Compatibility
Product Support
E910DD Series - 4K+ 12MP SSL Dome AI PoE IP Camera
