Great Camera
"Lots of features, excellent video quality"

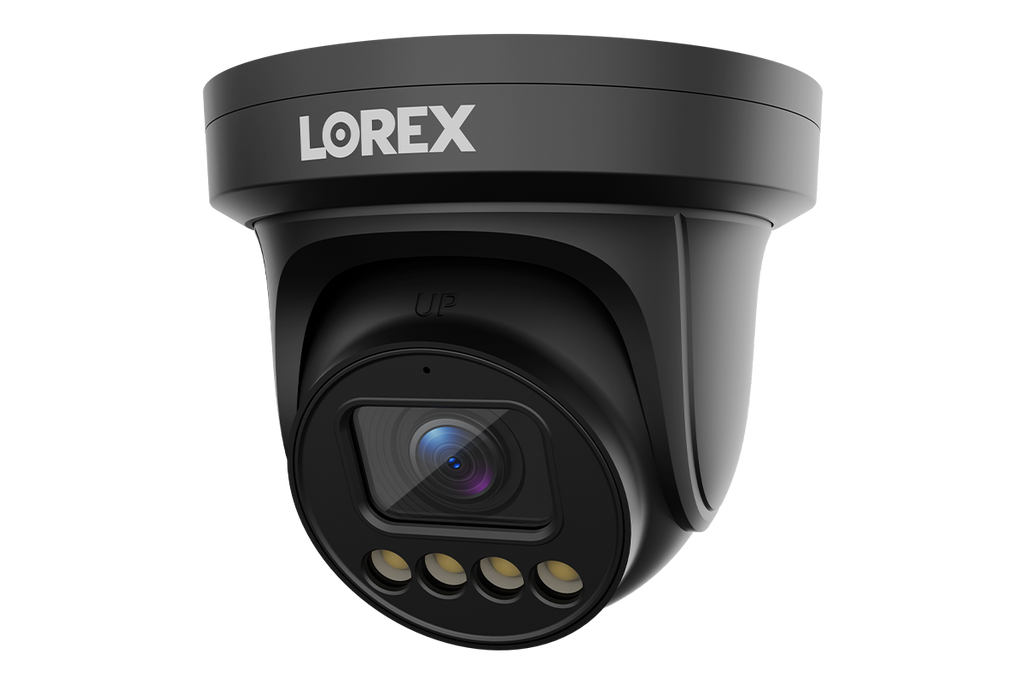

Lorex Connect X3 4K Motorized Varifocal PoE Turret Camera with Active Deterrence - Black/White
Black
Sale price
$164.74 USD
Regular price
$289.99 USD
Skip to product information
X Series|
CNE01P-2TB-AB1
Lorex Connect X3 4K Motorized Varifocal PoE Turret Camera with Active Deterrence - Black/White (Cable not included)
Key Features:
- No Monthly Fees
- Recorder Required (Wired)
- Compatible with X Series Recorders
- 4K Ultra HD Resolution
- Smart Motion Detection
- Active Deterrence
- Motorized Varifocal
- Long-distance PoE
- Nano Intelligence Codec
- Listen-In Audio
- IP66 Weatherproof Rating
- 5× Optical Zoom
- Works with the Lorex Connect mobile app
- Wide Dynamic Range (WDR)
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Camera cables are sold separately.
Add-Ons
Quick Order
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Overview
The Lorex Connect X Series Motorized Varifocal PoE camera delivers sharp 4K video day or night with the flexibility to remotely zoom in on distant areas without losing detail. Built-in AI analytics turn video into actionable insights that improve efficiency and operations, while active deterrence with lighting and a warning siren helps prevent incidents and maintain safer environments.
Complete Your System
Pair with other X Series products for smarter detection, unified control, and effortless setup.
Lorex Connect X Series 2K+ Dual-Lens PTZ Camera with 30× Optical Zoom
Lorex Connect X Series 2K+ Dual-Lens PTZ Camera with 30× Optical Zoom (Cable not included)
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Pickup currently not available
Product Compatibility List
AI Video Analytics
-
Detects human presence in the footage and records related activity.
Person Detection
-
Detects vehicles within the camera’s field of view and logs their presence.
Vehicle Detection
-
Counts the number of people entering, exiting, or present within a defined area.
People Counting
-
Detects when a person remains in a specified area beyond a set duration threshold.
Loitering Detection
-
Monitors a defined area for parked or stationary vehicles and duration of stay.
Parking Area Monitoring
-
Detects when a person or object enters a defined restricted area or crosses a set boundary.
Intrusion Detection
-
Detect vehicles moving in the wrong direction. Ideal for parking lots and restricted lanes.
Wrong Way Detection
What's Included
X3 4K PoE Turret Camera with Motorized Varifocal
Alarm I/O Terminal Block Connector
Mounting Hardware
Weather-Resistant RJ45 Cable Gland
DORI Distance
DORI stands for Detect, Observe, Recognize, and Identify. It describes increasing levels of visual detail used to assess surveillance camera performance at distance.
Detect
96.0 to 272.0 m / 315.0 to 892.4 ft
Observe
38.4 to 108.8 m / 126.0 to 357.0 ft
Recognize
19.2 to 54.4 m / 63.0 to 178.5 ft
Identify
9.6 to 27.2 m / 31.5 to 89.2 ft
Product Specifications
Lorex Connect X3 4K Motorized Varifocal PoE Turret Camera with Active Deterrence
- Resolution
- 4K (3840 × 2160)
- Lens
- 2.7–13.5 mm / F1.6
- Optical Zoom
- 5× Motorized Varifocal
- Night Vision
- IR up to 131 ft (40 m)
- Weather Rating
- IP66
- Power
- 12V DC / PoE
- Local Storage
- MicroSD up to 1 TB
- Integration
- ONVIF, RTSP
Camera
7 specs
- Image Sensor
- 8MP 1/2.7” CMOS
- Max Resolution
- 4K (3840 × 2160)
- Max Frame Rate
- 25 fps
- Aspect Ratio
- 16:9
- Wide Dynamic Range
- 120 dB True WDR
- Min Illumination
- Color: 0.01 lux / B/W (IR On): 0 lux
- Signal-to-Noise Ratio
- 55 dB
Lens
5 specs
- Type
- Motorized Varifocal
- Focal Length / Aperture
- 2.7–13.5 mm / F1.6
- Optical Zoom
- 5×
- Field of View
- Diagonal: 106.7°-37.2°
- Horizontal: 102.5°-33°
- Vertical: 54°-18°
- DORI Distance
- Detect: 315-892.3 ft (96-272 m)
- Observe: 126-357 ft (38.4-108.8 m)
- Recognize: 63-178.5 ft (19.2-54.4 m)
- Identify: 31.5-89.2 ft (9.6-27.2 m)
Video
4 specs
- Compression
- Nano Codec (Enhanced H.265 Compression)
- H.265
- H.264
- MJPEG
- Video Streams
- Main / Sub / Third Stream
- Bit Rate Control
- CBR / VBR
- Video Format
- NTSC
Audio
1 spec
- Microphone
- Yes
Night Vision
2 specs
- IR Night Vision
- Yes, up to 131 ft (40 m) in total darkness
- Color Night Vision
- Yes
AI Smart Features
5 specs
- Detection
- Person
- Vehicle
- Intrusion
- Loitering
- Wrong-Way
- Unauthorized Parking
- Perimeter Protection
- Line-Crossing, Dual-Line Crossing
- Tracking & Monitoring
- Smart Motion
- Crowd Analytics
- People Counting
- Active Deterrence
- White Light
Storage & Power
4 specs
- Local SD Storage
- MicroSD Slot (Up to 1 TB)*
- Alarm I/O
- 1 Input / 1 Output
- Power Supply
- 12V DC / PoE (IEEE 802.3af)
- Max Power Consumption
- 9.6 W (DC) / 12 W (PoE)
Network & Connectivity
2 specs
- Interface
- RJ45 (10/100 Base-T)
- Protocols / Integration
- ONVIF, RTSP
Physical
5 specs
- Housing Material
- Aluminum Alloy
- Colors
- Black / White
- Mounting Adjustment Range
- Pan: 360° / Tilt: 90° / Rotation: 360°
- Camera Dimensions (D × H)
- Ø 5.51 × 4.69 in (Ø 140 × 119.2 mm)
- Camera Weight
- 1.98 lb (0.9 kg)
Environmental
3 specs
- IP Rating
- IP66
- Operating Temperature
- -22°F to 140°F (-30°C to 60°C)
- Operating Humidity
- ≤ 90% RH
Package Information
7 specs
- Black
- SKU: CNE01P-2TB-AB1
- UPC: 6-95529-06640-0
- White
- SKU: CNE01P-2TW-AB1
- UPC: 6-95529-06641-7
- Package Type
- Brown Box
- Package Dimensions (W × D × H)
- 6.89 × 6.50 × 7.28 in (175 × 165 × 185 mm)
- Package Weight
- 2.37 lb (1.07 kg)
- Package Cube
- 0.1887 ft³ (0.00534 m³)
- Package Contents
- 1 × Lorex Connect X3 4K Motorized Varifocal PoE Turret Camera with Active Deterrence
- 1 × Mounting Template
- 3 × Mounting Anchors
- 3 × Mounting Screws
- 1 × Allen Key
- 1 × Weather-Resistant RJ45 Cable Gland
- 1 × Alarm I/O Terminal Block Connector
Model Information
3 specs
- Series Family
- X
- Series Line
- X3
- SKU
- CNE01P-2TB-AB1
- CNE01P-2TW-AB1
No specs match your search.
Notes & disclaimers
- Compatible with select Lorex Network Video Recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility.
- Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
- Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting up to 131 ft / 40 m in total darkness. Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
- Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
- Not intended for submersion in water. Installation in a sheltered location recommended.
- * A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.
