New Connect X5 Camera
"These are the best cameras we installed to date. The night vision is fabulous."

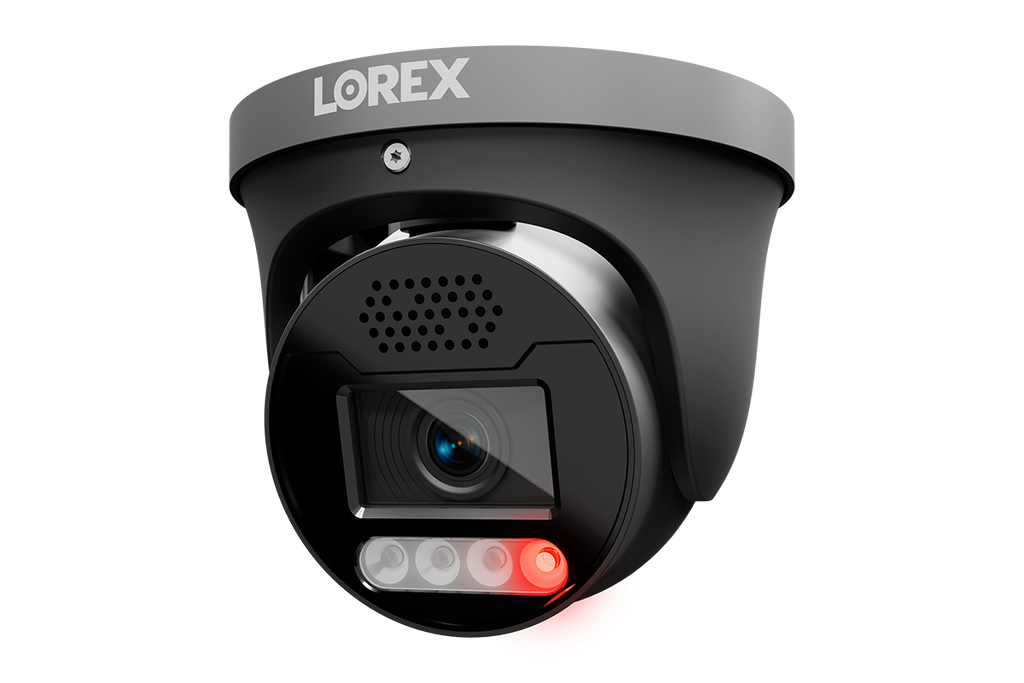

Lorex Connect X5 4K PoE Turret Camera with Color Night IQ+ - White/Black
Black
Sale price
$134.85 USD
Regular price
$229.99 USD
Skip to product information
X Series|
CNE01P-1TB-AB1
Lorex Connect X5 4K PoE Turret Camera with Color Night IQ+ - White/Black (Cable not included)
Key Features:
- No Monthly Fees
- Recorder Required (Wired)
- Compatible with X Series Recorders
- 4K Ultra HD Resolution
- Smart Motion Detection
- Advanced Deterrence
- Real-time 30fps Recording
- Nano Intelligence Codec
- Long-distance PoE
- Color Night IQ+
- Two-Way Audio
- IP66 Weatherproof Rating
- Works with the Lorex Connect mobile app
- Wide Dynamic Range (WDR)
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Camera cables are sold separately.
Add-Ons
Quick Order
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Overview
The Lorex Connect X Series 4K PoE Camera is a professional-grade security camera that pairs uncompromised image quality with intelligent detection, operational analytics, and open-platform compatibility — helping businesses protect assets, streamline operations, and scale with ease.
Complete Your System
Pair with other X Series products for smarter detection, unified control, and effortless setup.
Lorex Connect X Series 2K+ Dual-Lens PTZ Camera with 30× Optical Zoom
Lorex Connect X Series 2K+ Dual-Lens PTZ Camera with 30× Optical Zoom (Cable not included)
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Pickup currently not available
Product Compatibility List
AI Video Analytics
-
Detects human presence in the footage and records related activity.
Person Detection
-
Detects vehicles within the camera’s field of view and logs their presence.
Vehicle Detection
-
Counts the number of people entering, exiting, or present within a defined area.
People Counting
-
Displays movement density and activity patterns across the scene over a selected time range.
Heatmap
-
Identifies known individuals in the footage based on stored face data.
Face Recognition
-
Detects when a person remains in a specified area beyond a set duration threshold.
Loitering Detection
-
Monitors a defined area for parked or stationary vehicles and duration of stay.
Parking Area Monitoring
-
Detects when a person or object enters a defined restricted area or crosses a set boundary.
Intrusion Detection
- Detects signs of fire in the footage and flags related events for review.
Fire Detection
-
Detect vehicles moving in the wrong direction. Ideal for parking lots and restricted lanes.
Wrong Way Detection
What's Included
X5 4K PoE Turret Camera
Mounting Hardware
Weather-Resistant RJ45 Cable Gland
DORI Distance
DORI stands for Detect, Observe, Recognize, and Identify. It describes increasing levels of visual detail used to assess surveillance camera performance at distance.
Detect
80.4 m / 263.8 ft
Observe
32.2 m / 105.6 ft
Recognize
16.1 m / 52.8 ft
Identify
8.0 m / 26.2 ft
Product Specifications
Lorex Connect X5 4K PoE Turret Camera with Color Night IQ+
- Resolution
- 4K (3840 × 2160)
- Lens
- Fixed 2.8 mm / F1.0
- Field of View
- Horizontal: 109.4°
- Night Vision
- Color Night IQ+
- Weather Rating
- IP66
- Power
- 12V DC / PoE
- Local Storage
- MicroSD up to 1 TB
- Integration
- ONVIF, RTSP
Camera
7 specs
- Image Sensor
- 8MP 1/1.8” CMOS
- Max Resolution
- 4K (3840 × 2160)
- Max Frame Rate
- 30 fps
- Aspect Ratio
- 16:9
- Wide Dynamic Range
- 120 dB True WDR
- Min Illumination
- Color: 0.0005 lux/ B/W (IR On): 0 lux
- Signal-to-Noise Ratio
- 55 dB
Lens
4 specs
- Type
- Fixed
- Focal Length / Aperture
- 2.8 mm / F1.0
- Field of View
- Diagonal: 113.5°
- Horizontal: 109.4°
- Vertical: 59.5°
- DORI Distance
- Detect: 263.8 ft (80.4 m)
- Observe: 105.6 ft (32.2 m)
- Recognize: 52.8 ft (16.1 m)
- Identify: 26.3 ft (8.0 m)
Video
4 specs
- Compression
- Nano Codec (Enhanced H.265 Compression)
- H.265
- H.264
- MJPEG
- Video Streams
- Main / Sub / Third Stream
- Bit Rate Control
- CBR / VBR
- Video Format
- NTSC
Audio
3 specs
- Microphone
- Yes
- Speaker
- Yes
- Two-Way Talk
- Yes
Night Vision
2 specs
- IR Night Vision
- Yes, up to 98 ft (30) m in total darkness
- Color Night IQ+
- Yes
AI Smart Features
5 specs
- Detection
- Person
- Vehicle
- Face Recognition
- Intrusion
- Loitering
- Wrong-Way
- Unauthorized Parking
- Perimeter Protection
- Line-Crossing, Dual-Line Crossing
- Tracking & Monitoring
- Smart Motion
- Crowd Analytics
- Heat Map, People Counting
- Active Deterrence
- Red and Blue Light
- White Light
- Siren
- Pre-Recorded Messages¹
Network & Connectivity
2 specs
- Interface
- RJ45 (10/100 Base-T)
- Protocols / Integration
- ONVIF, RTSP
Storage & Power
3 specs
- Local SD Storage
- MicroSD Slot (Up to 1 TB)*
- Power Supply
- 12V DC / PoE (IEEE 802.3af)
- Max Power Consumption
- 8 W (DC) / 10.5 W (PoE)
Physical
5 specs
- Housing Material
- Aluminum Alloy
- Colors
- Black / White
- Mounting Adjustment Range
- Pan: 335° / Tilt: 75° / Rotation: 360°
- Camera Dimensions (D × H)
- Ø 4.33 × 3.74 in (Ø 110 × 95 mm)
- Camera Weight
- 1.17 lb (0.53 kg)
Environmental
3 specs
- IP Rating
- IP66
- Operating Temperature
- -22°F to 140°F (-30°C to 60°C)
- Operating Humidity
- ≤ 90% RH
Package Information
7 specs
- Black
- SKU: CNE01P-1TB-AB1
- UPC: 6-95529-06632-5
- White
- SKU: CNE01P-1TW-AB1
- UPC: 6-95529-06637-0
- Package Type
- Brown Box
- Package Dimensions (W × D × H)
- 6.89 × 6.50 × 7.28 in (175 × 165 × 185 mm)
- Package Weight
- 1.39 lb (0.63 kg)
- Package Cube
- 0.1887 ft³ (0.00534 m³)
- Package Contents
- 1 × Lorex Connect X5 4K PoE Turret Camera with Color Night IQ+
- 1 × Mounting Template
- 3 × Mounting Anchors
- 3 × Mounting Screws
- 1 × Weather-Resistant RJ45 Cable Gland
Model Information
3 specs
- Series Family
- X
- Series Line
- X5
- SKU
- CNE01P-1TB-AB1
- CNE01P-1TW-AB1
No specs match your search.
Notes & disclaimers
- ¹ Compatible with select Lorex Network Video Recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility.
- Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
- Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting up to 98 ft / 30 m in total darkness. Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
- Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
- Not intended for submersion in water. Installation in a sheltered location recommended.
- * A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.
