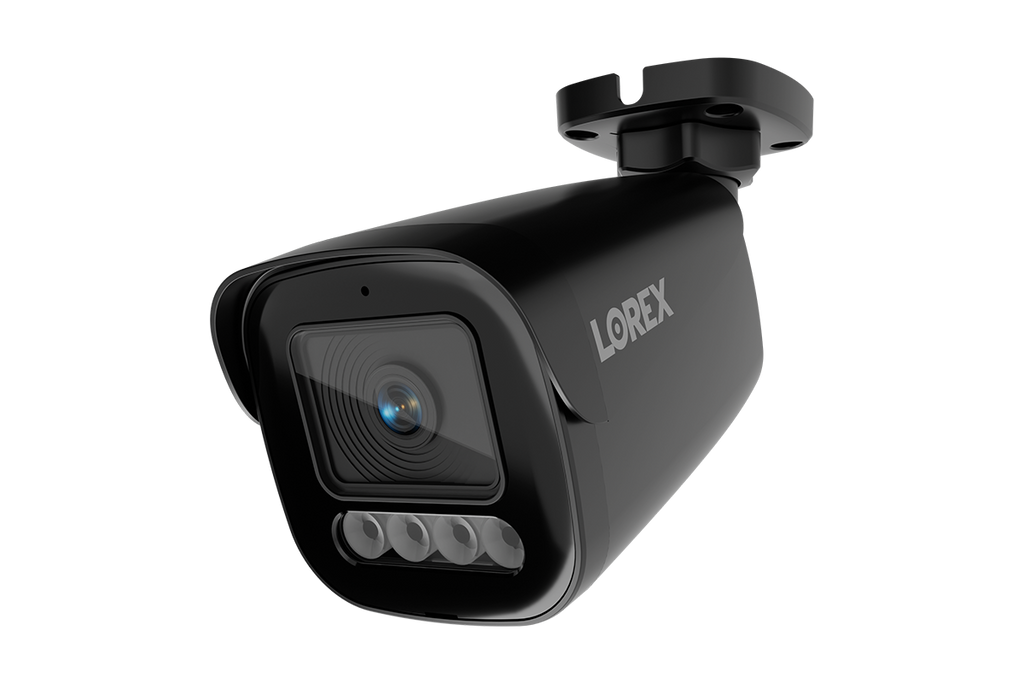

Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White

Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White

Black
$171.54 USD $289.99 USD
Skip to product information
X Series badge
Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White
  • Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White
  • Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White
  • Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White
  • Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White
  • Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White
  • Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White
  • Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White
  • Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White
  • Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White
  • Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White
  • Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White
  • Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White
Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White
X Series|
CNE01P-2BB-AB1

Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence - Black/White (Cable not included)

Key Features:

  • No Monthly Fees
  • Recorder Required (Wired)
  • Compatible with X Series Recorders
  • 4K Ultra HD Resolution
  • Smart Motion Detection
  • Active Deterrence
  • Motorized Varifocal
  • Long-distance PoE
  • Nano Intelligence Codec
  • Two-Way Audio
  • IP66 Weatherproof Rating
  • 5× Optical Zoom
  • Works with the Lorex Connect mobile app
  • Wide Dynamic Range (WDR)
ColorBlack

Become a Partner and Log in to access volume pricing, build your system, and place orders.

ONVIF® conformant

ONVIF is a global open standard for IP-based security products. ONVIF certification helps support integration between compatible IP cameras, NVRs, VMS platforms, and software that use the same ONVIF profiles.

  • Works with compatible ONVIF-conformant systems
  • Supports third-party devices and VMS integration
  • Supports ONVIF Profile G, M, S, T*
Learn More

*ONVIF compatibility varies by model. Advanced features may not work with third-party cameras. Click here to check compatibility test results.

Become a Partner and Log in to access volume pricing, build your system, and place orders.

🛈
Camera cables are sold separately.

Add-Ons

Quick Order

Become a Partner and Log in to access volume pricing, build your system, and place orders.

Overview

The Lorex Connect X Series Motorized Varifocal PoE camera delivers sharp 4K video day or night with the flexibility to remotely zoom in on distant areas without losing detail. Built-in AI analytics turn video into actionable insights that improve efficiency and operations, while active deterrence with lighting and a warning siren helps prevent incidents and maintain safer environments.
Learn More

Complete Your System

Pair with other X Series products for smarter detection, unified control, and effortless setup.

X Series badge
Lorex Connect X Series 2K+ Dual-Lens PTZ Camera with 30× Optical Zoom

Lorex Connect X Series 2K+ Dual-Lens PTZ Camera with 30× Optical Zoom

Lorex Connect X Series 2K+ Dual-Lens PTZ Camera with 30× Optical Zoom (Cable not included)

Become a Partner and Log in to access volume pricing, build your system, and place orders.

Lorex Connect X Series 2K+ Dual-Lens PTZ Camera with 30× Optical Zoom

Product Compatibility List

AI Video Analytics

What's Included

X3 4K PoE Bullet Camera with Motorized Varifocal

Alarm I/O Terminal Block Connector

For special models

Allen Key

Mounting Hardware

Weather-Resistant RJ45 Cable Gland

DORI Distance

DORI stands for Detect, Observe, Recognize, and Identify. It describes increasing levels of visual detail used to assess surveillance camera performance at distance.

Detect

96.0 to 272.0 m / 315.0 to 892.4 ft

Detect level DORI example

Observe

38.4 to 108.8 m / 126.0 to 357.0 ft

Observe level DORI example

Recognize

19.2 to 54.4 m / 63.0 to 178.5 ft

Recognize level DORI example

Identify

9.6 to 27.2 m / 31.5 to 89.2 ft

Identify level DORI example

Product Specifications

Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence

Download PDF
Resolution
4K (3840 × 2160)
Lens
2.7-13.5 mm / F1.6
Optical Zoom
5× Motorized Varifocal
Night Vision
IR up to 131 ft (40 m)
Weather Rating
IP66
Power
12V DC / PoE
Local Storage
MicroSD up to 1 TB
Integration
ONVIF, RTSP

Camera

7 specs
Image Sensor
8MP 1/2.7” CMOS
Max Resolution
4K (3840 × 2160)
Max Frame Rate
25 fps
Aspect Ratio
16:9
Wide Dynamic Range
120 dB True WDR
Min Illumination
Color: 0.01 lux / B/W (IR On): 0 lux
Signal-to-Noise Ratio
50 dB

Lens

5 specs
Type
Motorized Varifocal
Focal Length / Aperture
2.7-13.5 mm / F1.6
Optical Zoom
5×
Field of View
  • Diagonal: 106.7°-37.2°
  • Horizontal: 102.5°-33°
  • Vertical: 54°-18°
DORI Distance
  • Detect: 315-892.3 ft (96-272 m)
  • Observe: 126-357 ft (38.4-108.8 m)
  • Recognize: 63-178.5 ft (19.2-54.4 m)
  • Identify: 31.5-89.2 ft (9.6-27.2 m)

Video

4 specs
Compression
  • Nano Codec (Enhanced H.265 Compression)
  • H.265
  • H.264
  • MJPEG
Video Streams
Main / Sub / Third Stream
Bit Rate Control
CBR / VBR
Video Format
NTSC

Audio

3 specs
Microphone
Yes
Speaker
Yes
Two-Way Talk
Yes

Night Vision

2 specs
IR Night Vision
Yes, up to 131 ft (40 m) in total darkness
Color Night Vision
Yes

AI Smart Features

5 specs
Detection
  • Person
  • Vehicle
  • Intrusion
  • Loitering
  • Wrong-Way
  • Unauthorized Parking
Perimeter Protection
Line-Crossing, Dual-Line Crossing
Tracking & Monitoring
Smart Motion
Crowd Analytics
People Counting
Active Deterrence
White Light, Siren, Pre-Recorded Messages¹

Network & Connectivity

2 specs
Interface
RJ45 (10/100 Base-T)
Protocols / Integration
ONVIF, RTSP

Storage & Power

4 specs
Local SD Storage
MicroSD Slot (Up to 1 TB)*
Alarm I/O
1 Input / 1 Output
Power Supply
12V DC / PoE (IEEE 802.3af)
Max Power Consumption
9.6 W (DC) / 12 W (PoE)

Physical

5 specs
Housing Material
Aluminum Alloy
Colors
Black / White
Mounting Adjustment Range
Pan: 360° / Tilt: 90° / Rotation: 360°
Camera Dimensions (W × D × H)
7.4 × 3.15 × 3.03 in (188 × 80 × 77 mm)
Camera Weight
1.28 lb (0.58 kg)

Environmental

3 specs
IP Rating
IP66
Operating Temperature
-22°F to 140°F (-30°C to 60°C)
Operating Humidity
≤ 90% RH

Package Information

7 specs
Black
  • SKU: CNE01P-2BB-AB1
  • UPC: 6-95529-06638-7
White
  • SKU: CNE01P-2BW-AB1
  • UPC: 6-95529-06639-4
Package Type
Brown Box
Package Dimensions (W × D × H)
9.25 × 4.17 × 4.02 in (235.0 × 106.0 × 102.0 mm)
Package Weight
1.58 lb (0.72 kg)
Package Cube
0.0897 ft³ (0.00254 m³)
Package Contents
  • 1 × Lorex Connect X3 4K Motorized Varifocal PoE Bullet Camera with Active Deterrence
  • 1 × Mounting Template
  • 4 × Mounting Anchors
  • 4 × Mounting Screws
  • 1 × Allen Key
  • 1 × Weather-Resistant RJ45 Cable Gland
  • 1 × Alarm I/O Terminal Block Connector

Model Information

3 specs
Series Family
X
Series Line
X3
SKU
  • CNE01P-2BB-AB1
  • CNE01P-2BW-AB1
Notes & disclaimers
  • ¹ Compatible with select Lorex Network Video Recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility.
  • Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  • Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting up to 131 ft / 40 m in total darkness. Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  • Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
  • Not intended for submersion in water. Installation in a sheltered location recommended.
  • * A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.

Product Support

Manuals & Downloads Support
Articles Support
Videos

Reviews

Overall rating: 4.3333335 / 5 from 3 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

image quality is good but

"image quality is good but misleading Varifocal as it only allows users to set focus near field or far field, so it's not truly varifocal!! well built but sometimes it glitches and shows green or blue line on bottom of video. customer service & technical support are subpar!!"

— Ihab R. (3/5)

These cameras are great. I

"These cameras are great. I bought these for home surveillance. I previously had WiFi type cameras which were ok, but these are so much faster with alerts and I’m not missing anything. Having the 24/7 recording is an absolute must for home surveillance."

— Jake C. (5/5)

Lorex Connect X3 4K Motorized Varifocal PoE

"Great product. Useful features that will help your customers"

— Mykhailo V. (5/5)

Q&A

Do you have a version where the voice isn't recorded? Or can the audio be disabled on these cameras?
Audio can be disabled in settings.
