Lorex Connect X Series 4K PTZ PoE Camera with 30× Optical Zoom

Lorex Connect X Series 4K PTZ PoE Camera with 30× Optical Zoom

Sale price  $878.88 USD Regular price  $1,469.99 USD
Skip to product information
X Series badge

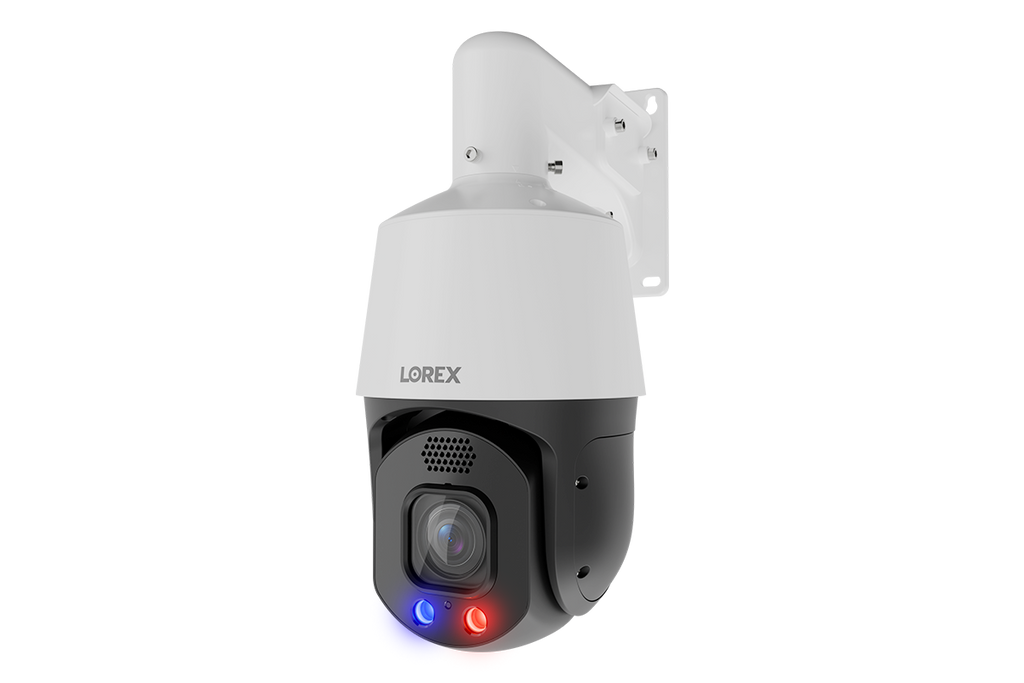

Lorex Connect X Series 4K PTZ PoE Camera with 30× Optical Zoom
X Series|
CNX01P-DPW-AB1

Lorex Connect X Series 4K PTZ PoE Camera with 30× Optical Zoom (Cable not included)

Key Features:

  • No Monthly Fees
  • Auto-Tracking
  • Recorder Required (Wired)
  • Compatible with X Series Recorders
  • 4K Ultra HD Resolution
  • Advanced Deterrence
  • Nano Intelligence Codec
  • Heated Anti-Fog Glass
  • Smart Motion Detection
  • Auto-Tracking
  • Pan-Tilt-Zoom
  • Real-time 30fps Recording
  • Color Night Vision
  • Two-Way Audio
  • IP66 Weatherproof Rating
  • 30x Optical Zoom
  • Works with the Lorex Connect mobile app
  • Wide Dynamic Range (WDR)

Become a Partner and Log in to access volume pricing, build your system, and place orders.

Become a Partner and Log in to access volume pricing, build your system, and place orders.

🛈
Camera cables are sold separately.

Add-Ons

Quick Order

Become a Partner and Log in to access volume pricing, build your system, and place orders.

Overview

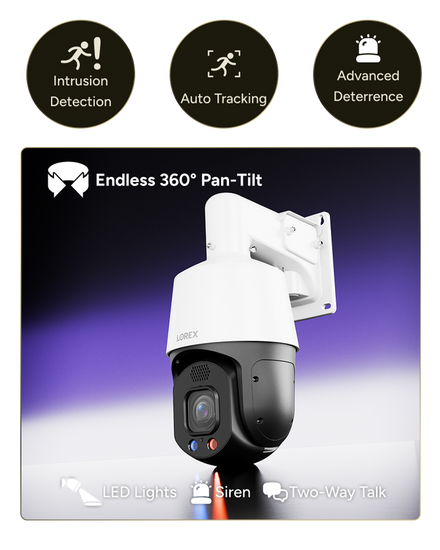

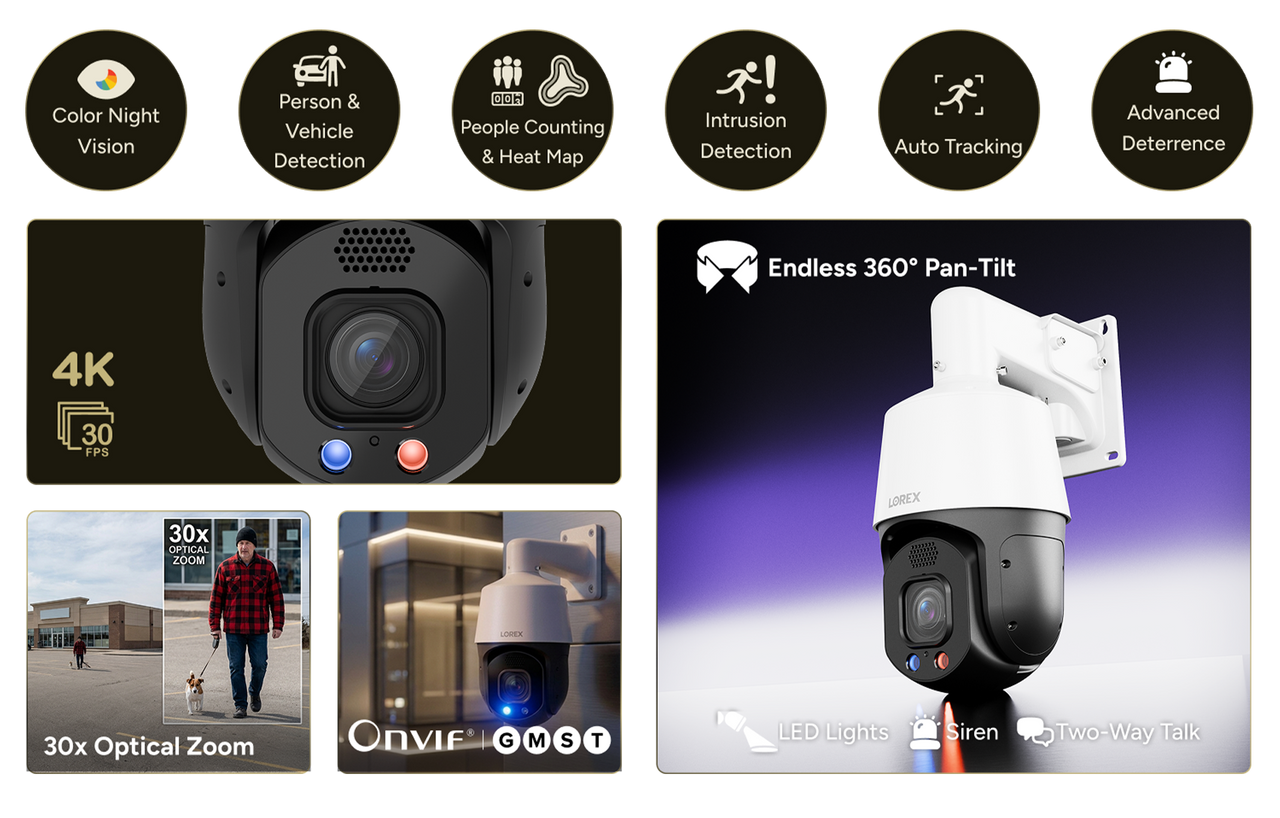

The Lorex Connect X Series 4K PTZ camera delivers real-time 4K video (30 FPS) with powerful 30× optical zoom and full 360° pan/tilt control for flexible monitoring across large areas. AI-powered analytics, smart tracking, and virtual fencing help businesses detect activity, improve efficiency, and optimize operations.

Learn More

Complete Your System

Pair with other X Series products for smarter detection, unified control, and effortless setup.

Product Compatibility List

What's Included

X PTZ 4K Dome Camera with 30× Zoom

Wall Mount

Safety Chain

Power Adapter and Cable

4 × Expansion Bolts

3 × Mounting Screws

Allen Key

Torx Key

ESD Gloves

Weather-Resistant RJ45 Cable Gland

6-Pin Wire Connector

Product Specifications

X PTZ 4K Dome Camera with 30× Zoom

Download PDF
Resolution
4K (3840 × 2160)
Optical Zoom
30×
Lens
7-210 mm Motorized Varifocal
Night Vision
IR up to 820 ft (250 m)
Tracking
Auto Tracking
Weather Rating
IP66
Power
PoE+ / 24V AC / 36V DC
Integration
ONVIF, RTSP

Camera

7 specs

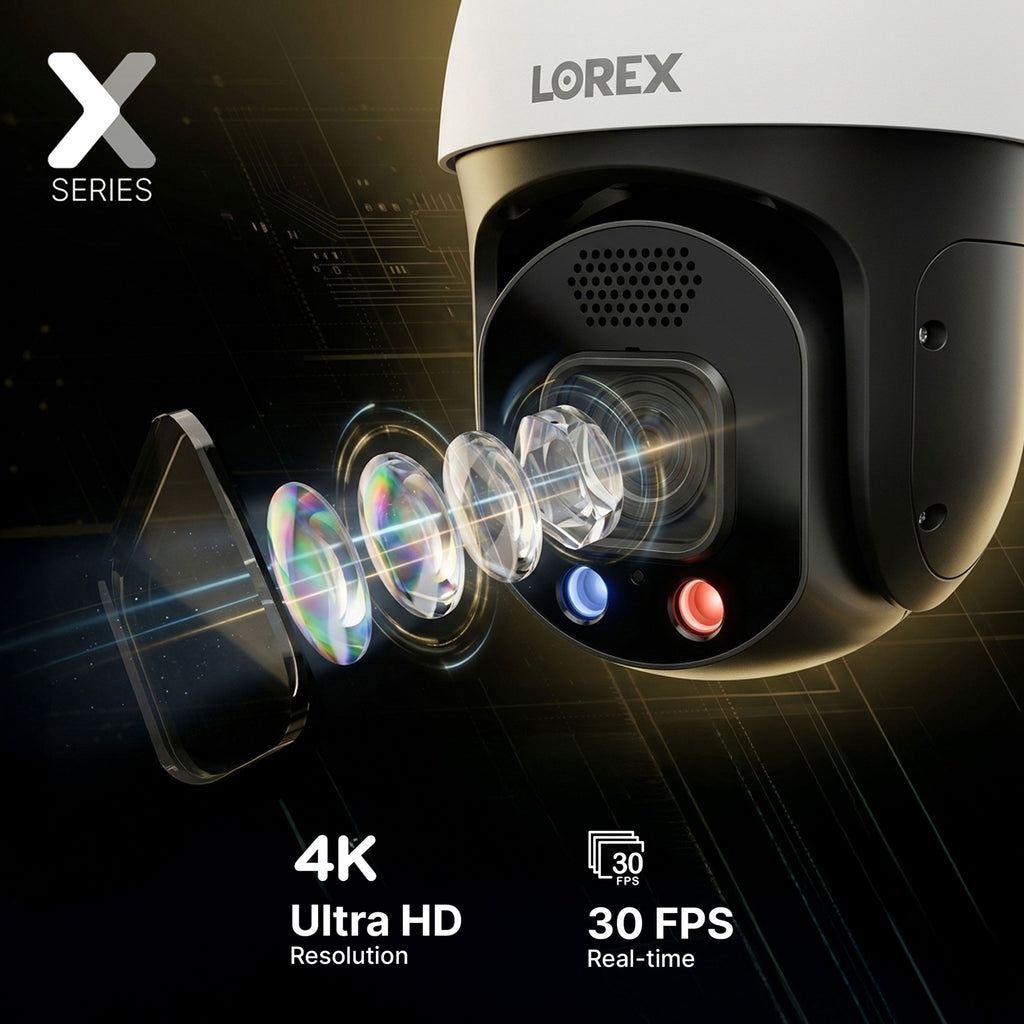

Image Sensor
8MP 1/1.8” CMOS
Max Resolution
4K (3840 × 2160)
Max Frame Rate
30 fps
Aspect Ratio
16:9
Wide Dynamic Range
120 dB True WDR
Min Illumination
Color: 0.005 lux / B/W: 0.0005 lux
Signal-to-Noise Ratio
55 dB

Lens

6 specs
Type
Motorized Varifocal
Focal Length / Aperture
7-210 mm, F1.61-F5.15

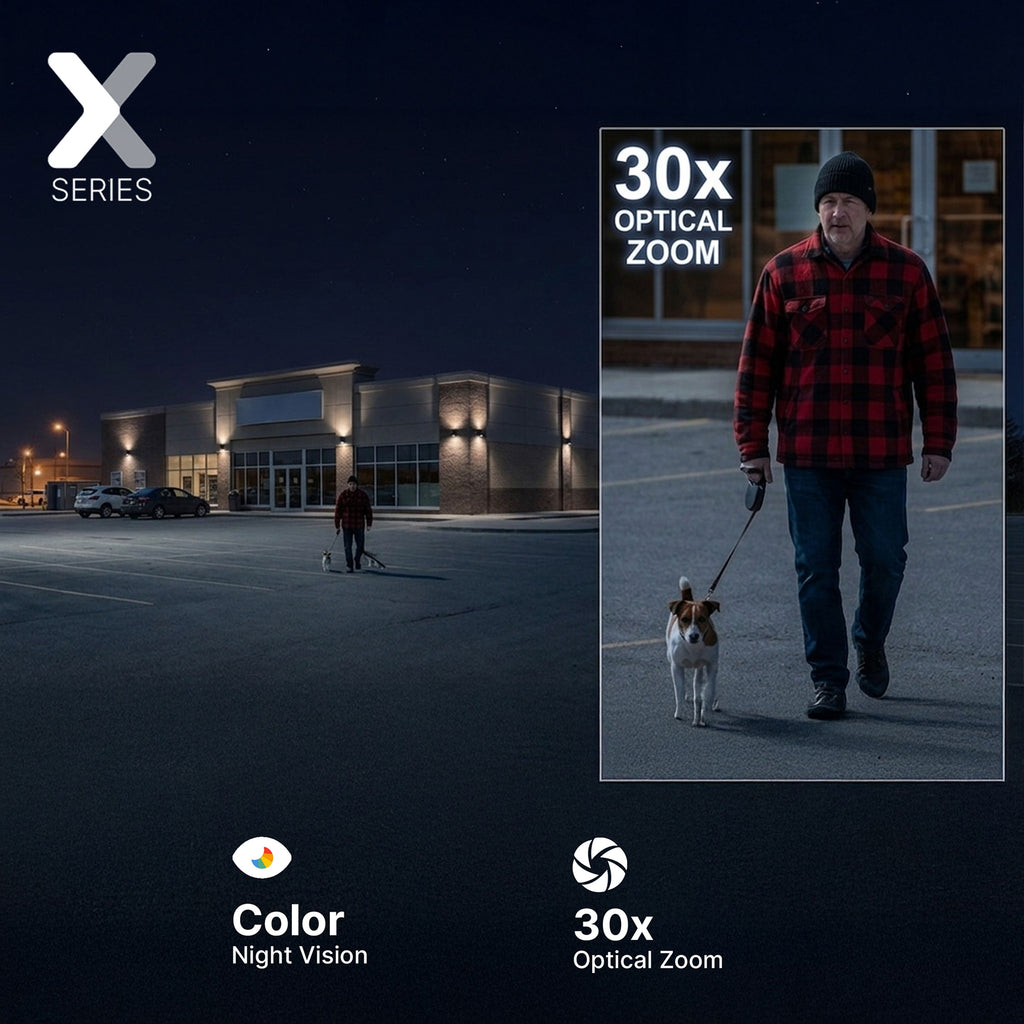

Optical Zoom
30×
Field of View
  • Diagonal: 67.6°-3°
  • Horizontal: 60.4°-2.6°
  • Vertical: 36.5°-1.5°
PTZ Control
Remote Pan / Tilt / Zoom Operation
DORI Distance
  • Detect: 433.1-10456 ft (132-3187 m)
  • Observe: 173.2-4215.87 ft (52.8-1285 m)
  • Recognize: 86.6-2089.9 ft (26.4-637 m)
  • Identify: 43.3-1045.6 ft (13.2-318.7 m)

Video

4 specs
Compression
  • Nano Codec (Enhanced H.265 Compression)
  • H.265
  • H.264
  • MJPEG
Video Streams
Main / Sub / Third Stream
Bit Rate Control
CBR / VBR
Video Format
NTSC

Audio

3 specs
Microphone
Yes
Speaker
Yes
Two-Way Talk
Yes

Night Vision

2 specs
IR Night Vision
Yes, up to 820 ft (250 m) in total darkness

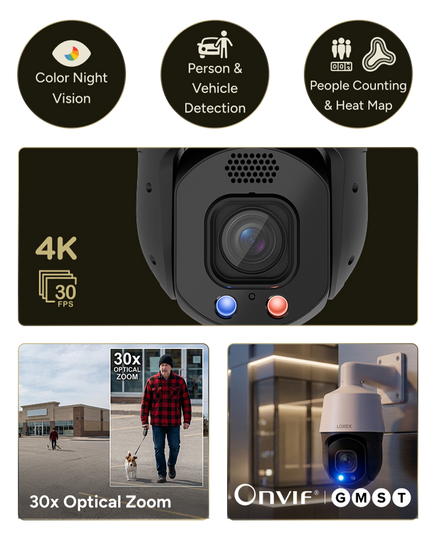

Color Night Vision
Yes

AI Smart Features

5 specs

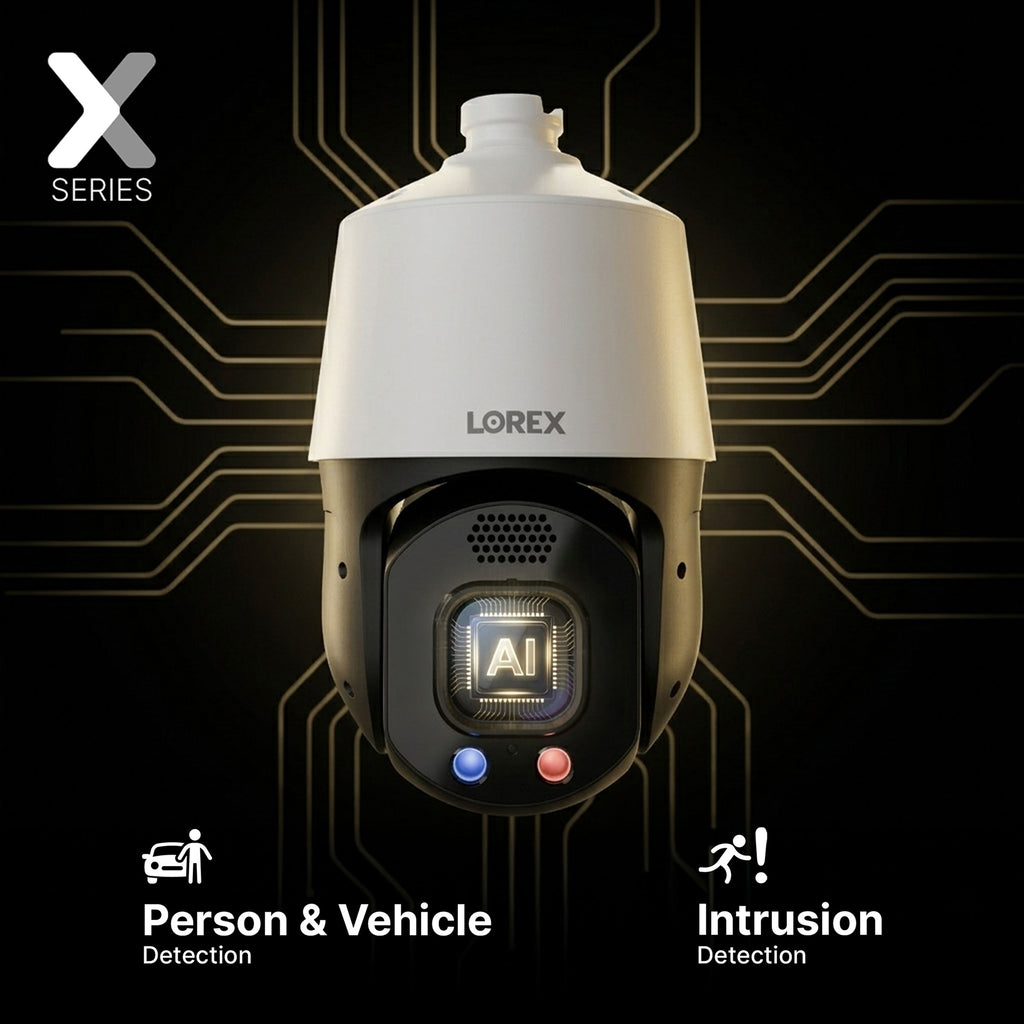

Detection
  • Person
  • Vehicle
  • Intrusion
  • Loitering
  • Wrong-Way
  • Unauthorized Parking
Perimeter Protection
Line-Crossing, Dual-Line Crossing

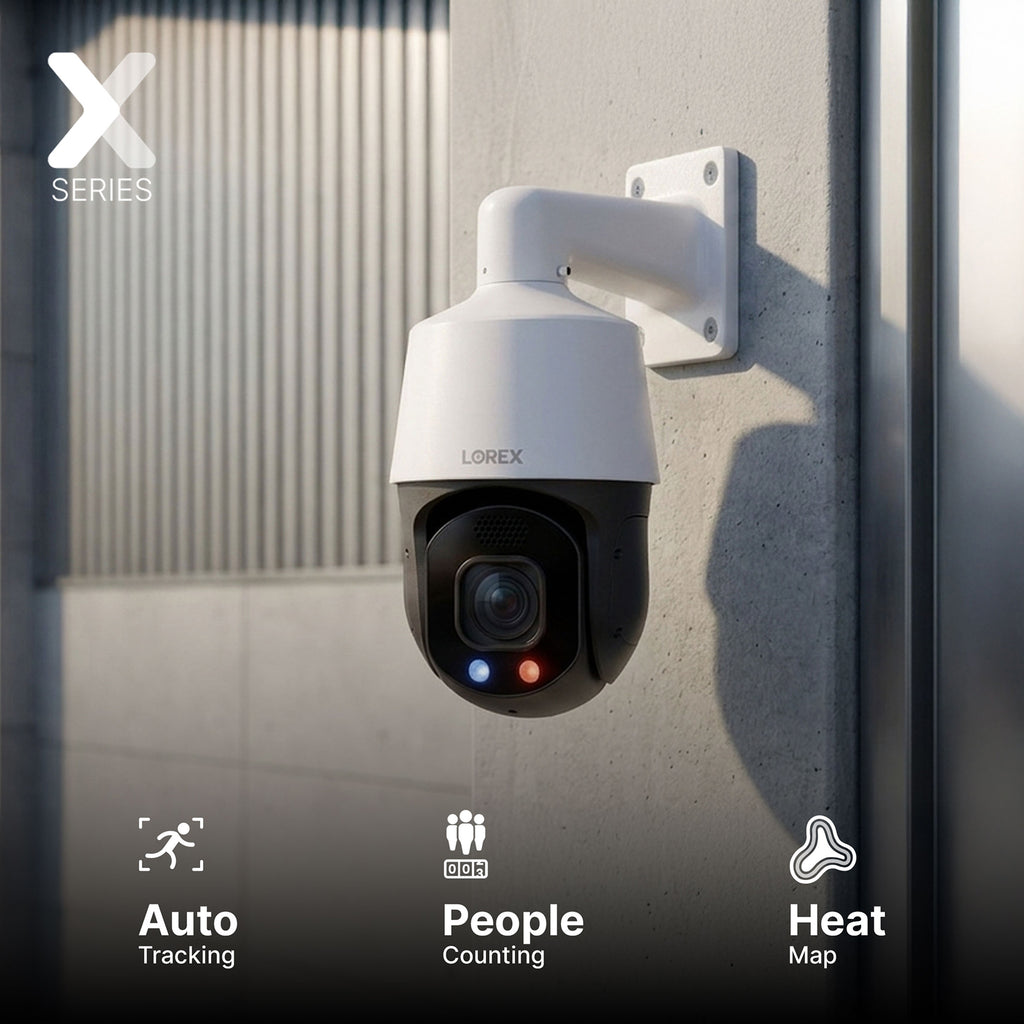

Tracking & Monitoring
Smart Motion, Auto Tracking
Crowd Analytics
People Counting
Active Deterrence
Red and Blue Light, Siren, Pre-Recorded Messages¹

Network

2 specs
Interface
RJ45 (10/100 Base-T)
Interoperability
ONVIF, RTSP

Storage & Power

4 specs
Local SD Storage
MicroSD Slot (Up to 1 TB)*
Alarm I/O
2 Inputs / 2 Outputs
Power Supply
24V AC / 36V DC / PoE+ (IEEE 802.3at)
Max Power Consumption
25 W (PoE)

Physical

4 specs
Housing Material
Aluminum Alloy
Color
White
Camera Dimensions (D × H)
Ø 6.93 × 11.96 in (Ø 176 × 303.9 mm)
Camera Weight
8.82 lb (4 kg)

Environmental

3 specs
IP Rating
IP66
Operating Temperature
-40°F to 140°F (-40°C to 60°C)
Operating Humidity
≤ 90% RH

Package Information

6 specs
White
  • SKU: CNX01P-DPW-AB1
  • UPC: 6-95529-06642-4
Package Type
Brown Box
Package Dimensions (W × D × H)
10.83 × 10.83 × 16.14 in (275 × 275 × 410 mm)
Package Weight
13.36 lb (6.06 kg)
Package Cube
1.10 ft³ (0.0310 m³)
Package Contents
  • 1× X PTZ 4K Dome Camera with 30× Zoom
  • 1× Wall Mount
  • 1× Camera Safety Cable
  • 1× Power Adapter and Cable
  • 4× Expansion Bolts
  • 3× Mounting Screws
  • 1× Allen Key
  • 1× Torx Key
  • 1× Weather-Resistant RJ45 Cable Gland
  • 1× ESD Gloves
  • 1× 6-Pin Wire Connector

Model Information

3 specs
Series Family
X
Series Line
XPTZ
SKU
CNX01P-DPW-AB1
Notes & disclaimers
  • ¹ Compatible with select Lorex Network Video Recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility.
  • Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  • Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting up to 820 ft / 250 m in total darkness. Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  • Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
  • Not intended for submersion in water. Installation in a sheltered location recommended.
  • * A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.
