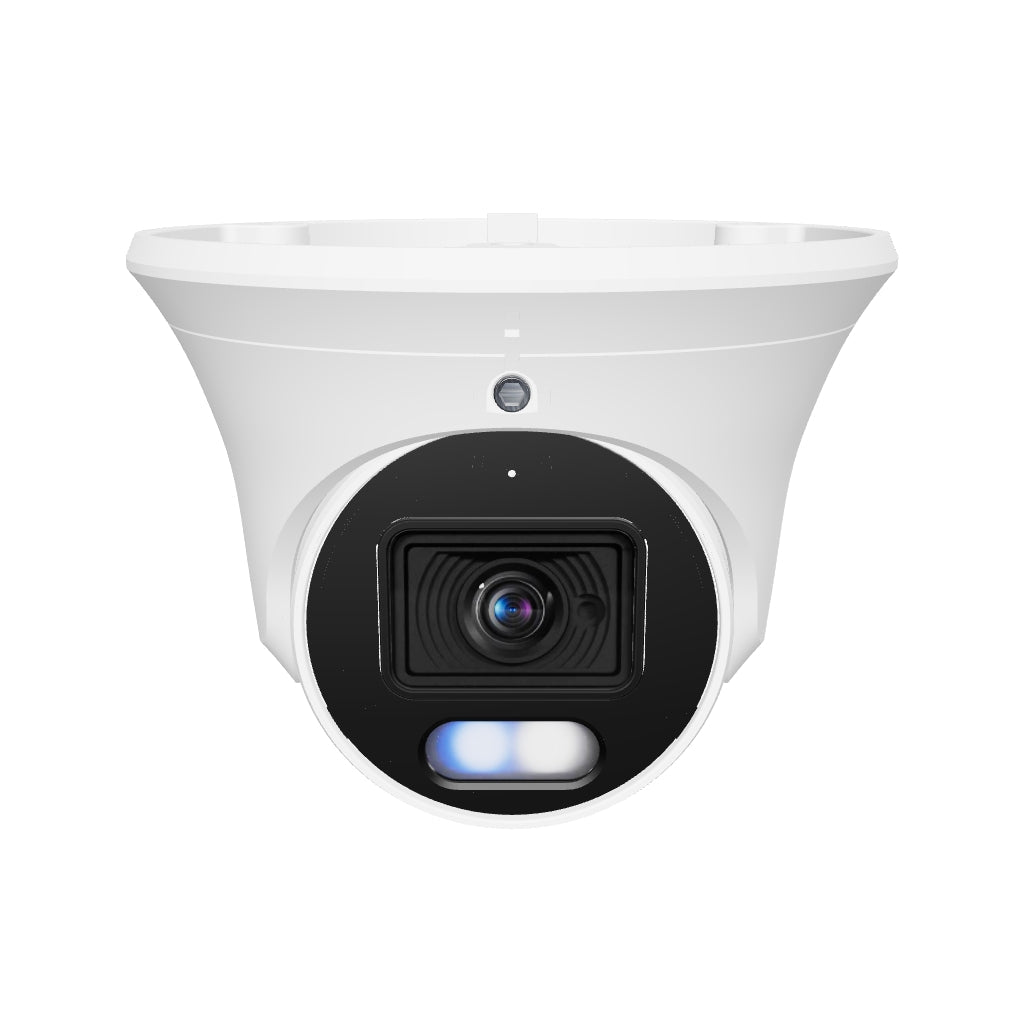

Lorex Connect U3 4K PoE Turret Camera with Red & Blue Deterrence Lights

Lorex Connect U3 4K PoE Turret Camera with Red & Blue Deterrence Lights

Sale price  $79.99 USD Regular price  $109.99 USD
Skip to product information
U Series badge
Lorex Connect U3 4K PoE Turret Camera with Red & Blue Deterrence Lights
U Series|
CN251A-1TW-AB1

Lorex Connect U3 4K PoE Turret Camera with Red & Blue Deterrence Lights (Cable not included)

Key Features:

  • No Monthly Fees
  • Recorder Required (Wired)
  • Compatible with U Series Recorders
  • 4K Ultra HD Resolution
  • Red & Blue Deterrence Lights
  • Smart Motion Detection
  • Color Night Vision
  • Listen-In Audio
  • IP67 Weatherproof Rating
  • Works with the Lorex Connect mobile app
  • Wide Dynamic Range (WDR)

Become a Partner and Log in to access volume pricing, build your system, and place orders.

Become a Partner and Log in to access volume pricing, build your system, and place orders.

🛈
Camera cables are sold separately.

Add-Ons

Overview

Ultra-clear 4K coverage meets proactive security in this IP camera designed to capture the details that matter and help deter incidents before they happen.

Complete Your System

Pair with other U Series products for smarter detection, unified control, and effortless setup.

Product Compatibility List

What's Included

U3 4K POE Turret Camera

Mounting Hardware

Weather-Resistant Cap

Allen Key

Ethernet Extension Cable

Product Specifications

Lorex Connect U3 4K POE Turret Camera

Download PDF
Resolution
4K (8 MP) @ 20 fps
Lens
Fixed 2.8 mm, F1.6
Field of View
Diagonal: 128°
Night Vision
IR up to 98 ft (30 m)
Weather Rating
IP67
Power
PoE / 12 V DC
Local Storage
microSD up to 512 GB
Integration
ONVIF

Camera & Imaging

12 specs
Video Transmission Technology
IP
Image Sensor
1/2.7" CMOS
Lens Type
Fixed 2.8 mm, F1.6
Min Illumination
Color: 0.006 Lux / B/W (IR On): 0 Lux
Max Resolution
3840 (H) × 2160 (V)
Resolution / Frame Rate
4K (8 MP) @ 20 fps
Field of View (FoV)
  • Diagonal: 128°
  • Horizontal: 110°
  • Vertical: 58°
Minimum Focusing Distance
5.9 ft (1.8 m)
Wide Dynamic Range (WDR)
Yes
True WDR
120 dB
Electronic Shutter Speed
1/3– 1/100,000 s (DWDR ON / OFF)
White Balance
Auto/Manual

Video & Audio

4 specs
Video Compression
H.264 / H.265
Video Bitrate
11 Kbps – 13 Mbps
Video Output
Network (RJ45)
Microphone
Yes

Night Vision & Active Deterrence

3 specs
Infrared (IR) Night Vision Range
Up to 98 ft (30 m) in total darkness
Color Night Vision & Smart Illumination
Yes
Active Deterrence Light
Red and Blue Lights

AI Smart Features

1 spec
AI Motion Detection
  • Smart Motion Detection
  • Line Crossing
  • Area intrusion
  • Region Entrance
  • Region Exiting
  • Face Detection

Storage & Power

3 specs
Local Storage
MicroSD Card Slot (up to 512 GB)*
Power Supply
PoE (Power over Ethernet, IEEE 802.3af) / 12 V DC
Maximum Power Consumption
6.5 W

Network & Integration

3 specs
Ethernet Interface
RJ45 (10/100 BASE-T)
ONVIF
Supported
Network Protocols
  • TCP/IP
  • ICMP
  • HTTP
  • HTTPS
  • FTP
  • DHCP
  • DNS
  • DDNS
  • RTP
  • RTSP
  • RTCP
  • NTP
  • IGMP
  • UPnP
  • SMTP
  • UPnP-TM

Physical & Environmental

7 specs
Housing Material
Metal
Color
White
Operating Temperature
-40°F to 140°F (-40°C to 60°C)
Operating Humidity
≤ 95 % RH
Environmental Rating
IP67 (Indoor / Outdoor Use)
Camera Dimensions (W × D × H)
4.07 × 4.07 × 3.24 in (103.38 × 103.38 × 82.30 mm)
Camera Weight
0.837 lb (0.38 kg)

Packaging Information

6 specs
CN251A-1TW-AB1
  • SKU: CN251A-1TW-AB1
  • UPC: 6-95529-06674-5
Package Type
Brown Box
Package Dimensions (W × D × H)
4.33 × 4.33 × 4.13 in (109.98 × 109.98 × 104.902 mm)
Package Weight
1.05 lb (0.48 kg)
Package Cube
0.04 ft³ (0.00113 m³)
Package Contents
  • Lorex Connect U3 4K POE Turret Camera
  • Mounting Hardware (Template, 3 × Anchors and Screws, 1 Allen Key)
  • Weather-Resistant RJ45 Cable Cap (Gland)

Model Information

3 specs
Series Family
U
Series Line
U3
SKU
CN251A-1TW-AB1
Notes & disclaimers
  • * A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to a compatible NVR or to the cloud for mobile app viewing.
  • Compatible with select Lorex Network Video Recorders. For a full list of compatible recorders, visit: www.lorex.com/compatibility.
  • Color nighttime video may switch to black & white infrared (IR) night vision when there is insufficient ambient light to ensure optimal low-light image quality.
  • Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98 ft (30 m) in total darkness). Actual range and image clarity depend on installation location, viewing area, and light reflection or absorption.
  • Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its products that fails to comply with local laws.
  • Not intended for submersion in water. Installation in a sheltered location recommended.
  • Cable length is dependent on product configuration. See product packaging for details.
