PARTNER-EXCLUSIVE PRODUCT

Only Available at pro.lorex.com

Nocturnal Series

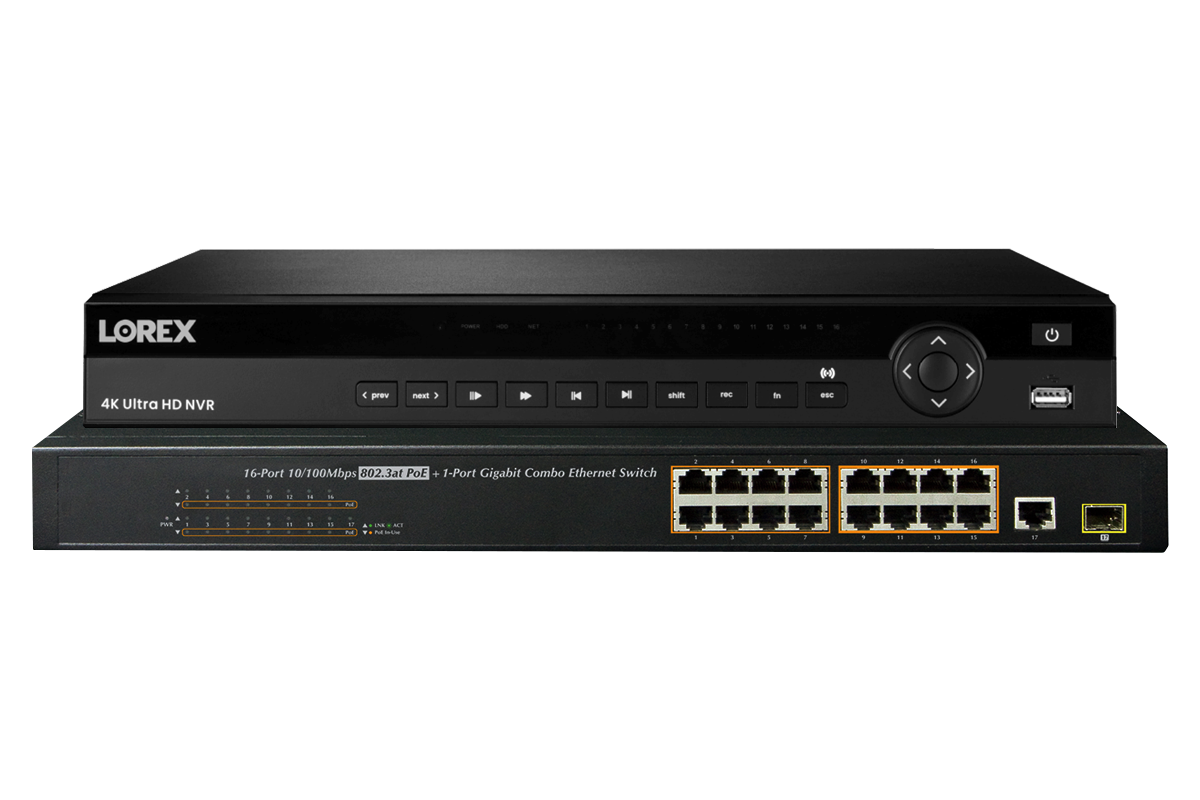

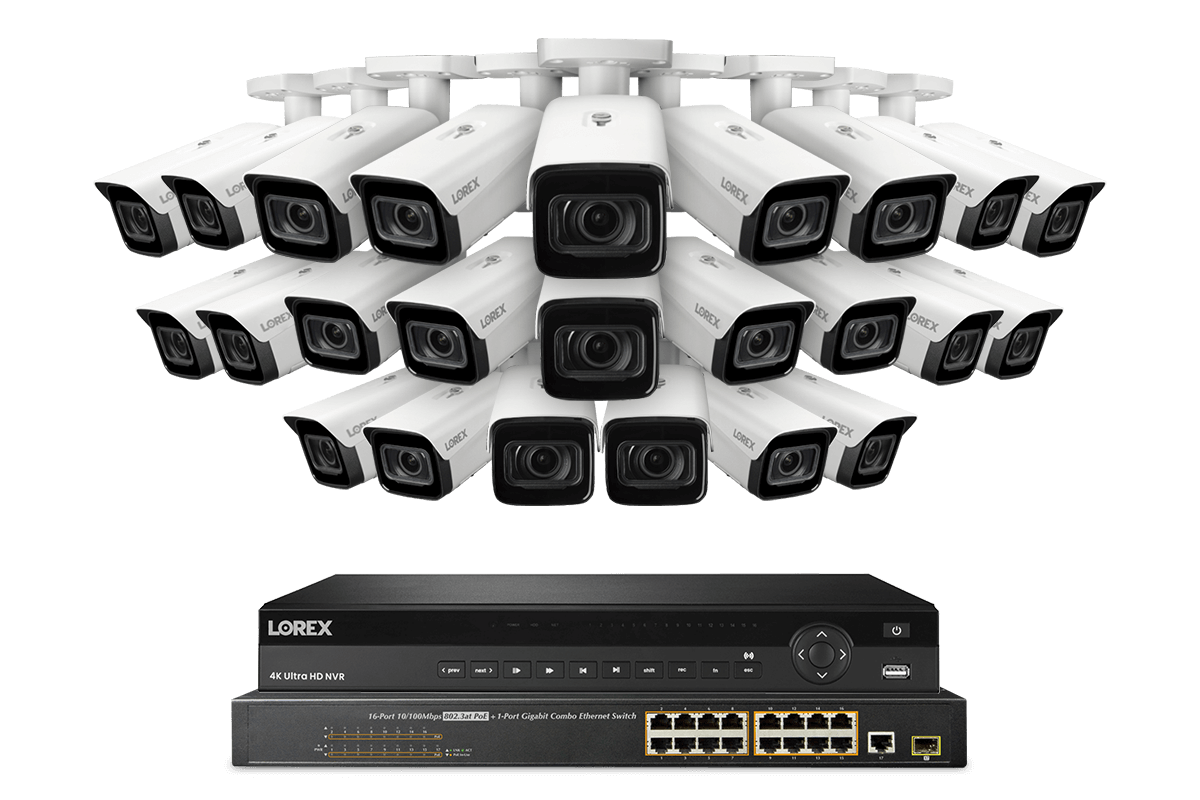

Lorex Elite Series NVR with N4 (Nocturnal Series) IP Bullet Cameras - 4K 32-Channel 8TB Wired System

SKU: NP4K8MV-3216BB-N4

Become a Partner and Log in to see pricing and to place orders

Product Features

  • Ultra HD Resolution
  • Real-Time 4K (30FPS)  Recording
  • Vandal-Resistant (IK10)
  • Motorized Varifocal
  • Smart Motion Detection
  • Color Night Vision
  • IP67 Weatherproof Rating
  • Built-in 8TB Storage
  • Connect up to 32 cameras
  • Works with the Lorex Pro mobile app

In-Camera Video Analytics

  • Heatmap Heatmap
  • People Counting People Counting
  • Person Detection Person Detection
  • Vehicle Detection Vehicle Detection
  • Package Detection Package Detection

What's Included

ACC front

Package Contents:

1 × PoE Switch

1 × Power Cord

2 × Rack Mount Bracket

8 × Mounting Screws

1 × SFP Dust Cap

4 × Rubber Feet

Quick Start Guide


  • Centralized power distribution - Easy all-in-one PoE switch
  • 1 Gigabit rated RJ45/SFP port for fast device/network connection
  • High speed transmission of IP surveillance data
  • 220W total PoE power budget (up to 30.8W per port)
  • Convenient Real-time PoE usage LED indicators

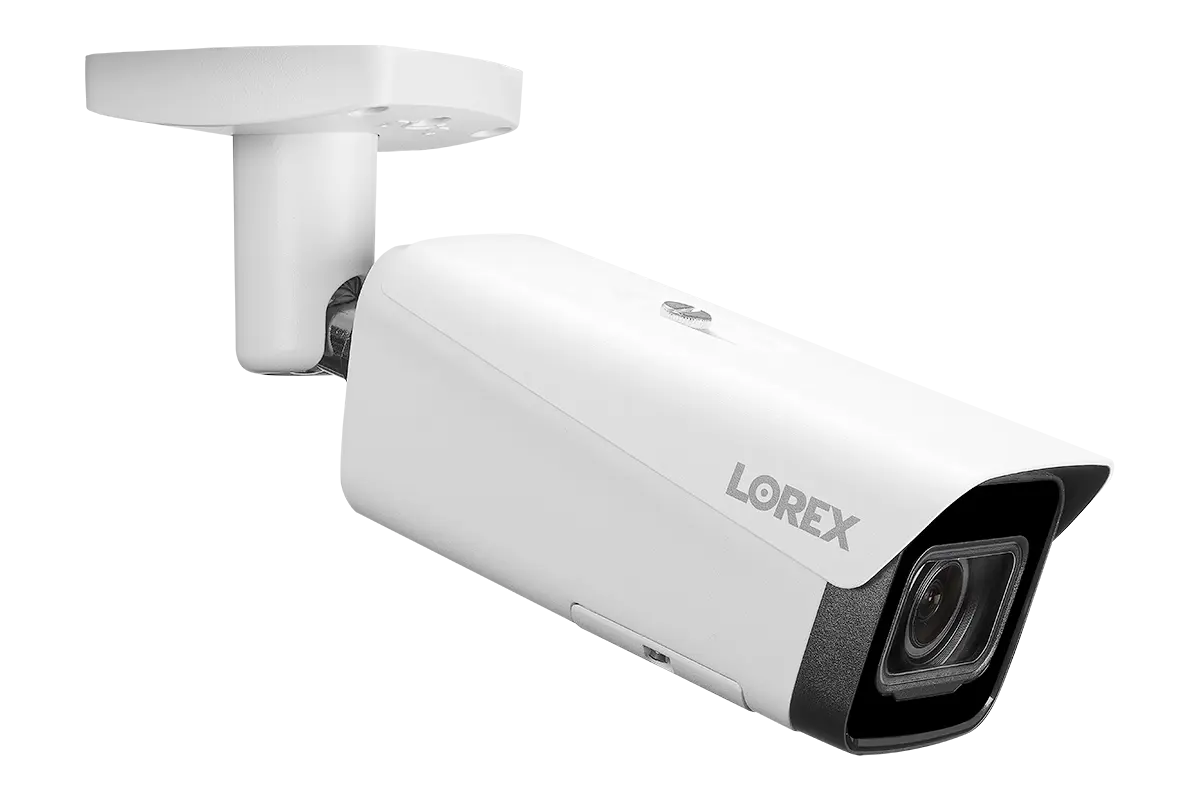

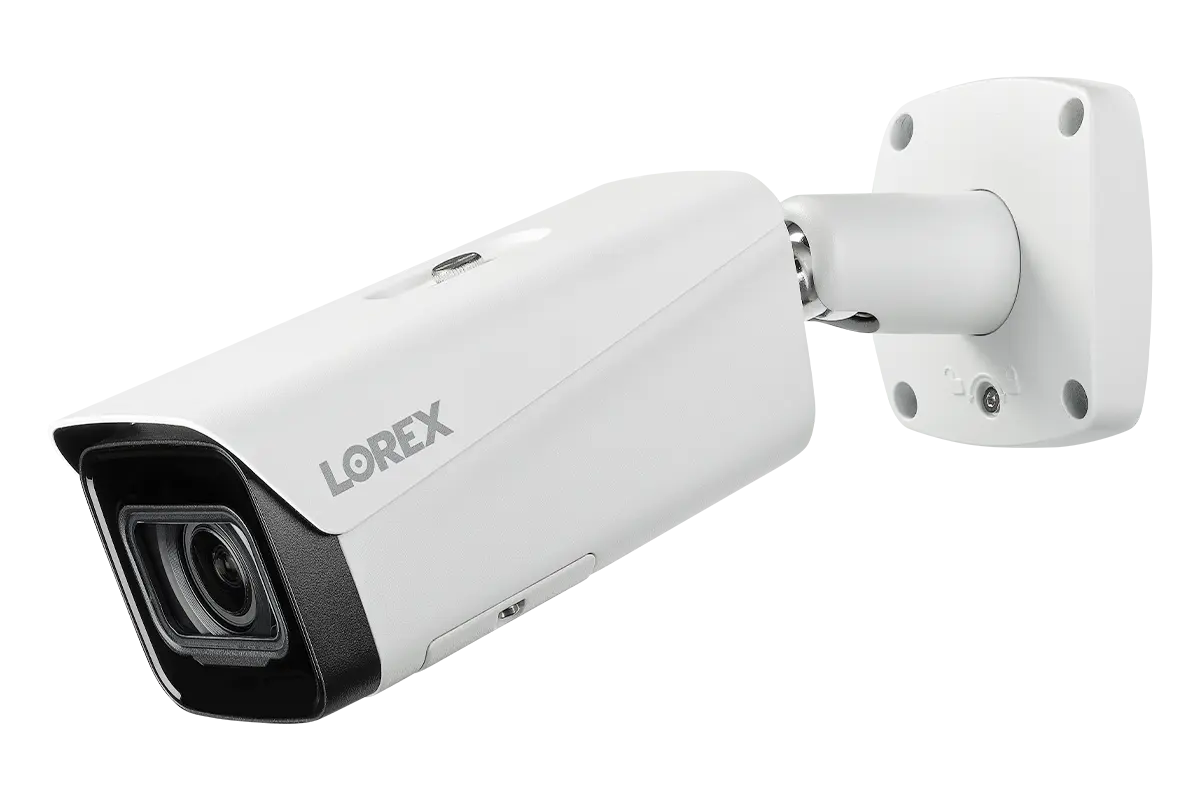

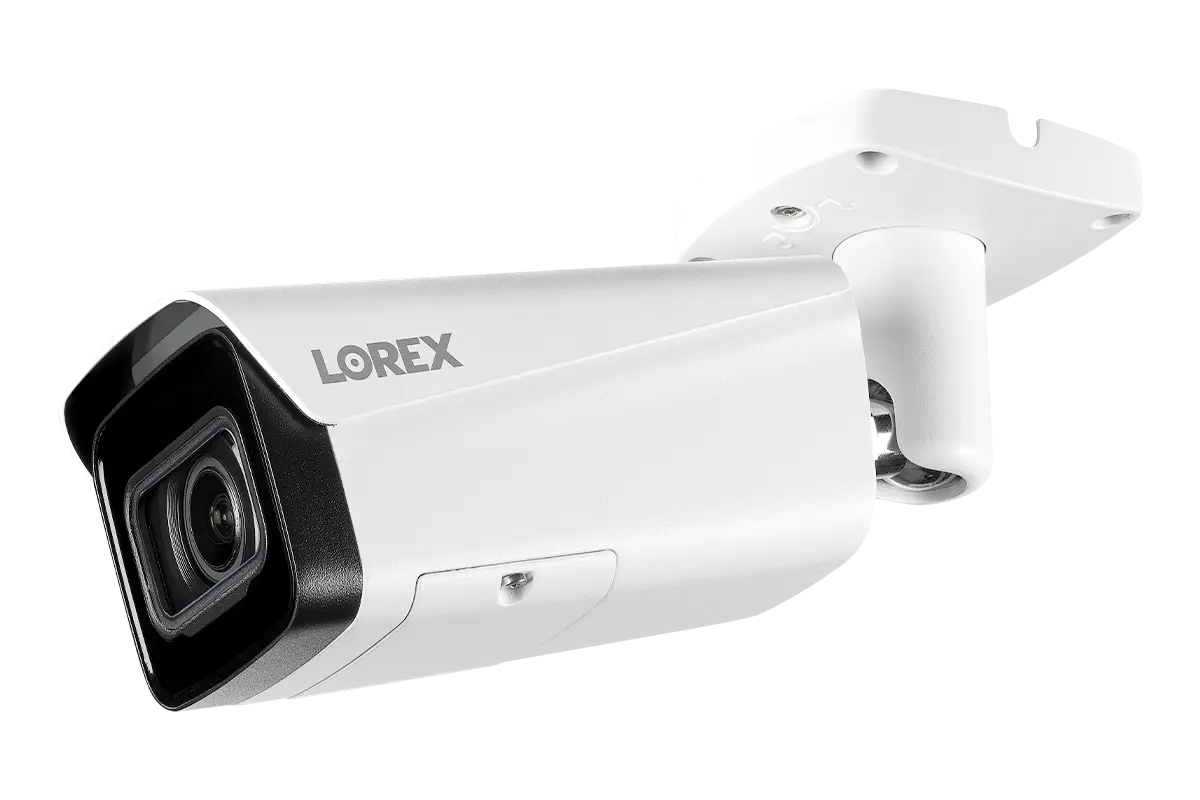

LNB9383 / LNB9393 Overview

Dimensions (LxWxH): 273.2mm × 95.0mm × 95.0mm (10.76" × 3.74" × 3.74")
Weight: 1.11lbs / 2.44kg

  1. Cable Notch
  2. Adjustment Screw
  3. Adjustment Knob
  4. Zoom (T) Wide Angle (W) Buttons
  5. MicroSD Card Slot
  6. Reset Button
  7. Camera Lens
  8. Infrared Lights


Package Contents:

4K Motorized Varifocal IP Camera

Mounting Kit*

Allen Key*

*Per camera in multi-camera packs.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.

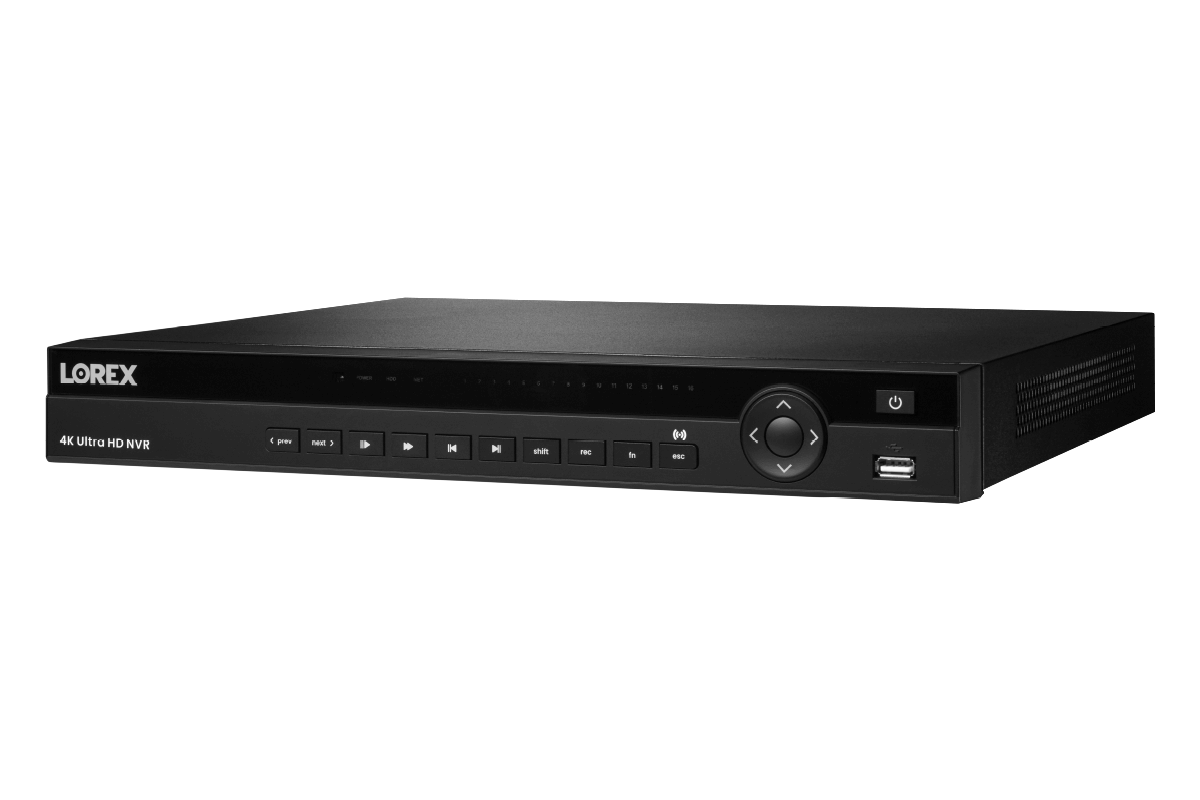

N884 Front Overview
  1. Power, Hard Drive & Network Statuses
  2. Channel Statuses
  3. Navigation Controls
  4. Power Button
  5. Playback Controls
  6. Switch Keyboards (shift)
  7. Start/Stop Recording (rec)
  8. Special Functions (fn)
  9. Back/Cancel (esc)
  10. Info Button
  11. USB Port

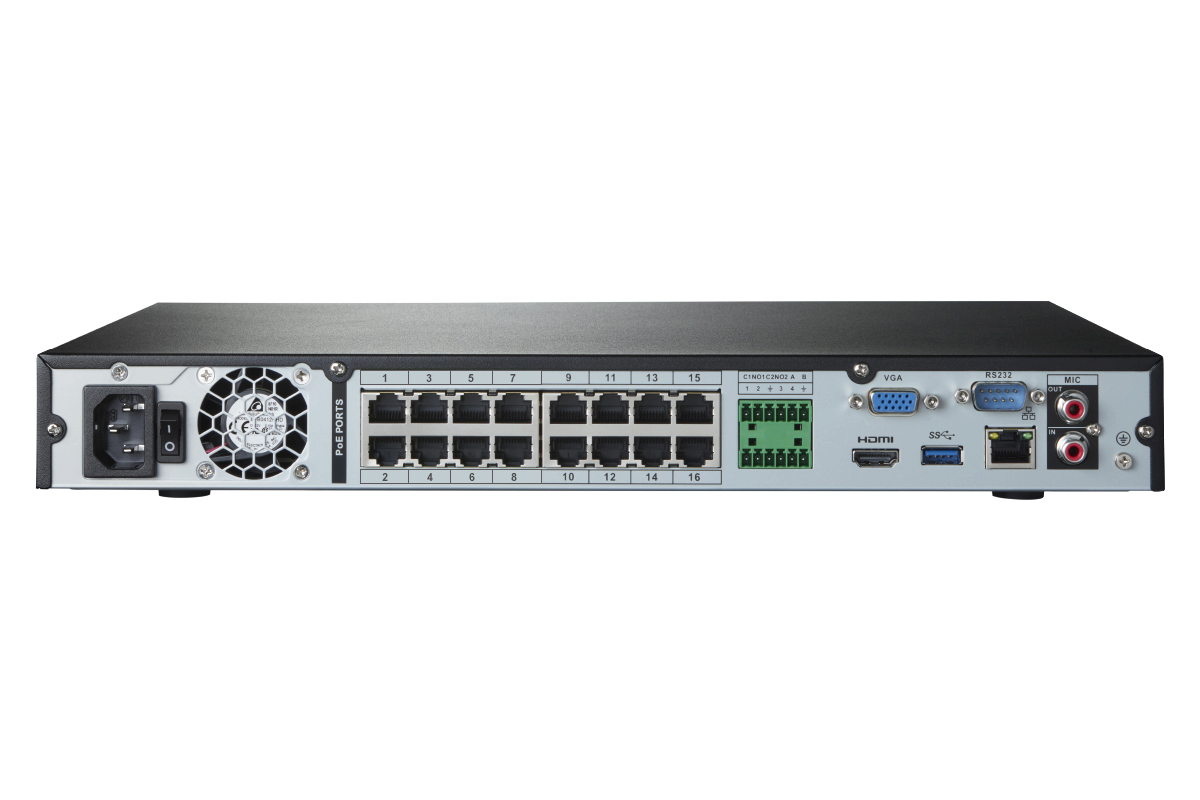

N884 Back Overview
  1. Power Connection
  2. Power Switch
  3. Camera Connection (PoE)
  4. RS485 Alarm
  5. Monitor Connection (VGA)
  6. RS232
  7. Audio In/Out
  8. Monitor Connection (HDMI)
  9. USB Port
  10. Network Connection (LAN)


Package Contents:

This 32-channel NVR has 16 ports. The other 16 channels can be utilized by adding a PoE switch (sold separately).

4K NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Cord

2 × 6-Pin Cable Adapter

Product Support

ACCLPS263B - 16-Channel PoE+ Switch

LNB9383 & LNB9393 Series - Nocturnal 4 MVF IP Bullet Cameras

N884 Series - Lorex 4K Pro Series Network Video Recorder
