Lorex Fusion 4K+ Ultra HD 12MP 16 Camera Capable (8 Wired + 8 Fusion Wi-Fi ) 1TB Network Video Recorder
Lorex Fusion 4K+ Ultra HD 12MP 16 Camera Capable (8 Wired + 8 Fusion Wi-Fi ) 1TB Network Video Recorder
Lorex Fusion 4K+ Ultra HD 12MP 16 Camera Capable (8 Wired + 8 Fusion Wi-Fi ) 1TB Network Video Recorder
Lorex Fusion 4K+ Ultra HD 12MP 16 Camera Capable (8 Wired + 8 Fusion Wi-Fi ) 1TB Network Video Recorder
Roll over image to zoom in Click on image to zoom
Lorex Fusion 4K+ Ultra HD 12MP 16 Camera Capable (8 Wired + 8 Fusion Wi-Fi ) 1TB Network Video RecorderLorex Fusion 4K+ Ultra HD 12MP 16 Camera Capable (8 Wired + 8 Fusion Wi-Fi ) 1TB Network Video RecorderLorex Fusion 4K+ Ultra HD 12MP 16 Camera Capable (8 Wired + 8 Fusion Wi-Fi ) 1TB Network Video RecorderLorex Fusion 4K+ Ultra HD 12MP 16 Camera Capable (8 Wired + 8 Fusion Wi-Fi ) 1TB Network Video Recorder

Fusion Series

4K+ 12MP 16 Camera Capable (8 Wired + 8 Fusion Wi-Fi ) NVR

SKU: N910A61

Become a Partner and Log in to see pricing and to place orders

Product Features

  • Ultra HD 12MP Resolution
  • Built-in 1TB Storage. Expandable up to 1 × 16TB
  • Connect up to 16 cameras (8 Wired + 8 Fusion Wi-Fi)
  • Works with the Lorex mobile app

In-Camera Video Analytics

Product Specifications

View Catalog Download Full Specs
Recording Resolution 12MP (16:9) and 4K+ (11.3MP 16:9)
Recording Schedule Schedule recordings through Continuous, Motion, Smart Motion (Person, Vehicle and Face), Alarm, Day, Hour per channel
Video Compression H.265/H.264
Hard Drive Bays 1 Bay
Hard Drive Capacity Up to 16TB (SATA)
Wired/Wireless Fusion support Yes
Lorex Sensor (only) Compatible Yes
Detection Support Person, Vehicle, Face, Mask, Package (Missing and Left Behind), Animal
Active Deterrence Support Yes
Active View Support Yes
Selectable Siren Support Yes
Panic Button Yes
Smart Search Yes
Attribution Search (Person Clothes Color, Vehicle Color and Number) Yes
Voice Control Amazon Alexa™, Google Assistant™
Streaming Options Chromecast™, Amazon Echo Show™, Google Home Hub™
Matter Yes
Mobile Viewing Android, iOS
Compatible APP Lorex Home™
PC/Mac Remote Viewing Yes/Lorex Cloud™ client
Email Notification Text and Snapshot
Power Consumption Approx. 8.3W (HDD excl.)
Supply Voltage 100VAC-240VAC, 50/60hz, DC 53V/1.8A
Total PoE Power Output PoE: Max 25.5W for single port, 72W total
Unit Dimensions
(W × D × H)		 12.9 x 9.6 x 2.1” / 328 x 245 x 53 mm
Unit Weight 2.75 lbs. / 1.26 kg (excl. HDD)
Operating Temperature 14° ~ 131°F / -10° ~ 50°C
Humidity 10 ~ 90% RH

What's Included

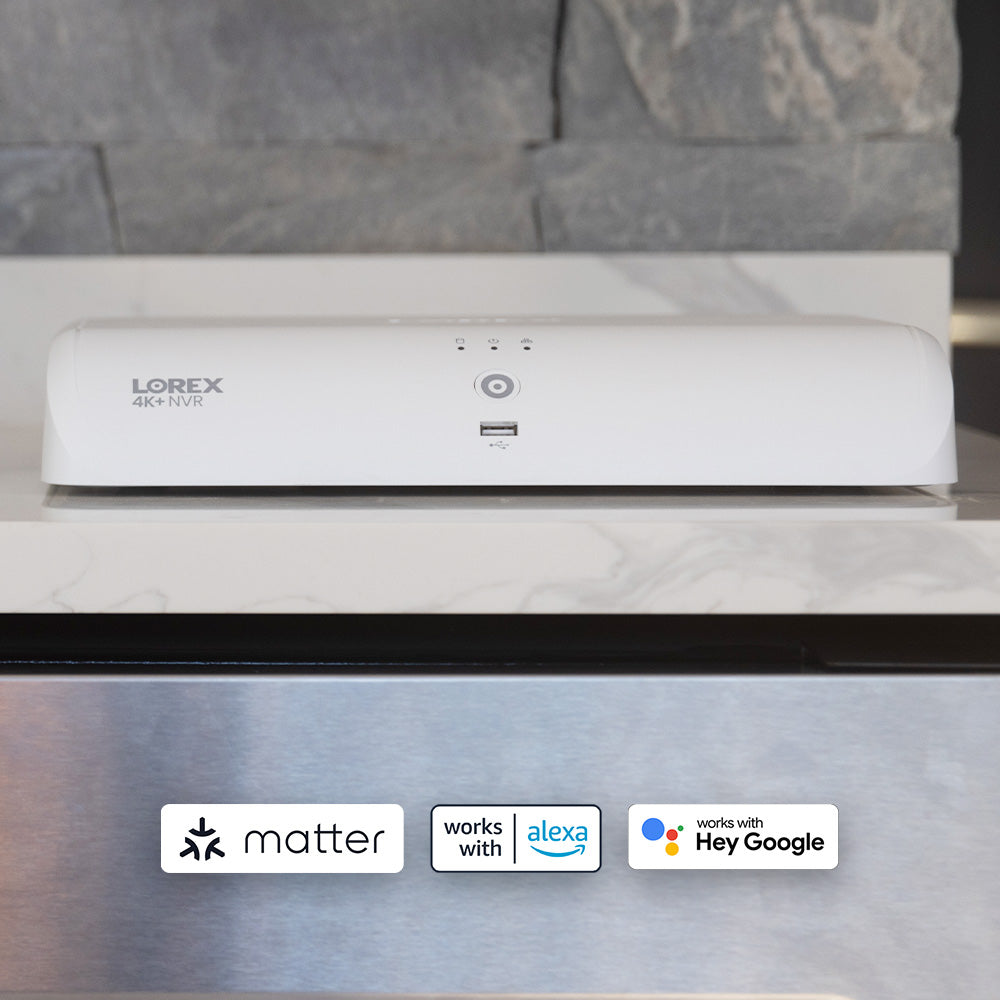

N910 Front Overview

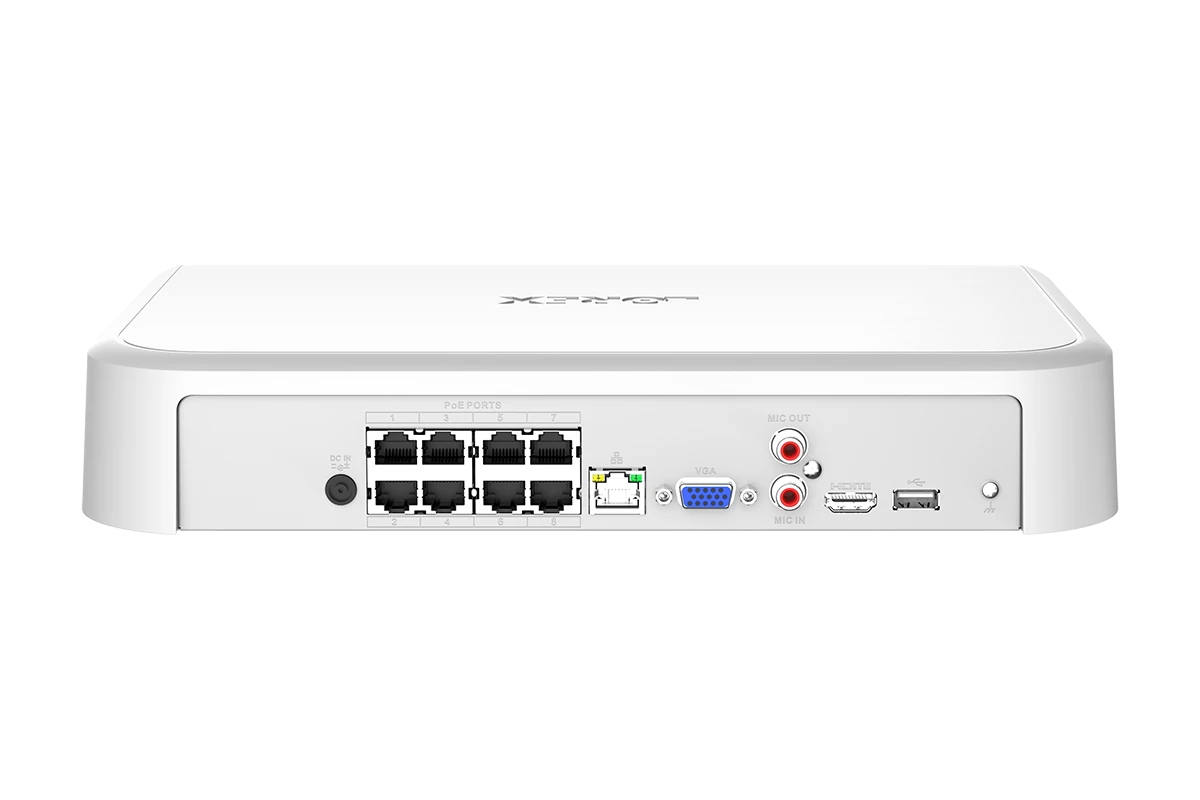

N910 Back Overview
  1. Hard Drive, Power & Network Statuses
  2. USB Port
  3. Info / Panic Button
  4. Power Connection
  5. Camera Connection (PoE)
  6. Network Connection (LAN)
  7. Monitor Connection (VGA)
  8. Audio Out / In
  9. Monitor Connection (HDMI)

Package Contents:

4K+ Fusion NVR

Ethernet Cable

USB Mouse

HDMI Cable

Power Adapter

  1. 4K (8MP) IP cameras are required to take advantage of 4K recording.
  2. Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
  3. Lorex Fusion supports compatible Lorex wired cameras and Wi-Fi devices with sufficiente signal strengh between the Wi-Fi devices and your Wi-Fi router. All cameras must be connected to the same network. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
  4. Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com
  5. Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
  6. Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 6Mbps is recommended for reasonable video performance.
  7. HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
  8. Detection types need to be supported by the camera.

Lorex products are designed for consumer and business use only and not for US federal governments, federally-funded projects or contractors subject to NDAA.

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.

Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.
