Person Detection
Vehicle Detection
You are now leaving the Lorex for Business website. Would you like to continue to Lorex’s consumer site?
Product Features
- Ultra HD Resolution
- Vandal-Resistant (IK10)
- Color Night Vision
- Listen-In Audio
- IP67 Weatherproof Rating
- Built-in 4TB Storage
- Connect up to 16 cameras
- Works with the Lorex Pro mobile app
In-Camera Video Analytics
What's Included
Package Contents:
1 × PoE Switch
1 × Power Cord
2 × Rack Mount Bracket
8 × Mounting Screws
1 × SFP Dust Cap
4 × Rubber Feet
Quick Start Guide
- Centralized power distribution - Easy all-in-one PoE switch
- 1 Gigabit rated RJ45/SFP port for fast device/network connection
- High speed transmission of IP surveillance data
- 220W total PoE power budget (up to 30.8W per port)
- Convenient Real-time PoE usage LED indicators
- Power, Hard Drive & Network Statuses
- Channel Statuses
- Navigation Controls
- Power Button
- Playback Controls
- Switch Keyboards (shift)
- Start/Stop Recording (rec)
- Special Functions (fn)
- Back/Cancel (esc)
- Info Button
- USB Port

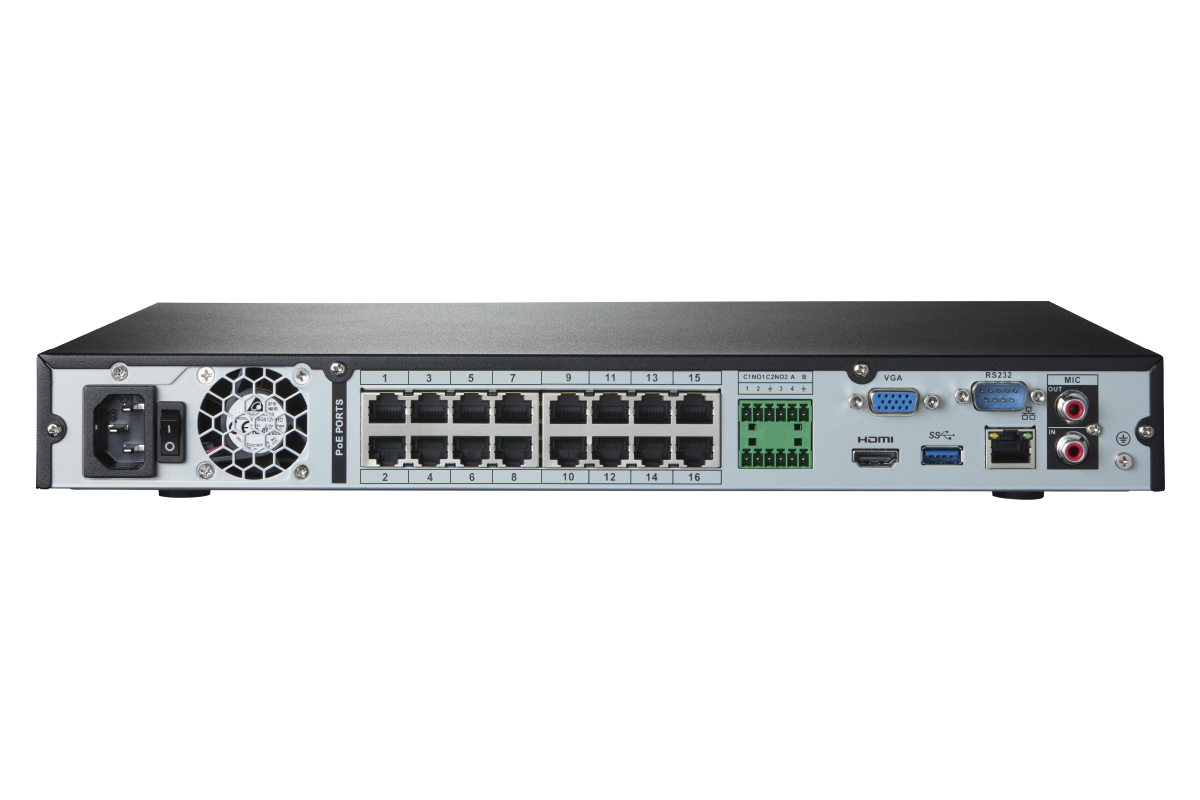

- Power Connection
- Power Switch
- Camera Connection (PoE)
- RS485 Alarm
- Monitor Connection (VGA)
- RS232
- Audio In/Out
- Monitor Connection (HDMI)
- USB Port
- Network Connection (LAN)
Package Contents:
This 32-channel NVR has 16 ports. The other 16 channels can be utilized by adding a PoE switch (sold separately).

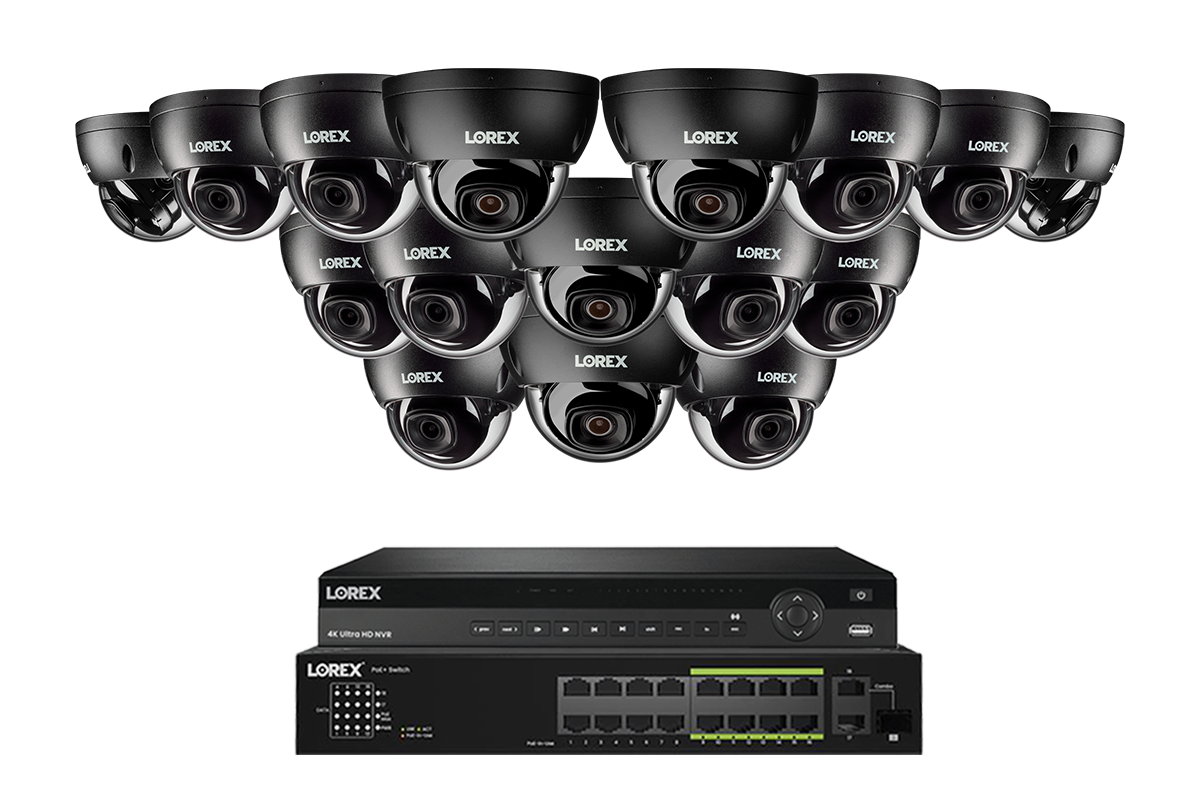

4K NVR
Ethernet Cable
USB Mouse
HDMI Cable
Power Cord
2 × 6-Pin Cable Adapter
- Dome Cover
- Dome Cover Screw (x3)
- Lens
- IR (Infrared) Light (x3)
- Cable Notch
- Camera Base
- Microphone*
- Reset Button
- MicroSD Card Slot**
Package Contents:
4K Vandal Proof Dome Camera
Allen Key
Mounting Kit
Ethernet Extension Cable
*Audio recording and listen-in audio are disabled by default. Audio recording and/or use of listen-in audio without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.
**A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to
the cloud for mobile app viewing
Product Support
ACCLPS263B - 16-Channel PoE+ Switch
N884 Series - Lorex 4K Pro Series Network Video Recorder
E851AD Series - 4K IP Wired Dome Security Camera
