Product Features
- Two-layer encryption
- 4-in-1 entry
- Multifunctional codes
- Manage user access
- ANSI Grade 2 Certified
- Auto unlock and access history

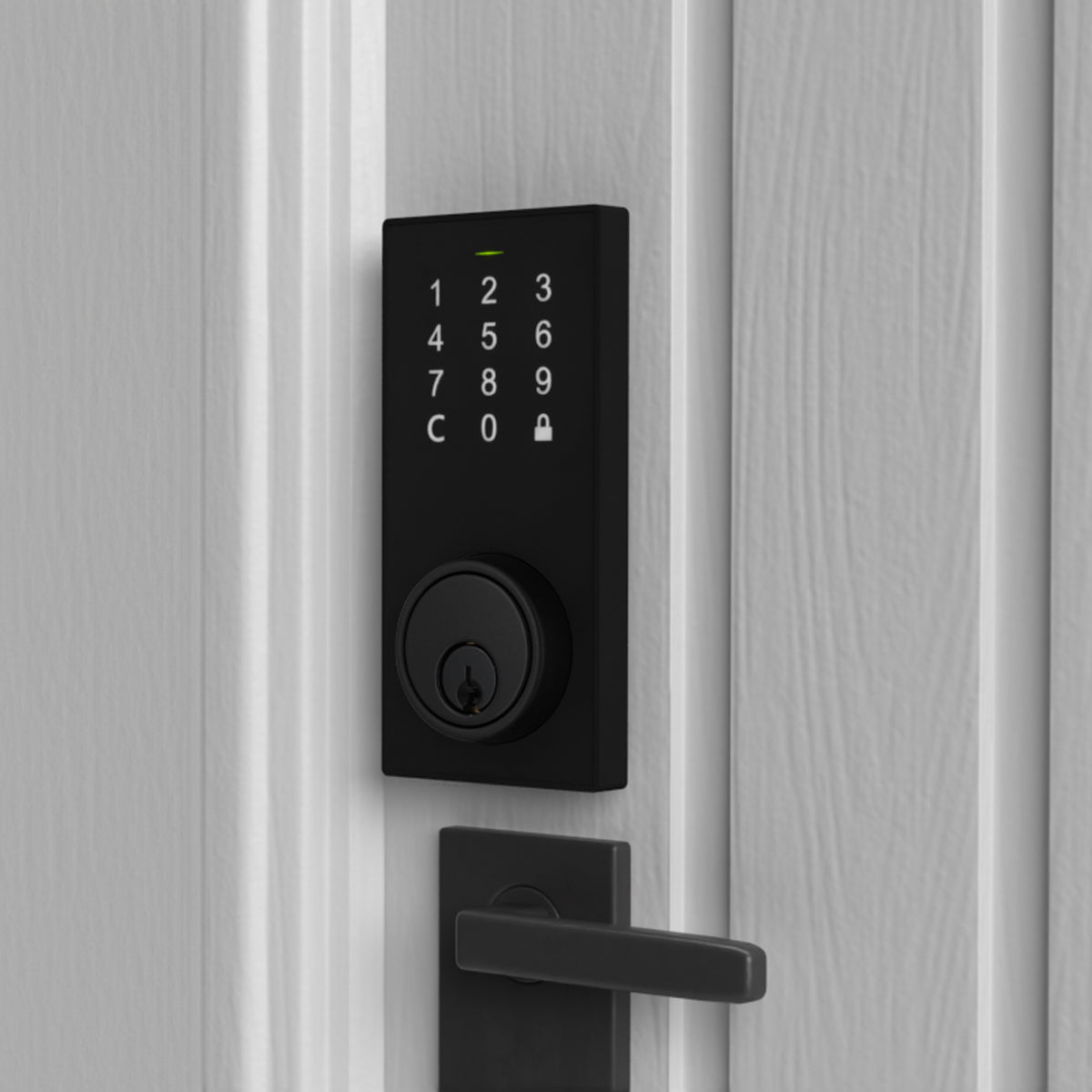

The Smart Lock is a secure and convenient way to keep your home safe. Unlock your door with access codes, your mobile device or using a key. Installation is easy, and you can be sure that your access will be monitored through the mobile app. Enjoy a secure home with the Smart Lock.
Product Specifications
| Model | LK100 |
|---|---|
| Lock Type | Bluetooth deadbolt |
| Door Bore Hole | 2-1/8" (54 mm) or 1-1/2" (38 mm) |
| Door Thickness | 1-3/8" (35 mm) to 2" (51 mm) |
| Adjustable Backset | 2-3/8" (60 mm) and 2-3/4" (70 mm) |
| Unlock Method | Mechanical key, Entry code, Mobile App |
| User Entry Code | Program up to 200 sets |

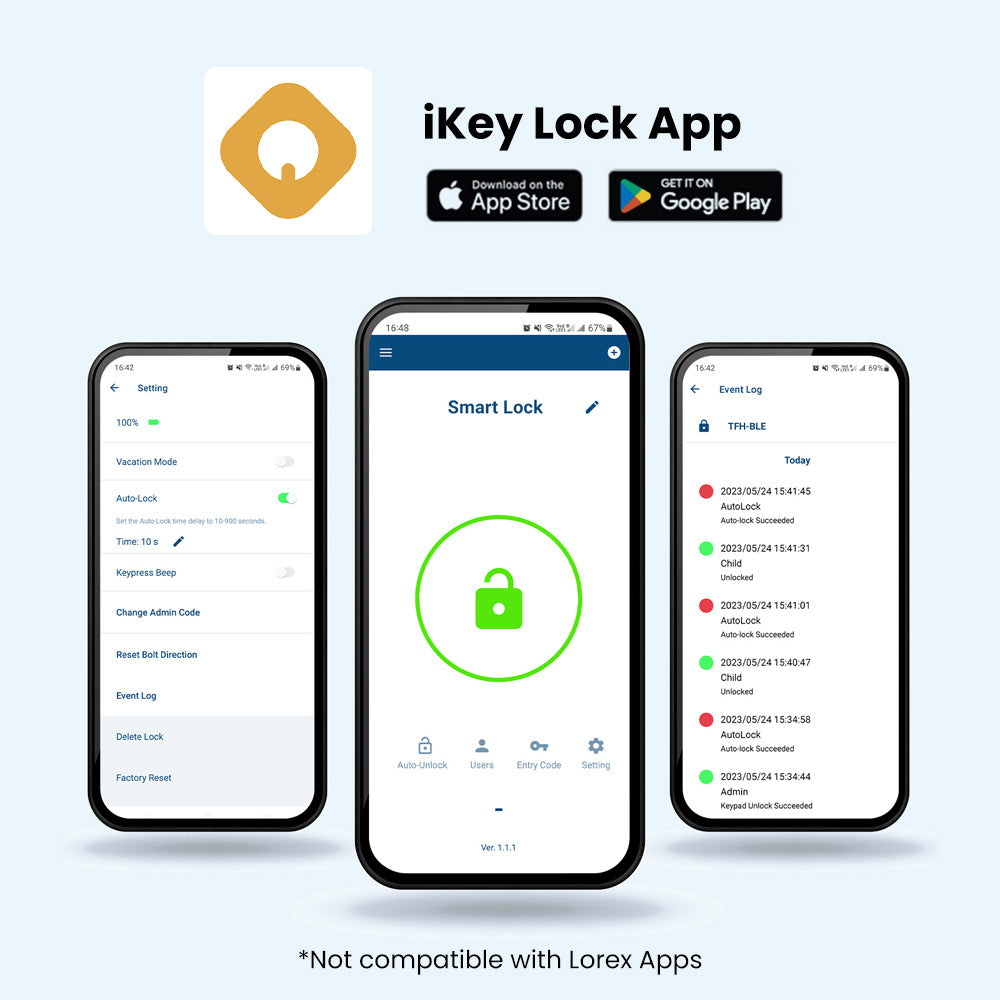

| Mobile App | iKey Lock App: iOS and Android compatible |
| Mobile App Control | Monitor, grant, and revoke access |
| Touch Screen Back-light Color | White |
|---|---|
| Fire rated | UL 20 minute compliant |
| ANSI/BHMA | ANSI Grade 2 Compliant |
| Connectivity | Bluetooth |
| Power | Four AA 1.5V alkaline batteries |
| Operation Temperature | -35°C to 66°C |
| Dimension |
Exterior lock body : 66 mm x 136 mm x 25 mm Interior lock body : 68 mm x 159 mm x 44 mm |
| Weight | 1.29kg |
What's Included
| Part | Description | Quantity |
|---|---|---|
| A | Key | 2 |
| B | Exterior Assembly | 1 |
| C | Cylinder | 1 |
| D | Torque Blade | 1 |
| E | Power Cable | 1 |
| F | Mounting Plate | 1 |
| G | Interior Assembly | 1 |
| H | Battery Cover | 1 |
| I | Latch | 1 |
| J | Bottom Plate (Optional) | 1 |
| K | Square or Radius Faceplate (Optional) | 1 |
| L | Drive-in Collar (Optional) | 1 |
| M | Drive-in Collar (Optional) | 1 |
| N | Strike Plate | 1 |
| Part | Description | Quantity |
|---|---|---|
| AA | 2-1/16" (52 mm) Mounting Bolt | 2 |
| BB | 1-1/4" (31.7 mm) Screw ［The correct hole sizes. Ø 2-1/8" (54 mm)] | 1 |
| CC | 3/4" (19 mm) Screw | 4 |
| DD | 3/4" (19 mm) Wood Screw | 1 |
| DD-1 | 1-1/4" (31.7 mm) Wood Screw | 2 |
| EE | 3" (76 mm) Wood Screw | 2 |
