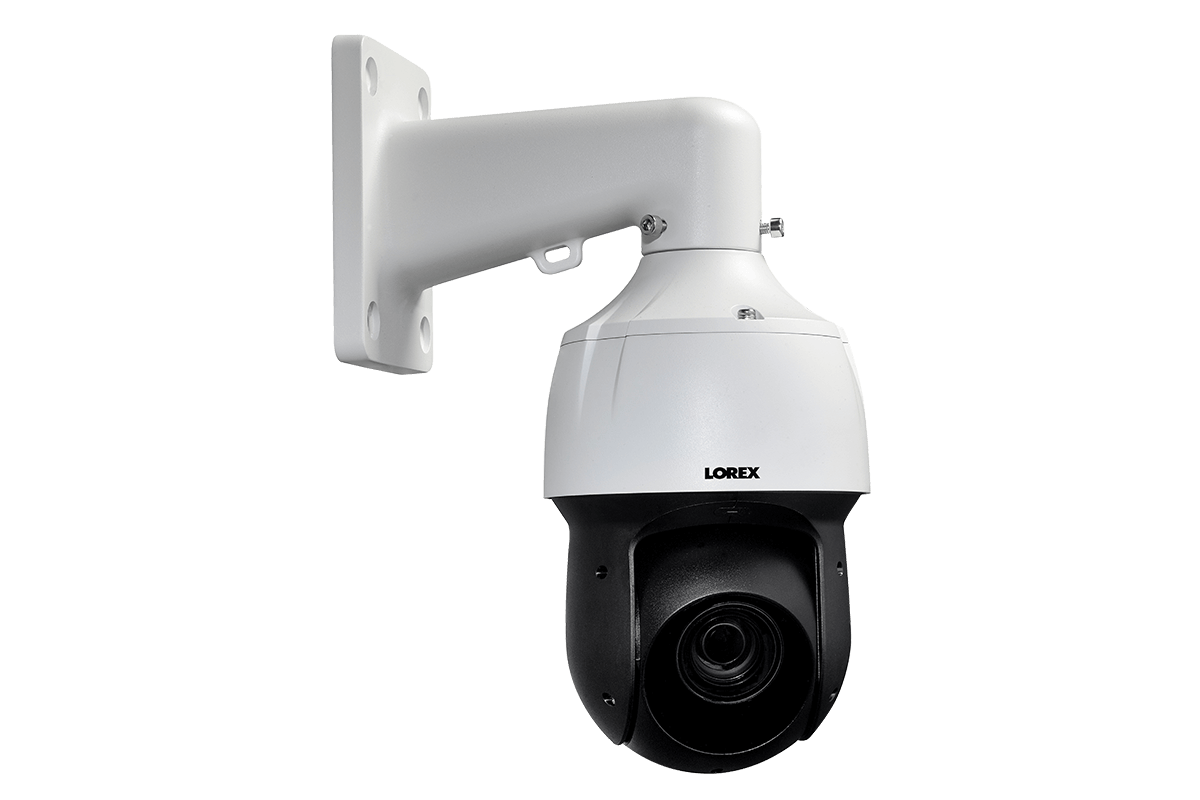

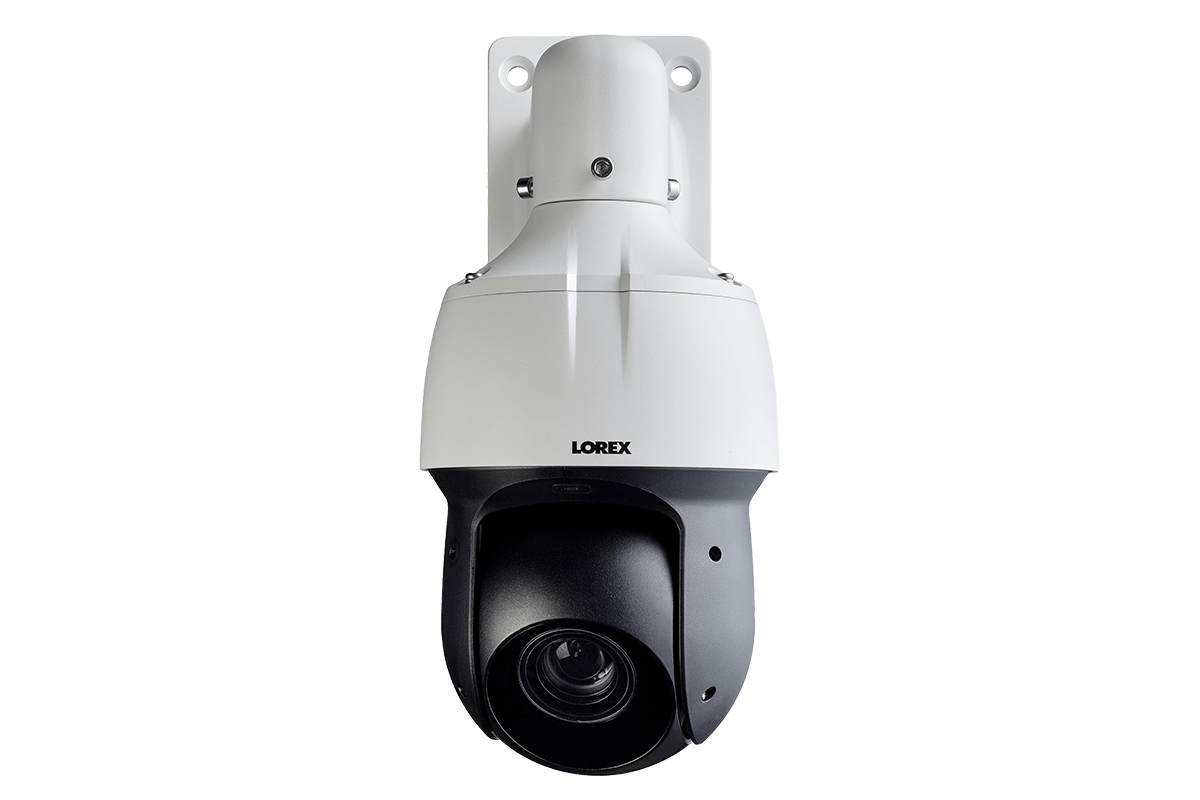

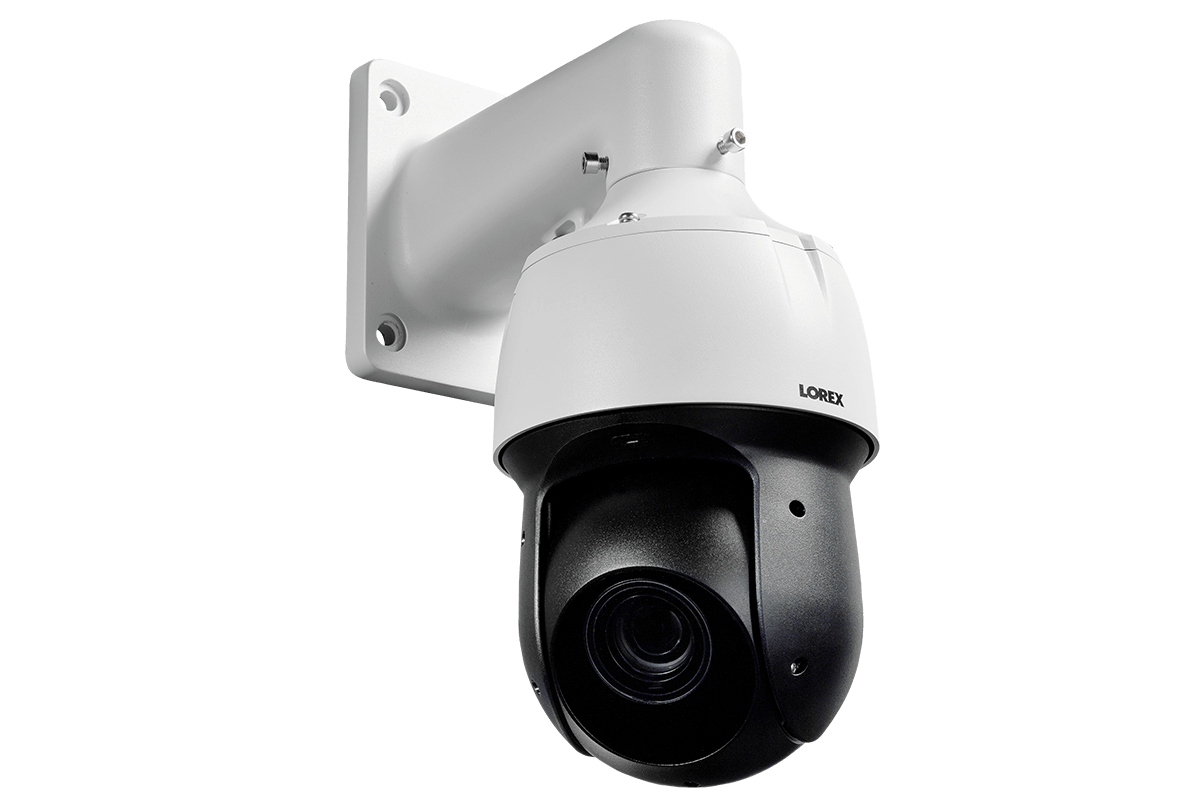

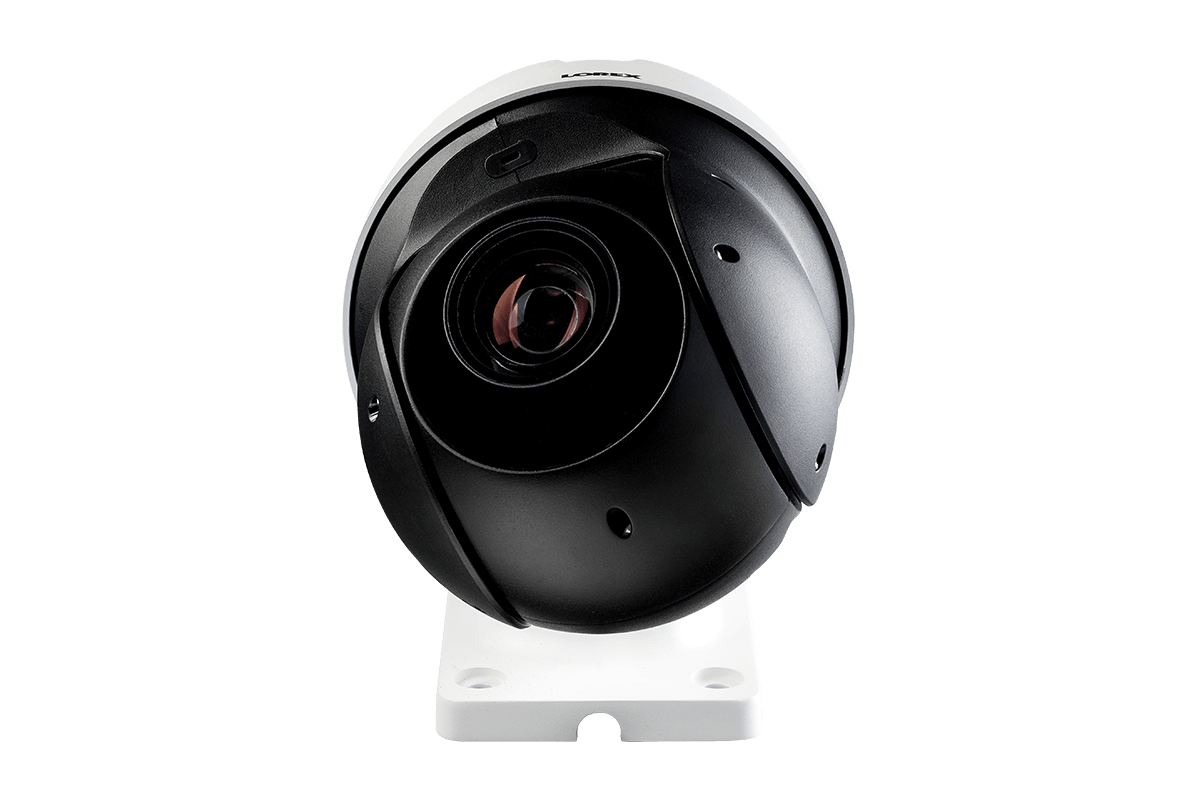

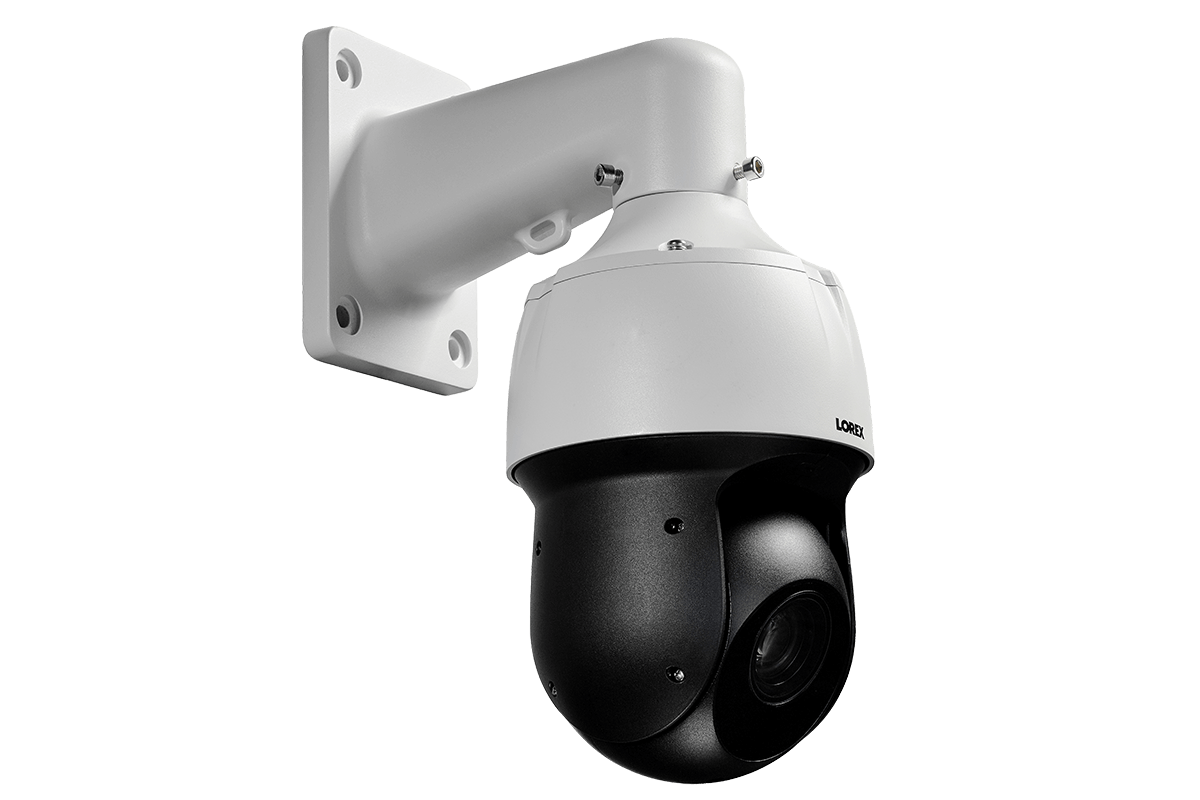

Name: PTZ Series - 2K Outdoor IP Camera with 12x Optical Zoom and IP66 Weatherproof Rating
Brand: Lorex Discontinued
SKU: LNZ44P12B
Rating: 4.8 (85 reviews)

PTZ Series - 2K Outdoor IP Camera with 12x Optical Zoom and IP67 Weatherproof Rating

Roll over image to zoom in Click on image to zoom

Recorder Required (Wired)
4MP Resolution
Pan-Tilt-Zoom (PTZ)
Color Night Vision
IP66 Weatherproof Rating
12x Optical Zoom

Monitoring a large area comes with its share of obstacles. Usually, they require several security cameras to ensure proper coverage. A PTZ security camera such as this, however, can overcome many of these issues. With its ability to pan left and right, tilt up and down, and zoom in incredibly close thanks to a 12× optical zoom lens, this PTZ camera can do it all. This camera also features vivid 2K resolution recording, along with a fully weatherproof exterior for year-round protection.

Product Specifications

Download Full Specs

Image Sensor	1/3", CMOS 4 MP
Video Format	NTSC / PAL
Effective Pixels	2592 (H) & 1520 (V)
Resolution	Up to 4MP
Range	0°~360° Pan (Endless); -15°~90° Tilt
Pan/Tilt Speed	Max 200°/Sec Pan; Max 120°/Sec Tilt
Zoom	12× Optical Zoom & 16× Digital Zoom
Scan System	Progressive
Synchronization	Internal
S / N Ratio	≥50dB
Iris	DC Auto Iris w/Hall-effect
Min. Illumination	0.1 Lux in Color; 0.01 Lux in Black and White

Lens / Lens Type	5.3mm ~ 64mm, F1.6 ~ F4.4 / Zoom Module
Field of View (Horizontal)	54.7°~4.54°
Day/Night	Auto (ICR) / Color / B/W
Termination	RJ45 (10Base-T/100Base-TX) / DC Jack
Video Output	IP
Power Requirement	PoE+ (802.3at); 12V DC (Optional)
Power Consumption	Max. 2.2A / 26W
Operating Temperature Range	-40°F ~ 158°F / -40°C ~ 70°C
Operating Humidity Range	<90%RH
Indoor/Outdoor	Both (IP66)
Weight (Camera Alone)	6.6lbs / 3kg
Weight (Camera & Wall Mount)	8.6lbs / 3.9kg

What's Included

Super High definition 4MP image sensor delivers double the detail of 1080p¹
Powerful 12× optical zoom and 16× digital zoom to focus in on even the finest details
4MP Super HD video recording provides superior quality for reviewing fine details in heightened resolution
Color Night Vision™ delivers color nighttime video for improved recognition of objects in low light conditions²
IR night vision range up to 330ft (100m) in total darkness³
ClearNight imaging for improved low light performance and improved recording efficiency³
360° continuous panning rotation for complete area coverage. Up to 200° per second panning speed
Control PTZ camera movement and transmit video and power (PoE+ / 802.3at) over a single network cable
Program preset viewing points and tours when connected to a NVR
Remote control of the PTZ camera using a smartphone or tablet when connected to a NVR
Day/Night mode: picture automatically switches to B&W delivering better clarity in low light conditions
Weatherproof (IP66-rated) camera with extreme temperature performance (-40° ~ 158°F / -40° ~ 60°C)⁴
Wall mount bracket & 100ft (31m) extension cable included for installation flexibility

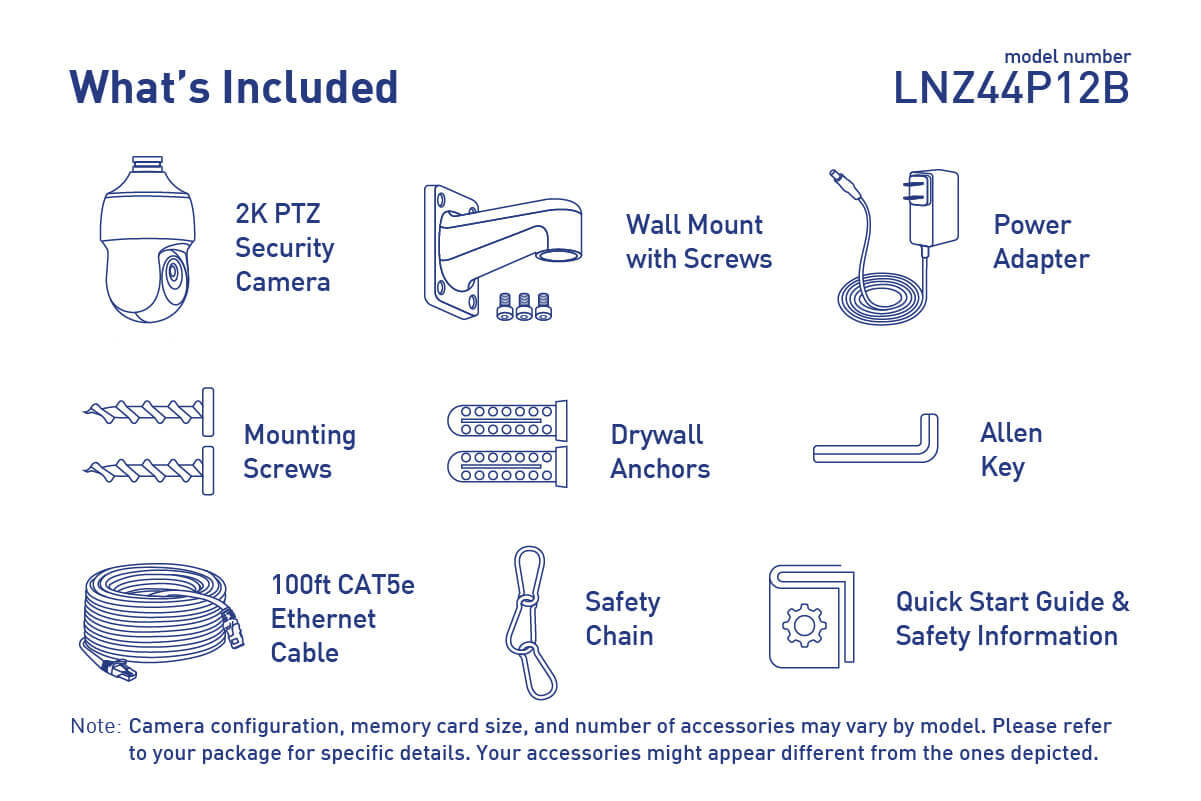

Each LNZ44P12B Includes:

1 × PTZ Camera and Wall Mount

1 × 100ft Ethernet Cable

1 × Power Adapter

4 × Screws & Anchors

3 × Allen Bolts

4 × Flat Washers

4 × Allen Key

Instruction Manual

1. Compatible with select Lorex NVRs. For the most up-to-date list of compatible recorders, visit www.lorex.com/compatibility
2. Full color nighttime video typically switches to black & white IR night vision below 1 lux to ensure optimal low-light image quality.
3. Stated IR illumination range is based on ideal conditions in typical outdoor night time ambient lighting and in total darkness. Actual range and image clarity depends on installation location, viewing area, and light reflection / absorption level of object. In low light, the camera will switch to black and white.
4. Not intended for submersion in water. Installation in a sheltered location recommended.
