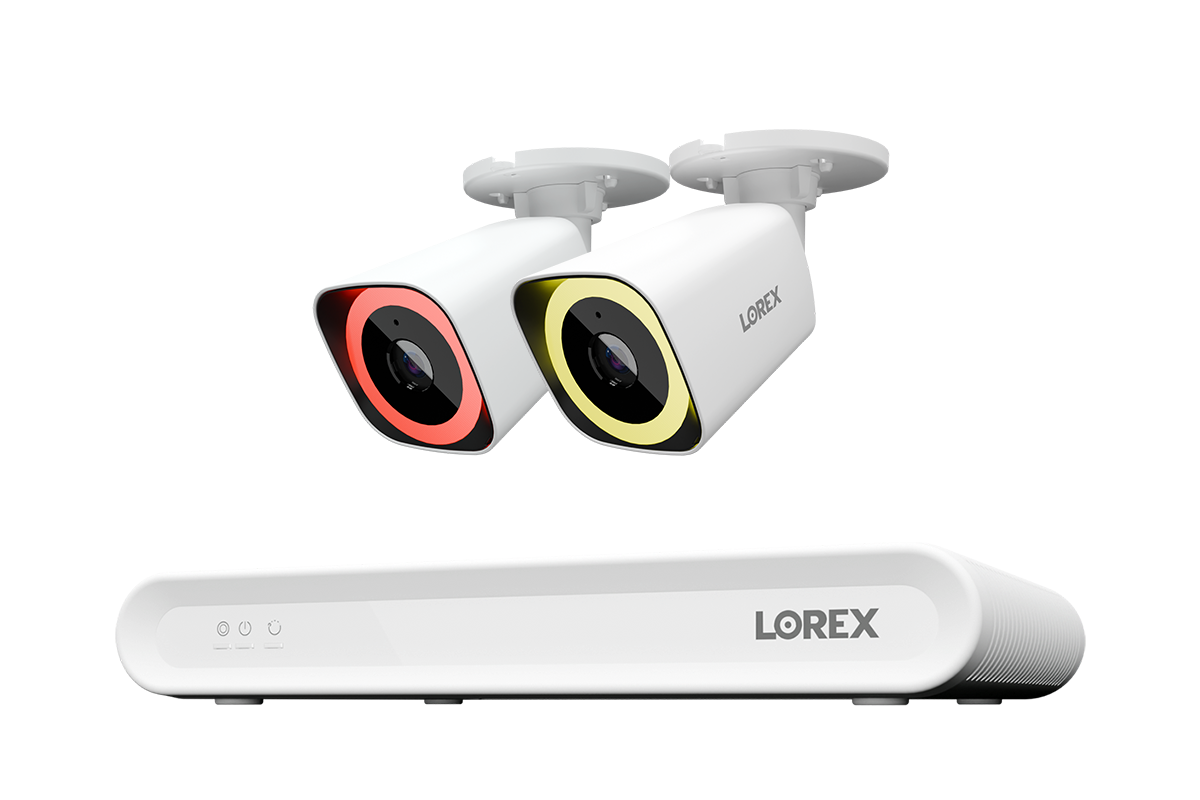

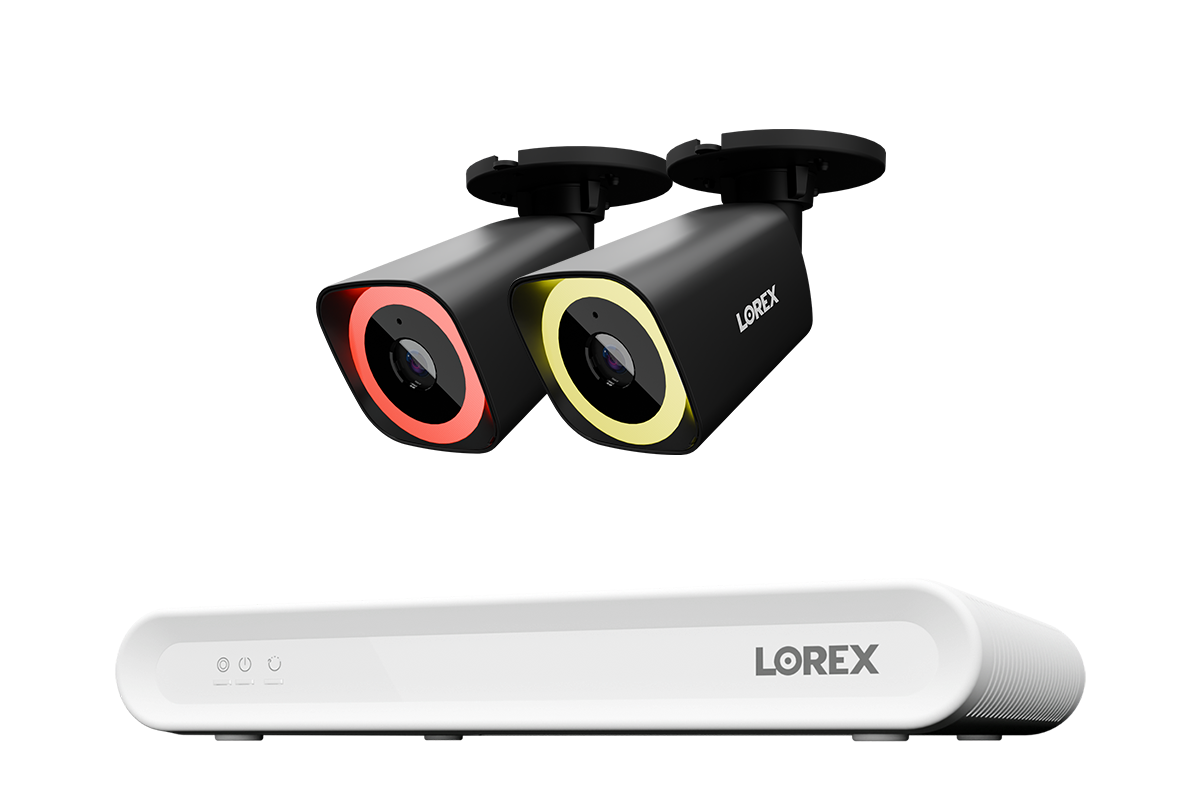

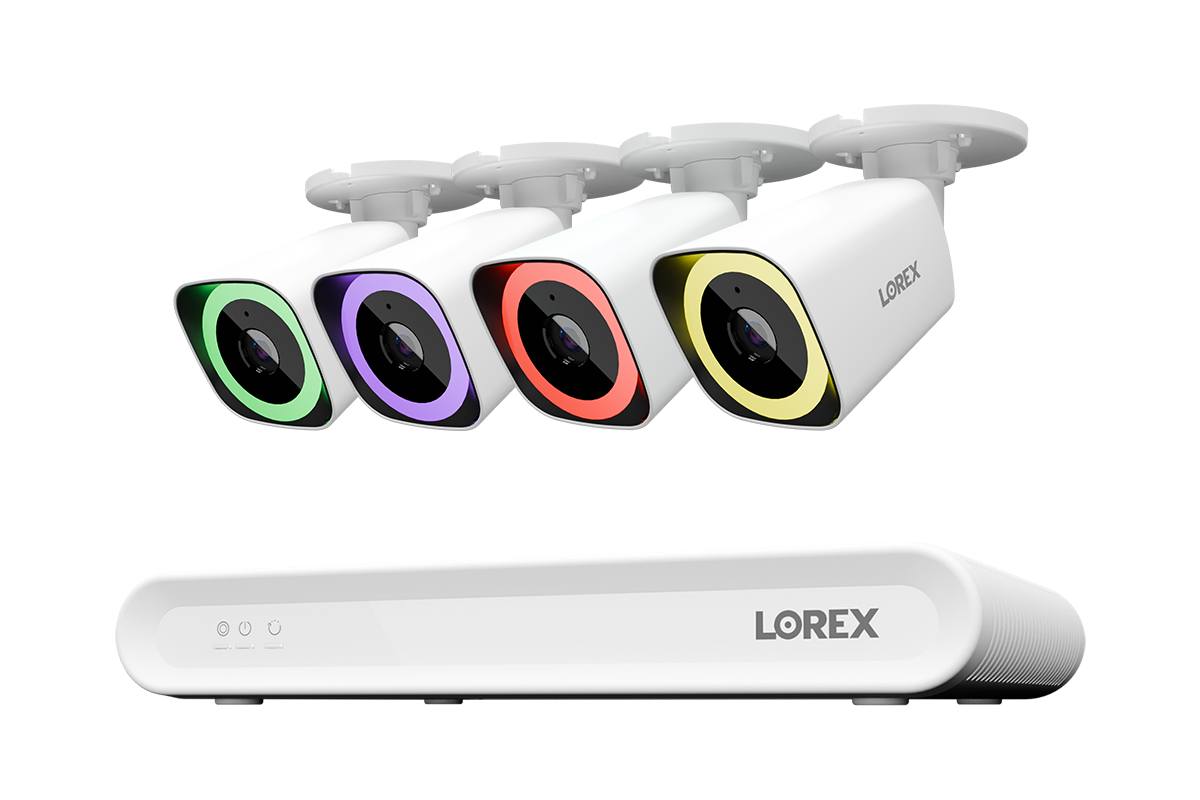

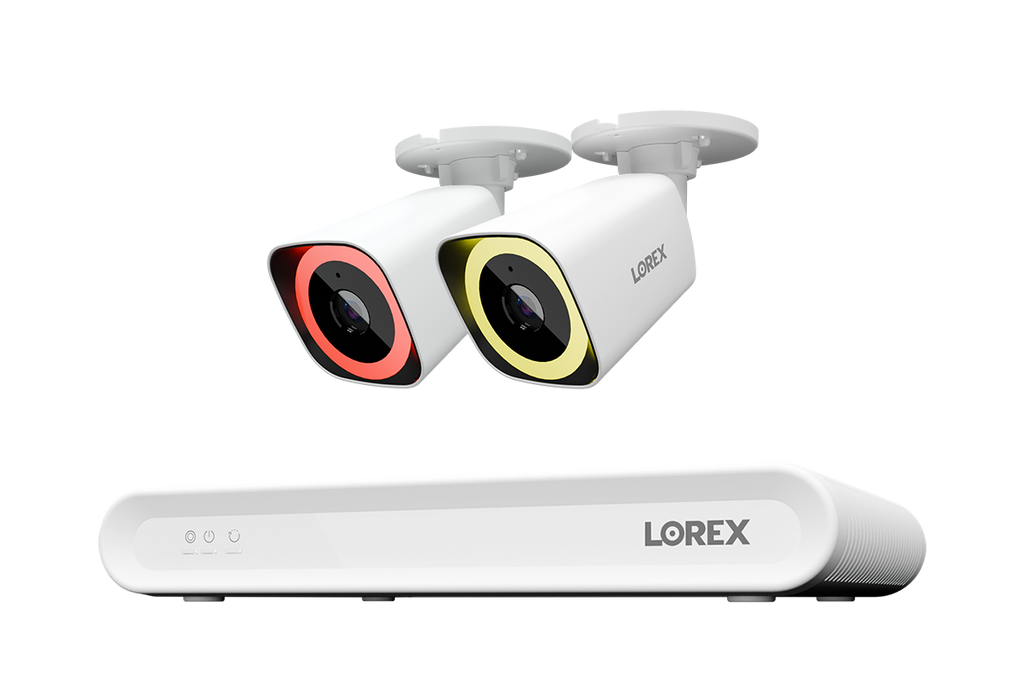

Lorex Connect V Series 4K 8-Channel Wired NVR System with V5 4K PoE Bullet Cameras - 1TB
White / 2
Sale price
$614.99 USD
Regular price
$759.99 USD
Skip to product information
V Series|
CN502V5-BW2-8CH1T

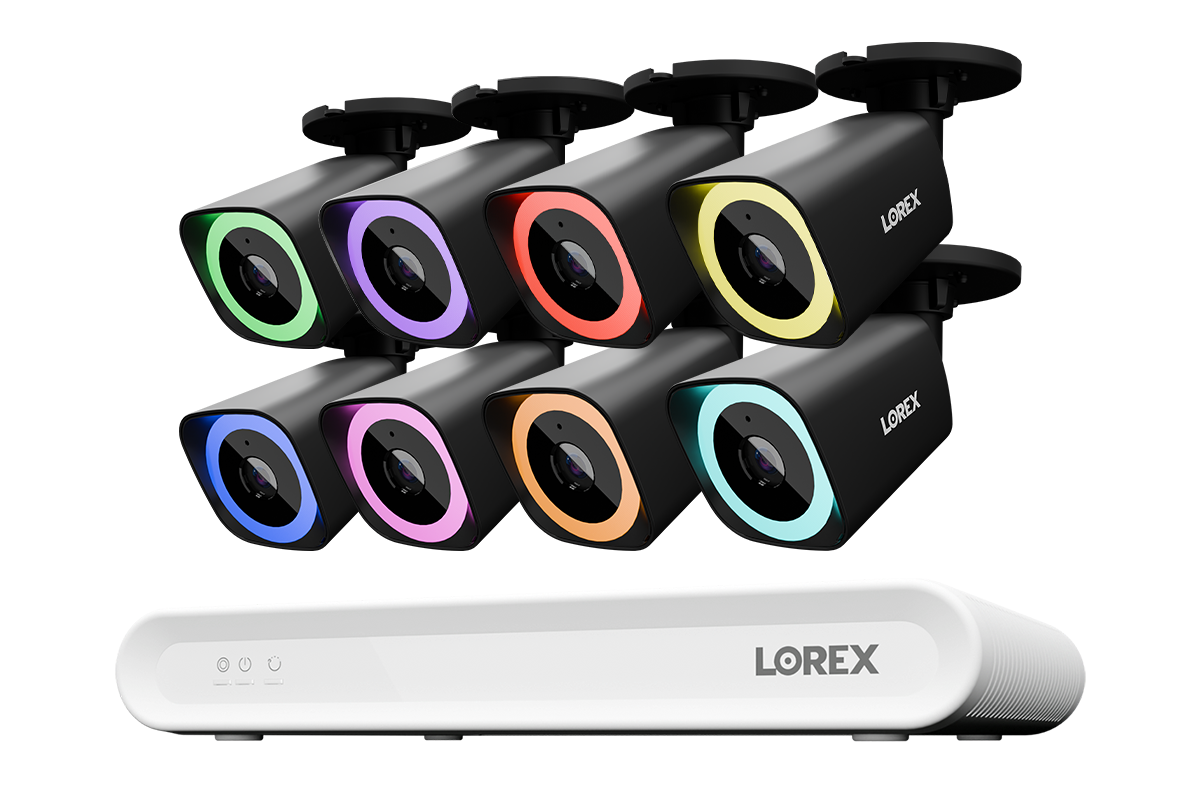

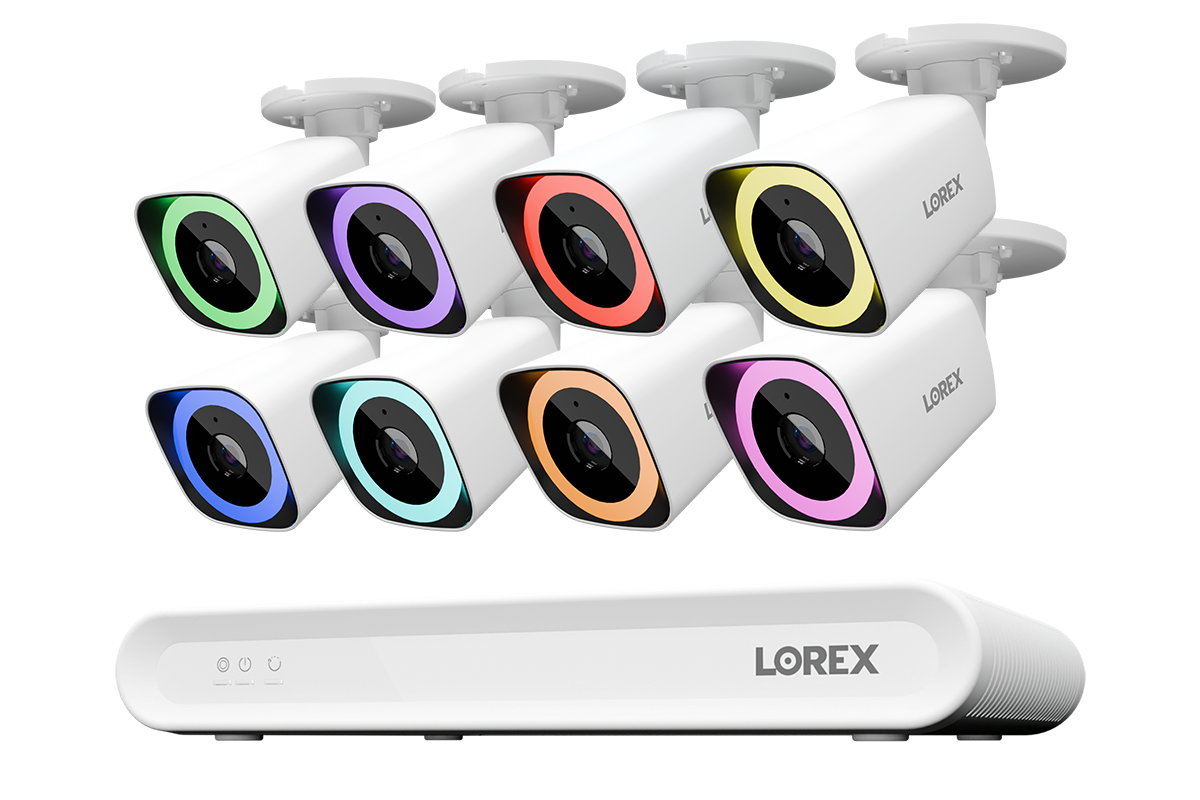

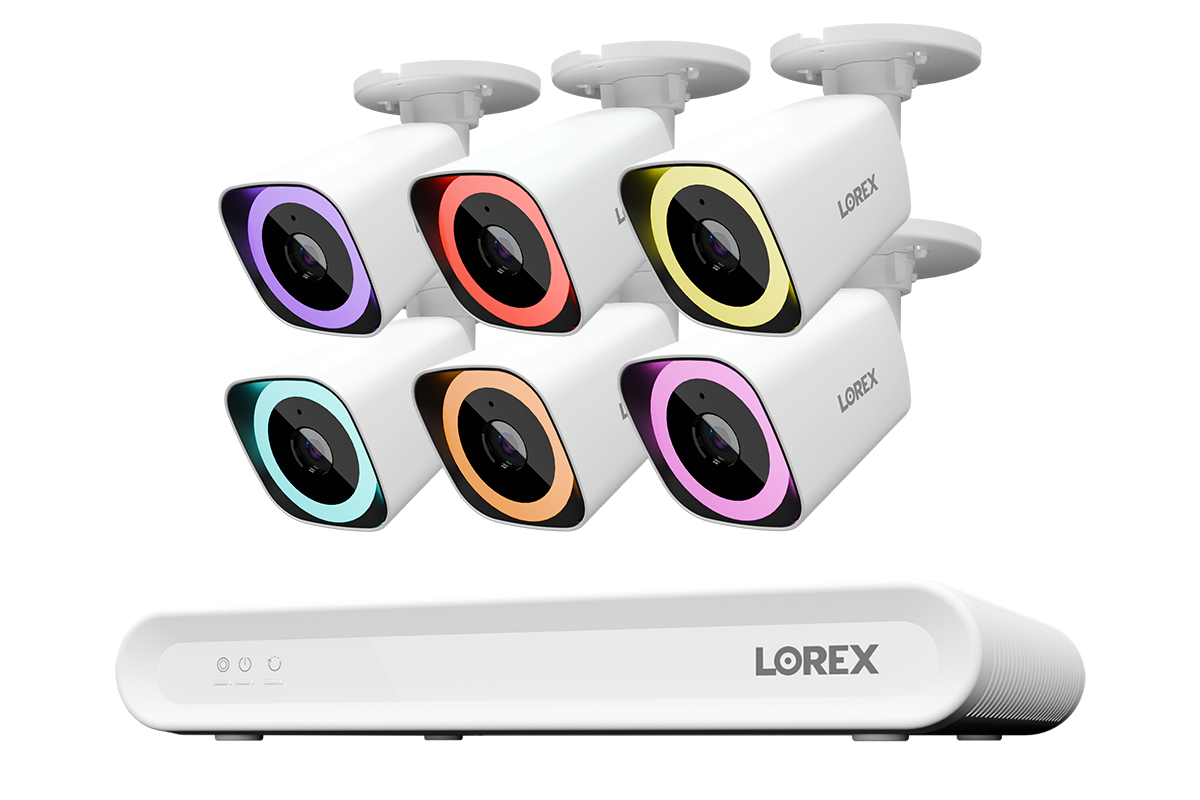

Lorex Connect V Series 4K 8-Channel Wired NVR System with V5 4K PoE Bullet Cameras - 1TB (Cables not included)
Key Features:
- No Monthly Fees
- 4K Ultra HD Resolution
- Smart Security Lighting
- Smart Motion Detection
- Smart Deterrence
- Smart Search
- AI Color Night Vision
- Two-Way Audio
- IP67 Weatherproof Rating
- Built-in 1TB Storage. Expandable up to 1 × 10TB
- Connect up to 8 cameras
- Works with the Lorex Connect mobile app
- Wide Dynamic Range (WDR)
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Camera cables are sold separately.
Add-Ons
Overview
Know what's happening at any moment with sharp, full-color video—even at night—and smart alerts that keep you connected to what matters most. The V5 4K PoE bullet cameras deliver crystal-clear footage with color smart security lighting for 24/7 visibility and deterrence. This 8-channel wired NVR system includes 1TB of built-in storage, expandable up to 10TB, so you capture and retain the details that matter. Designed for reliable, always-on protection of your home or business.
Complete Your System
Pair with other V Series products for smarter detection, unified control, and effortless setup.
Lorex Connect VC 4K 8-Channel NVR - 1TB
Lorex Connect VC 4K 8-Channel NVR - 1TB
Become a Partner and Log in to access volume pricing, build your system, and place orders.
Pickup currently not available
What's Included
4K 8-Channel NVR
Network Cable
HDMI Cable
USB Mouse
Power Adapter
4K IP PoE Bullet Camera
Mounting Hardware
Weather-Resistant Cap
Ethernet Extension Cable
Product Specifications
In this bundle
Select a component to view its specifications.
RN301A-81W-AB1 Product Specifications

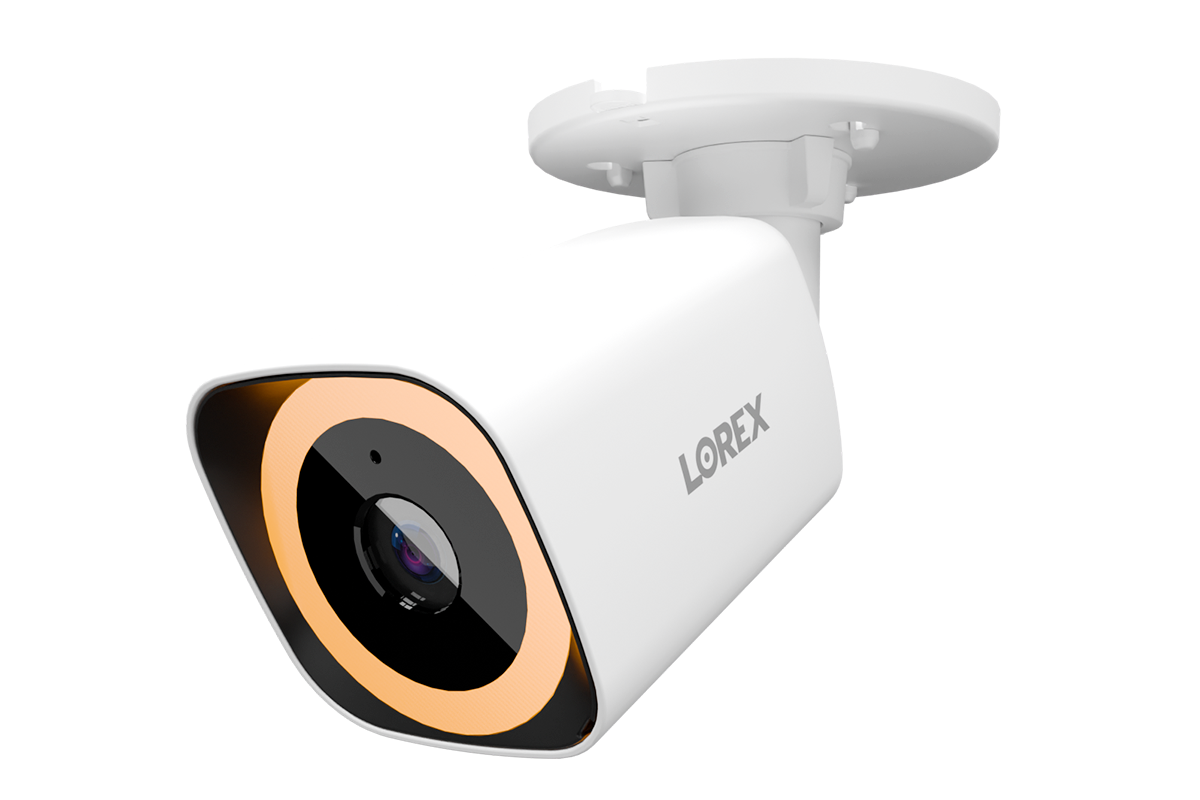

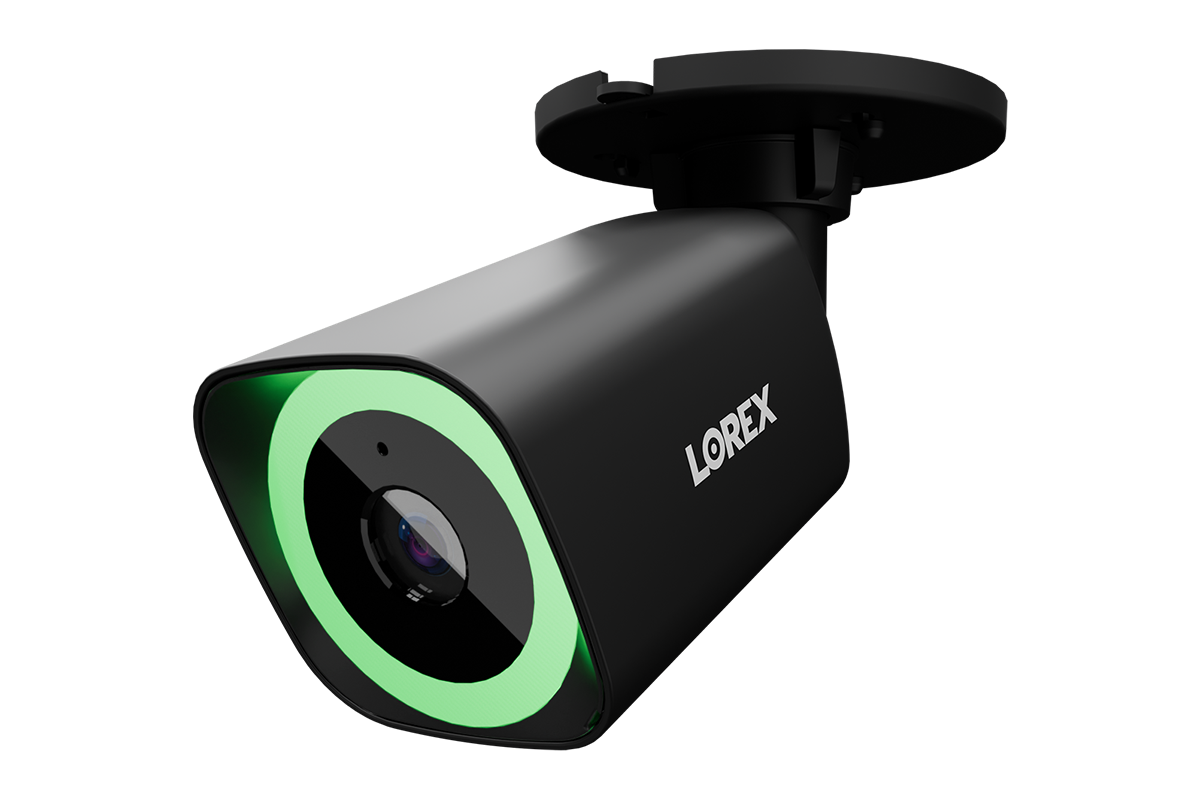

V5 4K PoE Bullet Camera with Color Smart Security Lighting
- Resolution
- 4K (8 MP) @ 15 fps
- Lens
- Fixed 2.8 mm, F1.6
- Field of View
- Diagonal: 131°
- Night Vision
- Color Night IQ
- Weather Rating
- IP67
- Power
- PoE / 12 V DC
- Local Storage
- microSD up to 256 GB
Camera & Imaging
11 specs
- Video Transmission Technology
- IP
- Image Sensor
- 1/2.7" CMOS
- Image Processor
- Advanced AI ISP
- Lens Type
- Fixed 2.8 mm, F1.6
- Effective Pixels
- 3840 (H) × 2160 (V)
- Resolution / Frame Rate
- 4K (8 MP) @ 15 fps
- Field of View (FoV)
- Diagonal: 131°
- Minimum Focusing Distance
- 6.6 ft (2 m)
- Wide Dynamic Range (WDR)
- Yes
- Electronic Shutter Speed
- 1/5 – 1/20,000 s (DWDR ON / OFF)
- White Balance
- Auto / Manual
Video & Audio
7 specs
- Video Compression
- H.265, H.264
- Video Bitrate
- 256 Kbps – 8 Mbps
- Video Output
- Network (RJ45)
- Microphone
- Yes
- Speaker
- Yes
- Speaker Output
- 85 dB @ 2 ft (0.6 m)
- Two-Way Talk
- Yes
Night Vision & Active Deterrence
3 specs
- IR (Infrared) Night Vision
- Yes
- Up to 82 ft (25 m) in total darkness
- Color Night IQ
- Yes
- Color Smart Security Lighting
- Yes, Multi-Color LED Ring
AI Smart Features
1 spec
- AI Motion Detection
- Person, Vehicle, and Face Detection
Storage & Power
3 specs
- Local Storage
- MicroSD Card Slot (up to 256 GB)*
- Power Supply
- PoE (Power over Ethernet, IEEE 802.3af) / 12 V DC
- Maximum Power Consumption
- 9.5 W
Network & Connectivity
2 specs
- Ethernet Interface
- RJ45 (10/100BASE-T)
- Protocols / Integration
- TCP/IP
- HTTP
- DHCP
- DNS
- DDNS
- RTP/RTSP
- SMTP
- NTP
- UPnP
- SNMP
- HTTPS
- FTP
Physical & Environmental
6 specs
- Housing Material
- Metal
- Operating Temperature
- -4°F to 122°F (-20°C to 50°C)
- Operating Humidity
- ≤ 90% RH
- Environmental Rating
- IP67 (Indoor / Outdoor Use)
- Camera Dimensions (W × D × H)
- 3.9 × 6.7 × 3.9 in (100.57 × 170.80 × 100.57 mm)
- Camera Weight
- 1.20 lb (0.54 kg)
Packaging Information
7 specs
- Black
- SKU: CN502A-1BB-AB1
- UPC: 6-95529-06685-1
- White
- SKU: CN502A-1BW-AB1
- UPC: 6-95529-06684-4
- Package Type
- Brown Box
- Package Dimensions (W × D × H)
- 9.76 × 5.32 × 4.29 in (248 × 135 × 109 mm)
- Package Weight
- 1.74 lb (0.79 kg)
- Package Cube
- 0.13 ft³ (0.00365 m³)
- Package Contents
- 1 × 4K Wired PoE Bullet Camera
- 1 × Mounting Template
- 1 × Plate
- 3 × Anchors
- 3 × Screws
- 1 × Weather-Resistant RJ45 Cable Gland
Model Information
3 specs
- Series Family
- V
- Series Line
- V5
- SKU
- CN502A-1BB-AB1
- CN502A-1BW-AB1
No specs match your search.
Notes & disclaimers
- * A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to a compatible NVR or to the cloud for mobile app viewing.
- Compatible with select Lorex Network Video Recorders. For a full list of compatible recorders, visit: www.lorex.com/compatibility.
- Color nighttime video may switch to black & white infrared (IR) night vision when there is insufficient ambient light to ensure optimal low-light image quality.
- Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 82 ft / 25 m in total darkness). Actual range and image clarity depend on installation location, viewing area, and light reflection or absorption.
- Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its products that fails to comply with local laws.
- Not intended for submersion in water. Installation in a sheltered location recommended.
- Cable length is dependent on product configuration. See product packaging for details.
Product Support
Security NVR: RN301A-81W-AB1
IP Security Cameras: CN502A-1BW-AB1
