Person Detection
Vehicle Detection
Animal Detection
Face Detection
Mask Detection
Package Detection
*Range will be affected by environmental factors
You are now leaving the Lorex for Business website. Would you like to continue to Lorex’s consumer site?

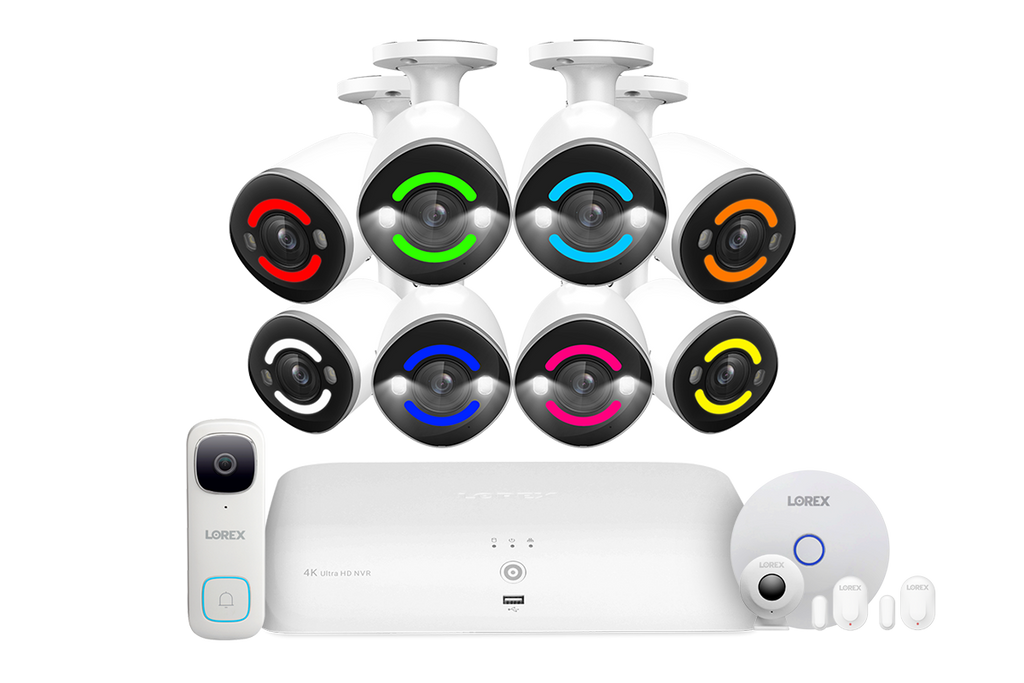

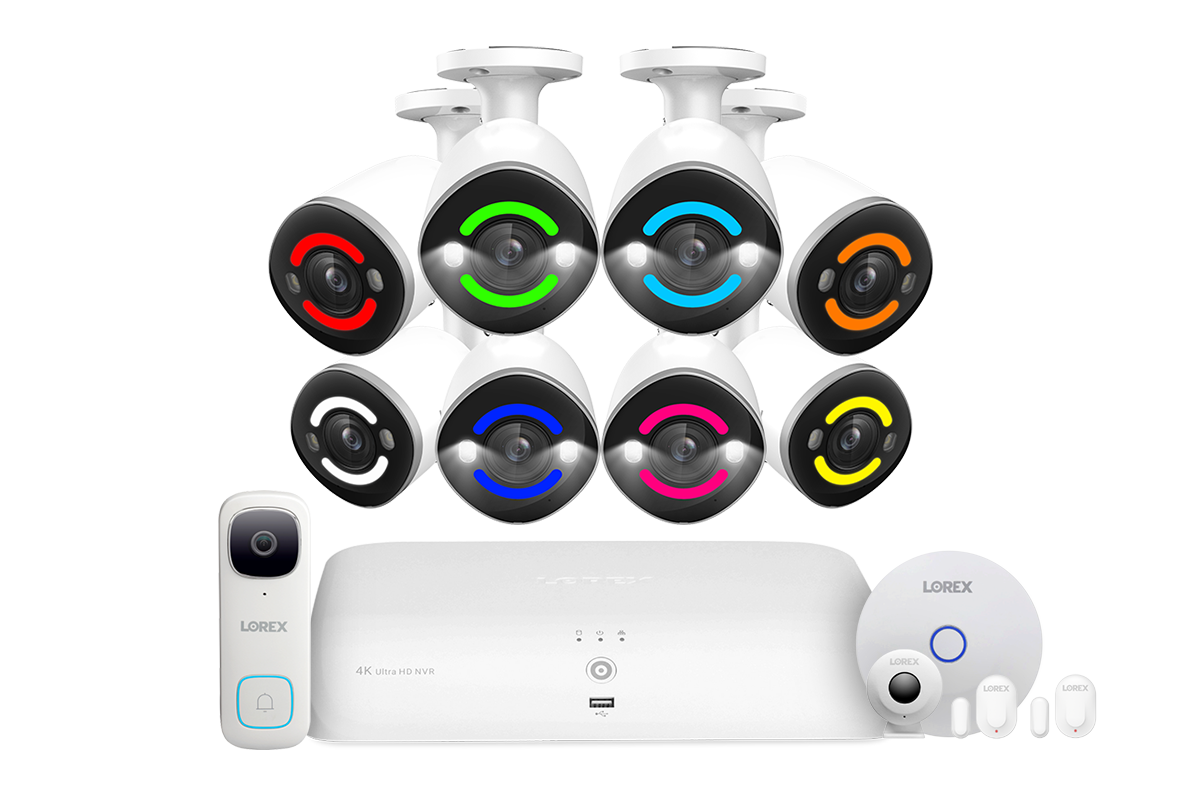

Product Features
Works with the Lorex Classic App
- Ultra HD Resolution
- Smart Motion Detection
- Smart Deterrence
- Smart Security Lighting
- Color Night Vision
- Two-Way Audio
- IP67 Weatherproof Rating
- Built-in 2TB Storage. Expandable up to 1 × 10TB
- Connect up to 16 cameras (8 Wired + 8 Fusion Wi-Fi)
- Works with the Lorex Classic mobile app
Add-Ons
Product Discontinued: Meet the next generation
In-Camera Video Analytics
What's Included

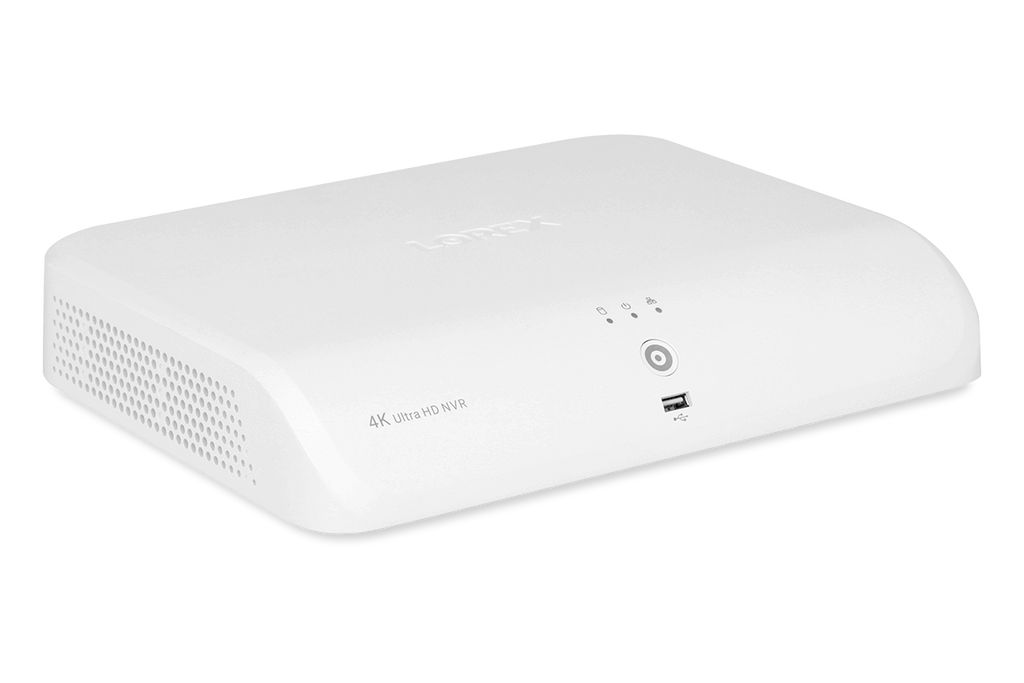

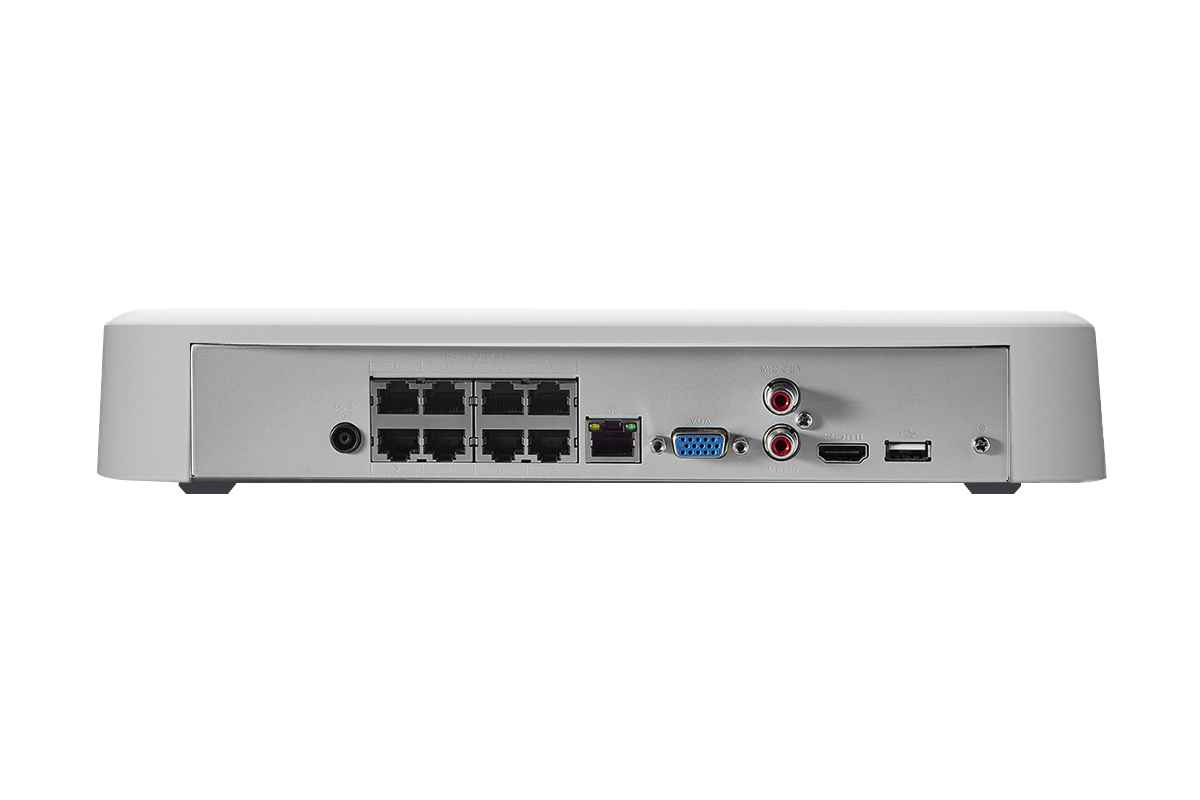

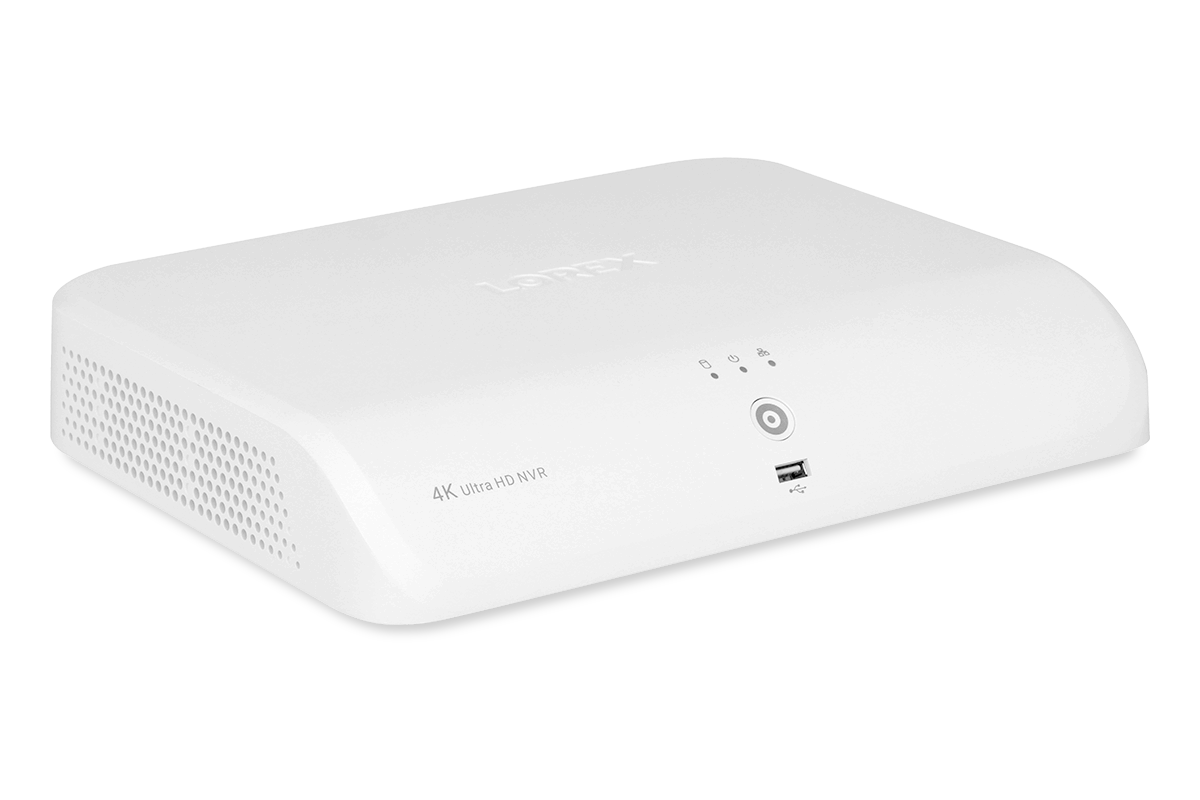

Dimensions (W×D×H): 12.9" x 9.6" x 2.1" (328 x 245 x 53 mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)

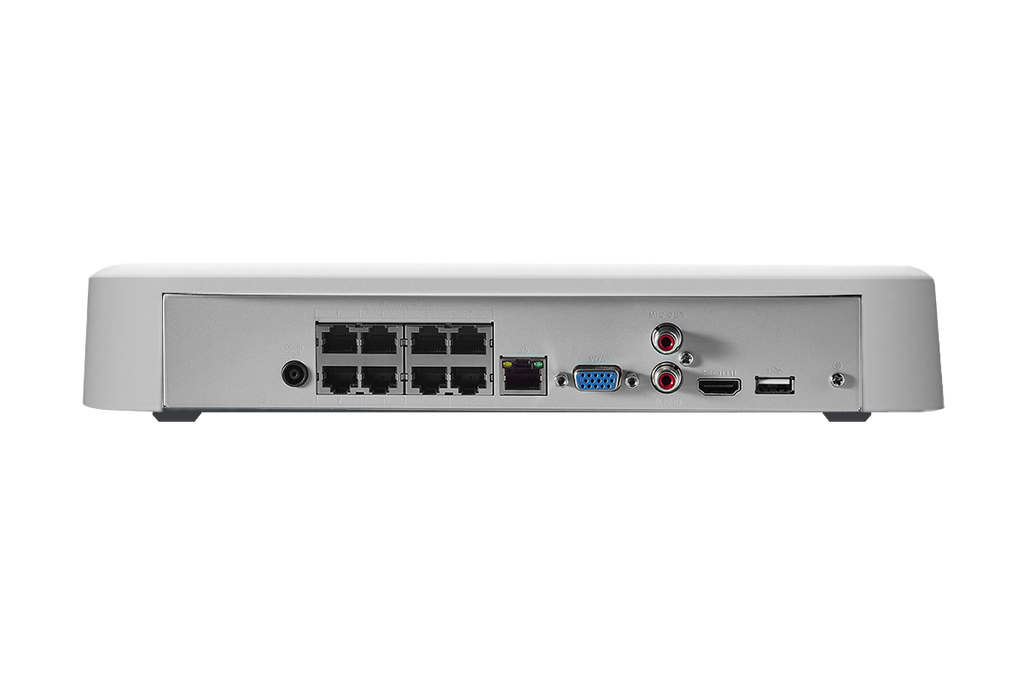

- Hard Drive LED
- Power LED
- Network LED
- USB Ports
- Info / Panic Button
- Power Port
- PoE Ports
- LAN Port
- VGA Port
- Audio In / Out
- HDMI Port
Package Contents:
4K Fusion NVR
Ethernet Cable
USB Mouse
HDMI Cable
Power Adapter

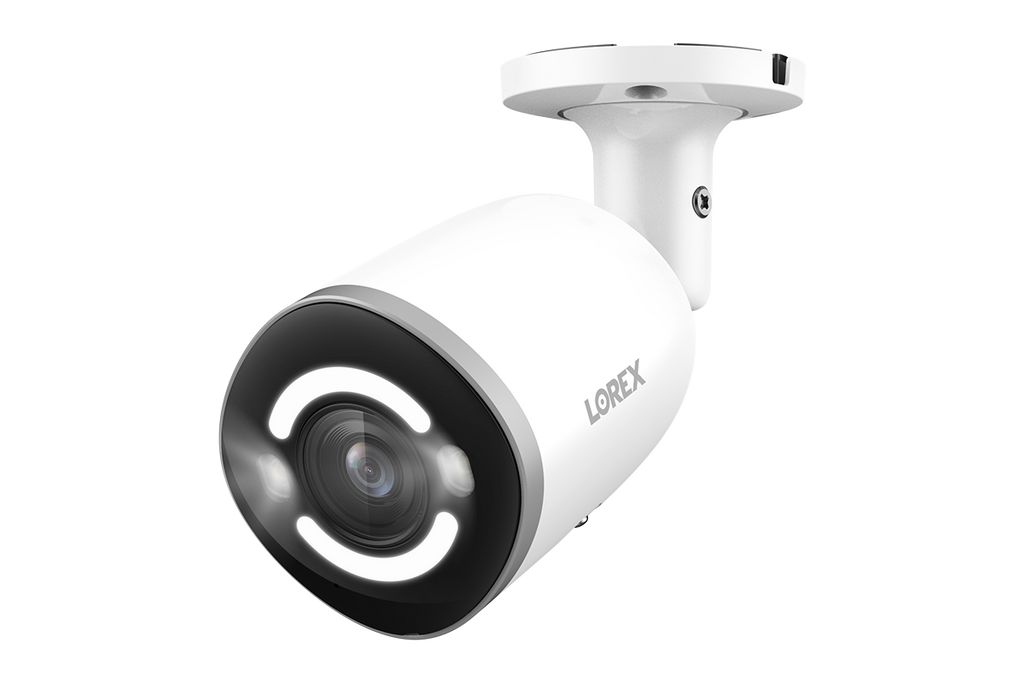

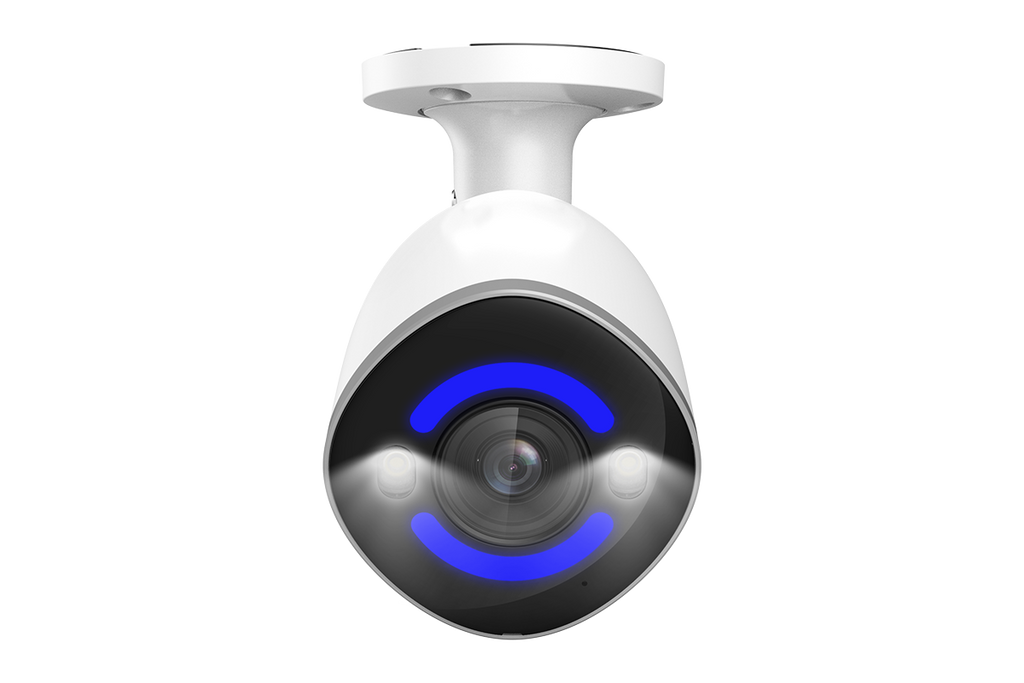

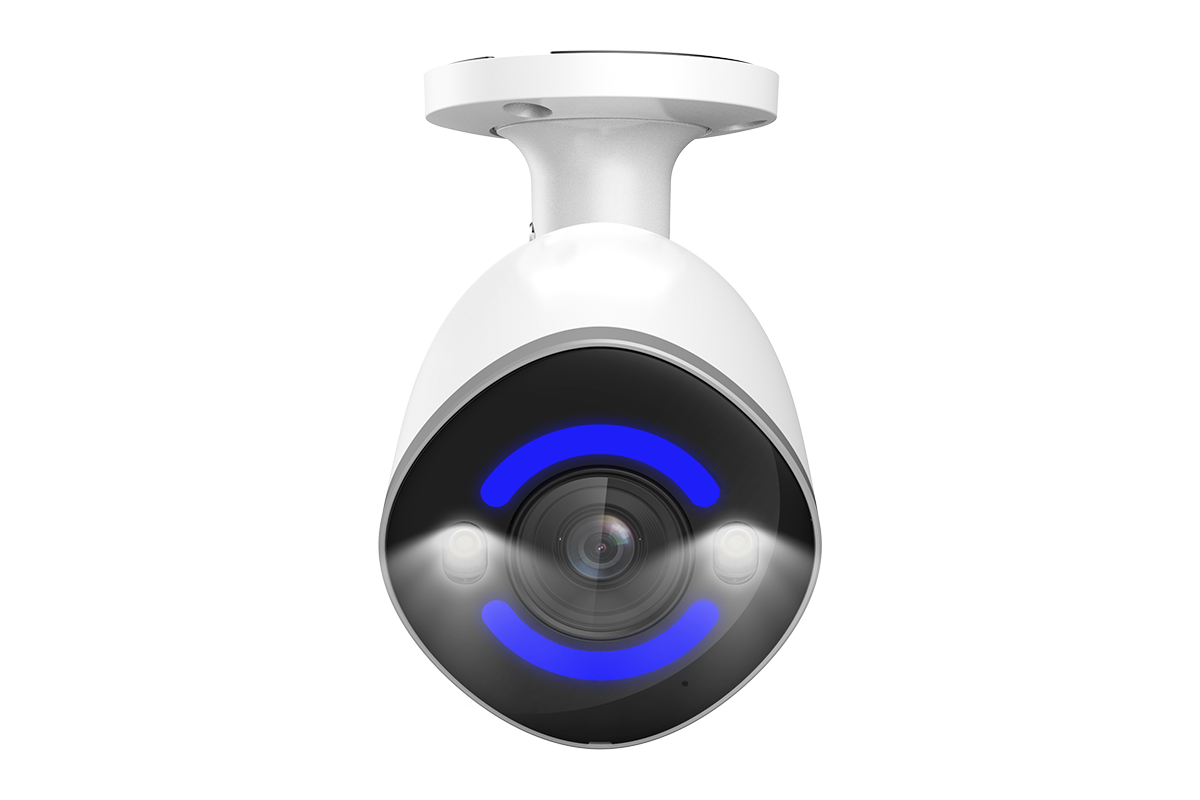

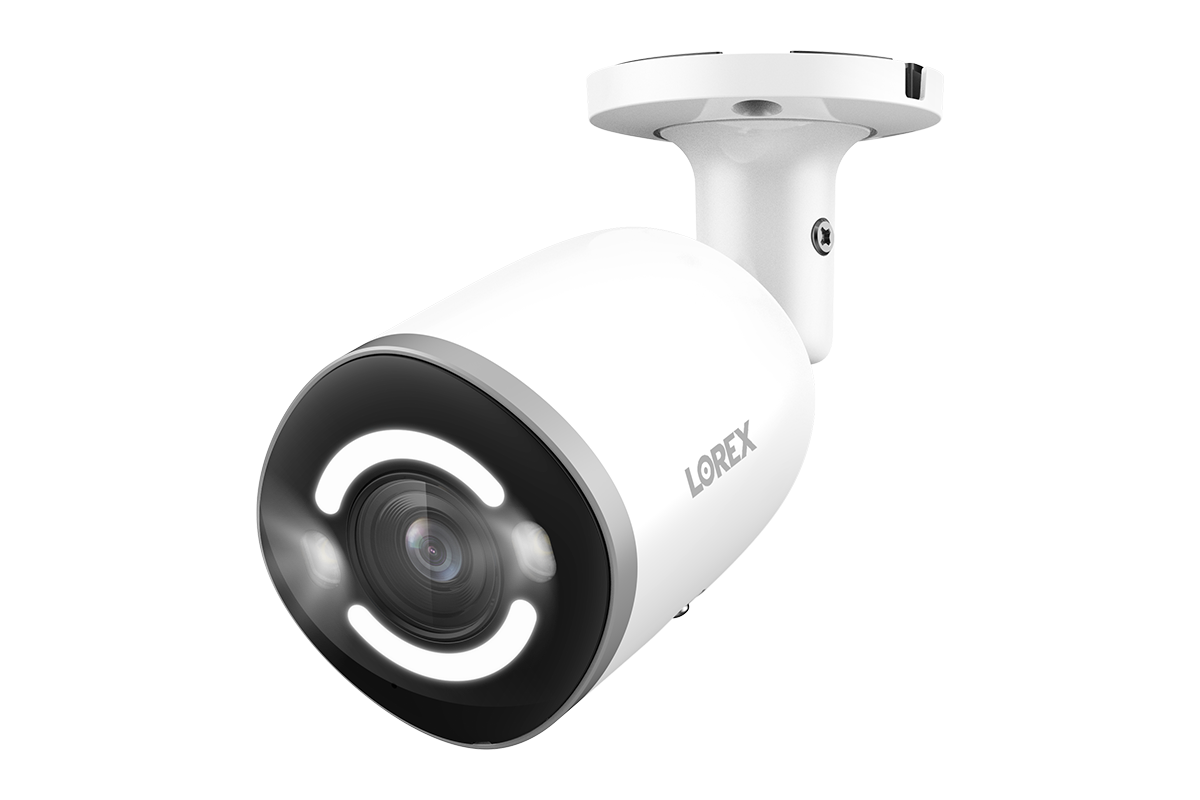

Dimensions (W×D×H): 2.9" x 6.9" x 2.9" (73mm x 175mm x70mm)
Weight: 1.15lbs / 0.52kg

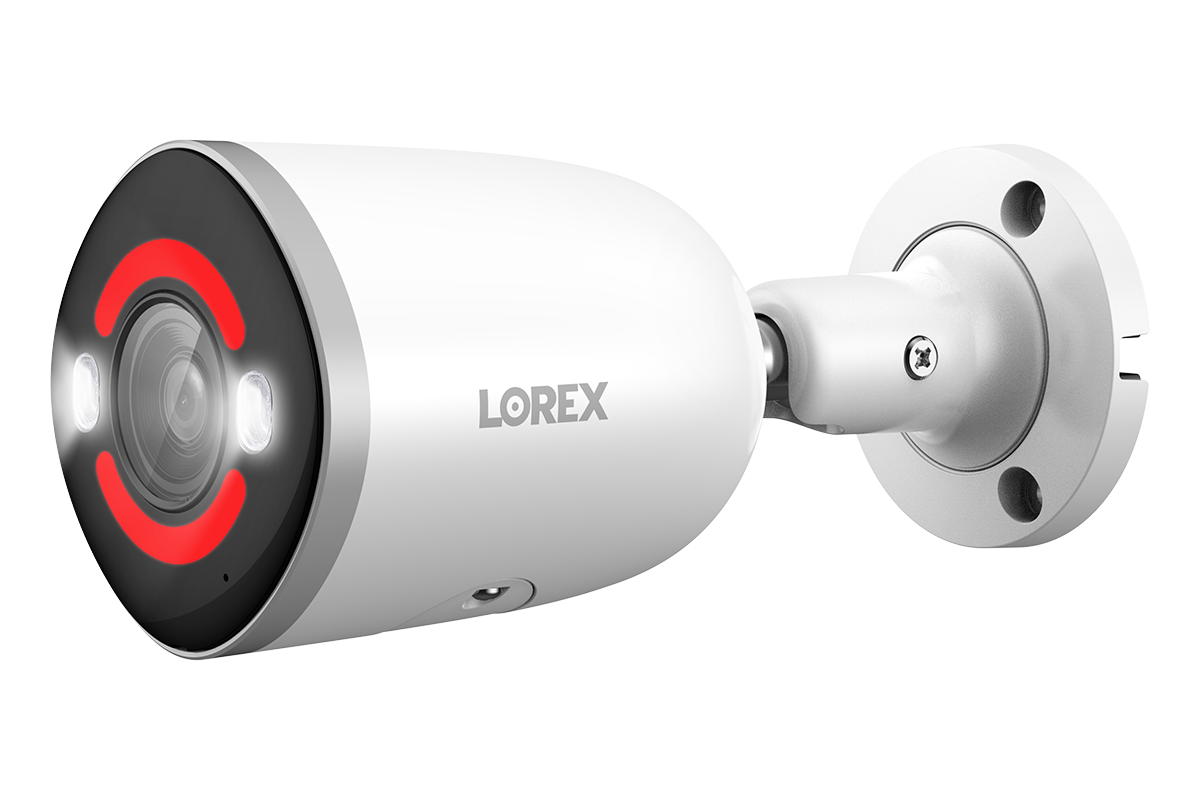

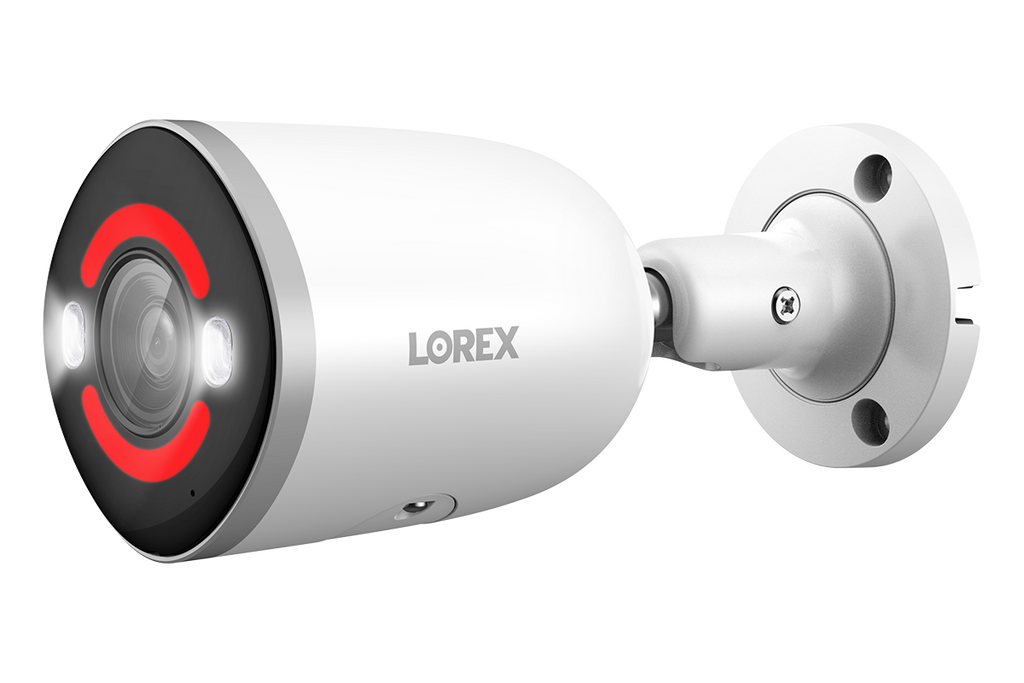

- Cable Notch
- Adjustment Screw
- Speaker and Siren
- MicroSD Card Slot
- Reset Button
- Warning Lights
- Smart Security Lighting
- Microphone
Package Contents:
4K Deterrence IP Camera
Mounting Kit
Ethernet Extension Cable*
*With pre-attached weather-resistant cap.

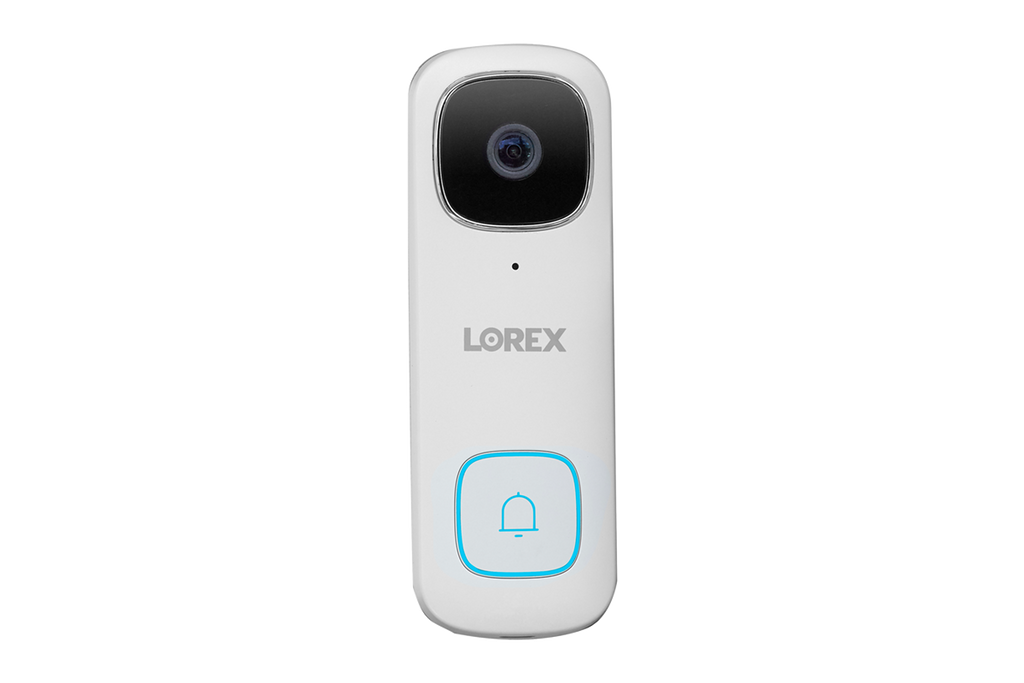

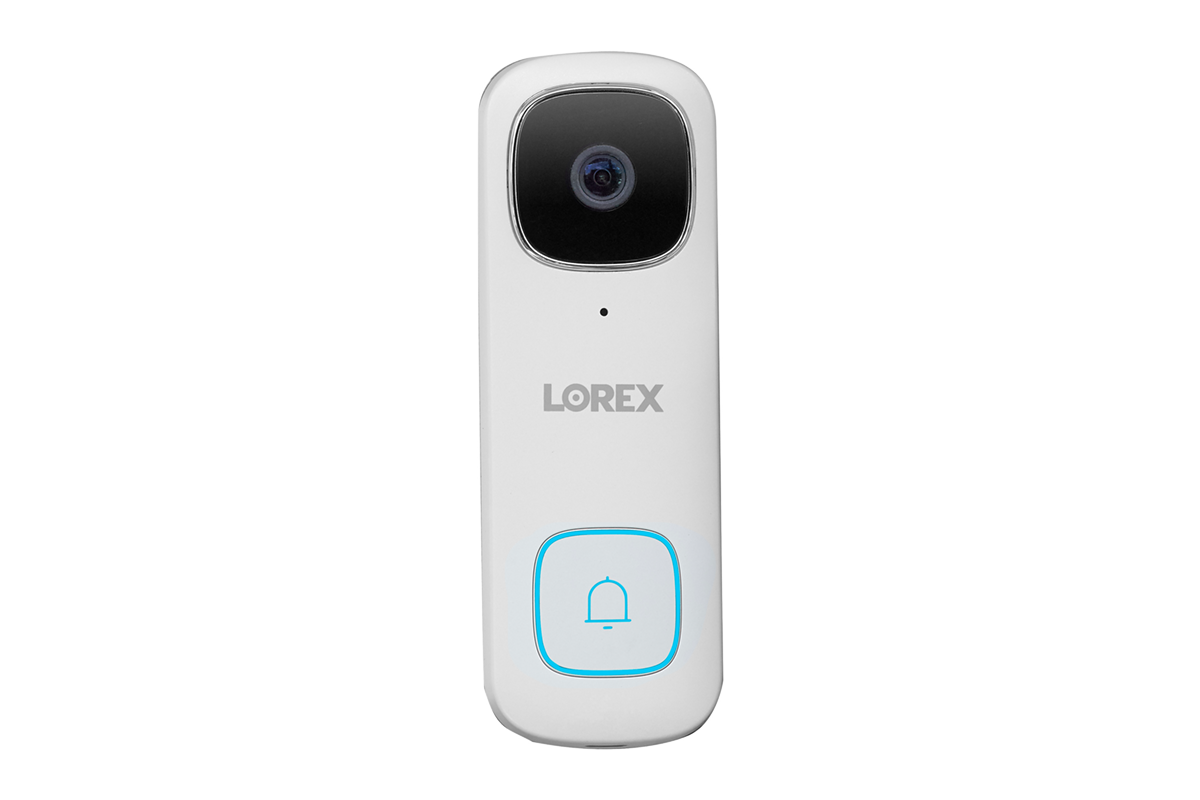

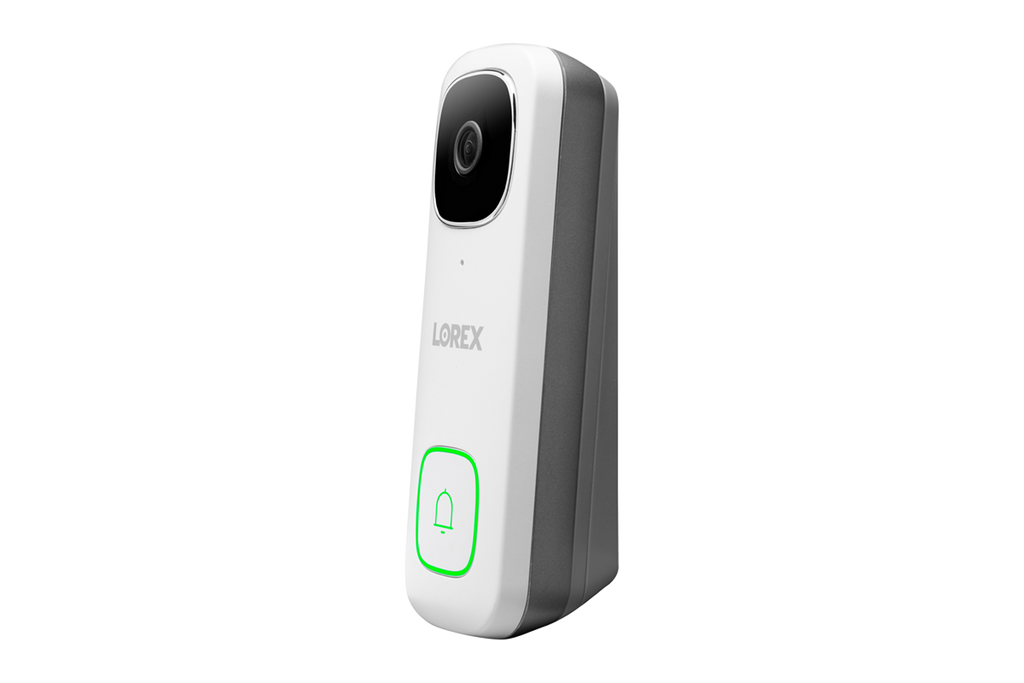

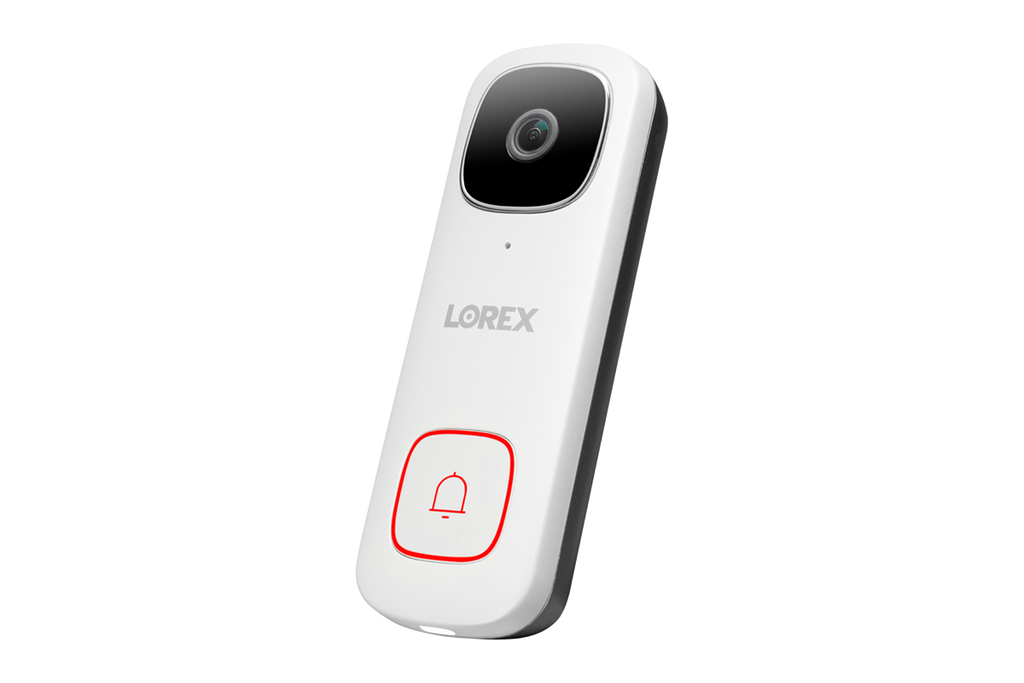

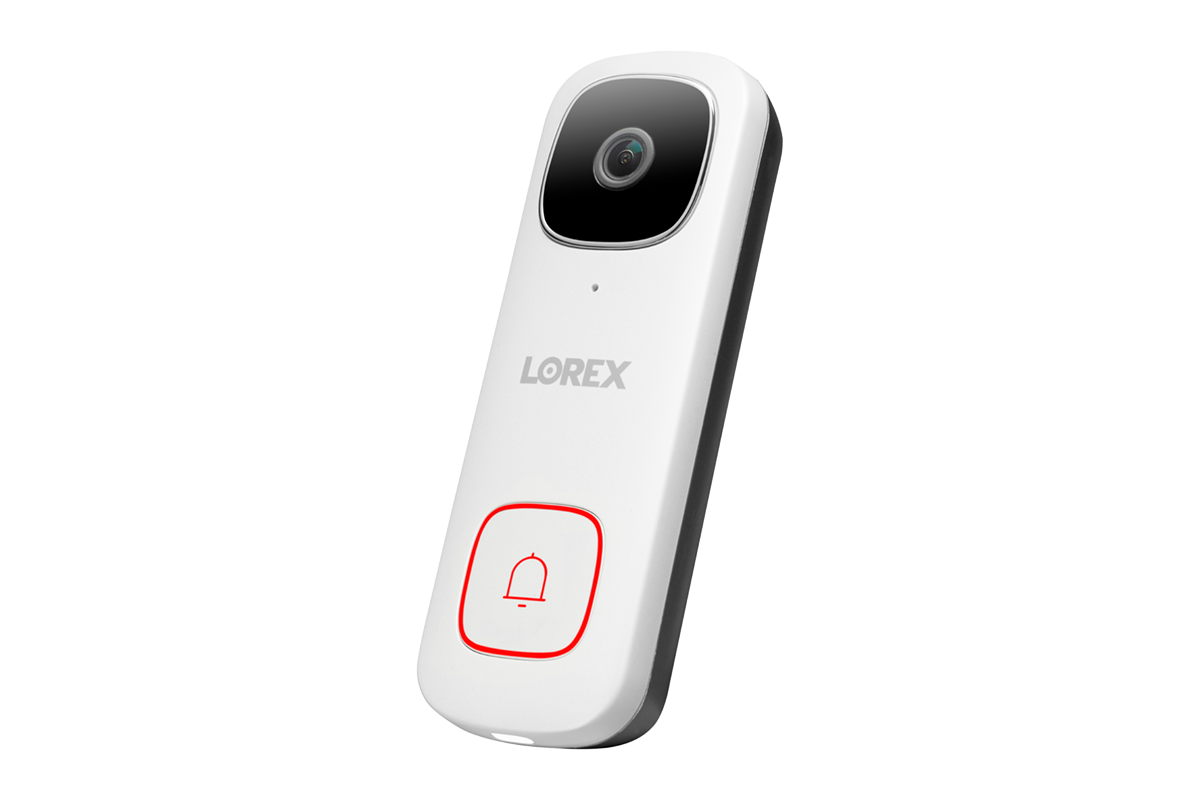

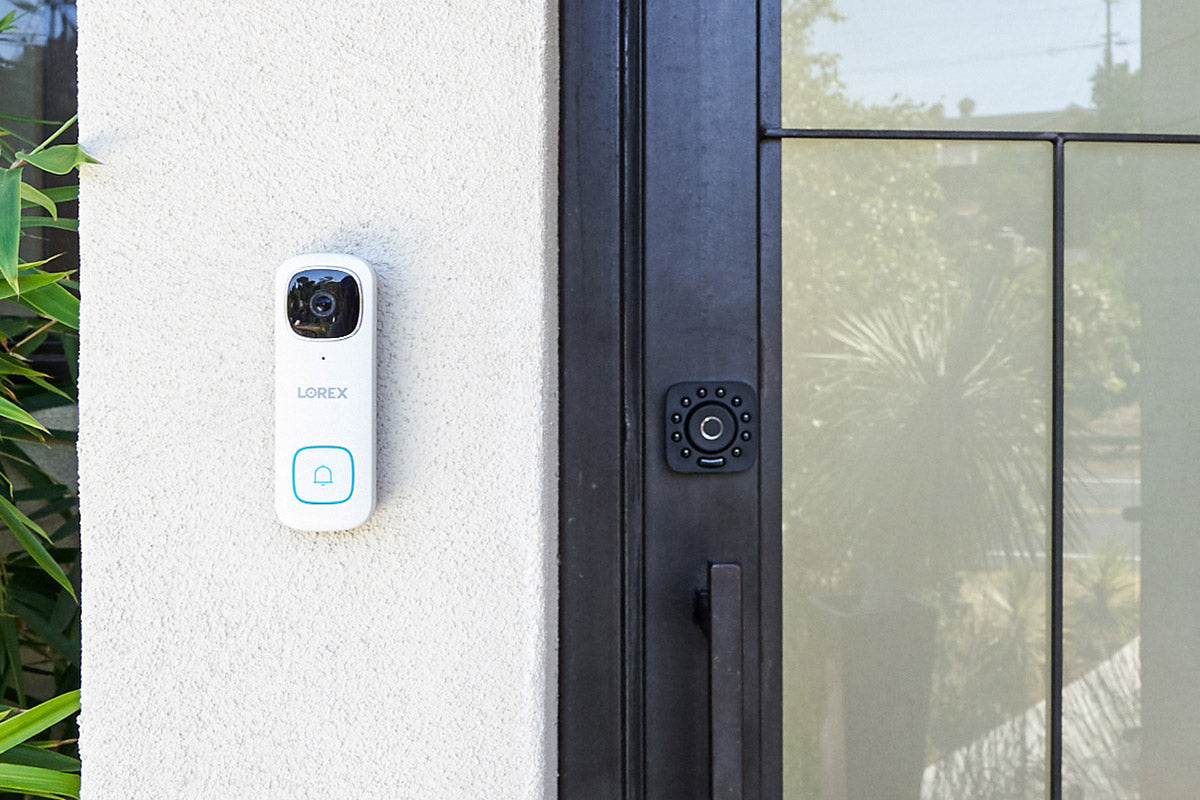

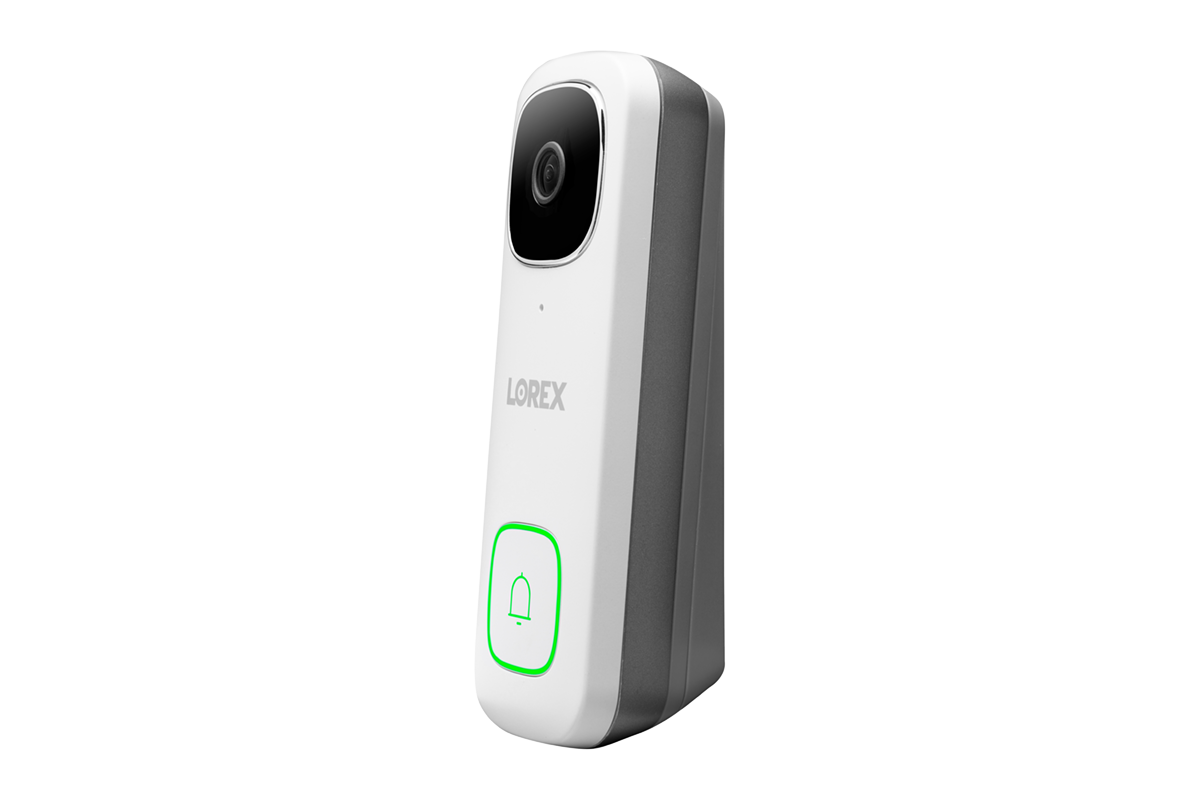

- Impressive 2K QHD Resolution for clear video quality.
- See more with the doorbell's 4:3 aspect ratio and 164° diagonal field-of-view.
- Get the best picture always with HDR imaging.
- Use pre-recorded messages or 2-way talk1 to greet visitors.

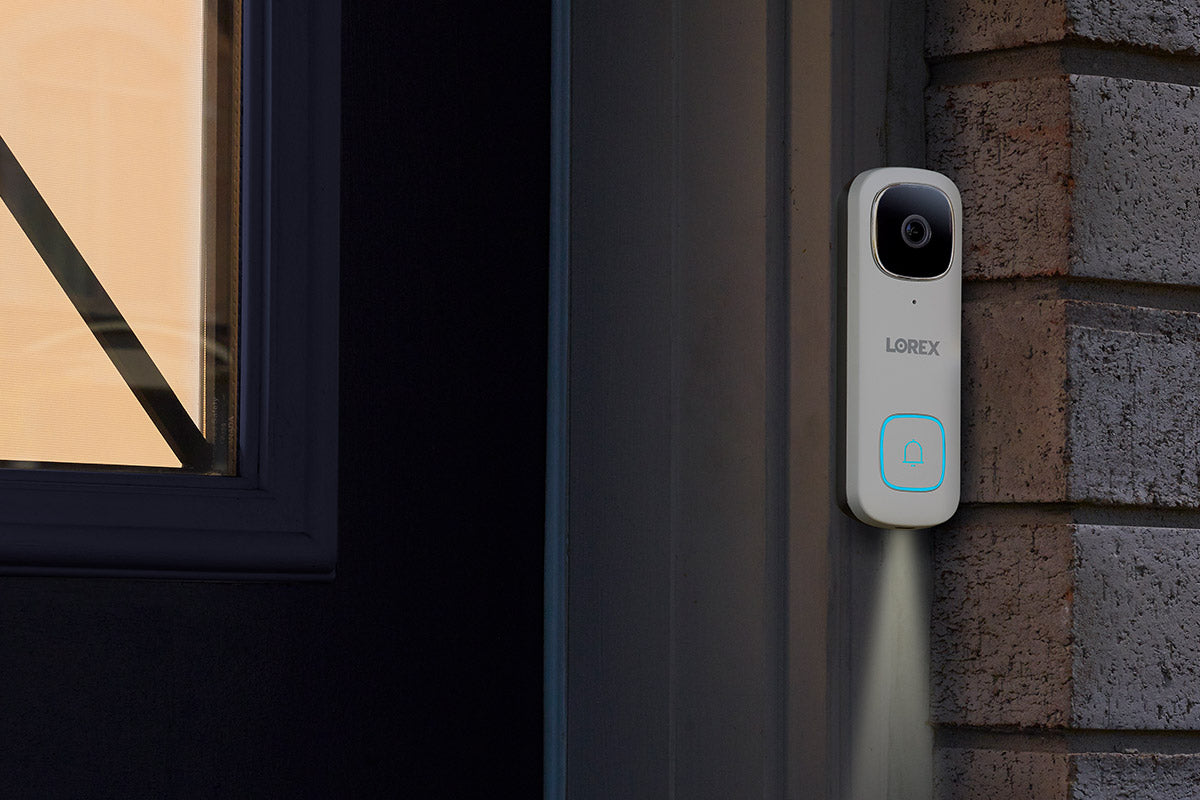

- Motion-activated LED warning light can be manually enabled or customized to only be triggered when a person detected.
- Deter unwanted guests with the remote-activated siren.
- Be aware of activity around your doorstep with built-in Person Detection feature.
- Receive notifications from the Lorex App™ app when motion is detection2.
- Local microSD storage, expandable up to 256GB.
- Adjust the viewing angle of your Video Doorbell with the included set of mounting bracket wedges.
- Pair with additional wired and wireless Fusion products to enhance your Lorex security experience.
- Be notified when someone rings the doorbell, as well as answer it without using your phone with Amazon Alexa™.
- Compatible with existing doorbell wiring (16V-24V) and traditional mechanical and electronic digital chimes.3
Each B451AJD Camera Includes:
Video Doorbell
Chime Kit
Pre-inserted microSD Card
USB Cable
Electrical Wiring
15° Horizontal Bracket
5° Vertical Bracket
Mounting Kit
Quick Start Guide

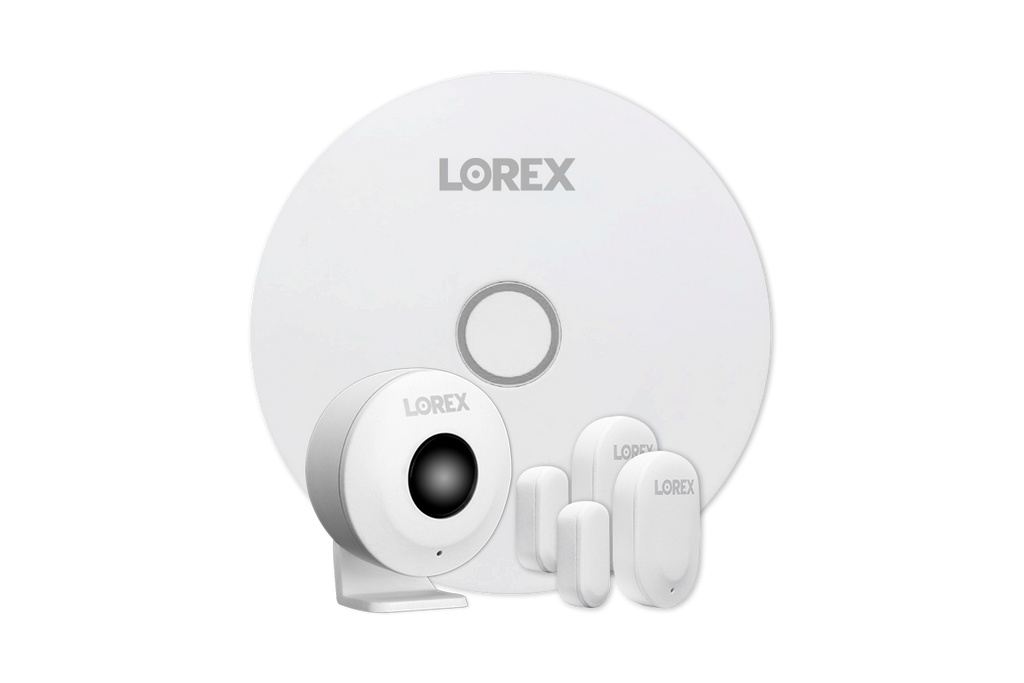

| AY41TR Sensor Hub | |
|---|---|
| Color | White |
| Power | Power adapter input: 100-240V AC, Power adapter output: 5V DC |
| Connectivity | BLE5.0 |
| Lights | Status Indicator Light |
| Installation Type | Tabletop or wall mount |
| Setup Requirements | Lorex App |
| Compatibility | Lorex DVR's or NVR's using Lorex App |
| Operating Conditions | Indoor Use |
| Warranty | 1 year limited warranty |
| AM41TK PIR Motion Sensor | |
|---|---|
| Color | White |
| Power | Battery: CR2450, included |
| Connectivity | BLE5.0 |
| Detection Range | 26ft Max.* |
| Detection Angle | 110° Max. |
| Installation Type | Tabletop, wall or ceiling |
| Lights | Status Indicator Light |
| Setup Requirements / Compatibility | Lorex Sensor Hub, Lorex App Center |
| Mounting | Adhesive, included |
| Operating Conditions | Indoor Use |
| Operating Temperature | 14°F ~ 113°F / -10°C ~ 45°C |
| Operating Humidity | 0 ~ 95% RH |
| Warranty | 1 year limited warranty |
| AK41TK Door / Window Sensors | |
|---|---|
| Color | White |
| Power | Battery: CR1632, included |
| Connectivity | BLE5.0 |
| Lights | Status Indicator Light |
| Installation Type | Tabletop or wall mount |
| Setup Requirements / Compatibility | Lorex Sensor Hub, Lorex App Center |
| Mounting | Adhesive, included |
| Operating Conditions | Indoor Use |
| Operating Temperature | 14°F ~ 113°F / -10°C ~ 45°C |
| Operating Humidity | 0 ~ 95% RH |
| Warranty | 1 year limited warranty |

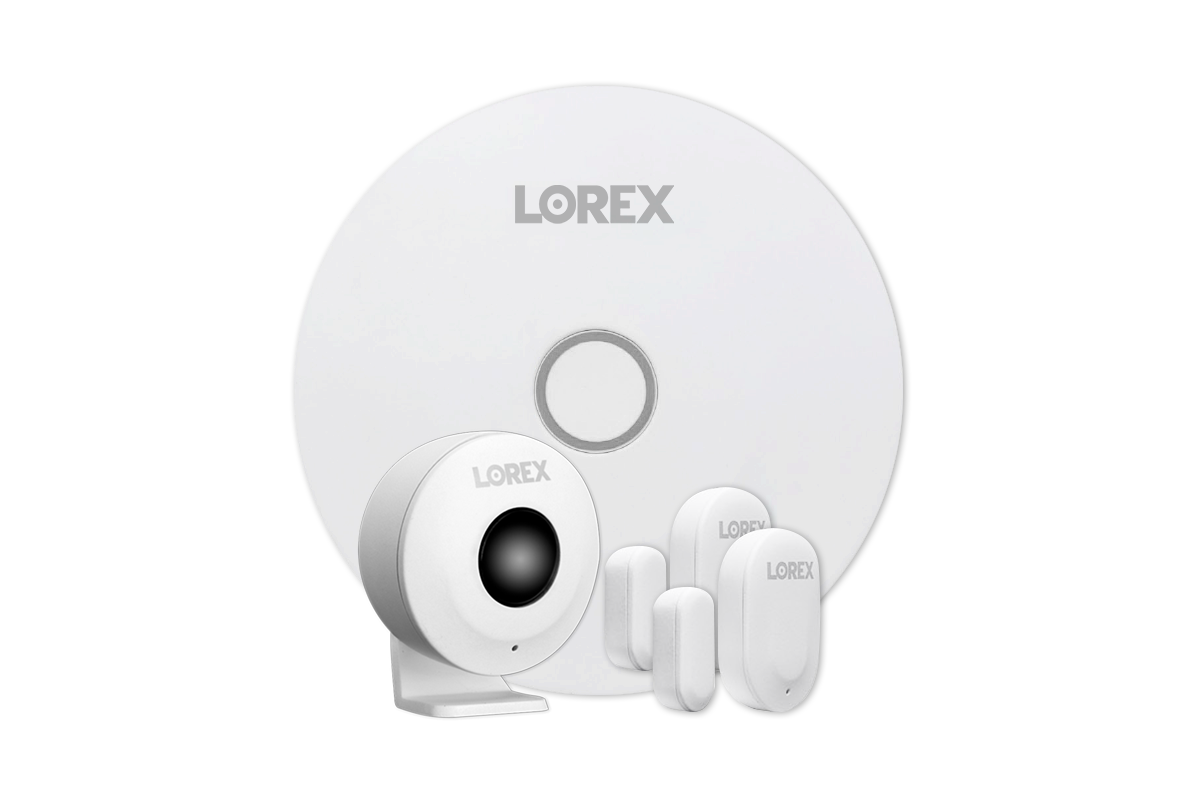

Each Smart Sensor Starter Kit Includes:
1 × Sensor Hub
1 × PIR Motion Sensor
2 × Door / Window Sensors
1 × Power Accessories
1 × Sensor Hub Bracket
1 × PIR Motion Sensor Bracket
Mounting Adhesives
1 × Pin
