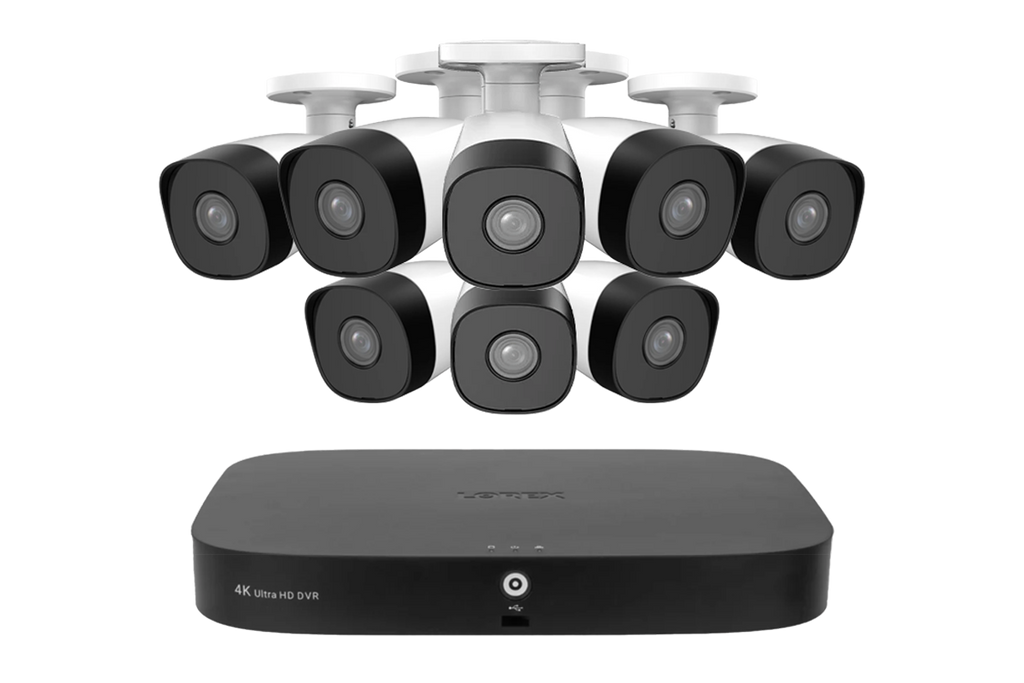

Lorex Classic Fusion Series 4K 20-Channel (16 Wired + 4 Fusion Wi-Fi) 1TB DVR Wired System with 1080p Analog Bullet Security Cameras
8
$759.99
Sale price
$759.99
Regular price
What's Included
Dimensions (W×D×H): 12.9 × 9.6 × 2.1" (328 × 245 × 53mm)
Weight: 2.75 lbs. / 1.26 kg (excl. HDD)
- Hard Drive, Power & Network Statuses
- USB Ports
- Info / Panic Button
- Wired Camera Connection
- Audio Connection (In / Out)
- Monitor Connection (VGA)
- Power Switch (On/Off)
- Monitor Connection (HDMI)
- Network Connection (LAN)
- PTZ Connection (RS-485)
- Power Connection
Package Contents:
4K Fusion DVR
Ethernet Cable
USB Mouse
HDMI Cable
Power Adapter
- Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
- Accuracy of Smart Motion Detection or Person and Vehicle Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection.
- Accuracy of Face Detection and Face Recognition will be influenced by the distance of the face from the camera. Partially or fully covered faces will not be detected. Night vision will impact the accuracy of Face Detection. Facial recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws.
- Face Detection and Face Recognition are available on up to 2 channels only. Smart Motion Detection can not be enabled on all channels while Face Detection or Face Recognition is enabled.
- Virtual Fence is available on up to 2 channels only. Smart Motion Detection can not be enabled on the same channel when a single channel is enabled. To enabled Virtual Fence on 2 channels, Smart Motion Detection must be disabled on all channels.
- Compatible with select Lorex cameras only. For a list of compatible cameras, please visit www.lorex.com/compatibility
- Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available.
- Requires a high-speed internet connection and a router (not included) for remote access. A minimum upload speed of 7.5Mbps is required for the best video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit: www.lorex.com/support
- Both firmware and software must be updated to latest version to ensure remote connectivity in all areas or networks. For compatibility, features, instructions visit: www.lorex.com
- HDMI output supports up to 4K for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the DVR, as well as TV/ monitor resolution.
- AppleTV™ or Chromecast™ need to be connected to the same network as your recorder. Requires AppleTV Gen 4 or newer with Lorex Apple TV APP or Chromecast ™ device connected to the TV that you want to view the system on.
- BNC Connector
- 12V DC Power Connector
- Cable Notch
- Mounting Bracket
- Adjustment Screws
- Sun Shield
- Camera Lens
- IR (Infrared) Lights
Package Contents:

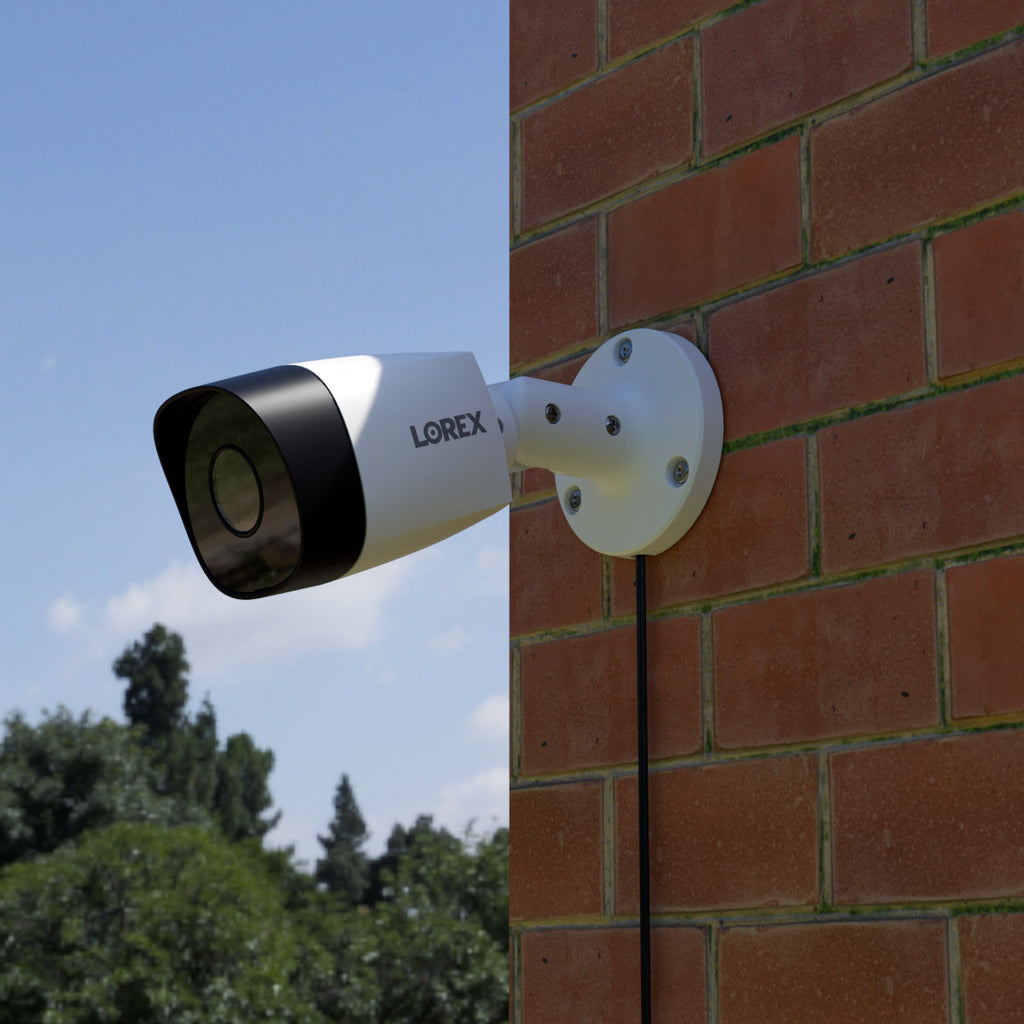

1080p HD Wired Bullet Camera
BNC/DC Cable
12V/1A Power Adapter
Mounting Hardware
Product Specifications
D863A61B Product Specifications
Download PDFSecurity DVR: D863A61B
Analog Security Cameras: C221NA
