Product Features
- Provides 24/7 Power to Lorex Wired or Battery-Operated Doorbells
- Easy Installation
- Over Voltage Protection
- Over Current Protection
- Short Circuit Protection
Add-Ons
Product Discontinued: Meet the next generation

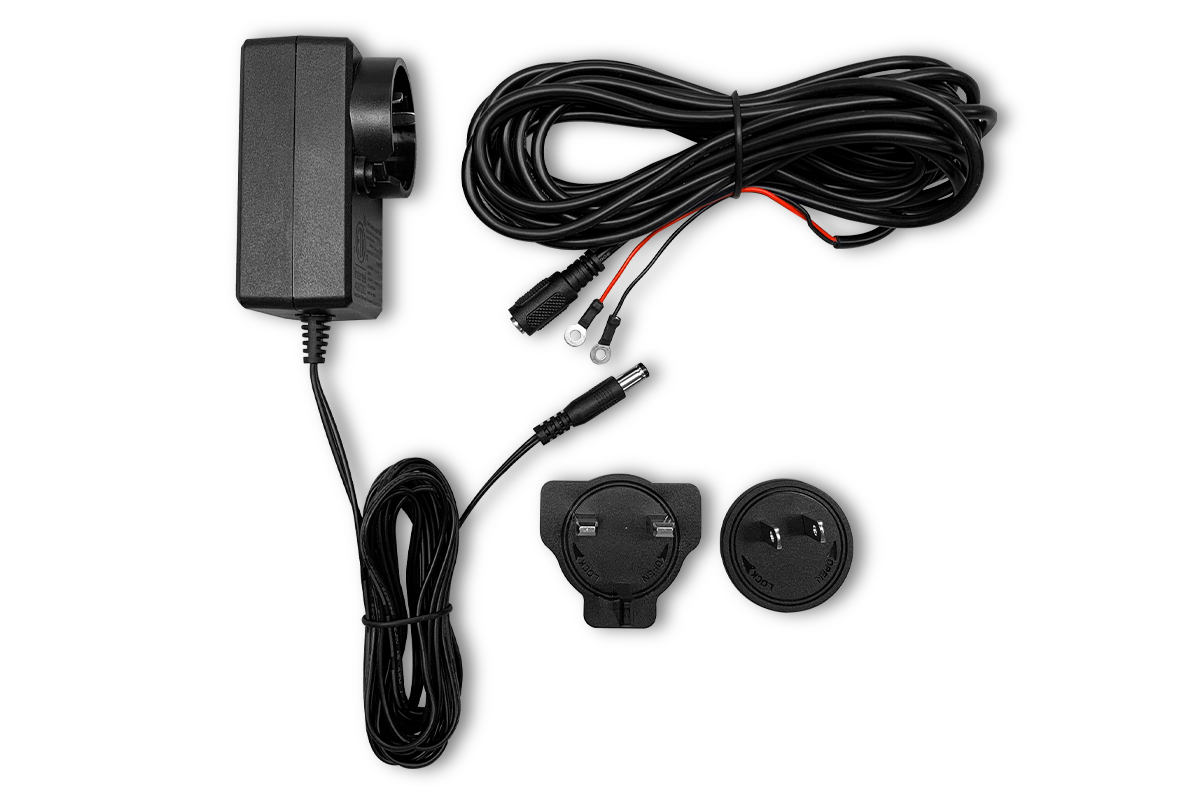

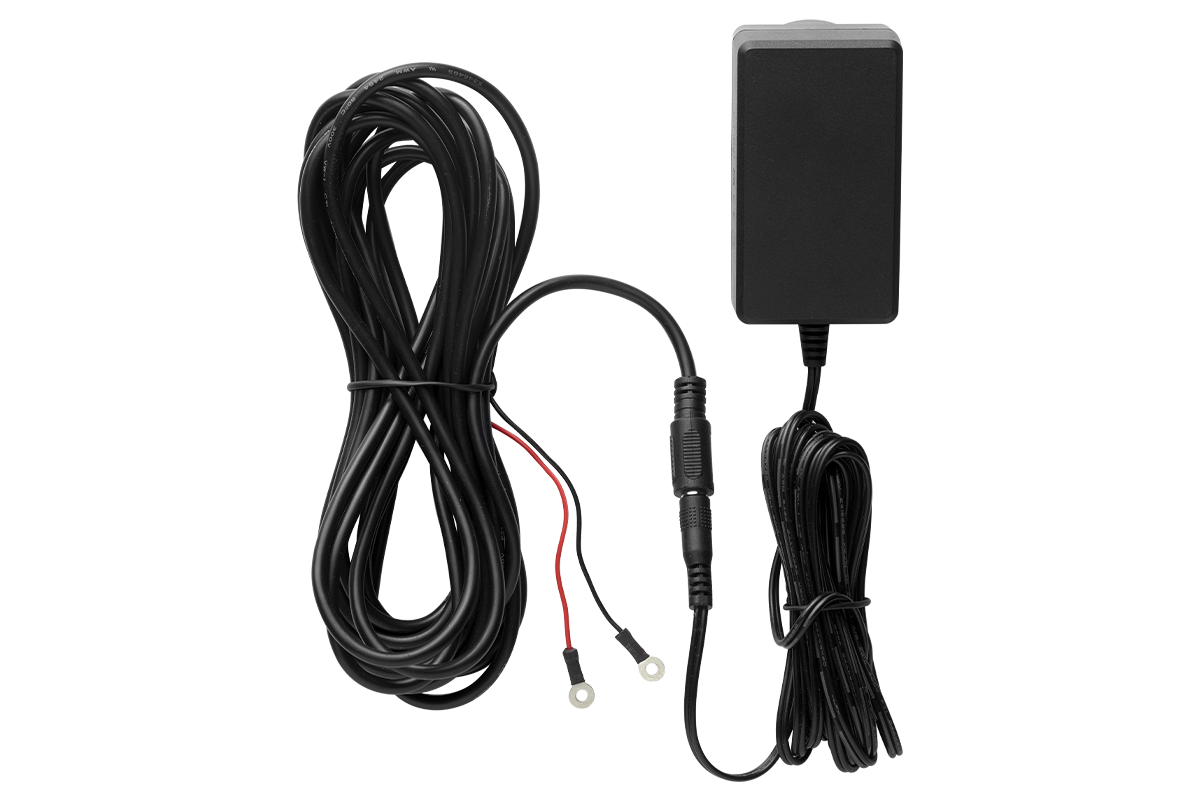

Provide continuous power to your Lorex Video Doorbell, even if you don’t have pre-existing doorbell wiring, with this power adapter. The simple plug-and-play setup comes with eyelet connectors for a secure installation. You can rely the on the built-in over voltage, over current, and short circuit protection for a reliable doorbell connection.
Product Specifications
| Rated Voltage | AC100-240V |
|---|---|
| Variation Range | AC90-264V |
| Rated Frequency | 50/60Hz |
| Variation Frequency | 47-63Hz |
| Input Current | 1.0A maximum |
| Inrush current |
60A Max. Cold start @ 100V AC, 60Hz input 80A Max. Cold start @ 240V AC, 50Hz input |
| AC Leakage Current | 0.25mAh Max. |
| Output characteristics | |
|---|---|
| Voltage | 24Vdc±5% |
| Min load | 0A |
| Max. load | 1.0A |
| Output ripple & noise | 120mVp-p Max. |
| Turn-On delay time | 3 sec Max. @ 100-240Vac input |
| Rise time | 50mS Max. from 10% to 90% rated voltage @ 100Vac/240Vac |
| Hold up time | 10mS Min @ 100Vac/240Vac |
| Overshoot voltage | -3 to +7% rated voltage max. @ turn on or turn off |
| Average efficiency | 86.20% min. @ Input 115/230Vac. and 100%, 75%, 50%, 25% Rated Load |
| Environmental Requirement | |
|---|---|
| Operating Temperature | -10°C to 45°C |
| Storage Temperature | -40°C to 80°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Mechanical Requirement | |
|---|---|
| Power adapter | |
| Enclosure | 76 (L) x 44 (W) x 31.3 (H) mm |
| Weight | 115g |
| Color | Black |
| DC plug | 5.5mm x 2.1mm x 10mm |
| Cord | 3 meter, UL2468, 24AWG/2C |
| Extension Cable | |
| Color | Black |
| Eyelet Connector | RV1-3.2 |
| Length | 5 meters |

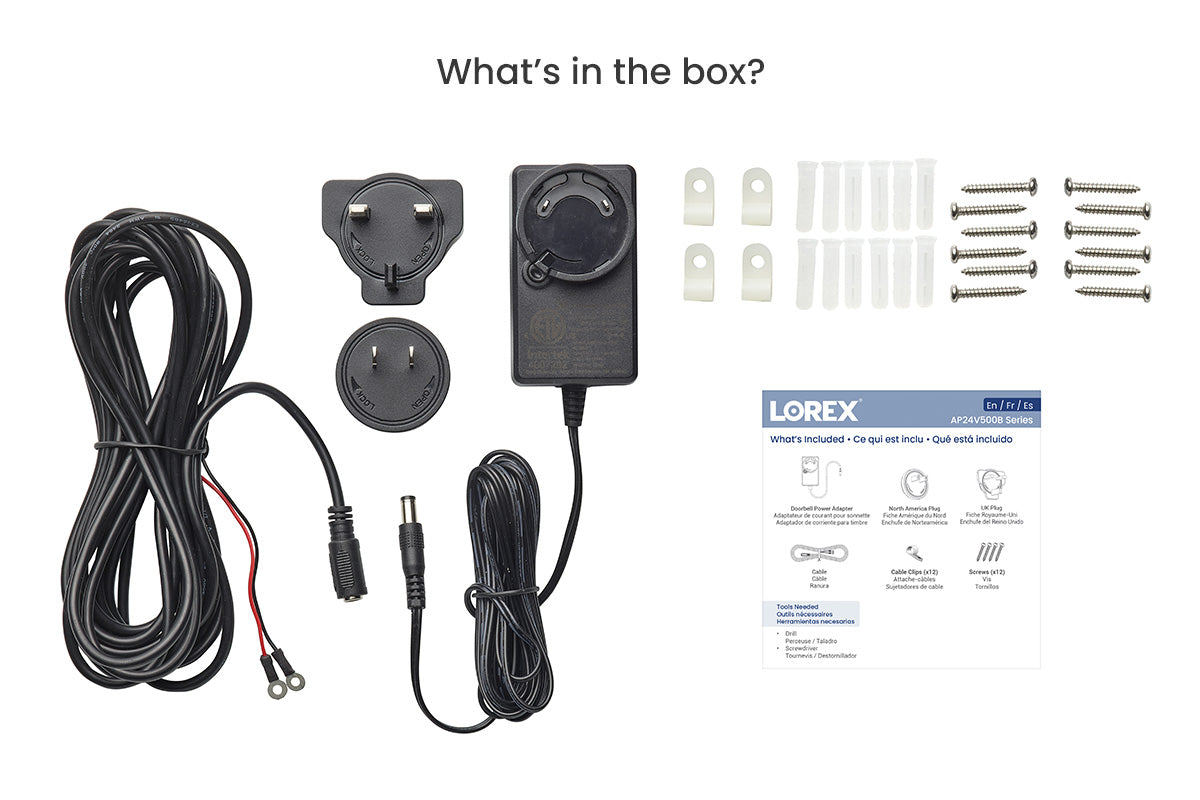

What's Included
Package Contents:
1 × Doorbell Power Adapter (with 3m cable)
1 × North America Plug
1 × UK Plug
1 × Extension Cable (5m)
12 × Cable Clips
12 × Screws
Quick Start Guide
