Pre-recording is available only when using Motion Detection and can be viewed exclusively during local playback. This feature is not supported for Smart Motion Detection (SMD), continuous recording, or through the Lorex app or cloud services. The duration of the pre-recorded footage may vary based on the recorder available cache memory at the time the event was detected, up to a maximum time set by the user.
All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.
Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.
Lorex Fusion Series 4K 16 Camera Capable (Wired or Fusion Wi-Fi) 6TB Wired NVR System with H13 IP Dome Cameras
8
$1,559.00
Sale price
$1,559.00
Regular price
What's Included
- Info / Panic Button
- Hard Drive, Network, Recorder & Power LEDs
- USB
- Power Button
- Power Input
- Power Switch
- PoE Ports
- Alarm
- HDMI
- VGA Port
- RS232
- LAN
- Audio In / Out
Package Contents:
4K Fusion NVR
Ethernet Cable
USB Mouse
HDMI Cable
- 4K (8MP) IP cameras are required to take advantage of 4K recording.
- Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
- This Fusion NVR can connect to 16 wireless devices per system. The NVR must be connected to the your Wi-Fi Router via network cable. Wireless devices require an available channel on the NVR as well as a sufficient signal strength between the device(s) and your Wi-Fi router for video streaming. For full details on Wi-Fi cameras compatibility and instructions, visit www.lorex.com/pages/fusion
- Controlling certain features in your security system requires a compatible smart device. Availability and performance of certain features and services are smart device dependent and may not be available in all areas or networks. For compatibility, features, and instructions visit www.lorex.com
- Accuracy of Smart Motion Detection will be influenced by multiple factors, such as the object’s distance from the camera, the size of the object, and the height and angle of the camera. Night vision will also impact the accuracy of detection. Compatible with certain Lorex IP cameras only.
- Compatible with certain Lorex IP and select wireless cameras only. For a list of compatible cameras please visit www.lorex.com/compatibility
- Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 5Mbps is recommended for reasonable video performance. Up to 3 devices may connect to the system at the same time. For the latest list of supported apps and devices, please visit www.lorex.com/compatibility
- HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
- NVR has a total PoE power output of 130w. Different IP cameras have different wattage specifications. Please double check your camera specifications for power consumption (Wattage) requirements in order to not exceed the NVRs power output availability of the recorder when adding cameras. To learn more, please visit www.lorex.com/compatibility
Dimensions (WxDxH): 4.8" x 4.8" x 4.8" (122mm x 122mm x 122mm)
Weight: 1.15lbs / 0.52kg
Package Contents:
4K IP Dome Camera
Mounting Kit
Cat5e Ethernet Cable
Quick Start Guide

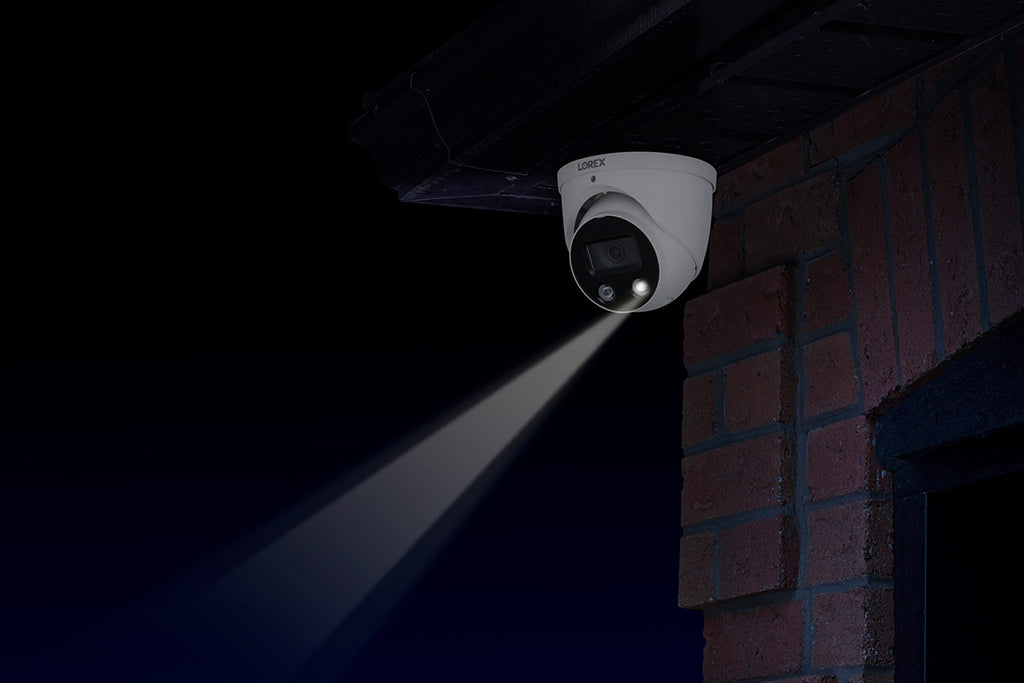

- 4K (8MP) Ultra HD resolution1
- 108° horizontal field of view
- Color Night Vision2
- Up to 150ft (46m) IR night vision in low light condition. Up to 98ft (30m) in total darkness3
- Smart Motion Detection Plus - Face, Person and Vehicle Detection
- Face Recognition and Mask Detection technology with automatic voice prompts4
- Get notifications from your Lorex App™ app
- Automatic warning light during person or vehicle detection
- Remote-activated siren
- Built-in microphone and speaker for 2-Way Talk5
- Enhanced 2-Way Talk with Quick Response Messages
- Safeguard - object missing or left behind
- IP67 (Indoor/Outdoor) Environmental Rating6
Product Specifications
N864A66B Product Specifications
Download PDFE893DD-E Product Specifications
Download PDFSecurity NVR: N864A66B
IP Security Cameras: E893DD-E
