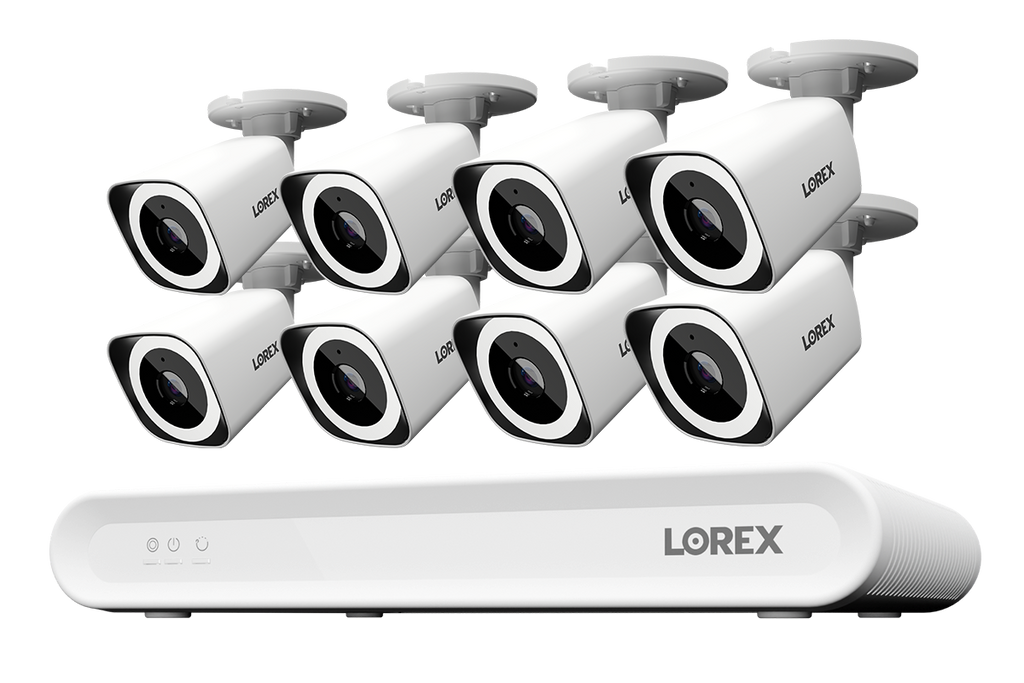

Lorex Connect V Series 4K 8-Channel Wired NVR System with V3 4K PoE Bullet Cameras - 1TB

V Series|

CN301V3-BW2-8CH1T

Lorex Connect V Series 4K 8-Channel Wired NVR System with V3 4K PoE Bullet Cameras - 1TB (Cables not included)

Key Features:

No Monthly Fees
4K Ultra HD Resolution
Smart Motion Detection

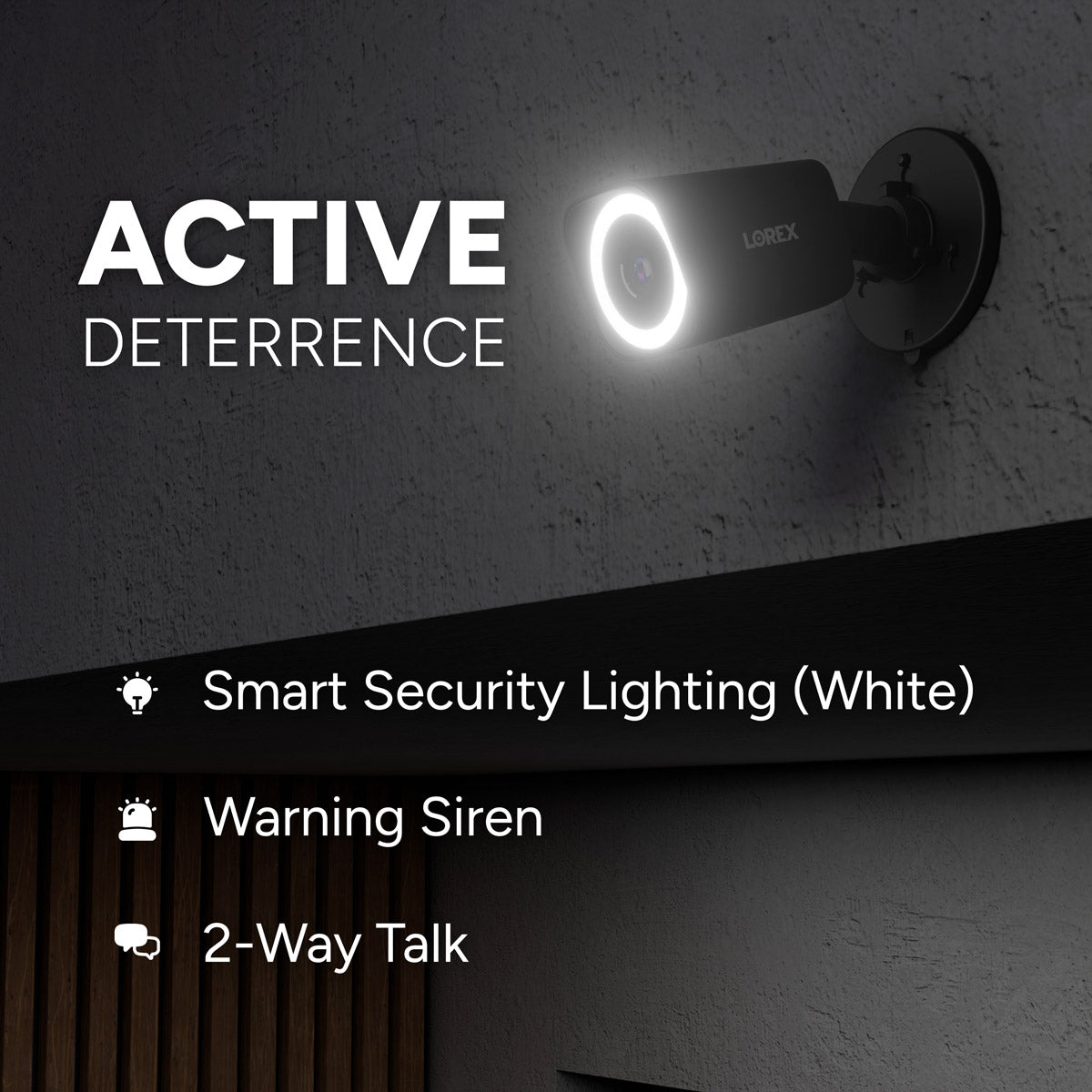

Smart Deterrence
Smart Security Lighting
Color Night Vision
Two-Way Audio

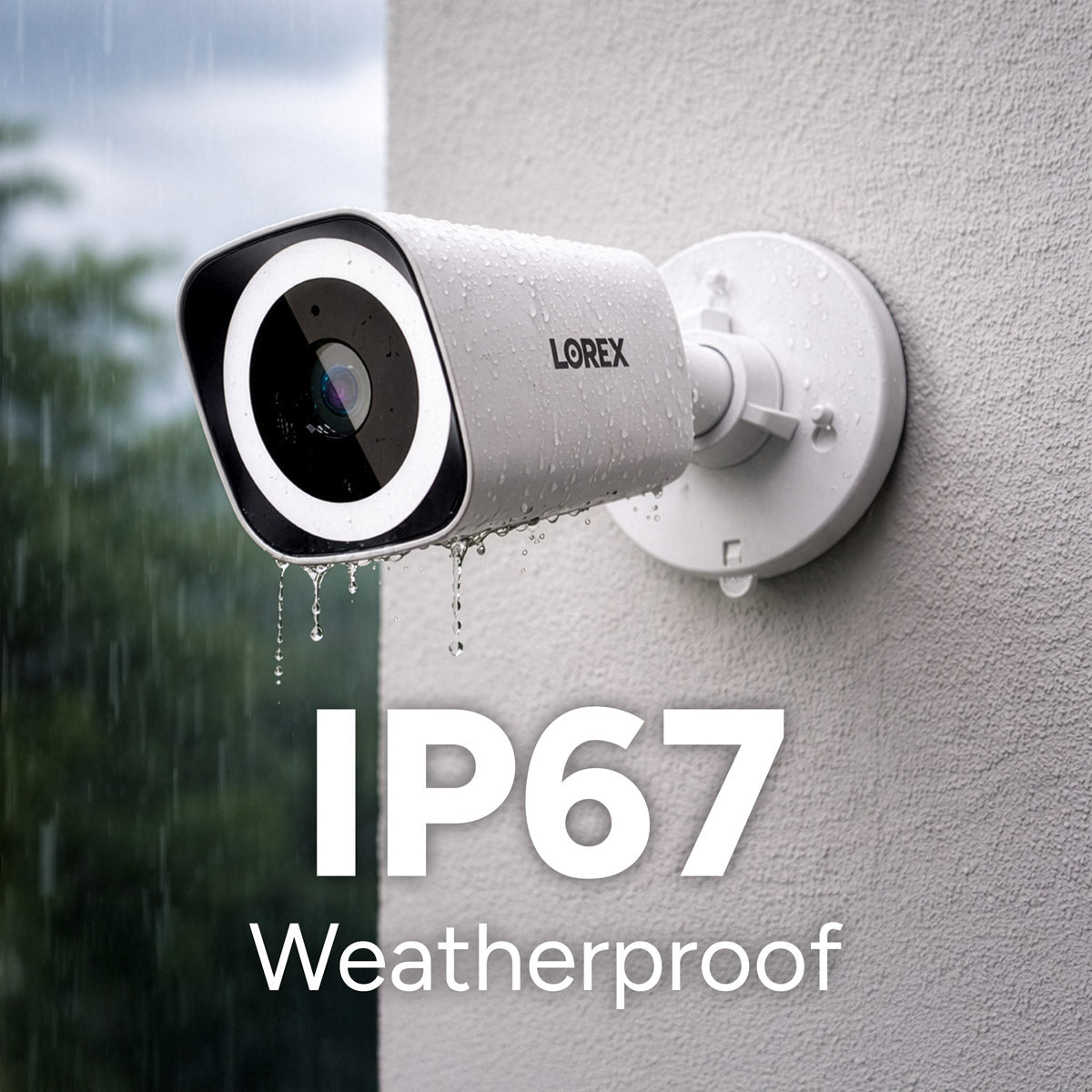

IP67 Weatherproof Rating

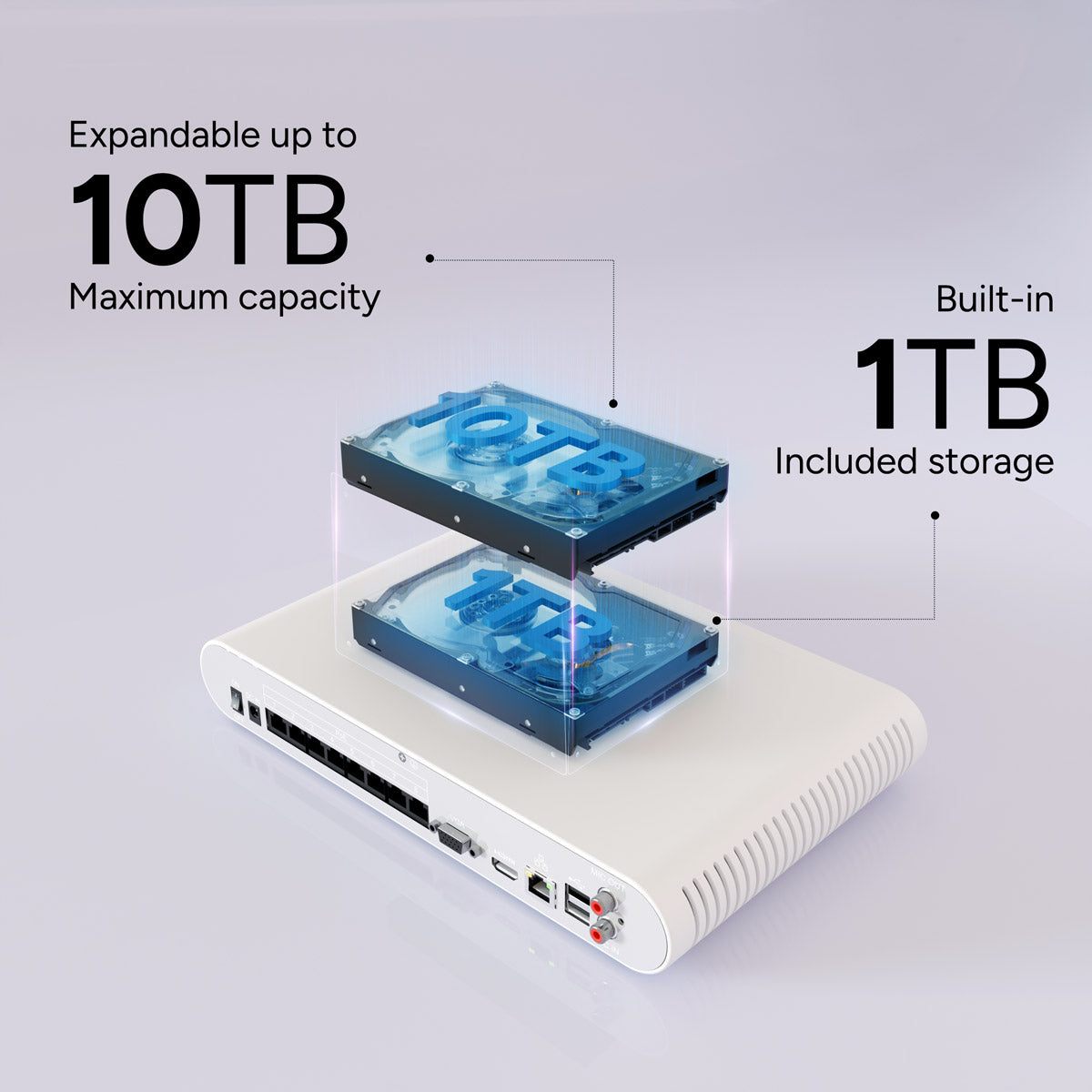

Built-in 1TB Storage. Expandable up to 1 × 10TB

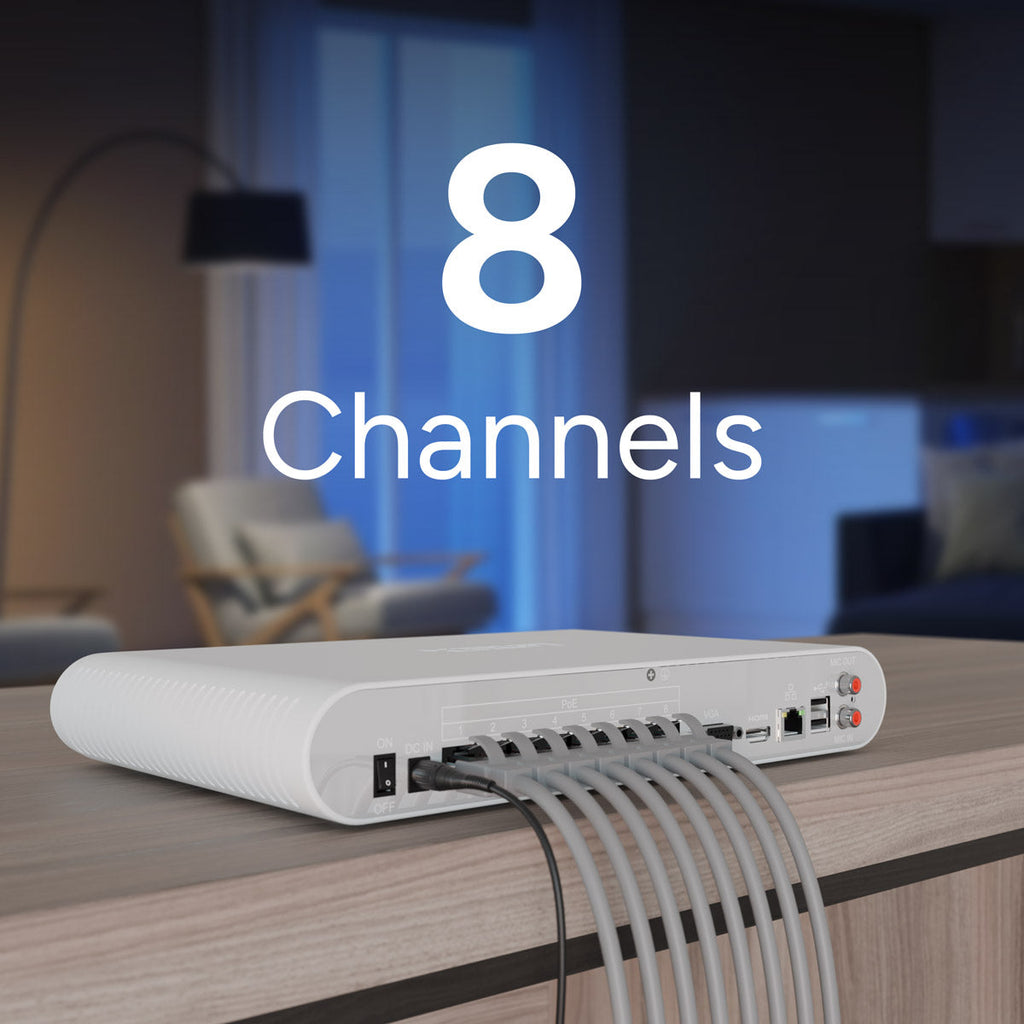

Connect up to 8 cameras
Works with the Lorex Connect mobile app
Wide Dynamic Range (WDR)

🛈

Camera cables are sold separately.

Become a Partner and Log in to access volume pricing, build your system, and place orders.

Color White Black

Number of cameras 2 4 6 8

AI Video Analytics

What's Included

Security NVR
VC - RN301A-81W-AB1
IP Security Cameras
CN301A-1BW-AB1

4K 8-Channel NVR

Network Cable

HDMI Cable

USB Mouse

Power Adapter

4K IP PoE Bullet Camera

Mounting Hardware

Weather-Resistant Cap

Ethernet Extension Cable

Product Specifications

In this bundle

Select a component to view its specifications.

Find a spec in this bundle

Channels: 8 Channels
Max Resolution: 4K Ultra HD (3840 × 2160 pixels)
HDD Bays: 1 Bay
Max HDD Capacity: Up to 10 TB
PoE Ports: 8 × PoE
PoE Budget: 57 W total
Outputs: 1 × HDMI, 1 × VGA

General

2 specs

Video Transmission Technology: IP
Channels: 8 Channels

Inputs & Outputs

3 specs

Video Inputs: 8 × PoE (Power over Ethernet)
Video Outputs: 1 × HDMI, 1 × VGA
Audio Input Format: 1 × RCA

Display

6 specs

Maximum Display Resolution: Up to 4K Ultra HD (3840 × 2160 pixels)
HDMI Output Resolutions: 3840 × 2160
2560 × 1440
1920 × 1080
1440 × 900
1280 × 1024
1280 × 720
1024 × 768
VGA Output Resolutions: 1920 × 1080
1440 × 900
1280 × 1024
1280 × 720
1024 × 768
Live Display Modes: 1, 4, 8 view split
On-Screen Display (OSD): On/Off
System Navigation: USB Mouse

Recording

3 specs

Supported Recording Resolutions: 8 MP (3840 × 2160)
5 MP (2592 × 1944)
3 MP (2048 × 1536 pixels)
2 MP (1920 × 1080 pixels)
1.3 MP (1280 × 960)
1 MP (1280 × 720)
Video Compression: H.264 / H.265
Recording Modes: Continuous, Motion Detection, and AI Motion Detection (per channel)

Playback

3 specs

Simultaneous Playback: Up to 8 Channels (Synchronized)
Playback Speed Options: Fast Forward/Rewind: 2×, 4×, 8×, 16×
Slow Motion: 1/2×, 1/4×, 1/8×, 1/16×
Search Options: By Time/Date, All Motion Events, or Smart Motion Detection (Person and Vehicle)

Storage & Backup

3 specs

HDD Bay: 1 Bay
Maximum HDD Capacity: Up to 10 TB
Backup Media: USB Flash Drive

AI Detection & Smart Features

4 specs

Adjustable Motion Detection Sensitivity Levels: 1–8
AI Motion Detection Support: Supported, for Person & Vehicle, Perimeter Intrusion, and Smart Search (playback)
Support Pedestrian & Vehicle, Perimeter Intrusion, Line Crossing
Active Deterrence: Supported
Smart Search: Supported

Connectivity

9 specs

Mobile Viewing: Lorex Connect App (iOS and Android)
Event Notifications: Supported
Email Notifications: Supported
Network Interface: 10/100 Base-TX (RJ45)
Network Bit Rate: 320 Mbps
USB Ports: Back: 2 × USB 2.0
Firmware Upgrade: Network, USB
Supported Languages: English, French and Spanish
DDNS: Optional

Security

1 spec

Password Reset: Supported

Power

3 specs

Power Supply: 1.8 A
PoE Power Output: Maximum 25.5 W per port, 57 W total
Power Consumption (Excluding HDD): 6 W

Physical & Environmental

5 specs

QuietTek (Fanless Design): Supported
Product Weight: 2.602 lbs (1.18 kg)
Product Dimensions (W × D × H): 12.24 × 7.57 × 1.91 in (310.90 × 192.28 × 48.51 mm)
Operating Temperature: 14° F to 131° F (-10° C to 55° C)
Humidity: 10~90% RH

Packaging Information

6 specs

RN301A: SKU: RN301A-81W-AB1
UPC: 6-95529-06396-6
Package Type: Brown Box
Package Dimensions (W × D × H): 20.24 × 9.96 × 4.17 in (514.10 × 252.98 × 105.92 mm)
Package Weight: 4.66 lbs (2.11 kg)
Package Cube: 0.49 ft³ (0.0139 m³)
Package Contents: 4K Wired NVR
Ethernet Cable
HDMI Cable
USB Mouse
Power Adapter

Model Information

1 spec

SKU: RN301A-81W-AB1

Notes & disclaimers

4K (8MP) IP cameras are required to take advantage of 4K recording.
Recording time may vary based on recording resolution and quality, lighting conditions and movement in the scene.
Accessing your security system remotely requires a high-speed Internet connection. Ensure your NVR has a wired connection to a router (not included). A minimum upload speed of 6Mbps is recommended for reasonable video performance.
HDMI output supports 4K HD for high definition multi-channel live or recorded video viewing. Image quality and resolution is dependent on the type of camera connected to the NVR, as well as TV/monitor resolution.
