Product Features
- 1 input 2 output design (Possible to connect 2 network devices using 1 cable)
- Extended Ethernet transmission distance up to 200m (Configured with the Hybrid PoE Switch Series)
- 10/100 Base-T Ethernet (Full Duplex)
- Power Status LED indication
- PoE input
- DC48~57V power input
- Cascade configuration
- Over current protection for secured power supply
- Surge Protection
1 Input →
2 Output PoE
Daisy Chain
Connection
PoE from NVR
to IP Camera
8K High-Quality
Video Stream
Surge / Short
Protection
Professional
CCTV Quality
Simplified
Installation
Cost
Saving
Worldwide
Certification

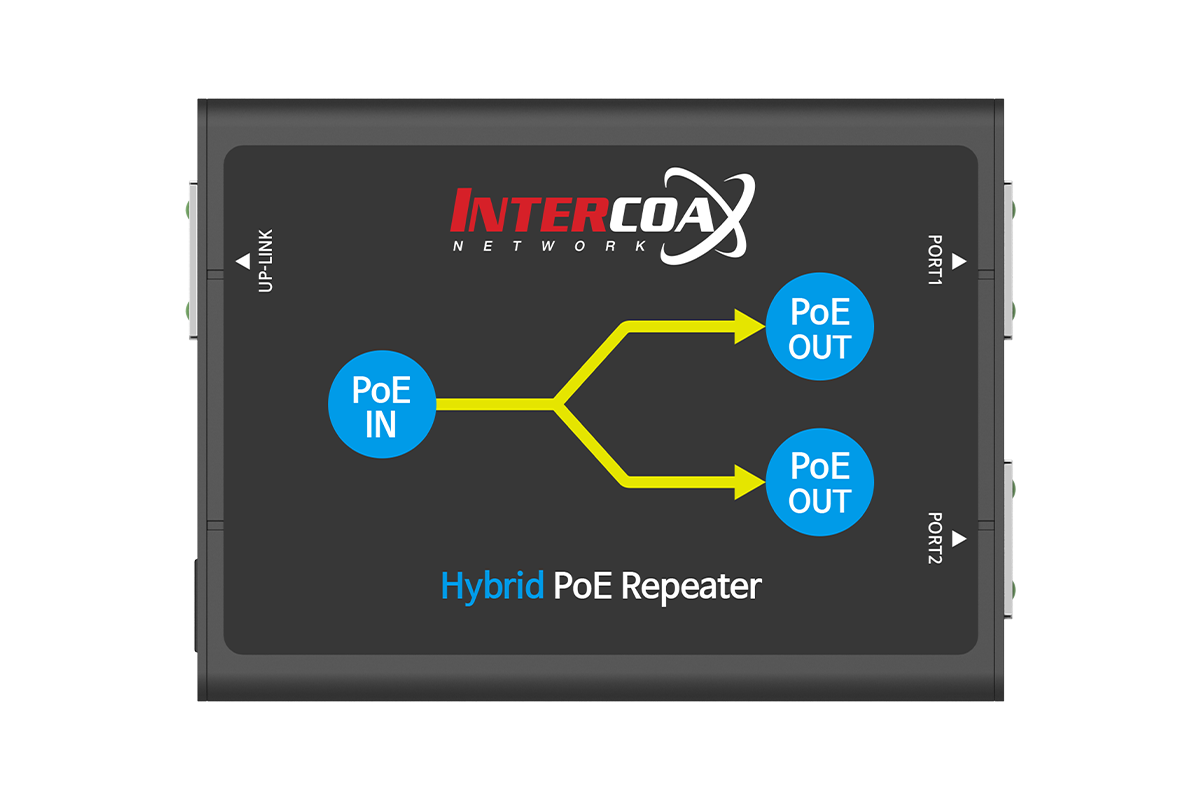

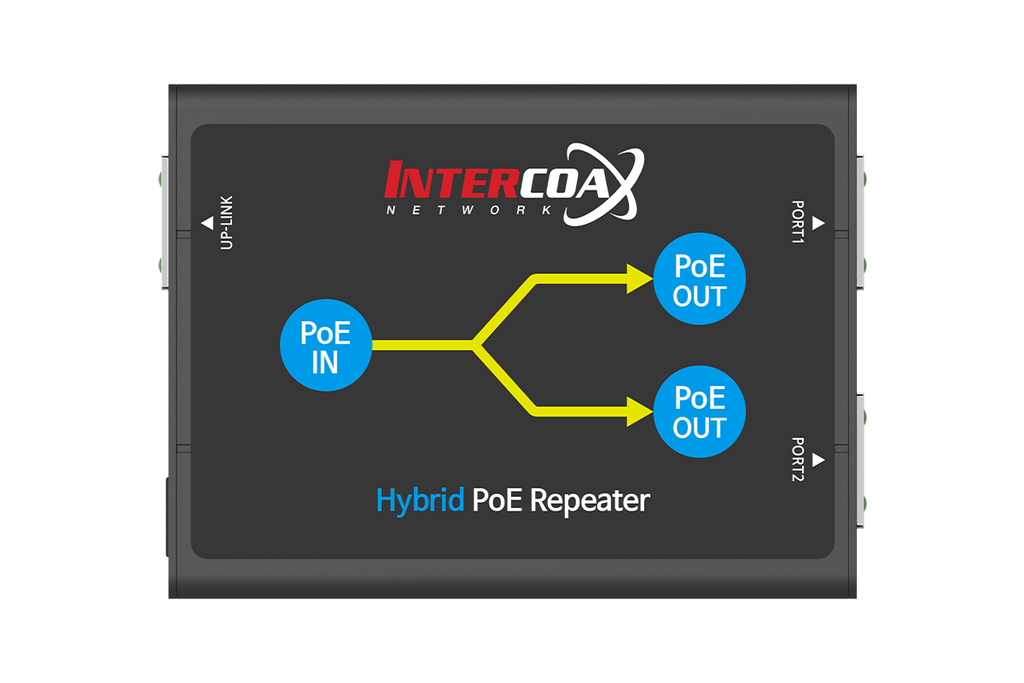

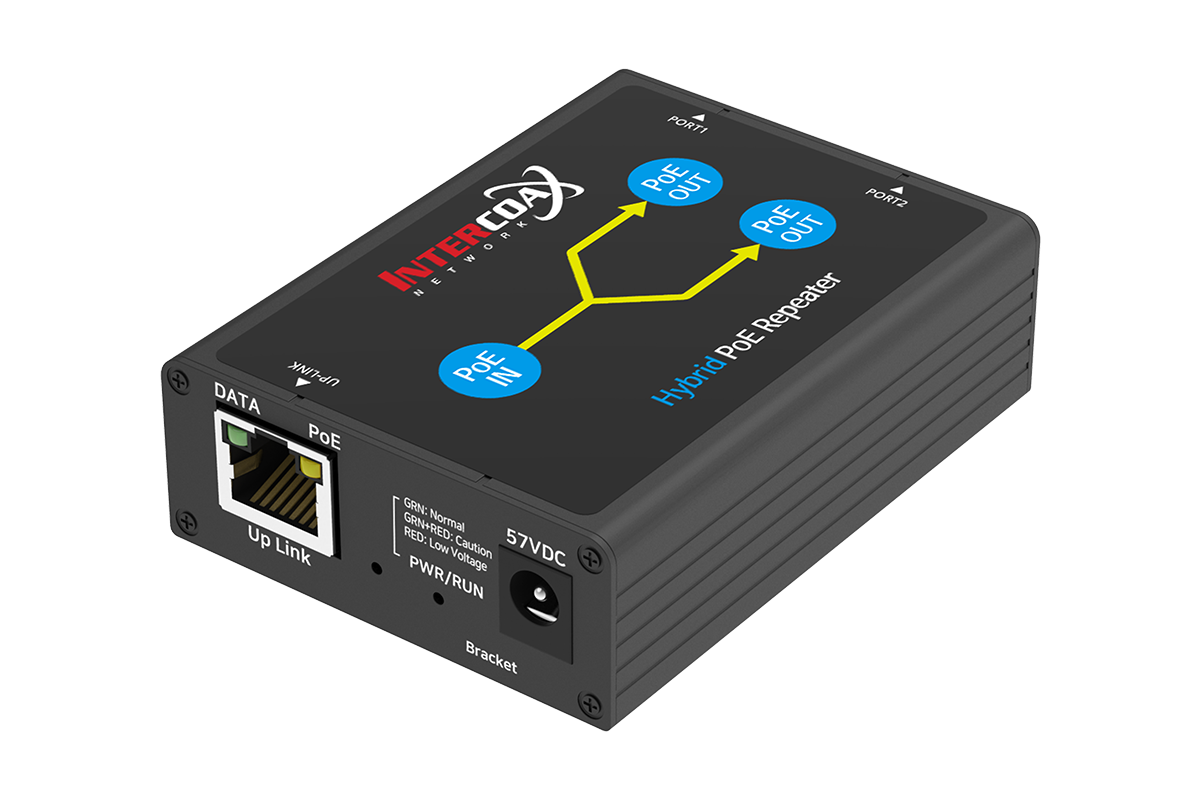

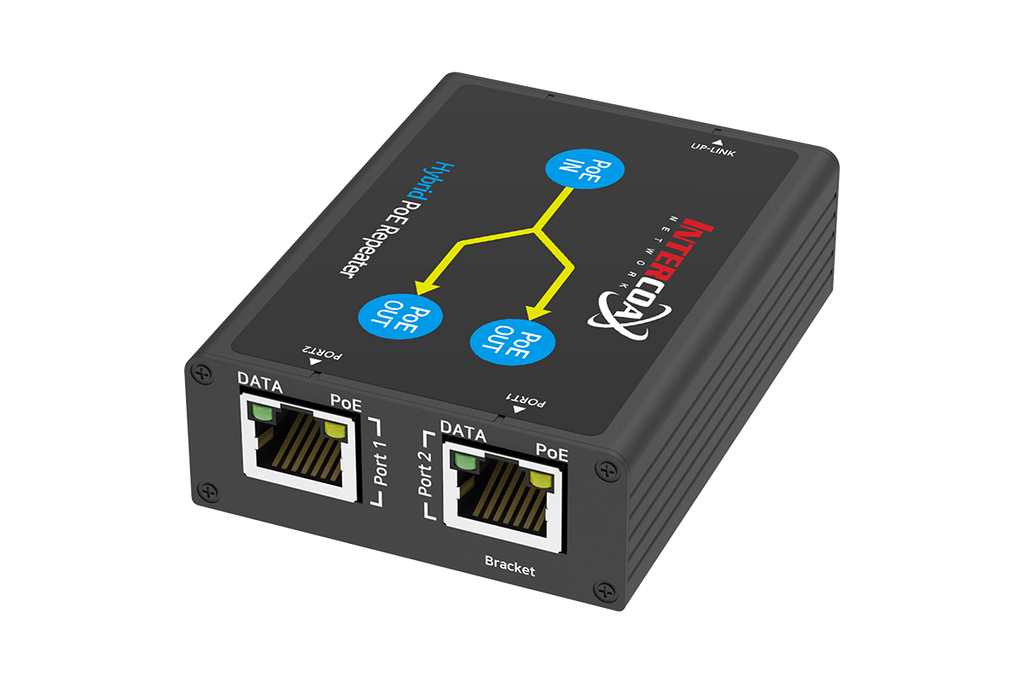

The HPS-01 is a 2-port Hybrid PoE Switch that transmits both network signals and PoE+ power up to 200 meters between devices. Its 1-input, 2-output design simplifies the installation of two network devices onto a single LAN cable and enables the connection of multiple devices in a cascade configuration. Equipped with a built-in standard PD, the device provides a secure PoE+ power supply and supports PoE output up to 25.5W (up to 30W with a DC 57V power supply).
Connection Diagram
*Transmission distance may vary depending on the type and quality of cable.
Product Specifications
| Model | HPS-01: 2 Port Hybrid PoE Switch | |
|---|---|---|
| Interface | ||
| EoDownlink | 2 x RJ-45 | |
| Uplink | 1 x RJ-45 – 10/100 Base-T with Auto-detect MDIX | |
| Transmission Rate | 100 Mbps Full Duplex | |
| Transmission distance | Ethernet / PoE | Up to 100m - 1000 Base-T Up to 200m between devices – 10/100 Base-T |
| LED Indication | ||
| Data | 3 x Data Link (Green) | |
| PoE | 3 x PoE Link (Amber) | |
| PWR | 1 x Input Power Quality (Green: Normal/48VDC and more, Green+Red: Caution, Red : Power Shortage/38VDC and below |
|
| Power Input | ||
| PoE | IEEE802.3af, IEEE802.3at | |
| DC | DC48V ~ 57V | |
| Power Output | PoE | IEEE802.3af, IEEE802.3at |
| Model | HPS-01: 2 Port Hybrid PoE Switch | |
|---|---|---|
| Mechanical | ||
| Dimension | 80.4(L) x 61.6(W) x 24(H) mm | |
| Weight | 102g | |
| Environment | ||
| Operating Temp | -20 ~ 60°C | |
| Storage Temp | -30 ~ 80°C | |
| Relative Humidity | 10% ~ 90% | |
| Compliance | ||
| Certification | FCC, CE, KC, RoHS | |
| Surge Protection | IEC 61000-4-5 4kV(1.2 / 50us), 2kV(8 / 20us) | |
What's Included
Package Contents:
HPS-01
Bracket x 2
Screw x 4
Manual
Product Compatibility
Product Support
ALP-HPS-01 2-Port Hybrid PoE Switch
