16TB Surveillance-Grade Hard Drive

SKU: HDD16TB

Become a Partner and Log in to see pricing and to place orders

Product Features

  • Supports over 3× the workload rate of standard surveillance drives
  • Zero dropped frames while supporting heavier workloads
  • 2M hours MTBF and a 550TB/year workload rate
  • Built-in rotational vibration sensors

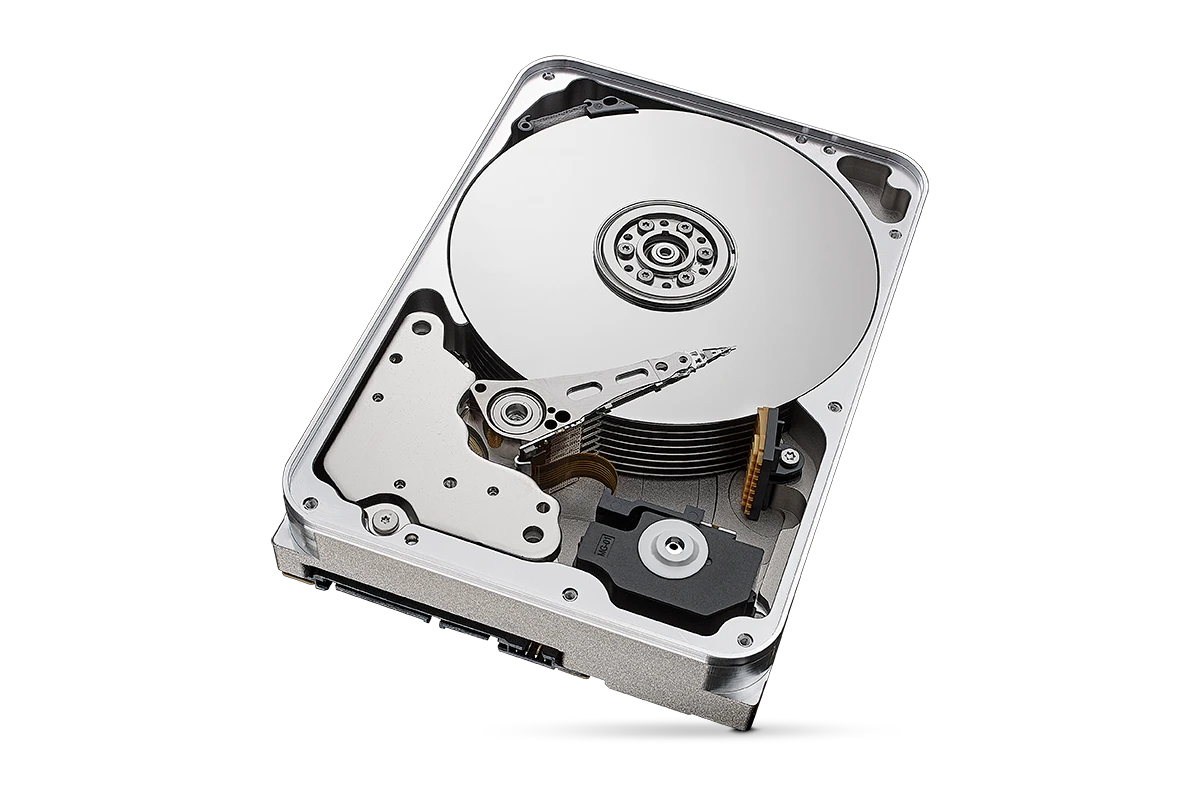

SkyHawk™ AI 16TB is an advanced surveillance-optimized drive designed for NVRs enabled with AI for edge security applications. It supports over 3× the workload rate of standard surveillance drives. It includes Rescue Data Recovery Service Plan.

Product Specifications

Capacity 16TB
Interface SATA 6Gb/s
Recording Technology CMR
Drive Design Helium
RV Sensors Yes
Max Data Transfer Rate (MB/s) Up to 270
Cache (MB) 256
Tarnish Resistant Yes
Load/Unload Cycles 600,000
Nonrecoverable Read Errors Rate, Max 1 per 10E15
Power-On Hours per year 8,760
Workload Rate Limit (WRL) 550
Mean Time Between Failures (MTBF) (hours) 2,500,000hr
Startup Current, Typical (12V, A) 2.0
Average Read/Write Power (W) 8
Idle Average (W) 5.3W
Standby Mode/Sleep Mode, Typical (W) 1.3/1.3
Voltage Tolerance (5V) ±5%
Voltage Tolerance (12V) ±10%
Environmental/Temperature
Operating (Ambient, min °C) 0
Operating (drive reported, max °C) 65
Nonoperating (ambient, min °C) -40
Physical
Height (mm/in, max) 26.11mm/1.028in
Width (mm/in, max) 101.85mm/4.01in
Depth (mm/in, max) 146.99mm/5.787in
Weight (g/lb, typical) 670g/1.477lb
