Product Features
- Fusion Recorder Recommended (Wi-Fi)
- Ultra HD Resolution

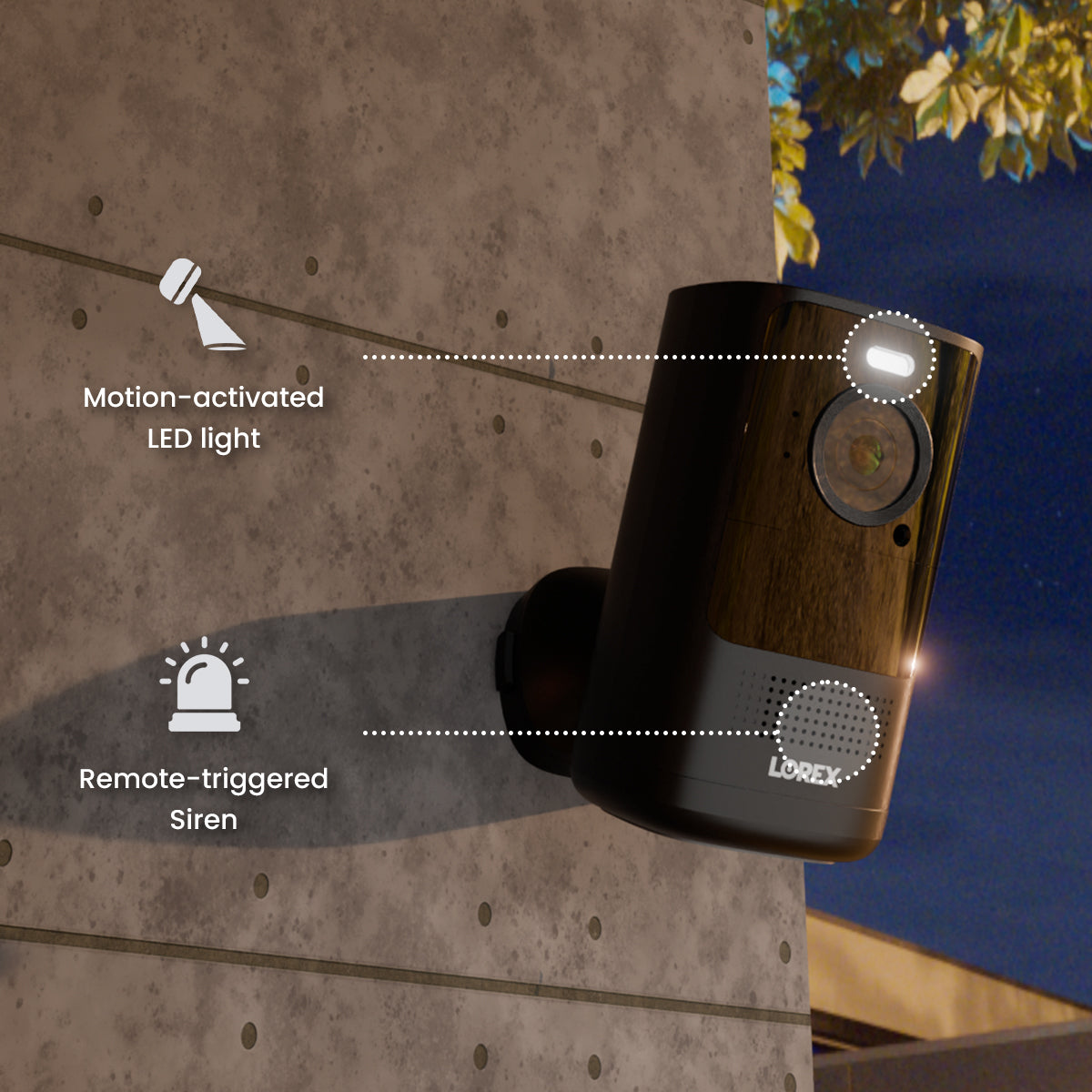

- Smart Deterrence
- Smart Motion Detection

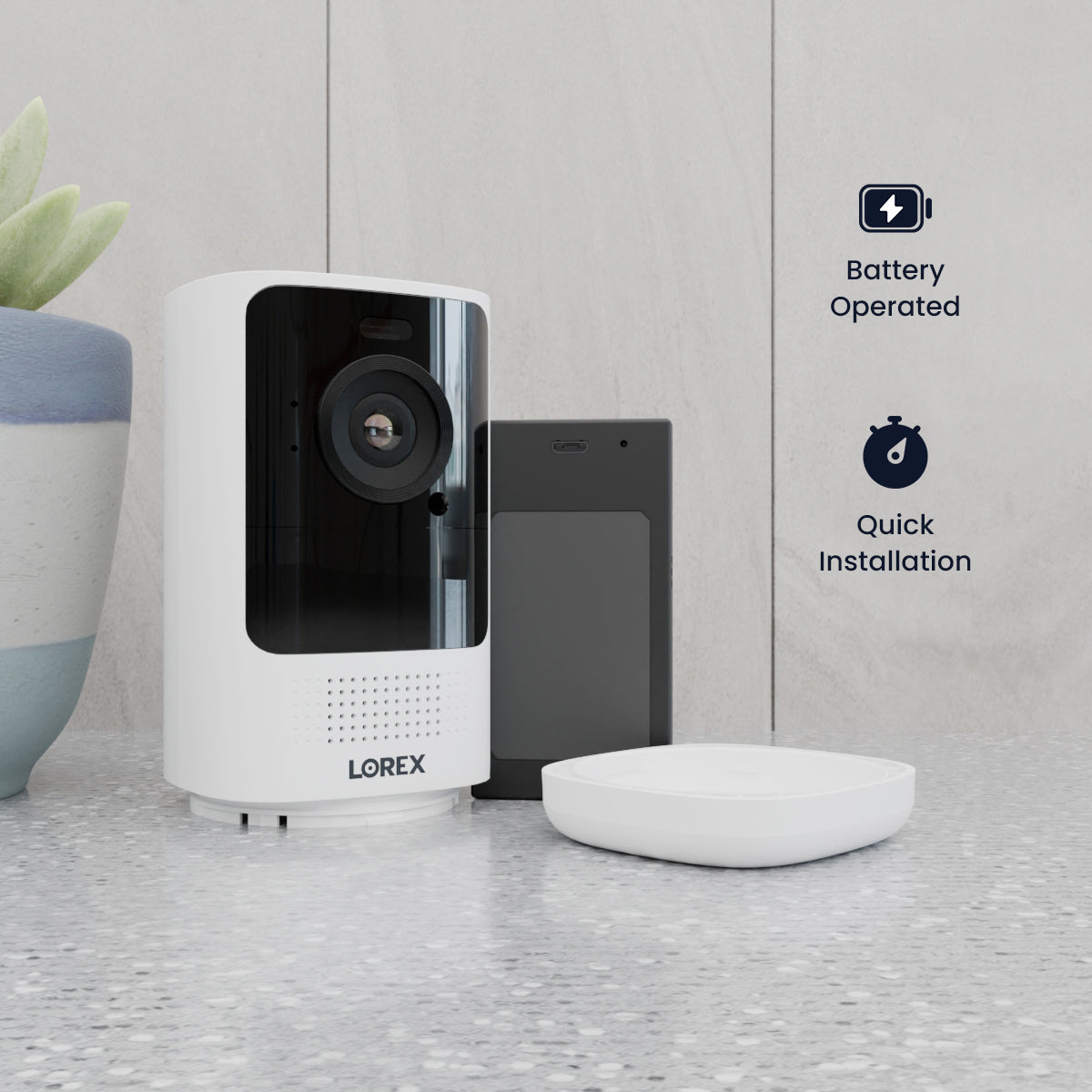

- Battery-Operated Cameras

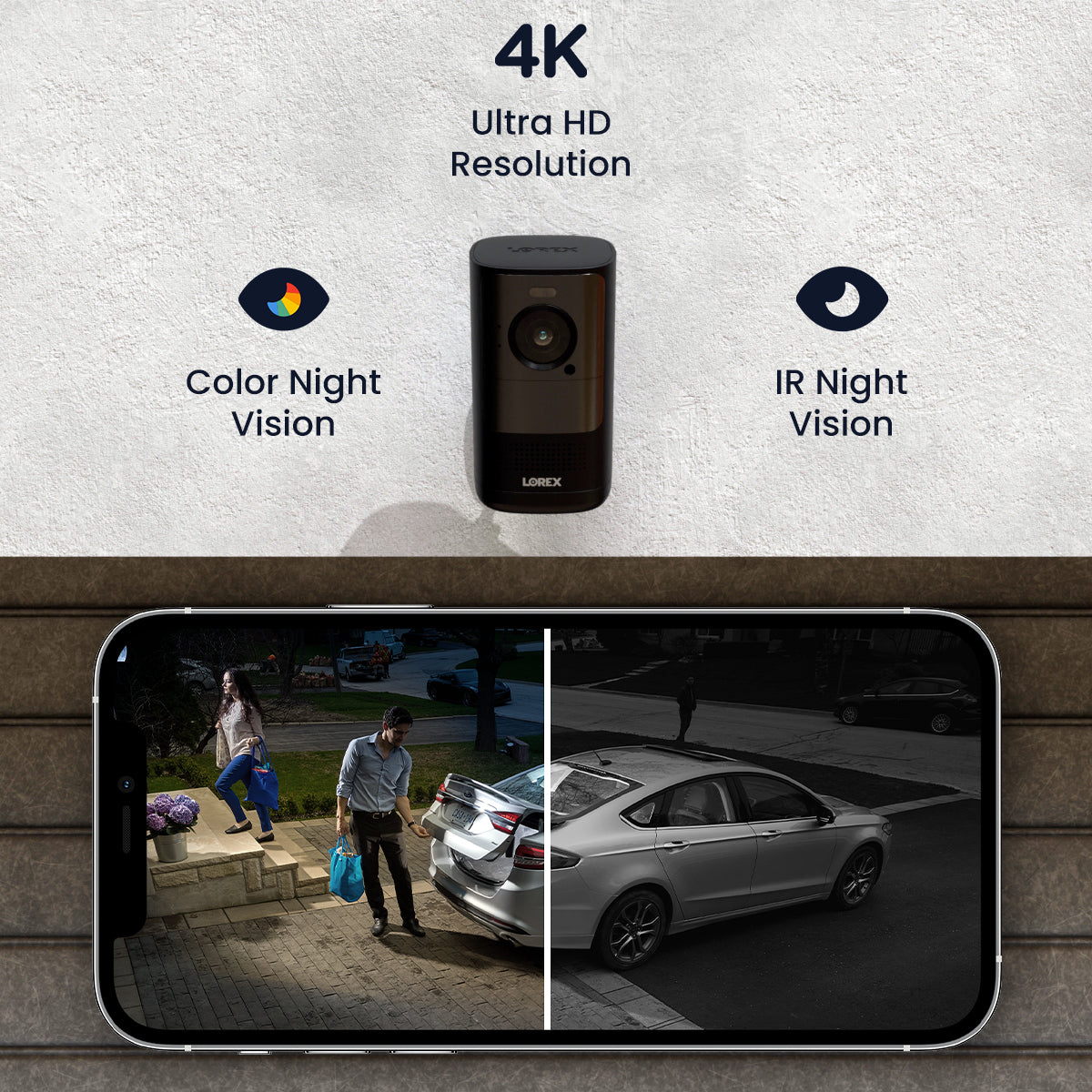

- Color Night Vision

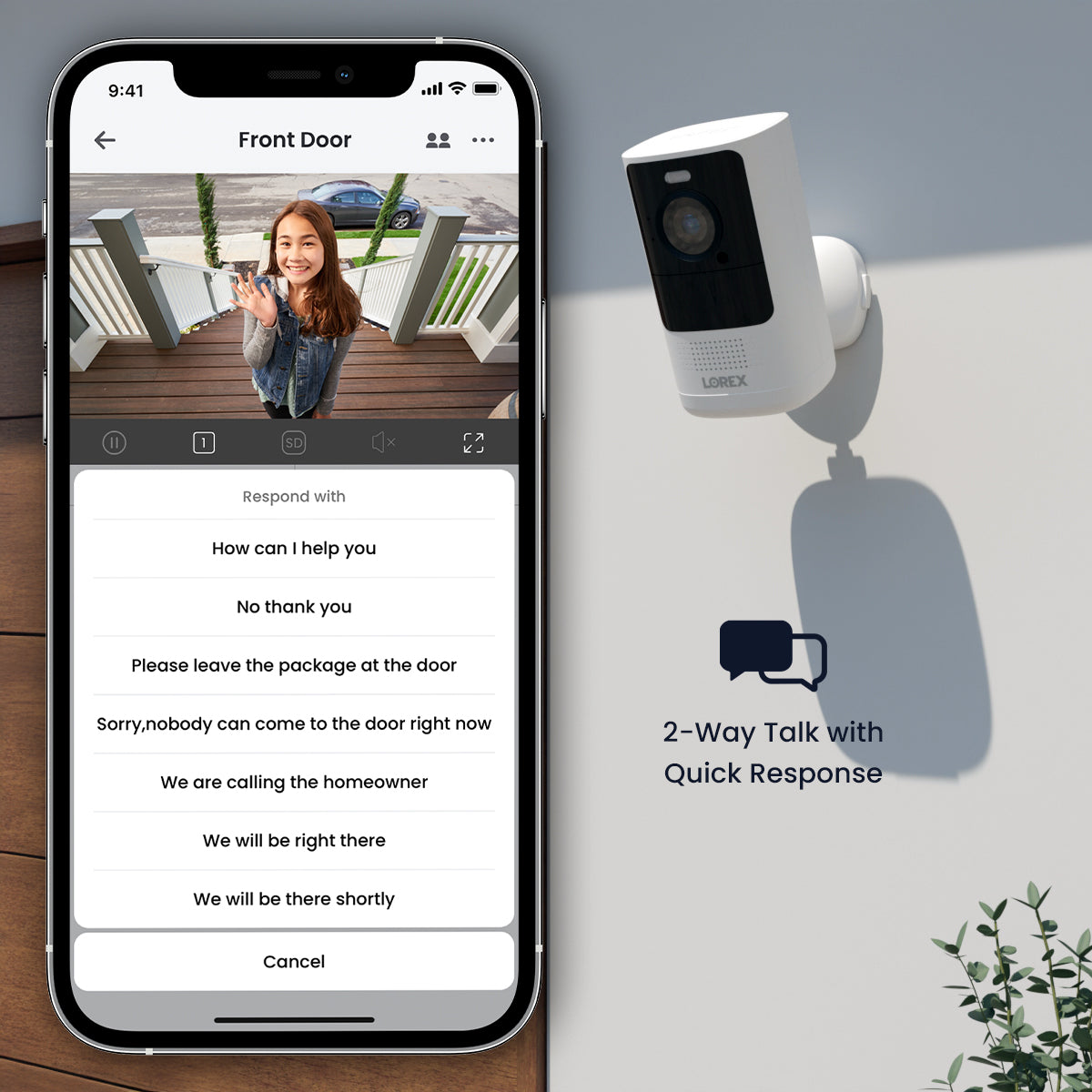

- Two-Way Audio
- 16:9 Aspect Ratio
- IP65 Weatherproof Rating
- Works with the Lorex mobile app
4K clarity with an effortless set up, this camera provide a top quality and convenient monitoring experience.

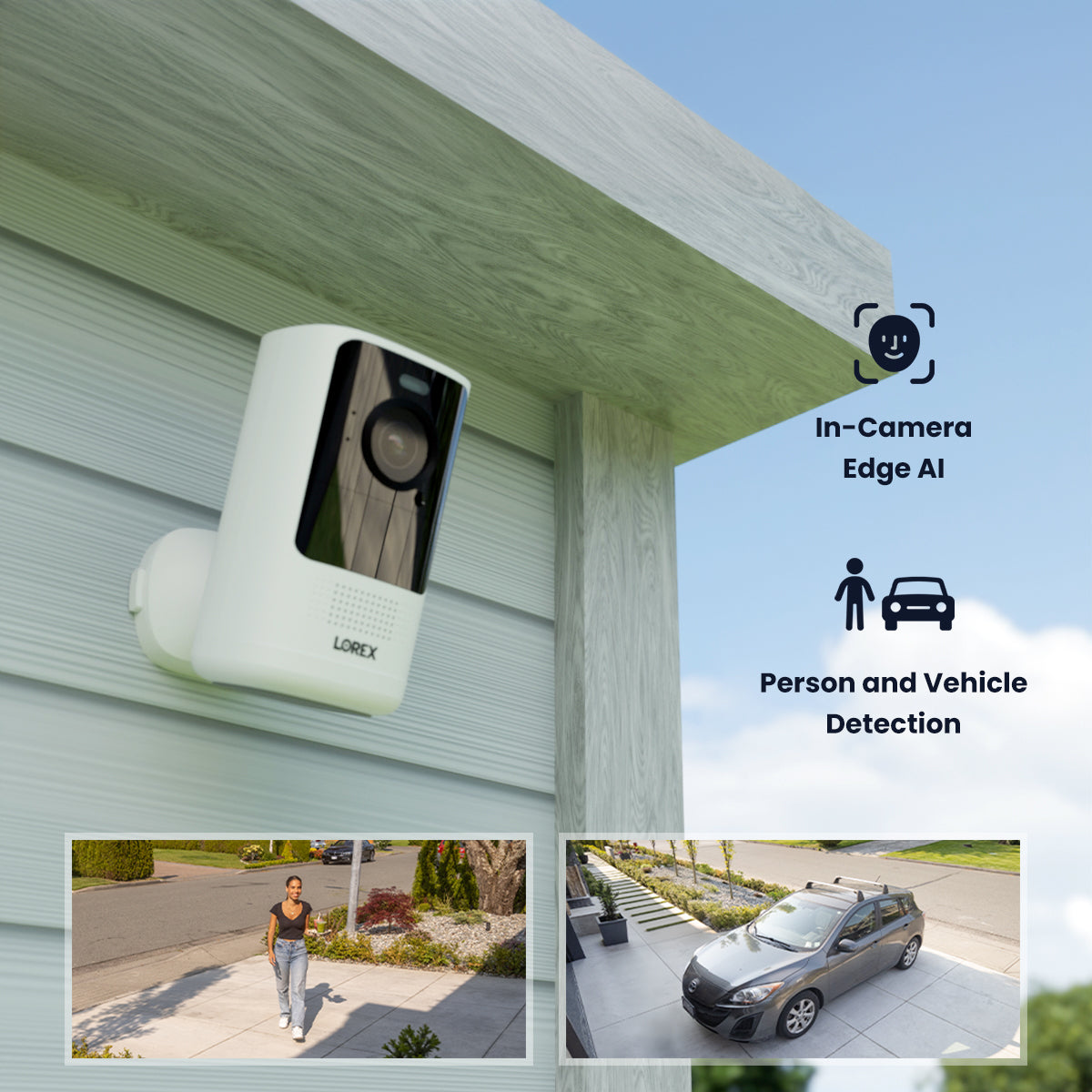

In-Camera Video Analytics
Product Specifications
| Sensor | |
|---|---|
| Imaging Device | 1/3” CMOS |
| Sensor Resolution | 8 MP |
| Resolution | 3840 x2160 |
| Power mode | Built-in, 6000mAh |
| Scanning System | Progressive |
| Aspect Ratio | 16:9 |
| Connectivity | |
|---|---|
| Network Connectivity |
2.4/5GHz 802.11b/a/g/n/ac |
| Lens | |
|---|---|
| Lens Type | Fixed |
| Focal Length | 2.8mm |
| Aperture | F1.6 |
| Diagonal Field of View | 132° |
| Horizontal Field of View | 111° |
| Vertical Field of View | 61° |
| Features | |
|---|---|
| Person Detection | Yes |
| Vehicle Detection (Requires continuous wired power) | Yes |
| Microphone | Yes |
| Speaker | Yes |
| Siren | Yes |
| Deterrence Light | Yes |
| Two-Way Talk | Yes |
| Operational | |
|---|---|
| Wide Dynamic Range | Digital WDR |
| Signal to Noise Ratio | ≤56dB |
| Night Vision Distance (max.) | 32’ |
| PIR angle (max.) | 120° |
| Environmental | |
|---|---|
| Operating Temperature/ Humidity | –4 °F to 122 °F / -20° C ~ 50° C / ≤95% RH |
| Weatherproof Protection | IP65 |
| Camera Housing | |
|---|---|
| Color / Material | White or black / plastic |
| General | |
|---|---|
| Product Dimensions (W × D × H) | 2.38 x 2.26 x 4.31” / 61 x 58 x 110mm |
| Product Weight | 0.69lb / 0.31Kg |
What's Included
1 × 4K Battery Camera
1 × Battery Pack
1 × 3.2ft (1m) Power Cable
1 × Mounting Template
1 × Mounting Bracket
3 × Anchors and screws
*Vehicle detection requires continuous wired power.
Product Compatibility
Product Support
F861AS Series - 4K Spotlight Battery Wi-Fi Security Camera
