Product Features
- Ethernet & PoE Repeater
- Up to 200m Ethernet & PoE extension
- Additional extension by adding devices
- 25W PoE output (IEEE802.3af/at)
- No additional power required (PoE powered)
- Surge Protection
- Slim design
Add-Ons
Product Discontinued: Meet the next generation
1 Input →
1 Output PoE
Long Range
Connection
PoE from NVR
to IP Camera
8K High-Quality
Video Stream
Surge / Short
Protection
Professional
CCTV Quality
Simplified
Installation
Cost
Saving
Worldwide
Certification

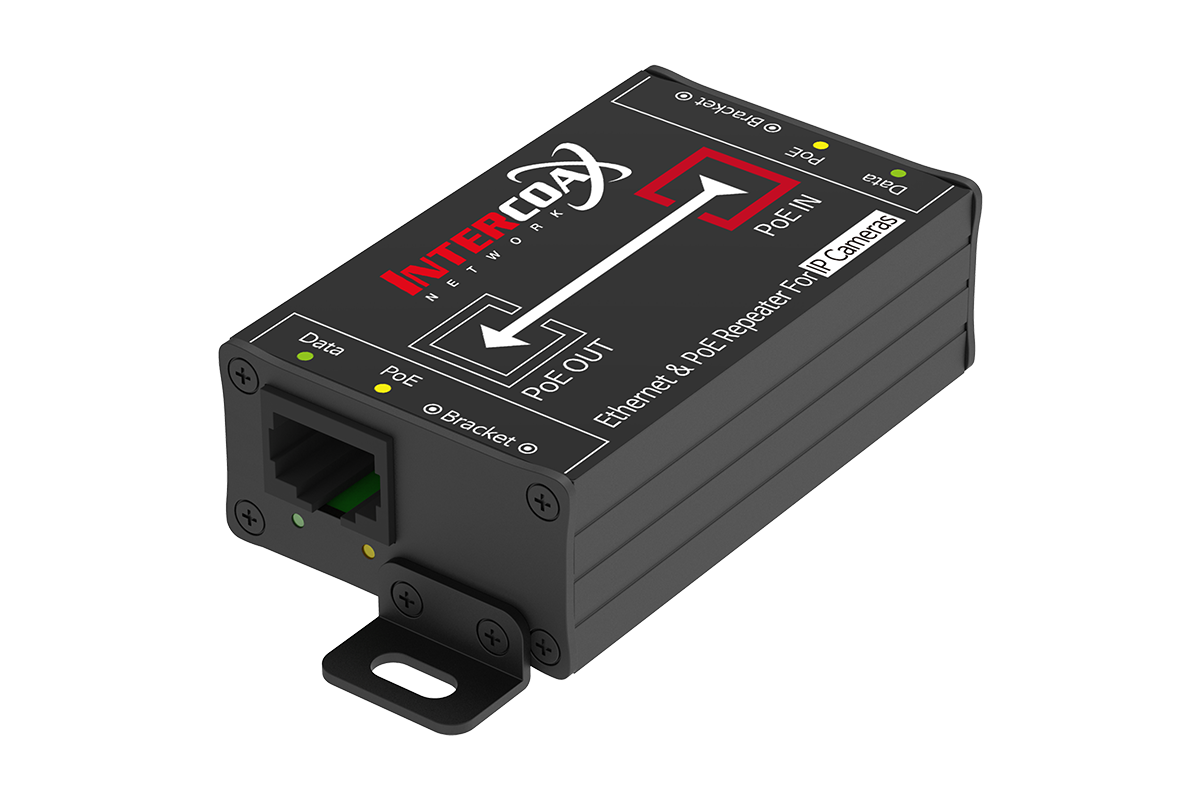

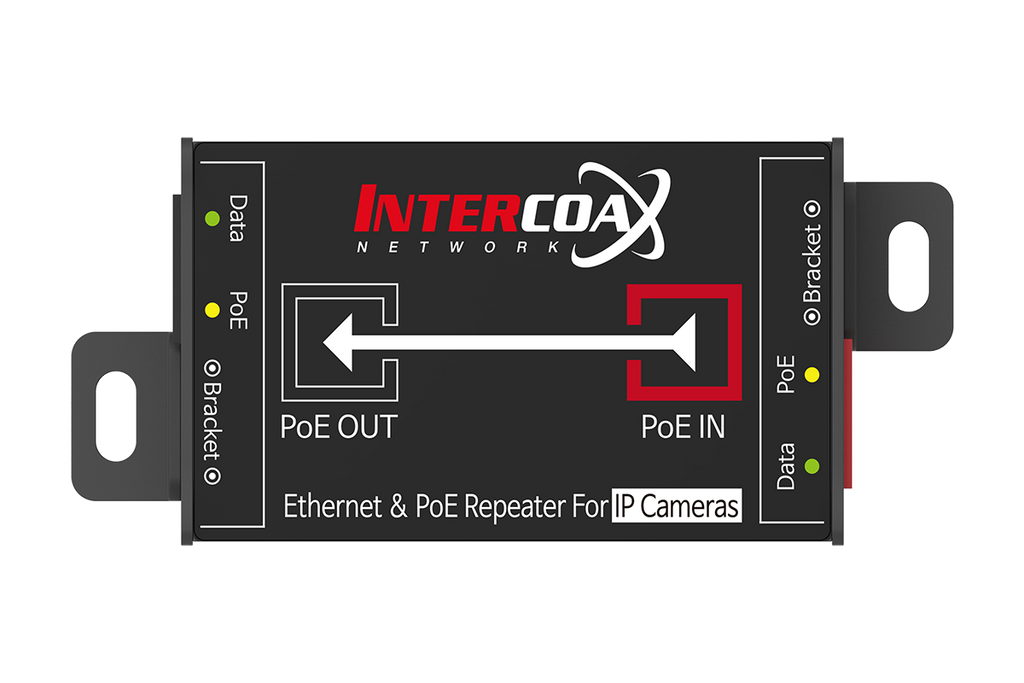

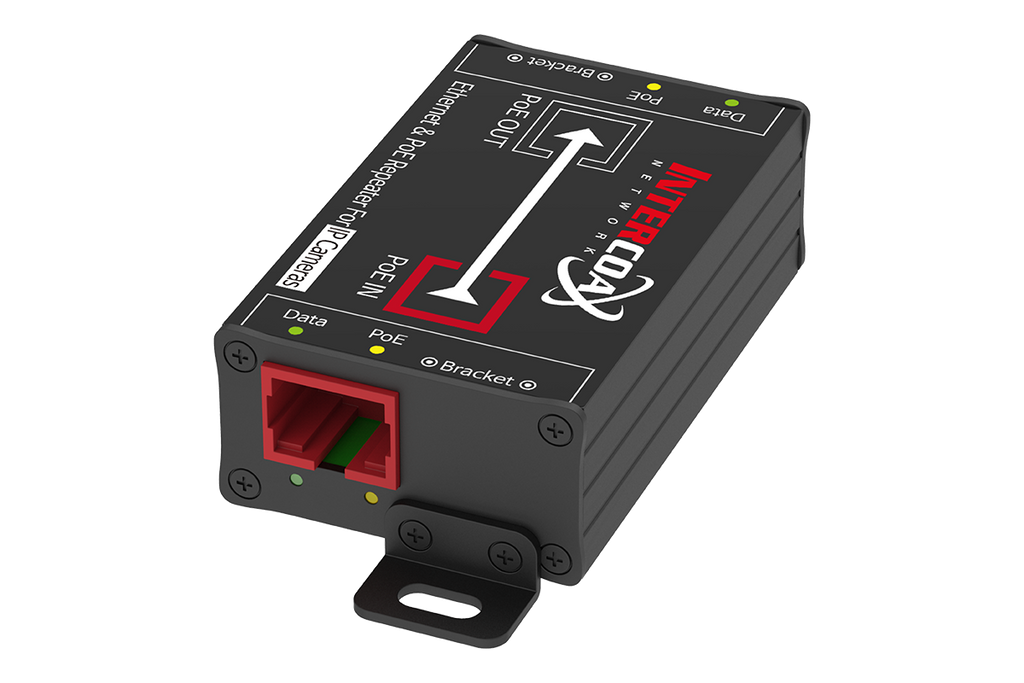

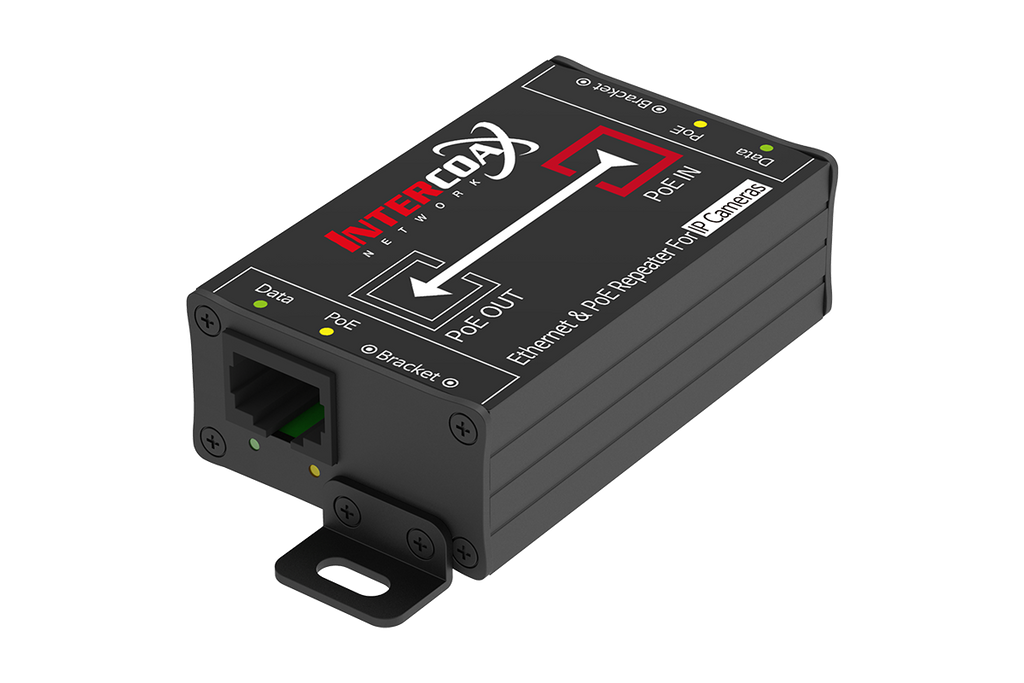

The EPR-111 comprises Ethernet & PoE Repeaters that enable overcoming the maximum 100m distance limitation in network configurations. For further distance extension, multiple devices can be connected via daisy-chaining (up to 600m). This provides a cost-effective and easy-to-install solution for all kinds of PoE (IEEE802.3af/at, up to 25W) compliant devices, such as IP cameras, network switches, VoIP phones, etc.
Connection Diagram
*Transmission distance may vary depending on the type and quality of cable, camera and environmental condition
Product Specifications
| Model | EPR-111 | |
|---|---|---|
| Interface | ||
| LAN / PoE In | 1 x RJ45 - 10/100 Base-T with Auto-detect MDIX | |
| LAN / PoE Out | 1 x RJ45 - 10/100 Base-T with Auto-detect MDIX | |
| Transmission Rate | 100Mbps Full Duplex | |
| Transmission Distance | 100m **(200m) | |
| LED Indication | ||
| Ethernet | 1 x Data(Green) | |
| Power | 1 x PoE(Yellow) | |
| PoE | ||
| Standards | IEEE802.3af/at(PoE) | |
| Max. Power | Max. 25W | |
| Model | EPR-111 | |
|---|---|---|
| Mechanical | ||
| Dimension | 66.4(L) x 40.9(W) x 21.8(H)mm | |
| Weight | 72.5g | |
| Environment | ||
| Operating Temp | -20 ~ 60°C | |
| Storage Temp | -20 ~ 80°C | |
| Relative Humidity | 10% ~ 90% | |
**( ) Max distance between EPR series.
What's Included
Package Contents:
EPR-111 Repeater
Bracket x 2
Screw x 4
Manual
