H Series

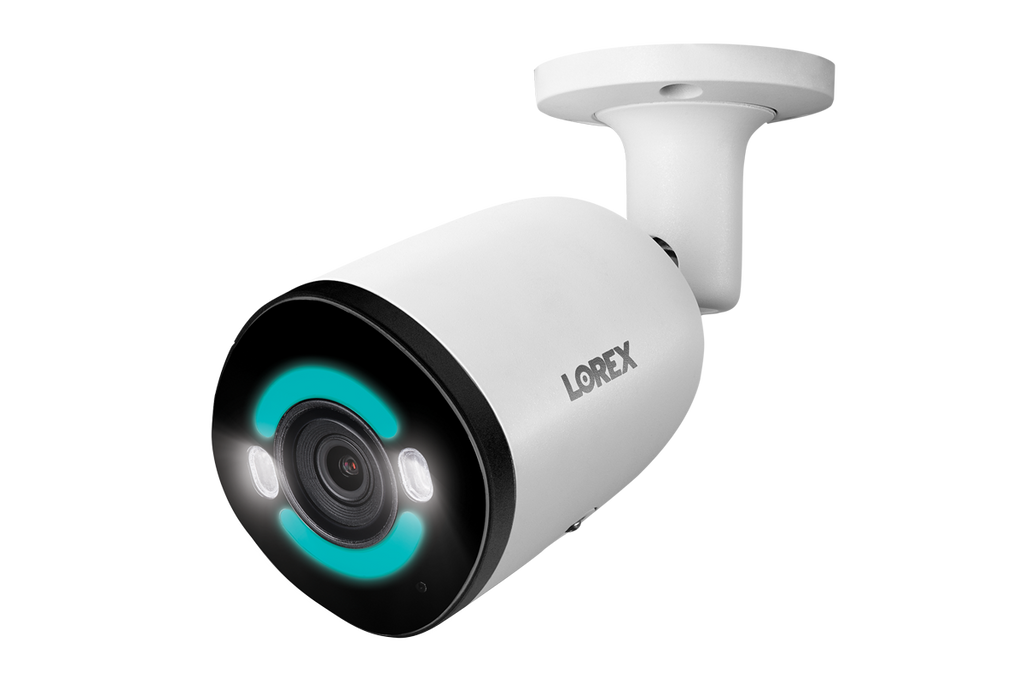

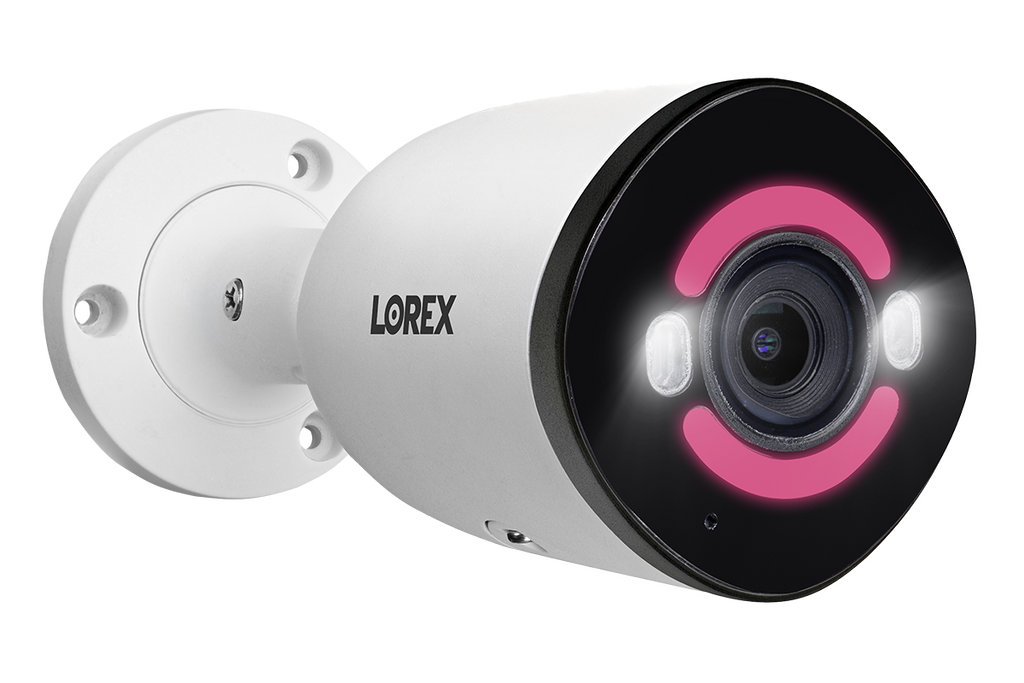

Lorex H30 - 4K+ 12MP IP Wired Bullet Security Camera with Smart Security Lighting and Smart Motion Detection

New Arrival

Become a Partner and Log in to see pricing and to place orders

Product Features

  • Recorder Required (Wired)
  • Ultra HD 12MP Resolution
  • Smart Deterrence
  • Smart Motion Detection
  • Smart Security Lighting
  • Enhanced Color Night Vision
  • Two-Way Audio
  • IP67 Weatherproof Rating
  • Wide Dynamic Range (WDR)

In-Camera Video Analytics

  • Person Detection Person Detection
  • Vehicle Detection Vehicle Detection
  • Face Recognition Face Recognition
  • Mask Detection Mask Detection
  • Package Detection Package Detection
  • Animal Detection Animal Detection

Product Specifications

Image Sensor 4K+ Ultra HD 12MP CMOS (4640 x 2624)
Video Format NTSC
Video Compression H.265/H.264 (Main Stream & Sub Stream)
Viewing Angle (Horizontal) 139°
Lens/Lens type 2.8mm F1.6/ Fixed
Resolution/Frame rate 4K+/12MP@15fps, 4K/8MP@15fps, 5MP@15fps, 1080p@15fps, 720p@15fps
Effective Pixels H:4512 x V:2512 (11.3MP)
Termination RJ45
Microphone/Speaker Yes/Yes
Siren Yes (Siren sound options available)
IR Night Vision Range 98 ft / 30 m
Color Night Vision™ Yes
AttEnhanced Color Night Vision Pixel Binning
Detection Types Vehicle, Person, Face, Face Mask, Animal & Package (Missing or Left Behind)
Supports in App Quick Messaging Yes
Active Deterrence Yes - Warning Light + Siren + Pre Recorded Message
Smart Security Lighting Yes
Camera Housing Material Aluminum Alloy
Power Requirements PoE (Power over Ethernet Class -802.3af)/12V DC
Power Consumption (max) 790mA / 9.5W
Camera Dimensions
(W × D × H)
2.9 x 6.9 x 2.9” / 78 x 174 x 78 mm
Camera Weight 1.15 lb / 0.52 kg
Operating Temperature -22 °F ~ 140 °F / -30 °C ~ 60 °C
Humidity < 95% RH
Environmental Rating IP67 (Indoor/Outdoor)

What's Included

E910AB Overview
  1. Cable Notch
  2. Adjustment Screw
  3. Speaker
  4. MicroSD Card Slot
  5. Reset Button
  6. IR (Infrared) Light
  7. Camera Lens
  8. Smart Security Lighting
  9. Warning Lights
  10. Microphone

Package Contents:

4K+ Bullet IP Camera

Mounting Kit

Ethernet Extension Cable*

*With pre-attached weather-resistant cap.

Product Compatibility

Product Support

E910AB Series - 4K+ 12MP SSL Bullet AI PoE IP Camera
