H Series

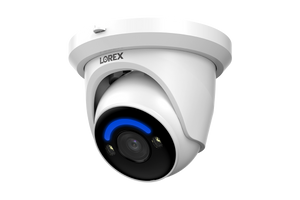

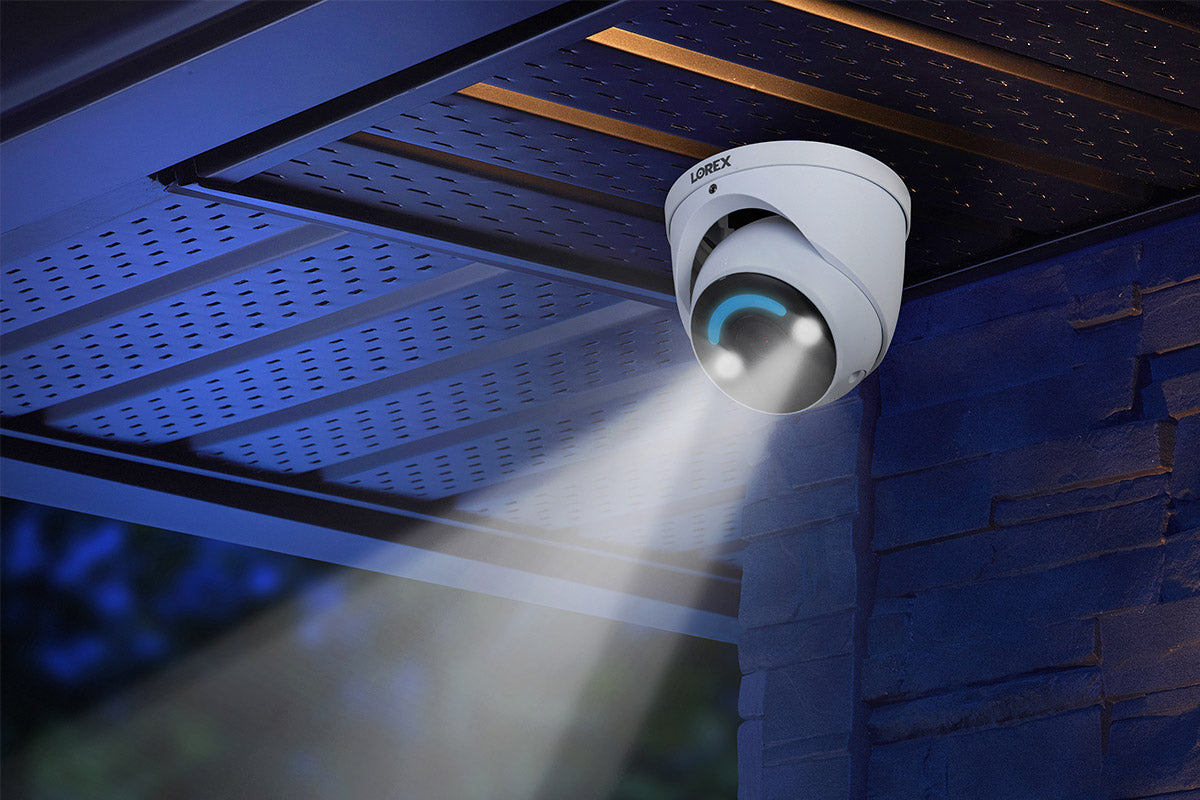

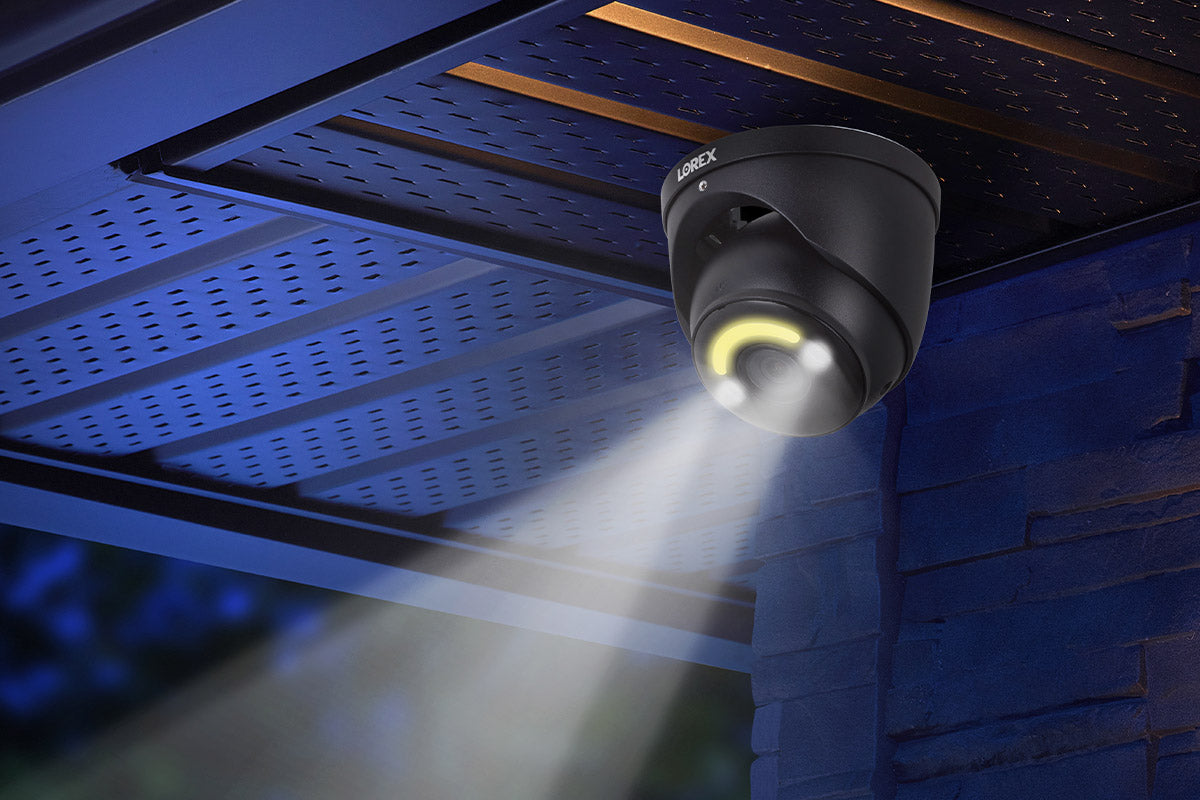

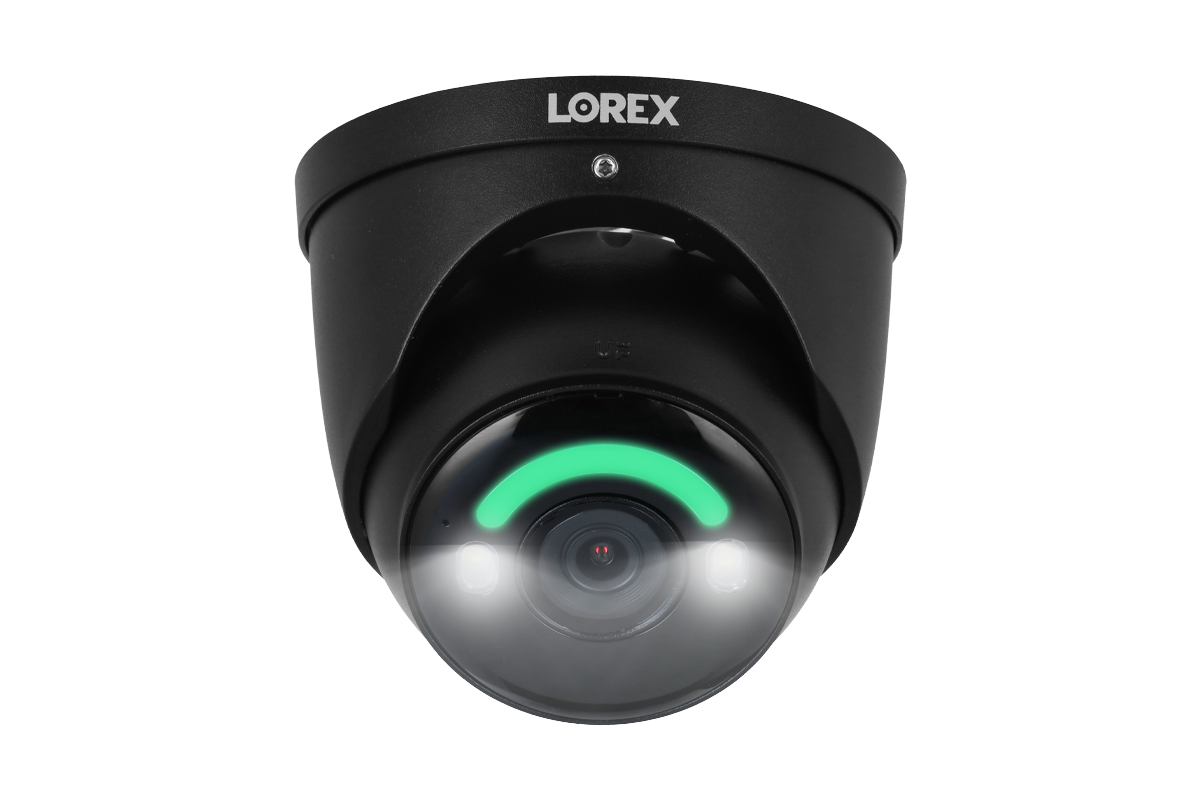

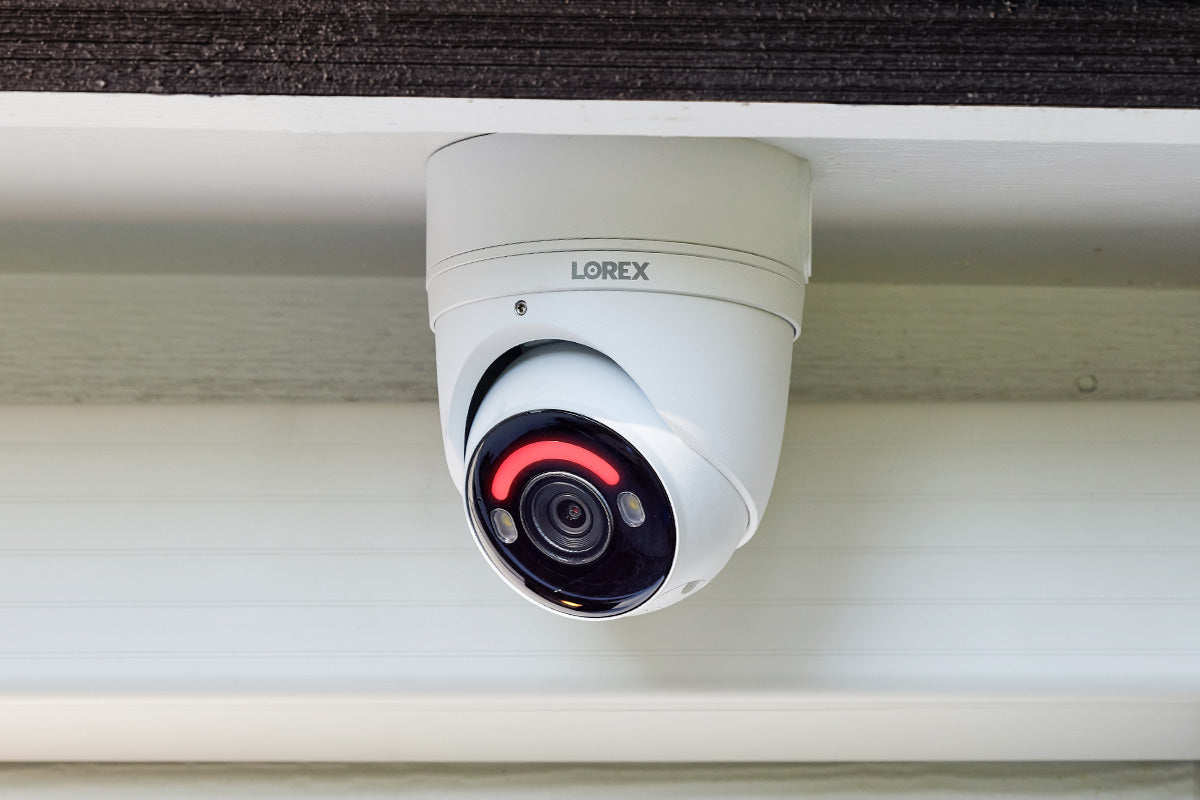

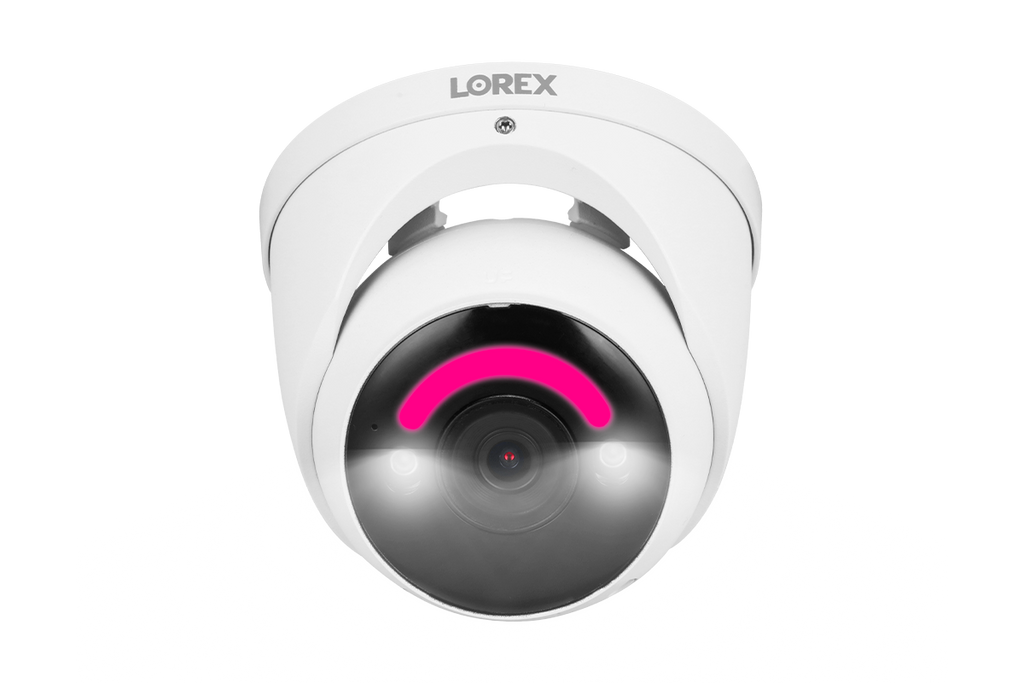

Lorex H16 - 4K IP Wired Dome Security Camera with Smart Security Lighting and Smart Motion Detection


Become a Partner and Log in to see pricing and to place orders

Product Features

  • Recorder Required (Wired)
  • Ultra HD Resolution
  • Smart Deterrence
  • Smart Motion Detection
  • Smart Security Lighting
  • Color Night Vision
  • Two-Way Audio
  • IP67 Weatherproof Rating
  • Wide Dynamic Range (WDR)

In-Camera Video Analytics

  • Person Detection Person Detection
  • Vehicle Detection Vehicle Detection
  • Face Recognition Face Recognition
  • Mask Detection Mask Detection
  • Package Detection Package Detection
  • Animal Detection Animal Detection

Product Specifications

Resolution/Frame rate 4K(8MP)@15fps, 5MP@30fps, 1080p@30fps, 720p@30fps
Image Sensor 8MP/4K 1/2.8” CMOS
Lens/Lens type 2.8mm F1.6/ Fixed
Viewing Angle 127° (diagonal)
Microphone/Speaker/2-Way Talk/Siren Yes
Color Night Vision Yes
IR Range 150ft (45m)/ 98ft (30m)
Smart Motion Detection(Person/Vehicle/Face/Mask/Package) Yes
Active Deterrence Yes - Warning Light + Siren + Pre Recorded Message + Smart Security Lighting
Camera Housing Material Aluminum Alloy
SD Card Slot Yes
Operating Temperature -22°F ~ 140°F /-30°C ~ 60°C
Environmental Rating IP67 (Indoor/Outdoor)
Camera Dimensions 122mm x 122mm x112mm

What's Included

E896DD Overview
  1. Adjustment Screw
  2. Smart Security Lighting
  3. Microphone
  4. Infrared (IR) Light
  5. Reset Button
  6. Speaker
  7. Camera Lens
  8. Warning Lights
  9. Cable Notch
  10. MicroSD Card Slot

Package Contents:

4K Deterrence IP Camera

Mounting Kit

Ethernet Extension Cable*

*With pre-attached weather-resistant cap.
  1. Compatible with select Lorex Network Video Recorders HD recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  2. Color nighttime video typically switches to black & white IR night vision when there is not sufficient ambient light to ensure optimal low-light image quality.
  3. Stated IR illumination range is based on ideal conditions in typical outdoor nighttime ambient lighting (up to 98ft/30m in total darkness). Actual range and image clarity depends on installation location, viewing area and light reflection/absorption.
  4. For Face Detection to operate, this camera requires a connection to a compatible Lorex Network Video Recorder with smart face detection technology. For a list of compatible recorders please visit: www.lorex.com/compatibility
  5. Audio recording is disabled by default. Audio recording without consent is illegal in certain jurisdictions. Lorex Technology does not assume liability for any use of its product that fails to conform with local laws
  6. Not intended for submersion in water. Installation in a sheltered location recommended.
  7. Cable length is dependent on product configuration. See product packaging for details.
  8. Mask Detection is compatible with select Lorex Network Video Recorders. For a full list of compatible recorders visit: www.lorex.com/compatibility
  9. Color Night Vision Booster can be enabled using the Lorex App and will light for 3 minutes when turned on.
  10. A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to the cloud for mobile app viewing.
  11. When Face Detection is enabled, all other Smart Plans will be disabled. When not using Face Detection, Smart Plans vary by model. Click here to learn more

All trademarks belong to their respective owners. No claim is made to the exclusive right to use the trademarks listed, other than the trademarks owned by Lorex Corporation. We reserve the right to change models, configurations or specifications without notice or liability. Product may not be exactly as shown.

Apple, the Apple logo and AppleTV are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.
Google, Google Home, Google Play, Google Play logo, Google Assistant logo and Chromecast are trademarks of Google Inc.
Amazon, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates. 2-way communication is not available via Alexa.
