Person Detection
Vehicle Detection
Download Full Specs
You are now leaving the Lorex for Business website. Would you like to continue to Lorex’s consumer site?
Product Features
- Recorder Required (Wired)
- Ultra HD Resolution
- Smart Motion Detection
- Color Night Vision
- Listen-In Audio
- IP67 Weatherproof Rating
- Wide Dynamic Range (WDR)
Experience advanced security with the Lorex 4K IP Wired Dome Security Camera. It boasts 4K resolution along with Color Night Vision and Smart Person and Vehicle detection, allowing you to keep watch of your property with unprecedented clarity, even in dark environments. Capture and listen in to audio with the built-in microphone for an extra layer of protection.
In-Camera Video Analytics
Product Specifications
| Viewing Angle (Diagonal) | 125° |
|---|---|
| Lens / Lens type | 2.8mm F2.0/ Fixed |
| Resolution / Frame rate | 4K(8MP)@15fps, 4MP@30fps, 1080p@30fps, 720p@30fps |
| Effective Pixels | H:3840 x V:2160 |
| HDR | Yes |
| Microphone/Speaker | Yes / No |
| IR Night Vision Range | 98ft (30m) |
| Color Night Vision | Yes |
| Smart Motion Detection | Yes - Person and Vehicle Detection |
| Camera Housing Material | Aluminum Alloy |
|---|---|
| Power Requirements | PoE (Power over Ethernet Class - 802.3af)/12V DC |
| Power Consumption (max) | 5.4W (PoE) |
| Camera Weight | 0.75lbs / 0.34kg |
| Operating Temperature | -40°F (-40°C) ~ +140°F (+60°C) |
| Humidity | ≤95% |
| Environmental Rating | IP67 |
What's Included
Package Contents:
4K Ultra HD Dome Camera
Cat5 Ethernet Extension Cable
Mounting Kit
Mounting Bracket
*Audio recording and listen-in audio are disabled by default. Audio recording and/or use of listen-in audio without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.
**A microSD card can be inserted for independent recording. Data can be accessed through the camera using a web browser but will not upload to the NVR or to
the cloud for mobile app viewing
Product Compatibility
Product Support

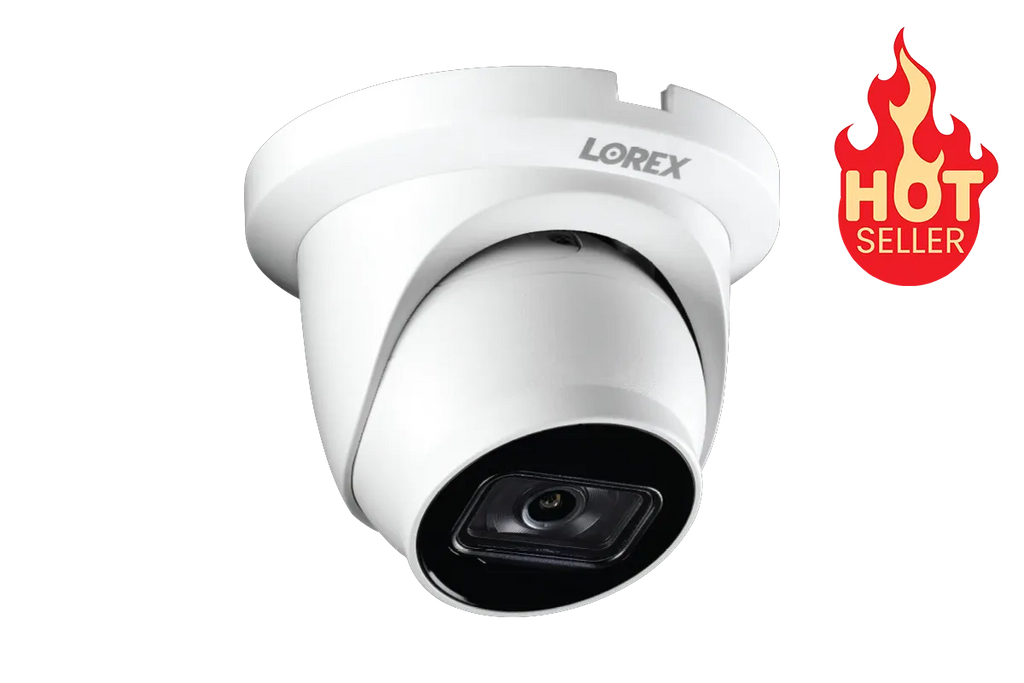

E842CD Series - 4K IP Wired Dome Security Camera
