Product Features
- IEEE 802.3at/af compliant
- 120W PoE budget
- 30W per PoE port
- Plug and play installation
- Up to 100m (328ft)
- Works with Lorex IP cameras, VoIP phones, access points and repeaters

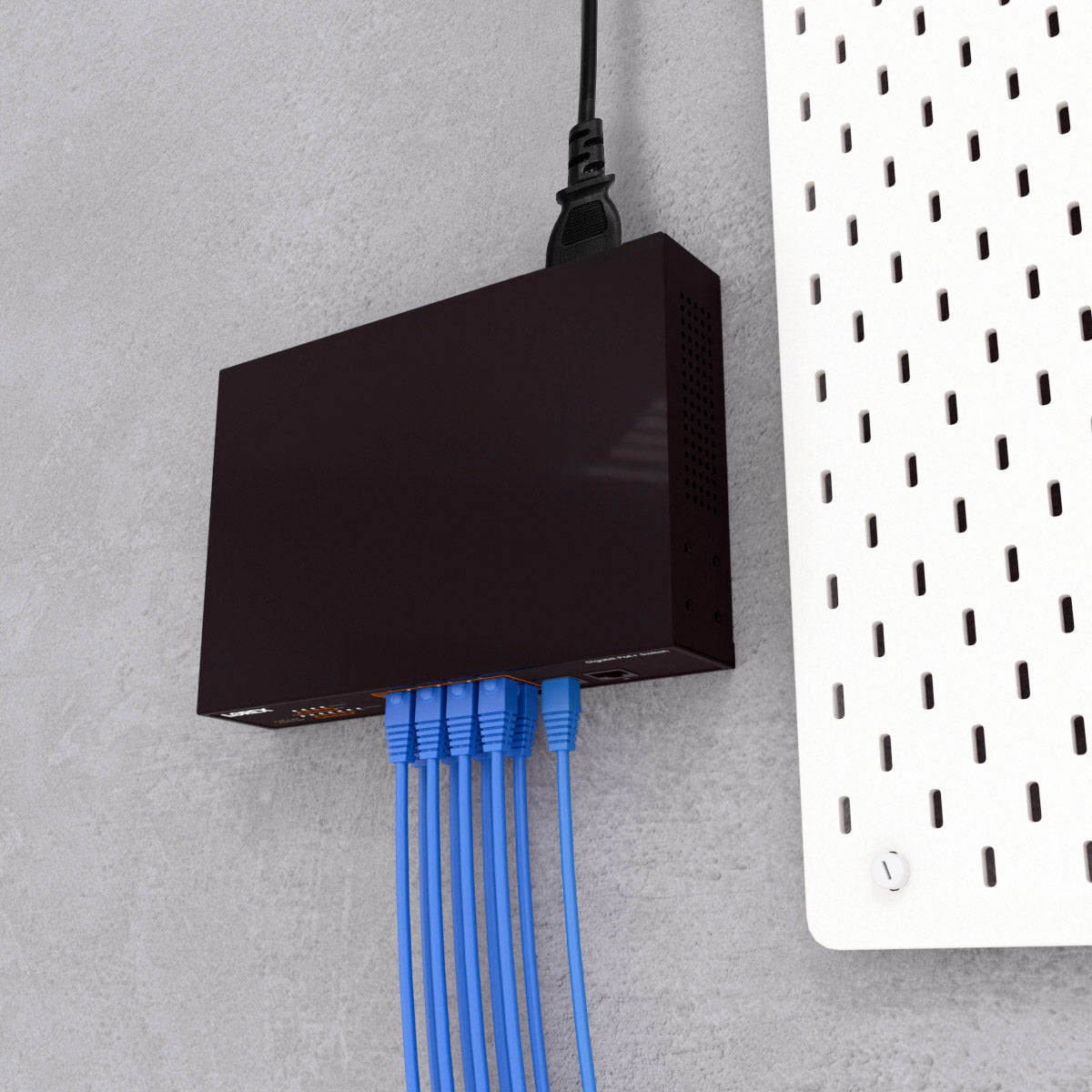

- Quick and easy mounting - flush against a wall or on a server rack.
Add-Ons
Product Discontinued: Meet the next generation

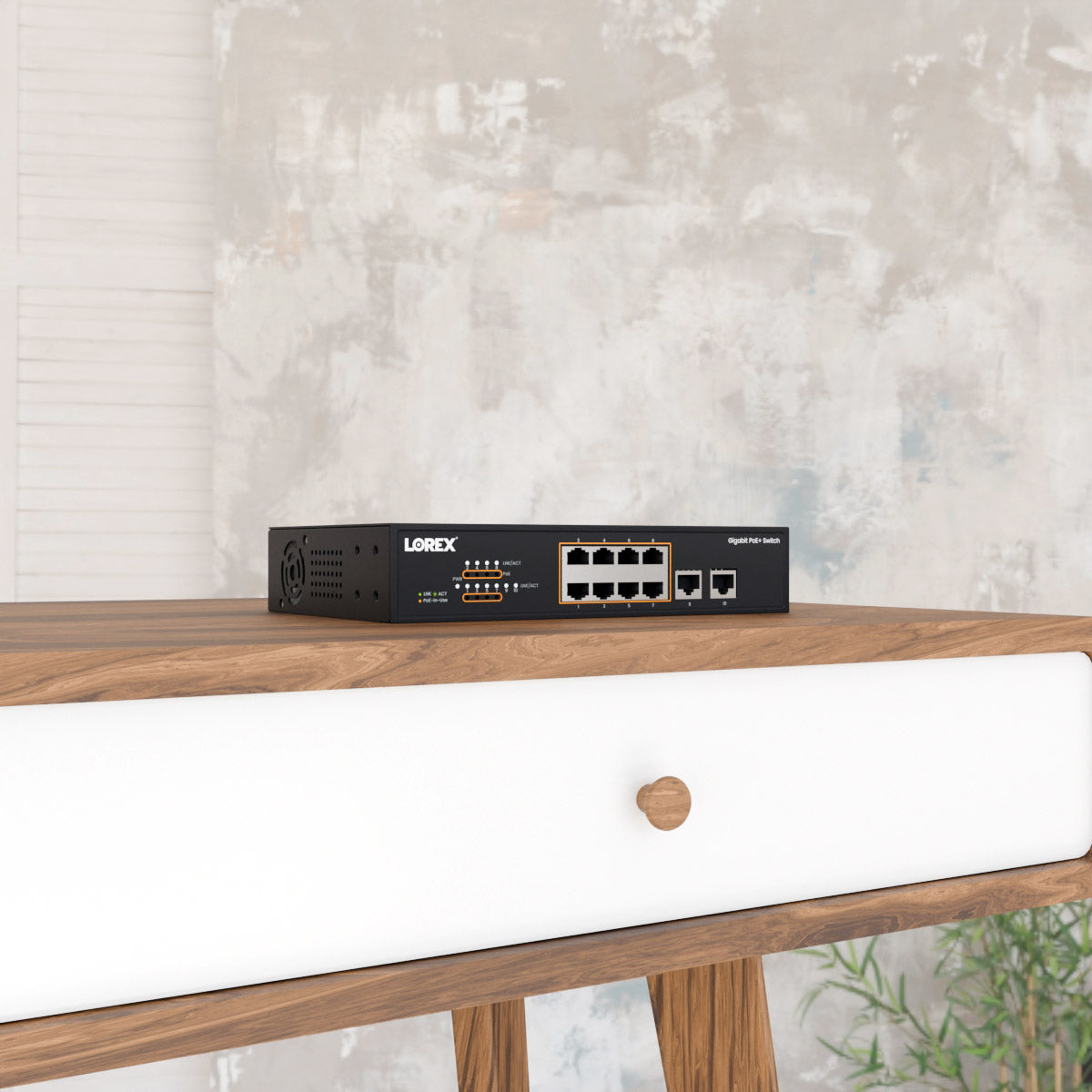

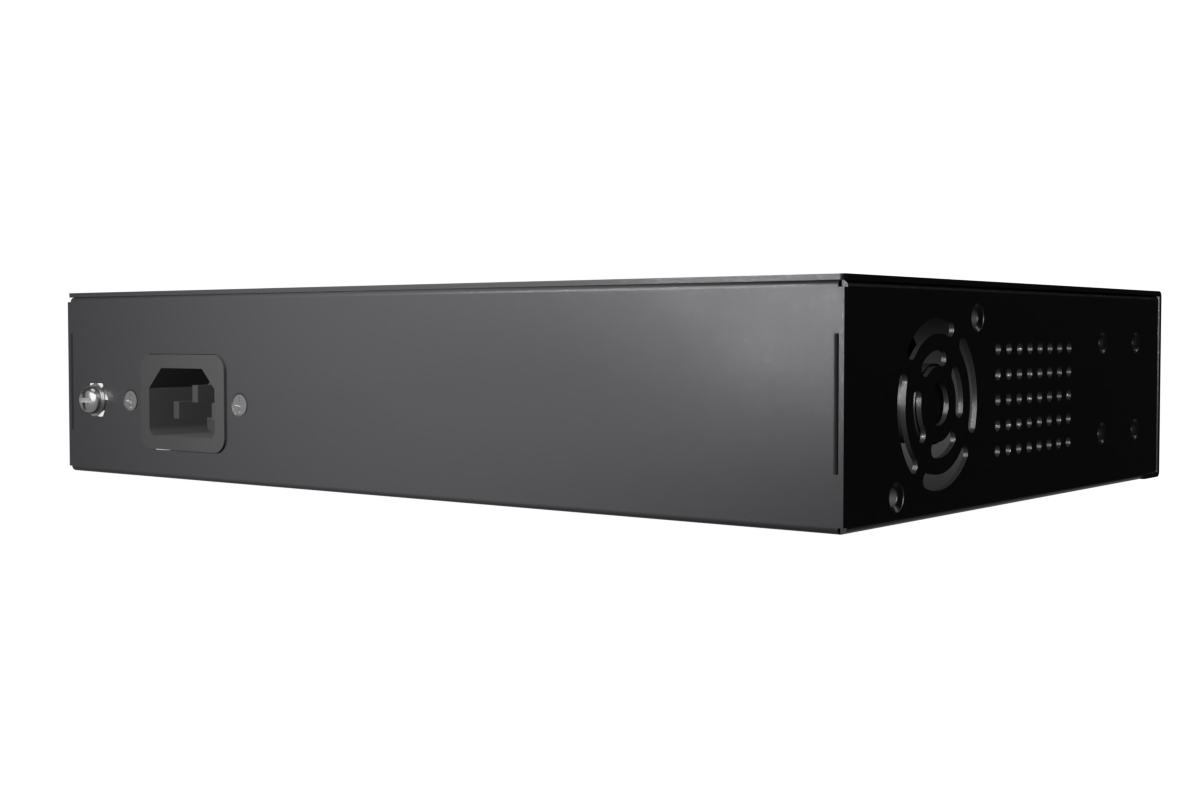

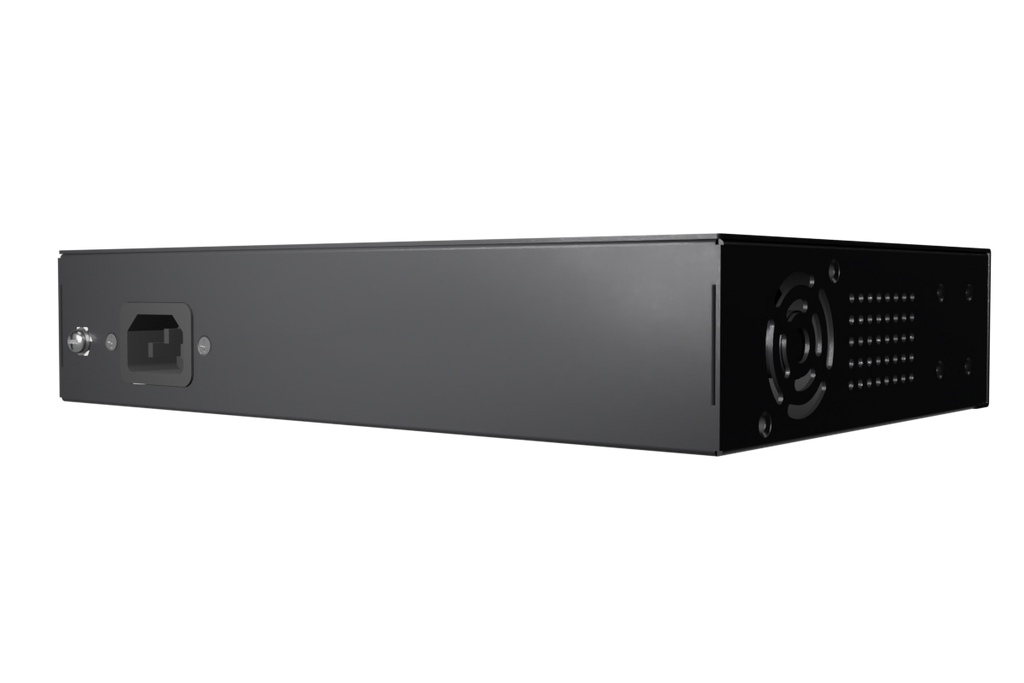

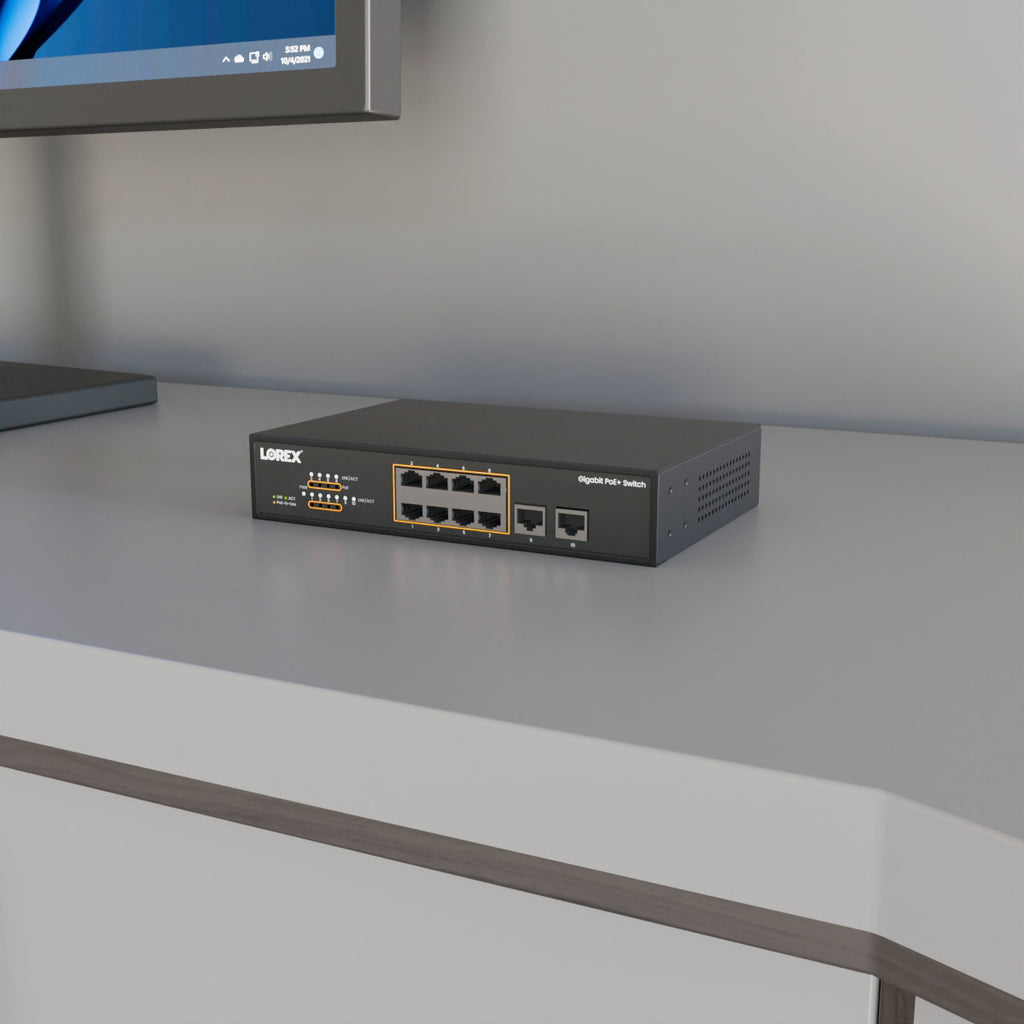

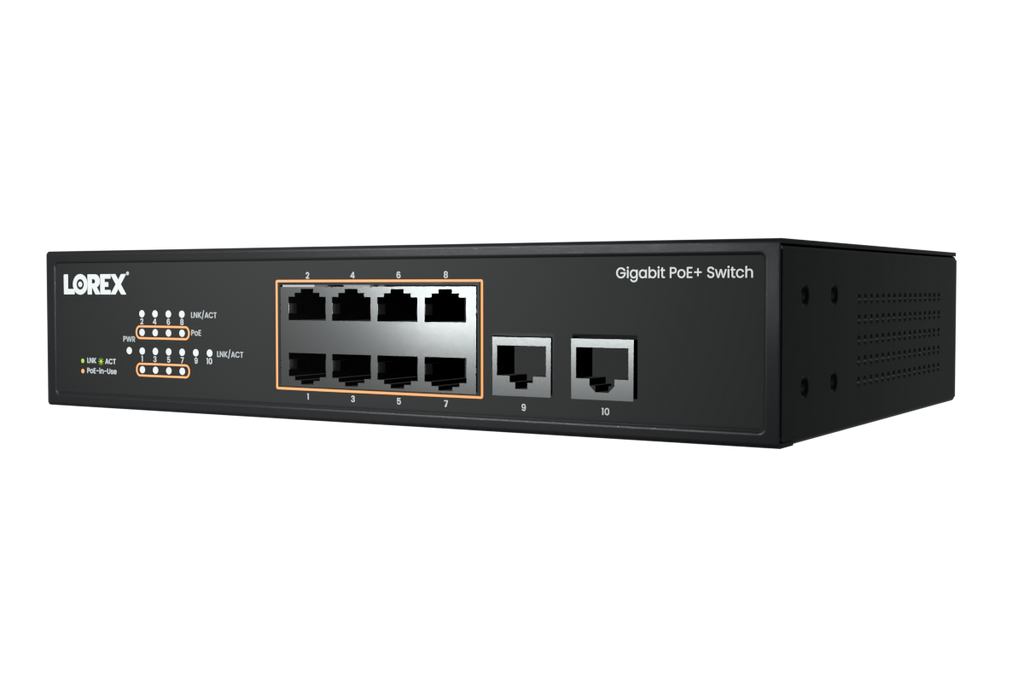

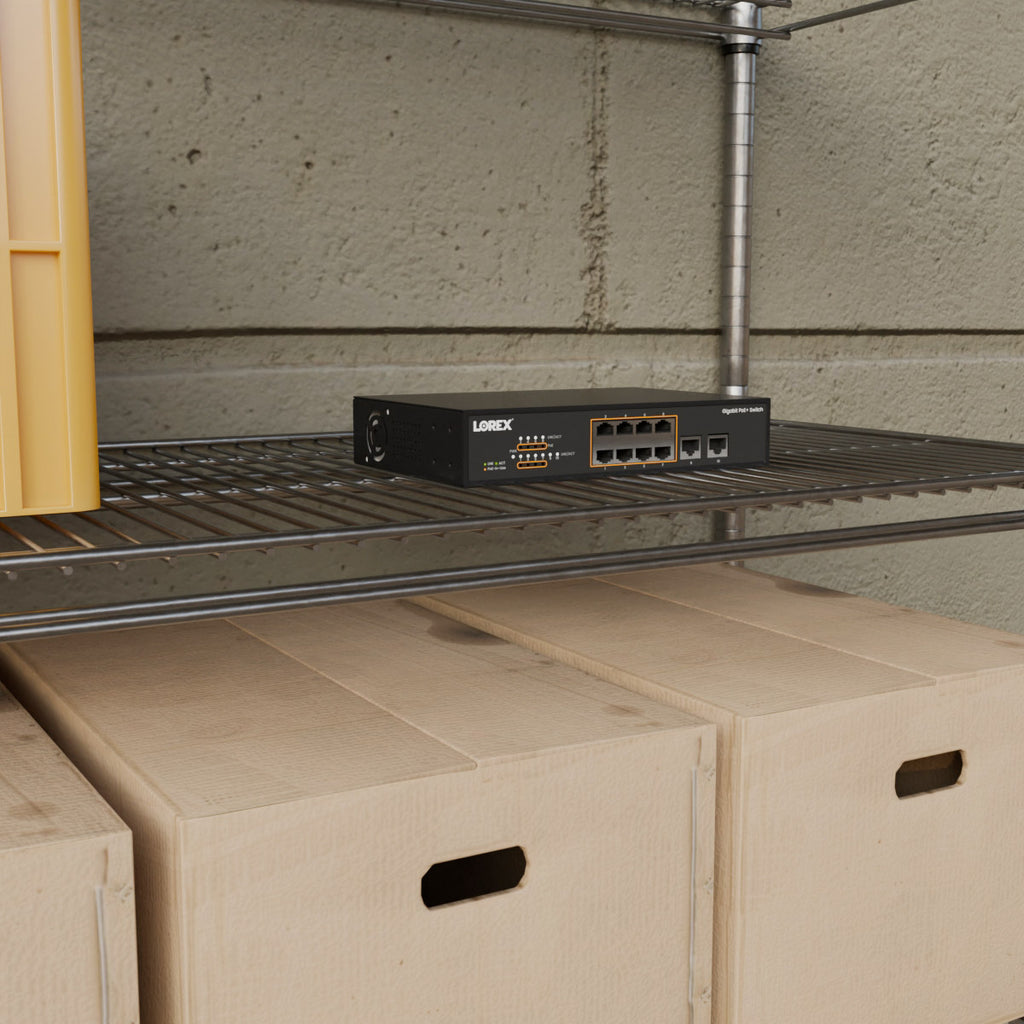

Expand the reach and simplify the cabling of your NVR security camera system with this 8-Port Gigabit Ethernet PoE+ Unmanaged Switch.
Product Specifications
| Interface | 10 × 10/100/1000Mbps RJ45 ports |
|---|---|
| PoE Standard | IEEE802.3af/at |
| PoE Ports | 1 to 8 |
| Total PoE Power | 120W |
| Power Supply | 130W |
| Max PoE Port Outputy | 30W |
| Indicators | PWR (Green), LNK/ACT (Green), PoE (Orange) |
| Network Media |
10BASE-T: UTP Cable (≤ 100m) 100BASE-TX: UTP Cable (≤ 100m) 1000BASE-T: UTP Cable (≤ 100m) |
| MAC Address Table | 2K, automatic study, automatic updates |
| Jumbo Frame | 9K Bytes |
| Packet Buffer | 2M bit |
| Transfer Mode | Store-and-forward |
| DimePacket Forwarding Rate | 14.88Mbps |
| Bandwidth | 20Gbps |
| Fan | 1 fan |
|---|---|
| Product Dimensions (L × W × H) | 8.66 × 5.90 × 1.73” / 220 × 150 × 44 mm |
| Green Energy Saving | Support IEEE802.3az |
| Voltage Input | 100 to 240 VAC, 50/60Hz |
| Operating Temperature | 32 °F to 104 °F / 0 °C to 40 °C |
| Storage Temperature | -40 °F to 158 °F / -40 °C to 70 °C |
| Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 5% to 90% non-condensing |
| Surge Protection |
Common mode ± 4KV, Differential mode ± 2KV |
| Certifications | FCC, IC, CE, UKCA |
| MTBF | > 50000 hours |
| Electrostatic Standard | Contact ± 6KV, Air ± 8KV |
What's Included
Package Contents:
PoE Switch
Power Cord
4 × Rubber Feet
2 × Rack Mount Brackets
8 × Screws
