Name: 5V 2A USB Power Adapter for Lorex Battery Security Cameras
Brand: Lorex
SKU: AP5V2000W-U
Rating: 5.0 (1 reviews)

Roll over image to zoom in Click on image to zoom

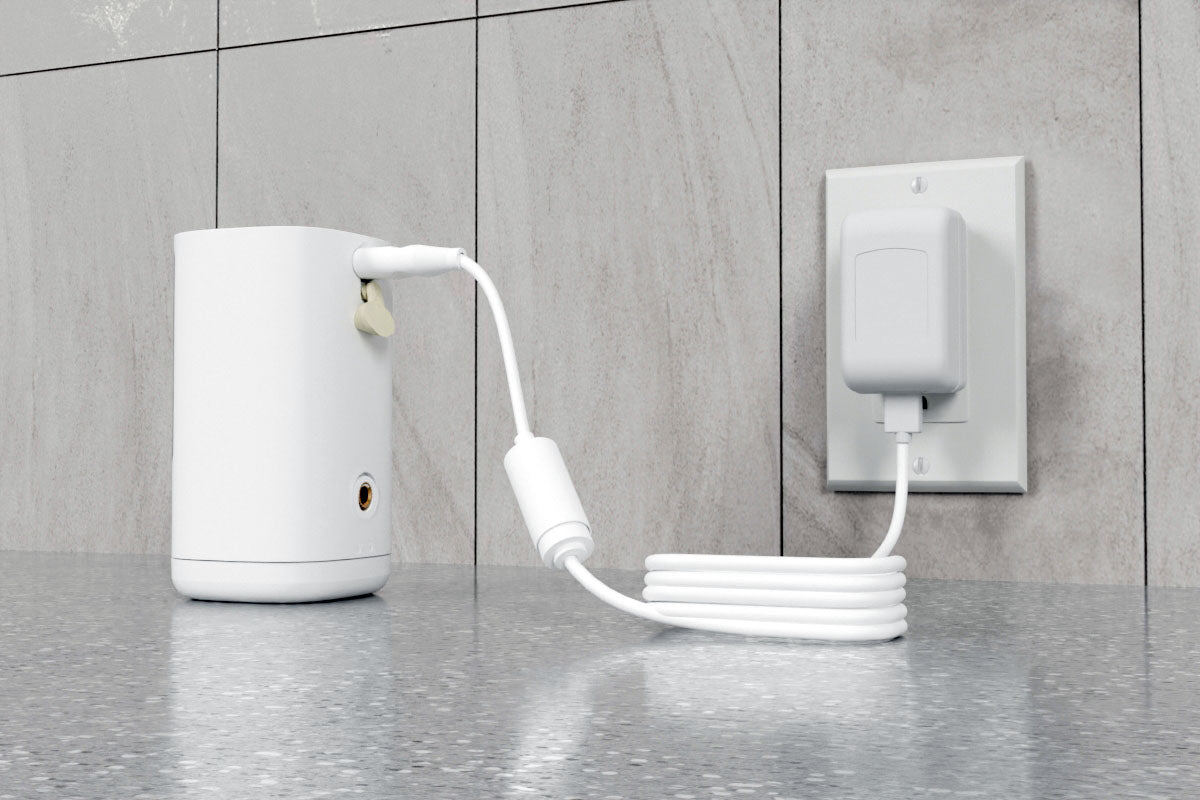

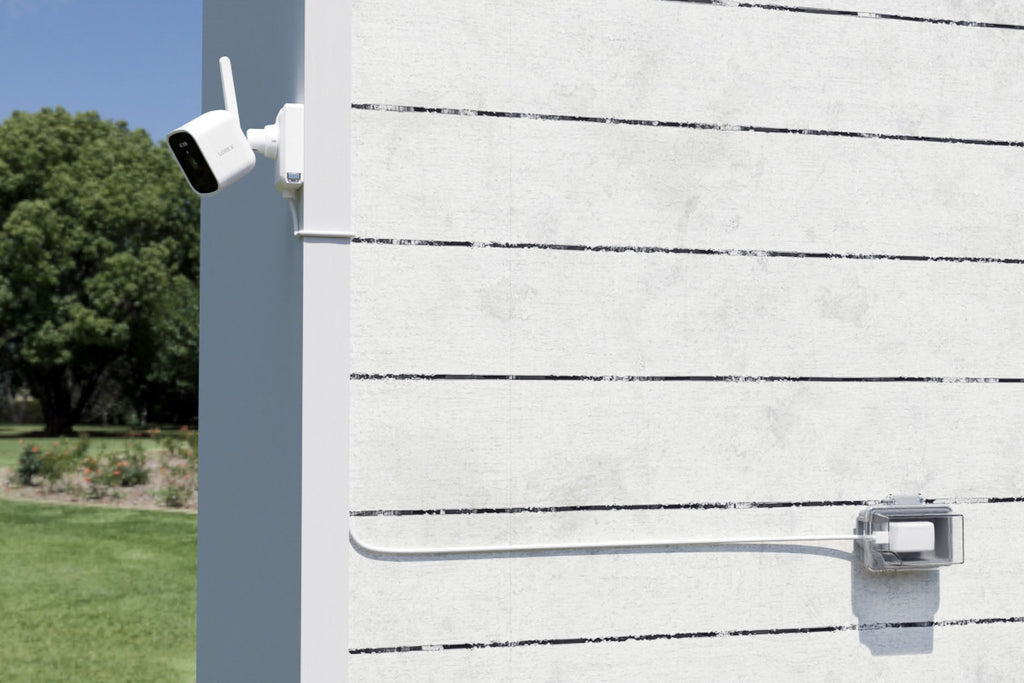

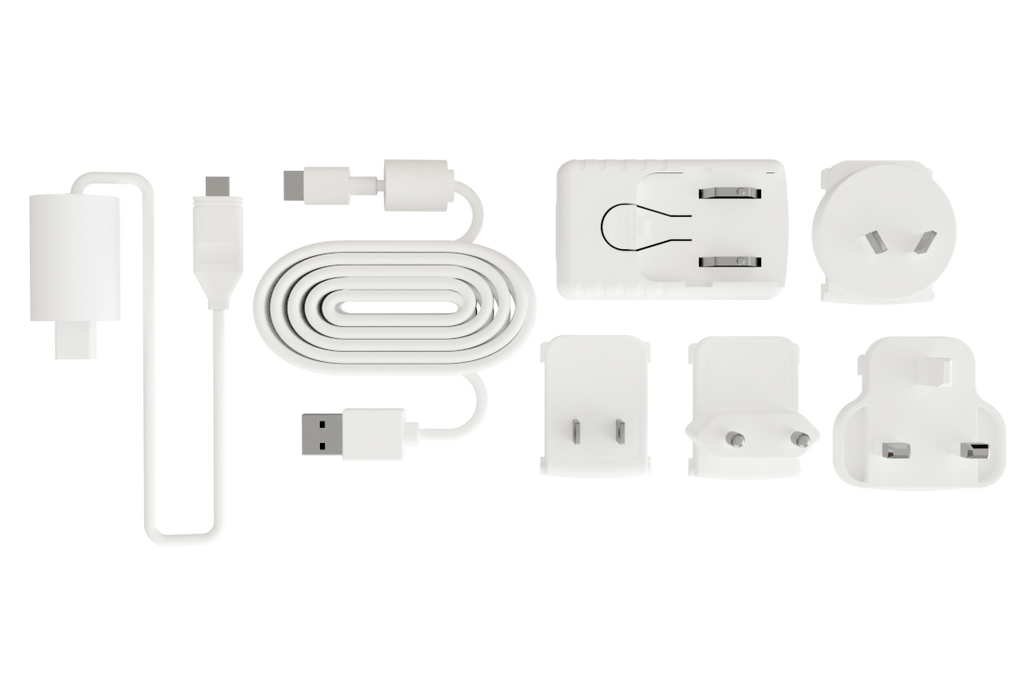

Use this power adapter to provide continuous power to your battery-operated cameras (U424, U85AA, U471AA). US, UK, EU, and AUS adapters all included.

Product Specifications

Input Characteristics
Rated Voltage	AC100-240V
Variation Range	AC90-264V
Rated Frequency	50/60 Hz
Variation Frequency	47-63 Hz
Input Current	0.4 A max
AC Leakage Current	0.25 mAh max. at 240 VAC
Output Characteristics
Voltage Output	5V
Minimum Load	0 A
Maximum Load	2.0 A
Rated Output Power	10 W
Output Ripple & Noise	100 mVp-p max.
Turn-On Delay Time	3 sec max. at 100 VAC input
Rise Time	100 ms max. at 100 VAC input
Hold Up Time	5 ms min. at 100 VAC
Overshoot Voltage	10% max. at turn on or off
Average Efficiency	78.70% min. at input 115/230 VAC, and 100%, 75%, 50%, 25% Rated Load
Protection Function	Short circuit protection, Over current protection

Environmental Requirement
Operating Temperature	32 °F to 104 °F / 0 °C to 40 °C
Installation Temperature	-4 °F to 158 °F / -20 °C to 70 °C
Relative Humidity	5% to 90%, non-condensing
Mechanical Requirement
Enclosure (L × W × H)	2.58 × 1.56 × 1.41” / 65.5 × 39.5 × 35.7 mm
Weight	68.5g
Color	White
Port	USB Type A Female
Extension Cable
Input End	USB Type A Male
Output End	USB Micro B Male (Compatible with U855AA, U424AA camera models)
Length	14.76 ft / 4.5 m
Power Plugs
Type	Types A, C, G, I
Cable Converter
Length	14.17” / 360 mm
Input End	USB Micro B Female
Output End	USB Micro B Male (Compatible with U471AA camera)
