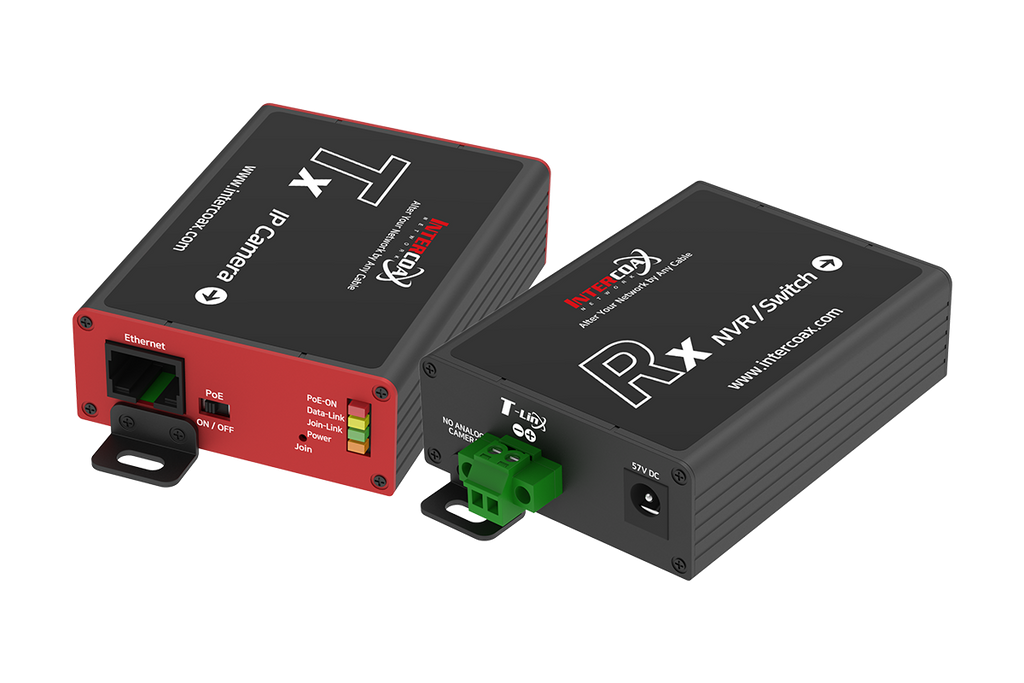

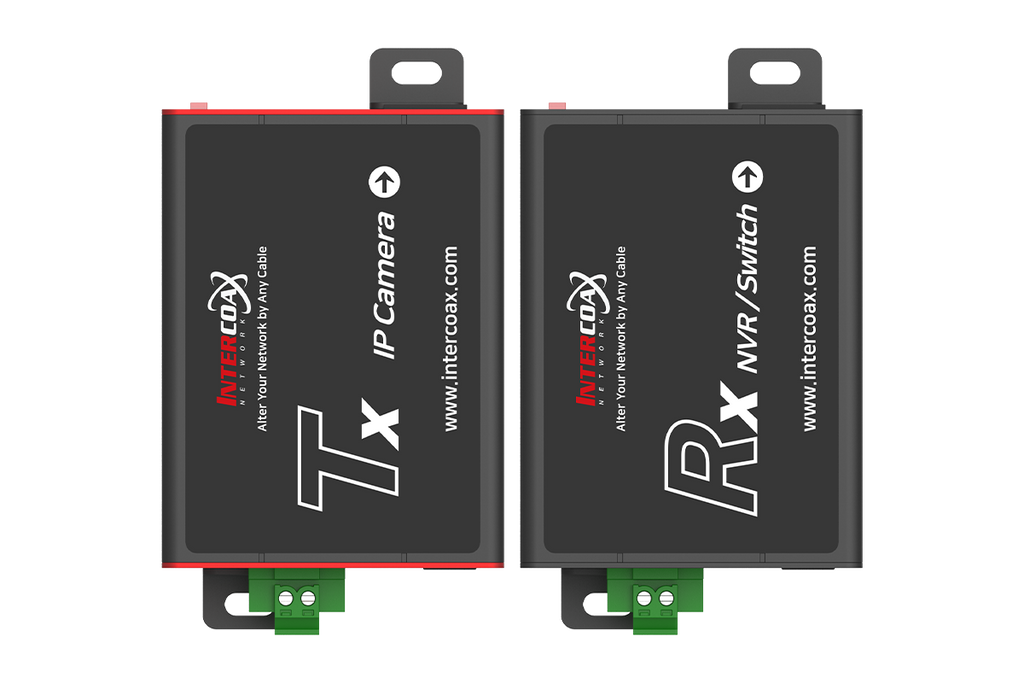

Professional Single Port IP & PoE over 2-Wire Set (600m/2000ft end-to-end converters)

Key Features:

Ethernet over 2-Wire communication following IEEE1901 Standard
Data + Power over 2-Wire cable (UTP, COM, Power Line, etc.)
Supports long distance Untwisted/Twisted 2-Wire cables
Data distance up to 600m
PoE distance up to 300m
Max. 95Mbps Bandwidth (270Mbps between Intercoax 2 series models)
10/100 Full Duplex
128bit AES network encryption
Supports Multi-connection (Daisy chain, Star, etc.)
PoE, PoE+, Extra PoE (Max. 60W output) (ETP-2601T only)
PoE ON/OFF Switch (ETP-2601T only)
LED Indication (Data, Power, Link, PoE)
Plug and Play
Surge Protection
Support PoE+ Input (25.5W) from PSE devices – ETP-2601R Only
Slim design

Add-Ons

Data + PoE
over Any 2-Wire

600m (1970ft)
Long Range

PoE from NVR
to IP Camera

Twisted or Untwisted
2-Wire

Solid or Stranded
2-Wire

60W
PoE++

Surge / Short
Protection

Simplified
Installation

Cost
Saving

The ETP-2601 is a high-speed, long-distance Ethernet & PoE extender that enables the transmission of Ethernet signals and PoE via 2-Wire cable (twisted pair cable, COM, power line) in various situations. It offers a cost-effective and time-saving solution for migrating existing analog systems to IP-based systems, as the ETP-2601 supports easy installation using existing cables. With its long-distance transmission capability, this device easily overcomes the 100-meter distance limitation and significantly reduces construction costs compared to fiber optic configurations.

Connection Diagram

Additional installation of IP cameras on current system

Upgrade Elevator Cab Cameras Without Rewiring the Shaft

Modernize elevator surveillance using existing cabling. The Single Port IP & PoE over 2-Wire Set transmitter and receiver allow installers to connect IP cameras through existing 2-wire, telephone, or traveling cable, helping reduce installation time, disruption, and the need for new shaft wiring while supporting reliable PoE transmission between the machine room and elevator cab.
